Alternator - Ford - AXA974 - OEX - NOS

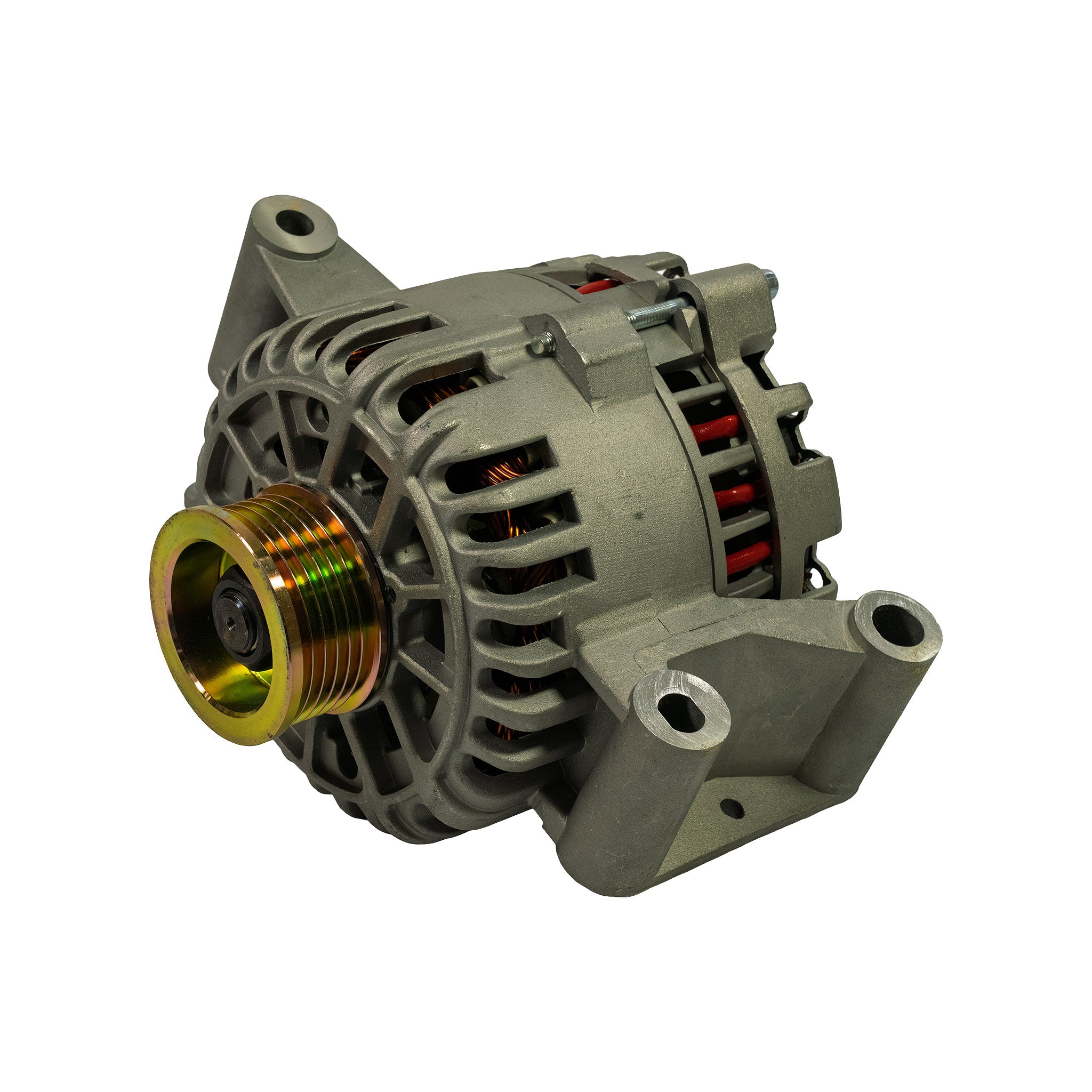

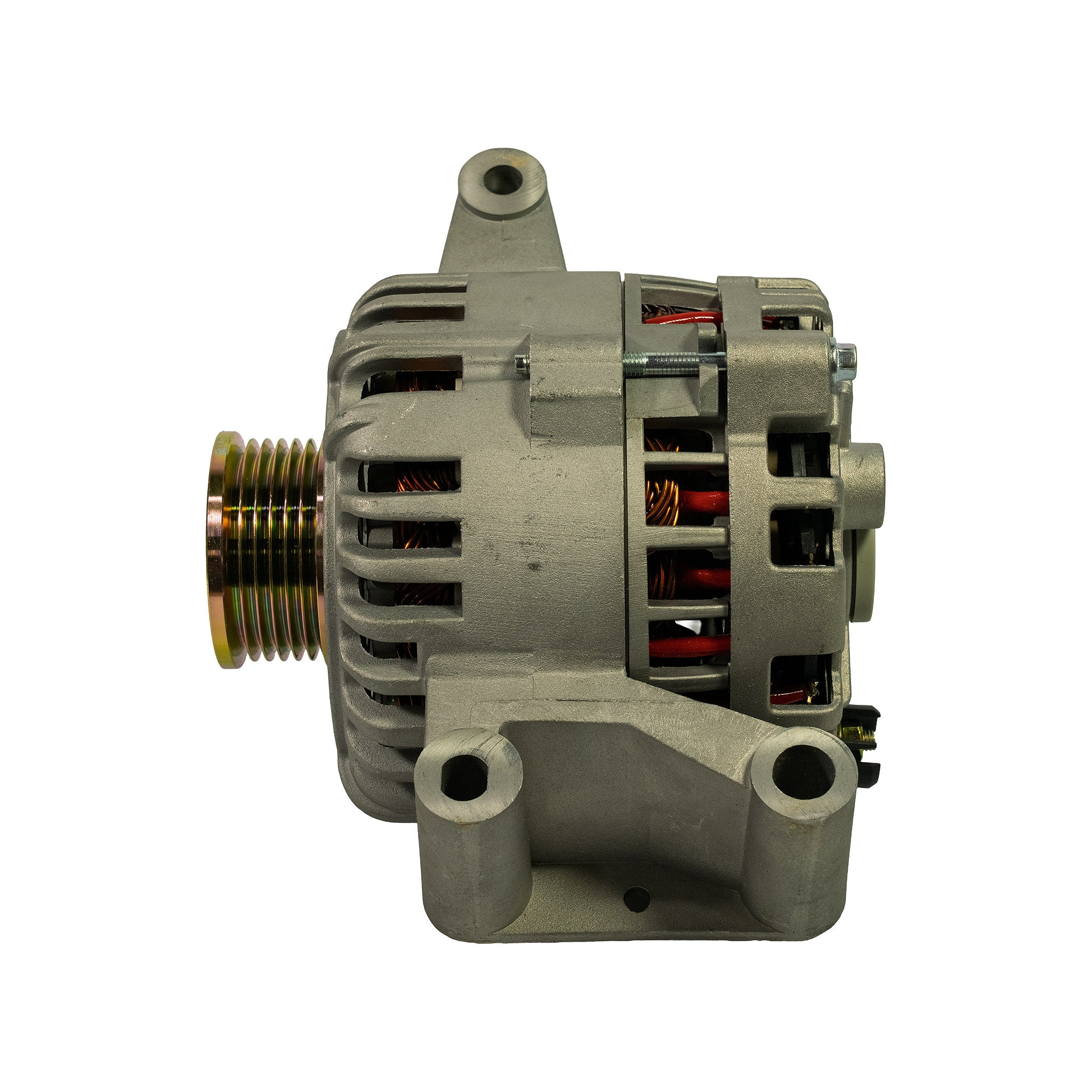

Right-side profile of alternator, pulley at left. Unipoint label partially visible on body. Two lower mounting lugs and terminal connector housing at rear clearly shown. Copper windings visible through vents. No wear or damage present.

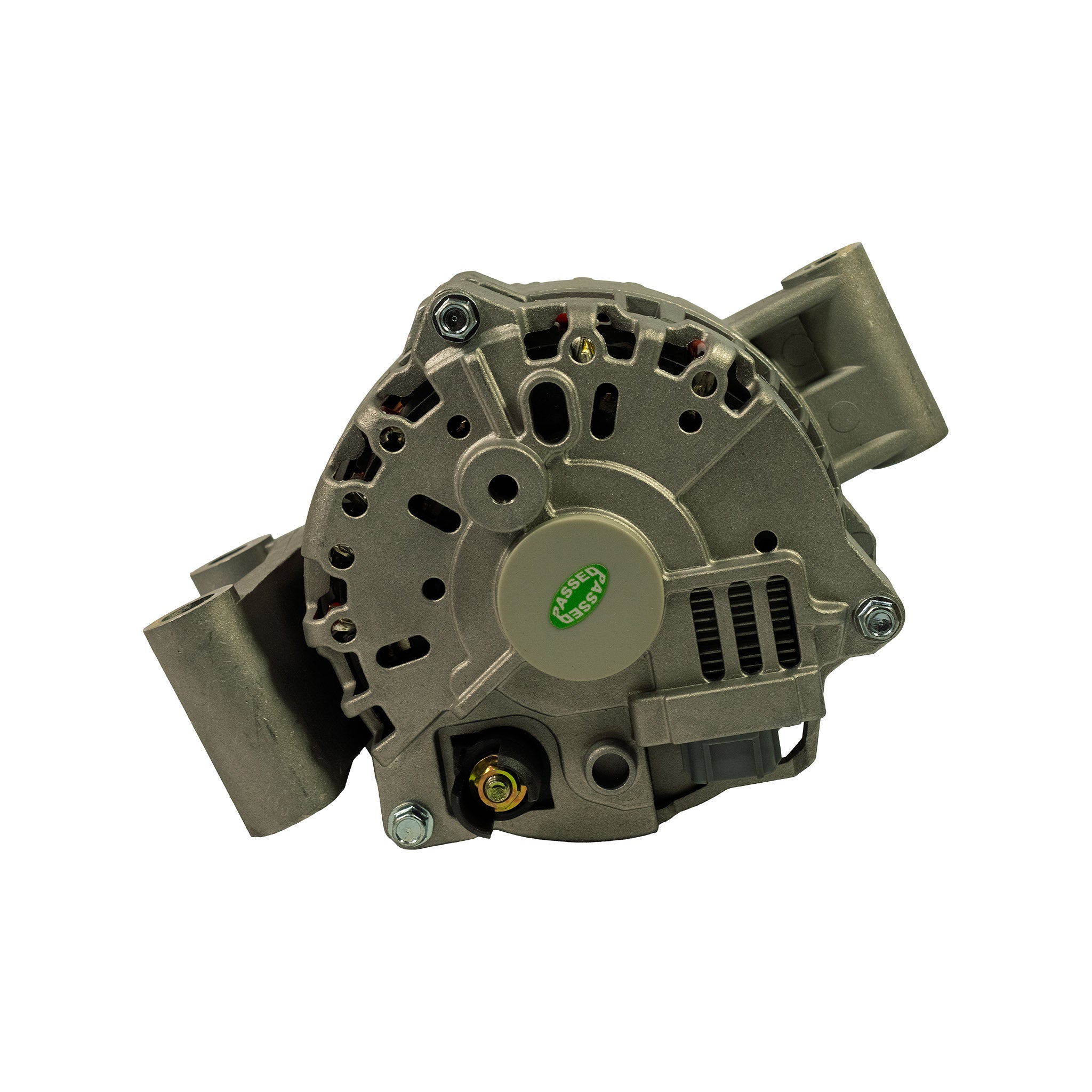

Rear/slip-ring end of alternator. Open rear housing showing rotor, regulator, and rectifier assembly with red diode leads. Green 'PASSED' quality control sticker affixed centrally to rear housing. Single B+ terminal stud and plug connector visible at lower rear. Unused condition confirmed.

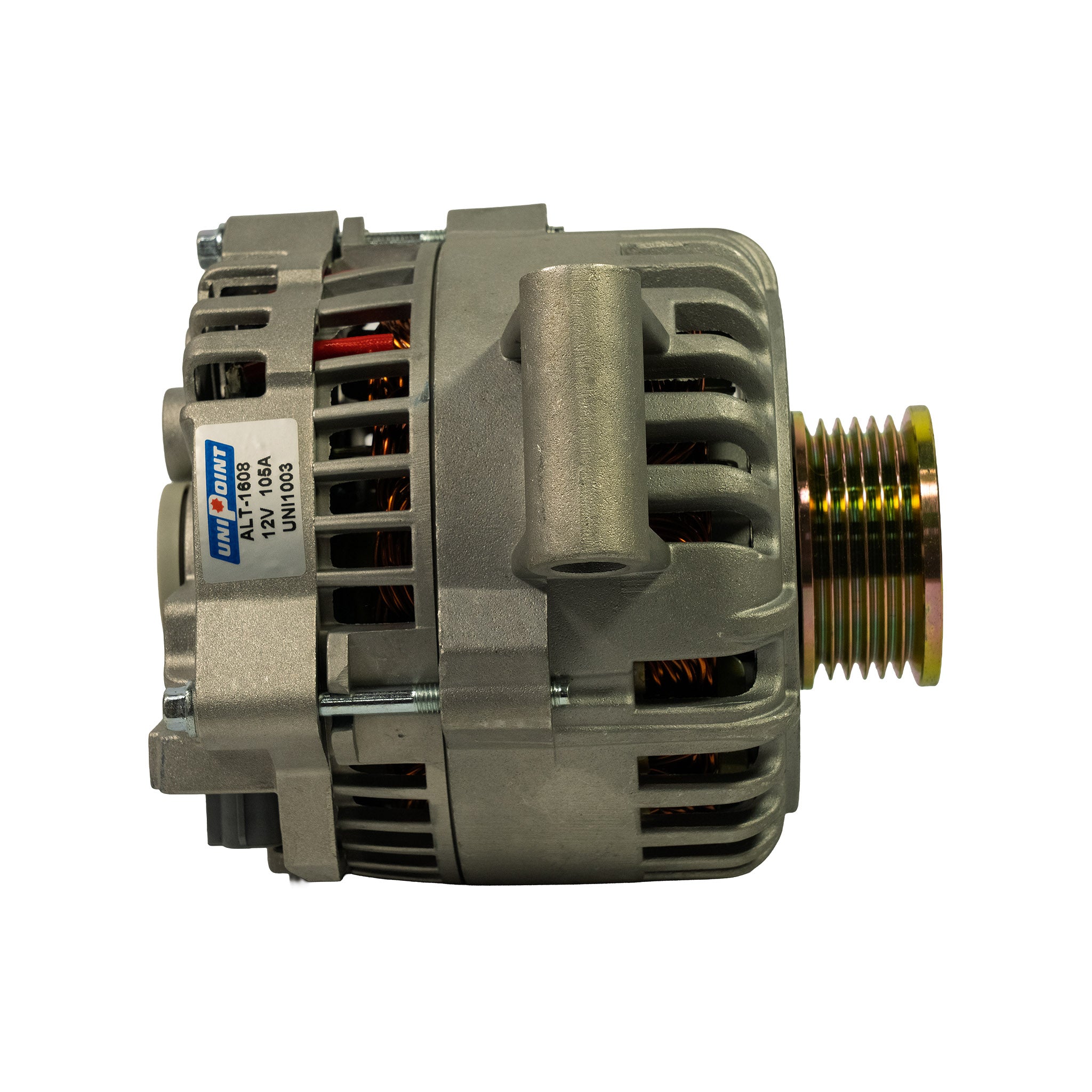

Right-side profile with Unipoint brand label clearly legible: 'ALT-1608 / 12V 105A / UNI1003'. 6-groove gold-zinc pulley at right. Terminal connector block visible at lower left. Part appears new with no signs of installation or wear.

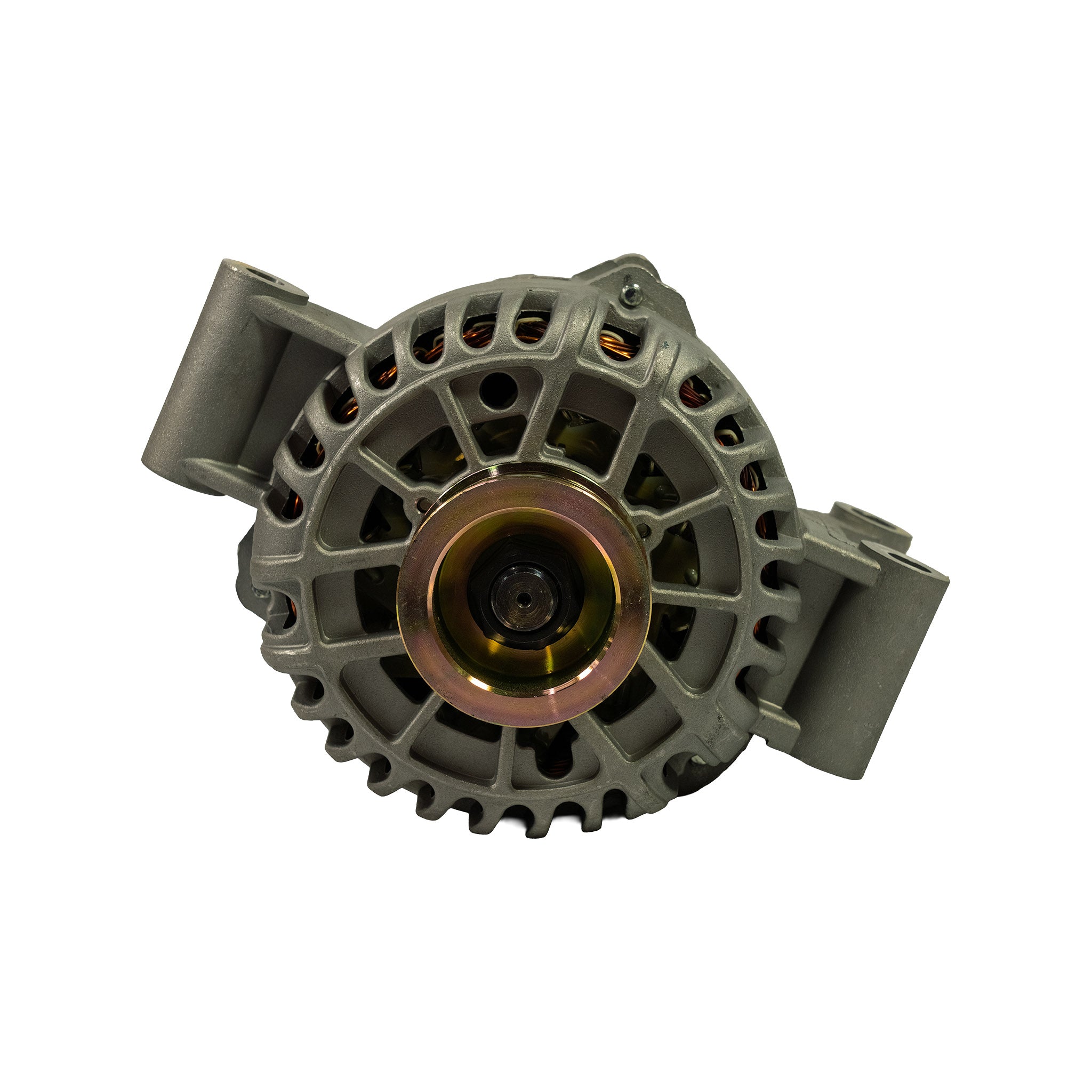

Pulley-end face-on view. 6-groove poly-V gold-zinc pulley centred with overrunning alternator decoupler (OAD) hub visible. Open front casting with copper rotor windings visible around perimeter. Two outer mounting lug bores visible top and bottom.

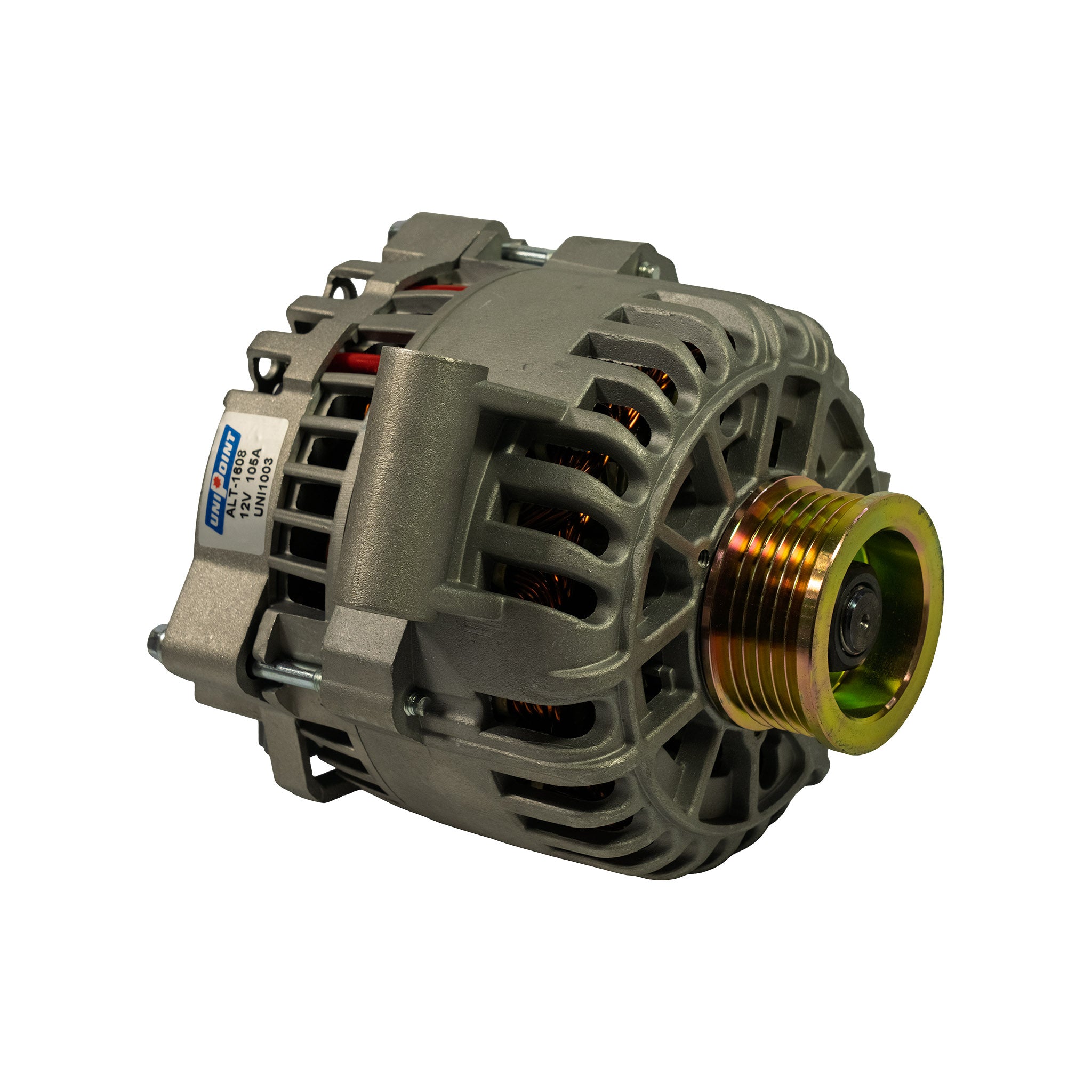

3/4 front-right angle showing Unipoint label (ALT-1608 / 12V 105A / UNI1003) and rear terminal connector. Gold-zinc pulley at right. All four mounting lugs visible. No damage or wear.

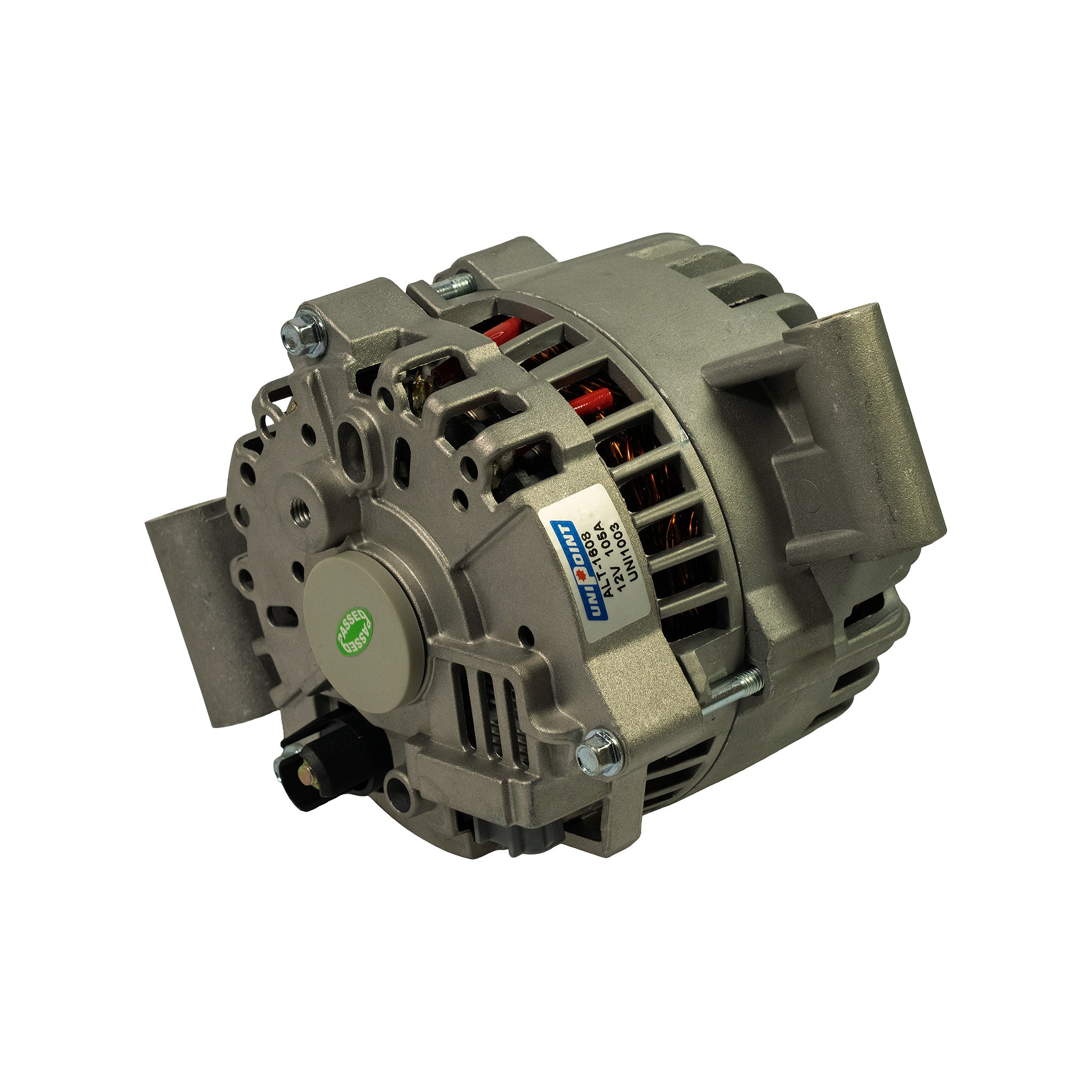

3/4 rear-right angle showing rear face, green 'PASSED' sticker, Unipoint label, B+ terminal stud with gold nut, and multi-pin plug connector. Rectifier and regulator assembly visible through rear housing openings.

Alternator - Ford - AXA974 - OEX - NOS

Only 1 left!
Brand OEX
Part Number AXA974
Type Alternator
Condition New Old Stock

Specifications

  • Voltage: 12V
  • Amperage (rated): 105A

Vehicle Fitment

Ford Focus 2000-2004 L4 2.0L
Ford Fiesta 2004-2006 WP 1.6L
Mazda 2 (select models)

Cross References

Part Numbers Relationship
1S41-10300-BB, 98AB-10300-FC, 98AZ-10346-FA OE original
GL-455, 23721, 112959, 400-14051, 8261, AFD0061 equivalent
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock. Part unused and uninstalled with green 'PASSED' QC sticker intact on rear housing. Outer box has crush damage to bottom-left corner and shelf scuffing but remains structurally intact. Computer test printout included with unit. Electrical components should be tested by a qualified auto electrician before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: CHG-00718
