Alternator - Toyota - DXA508 - OEX - NOS
Profile view from drive-end side showing single-groove V-pulley and full depth of cast aluminium housing; rear cover with regulator and 3-pin connector plug visible at right; copper brush holder cover on upper rear; B+ stud with nut at lower rear.

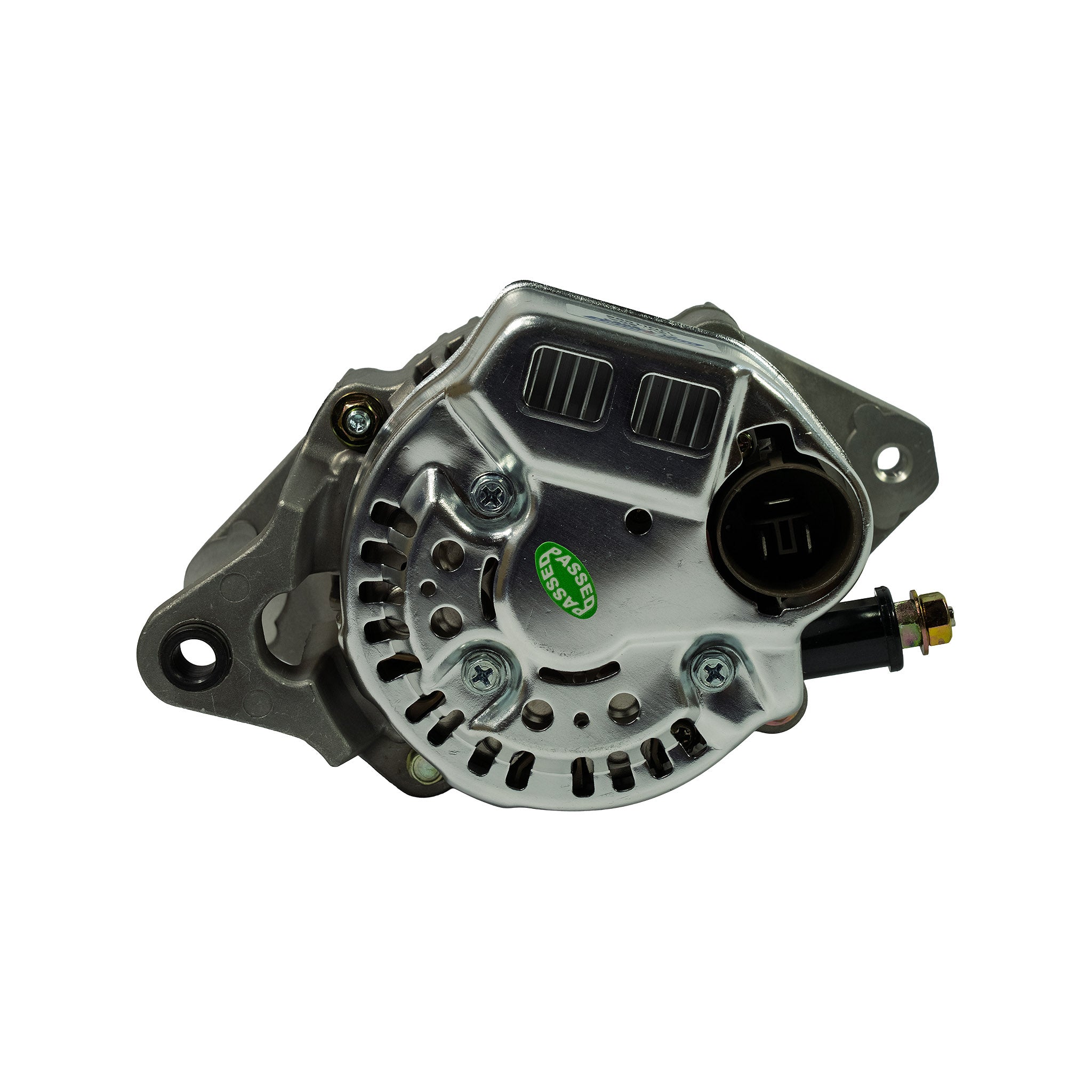

Slip-ring end face view showing silver polished rear cover plate with three-pin Sumitomo-style oval connector (L/Ig/S terminals) at upper right, green 'PASSED' QC sticker at centre, three Phillips screws securing rear cover, and small black rubber-tipped B+ stud at lower right; twin mounting ears (pivot holes) visible at sides.

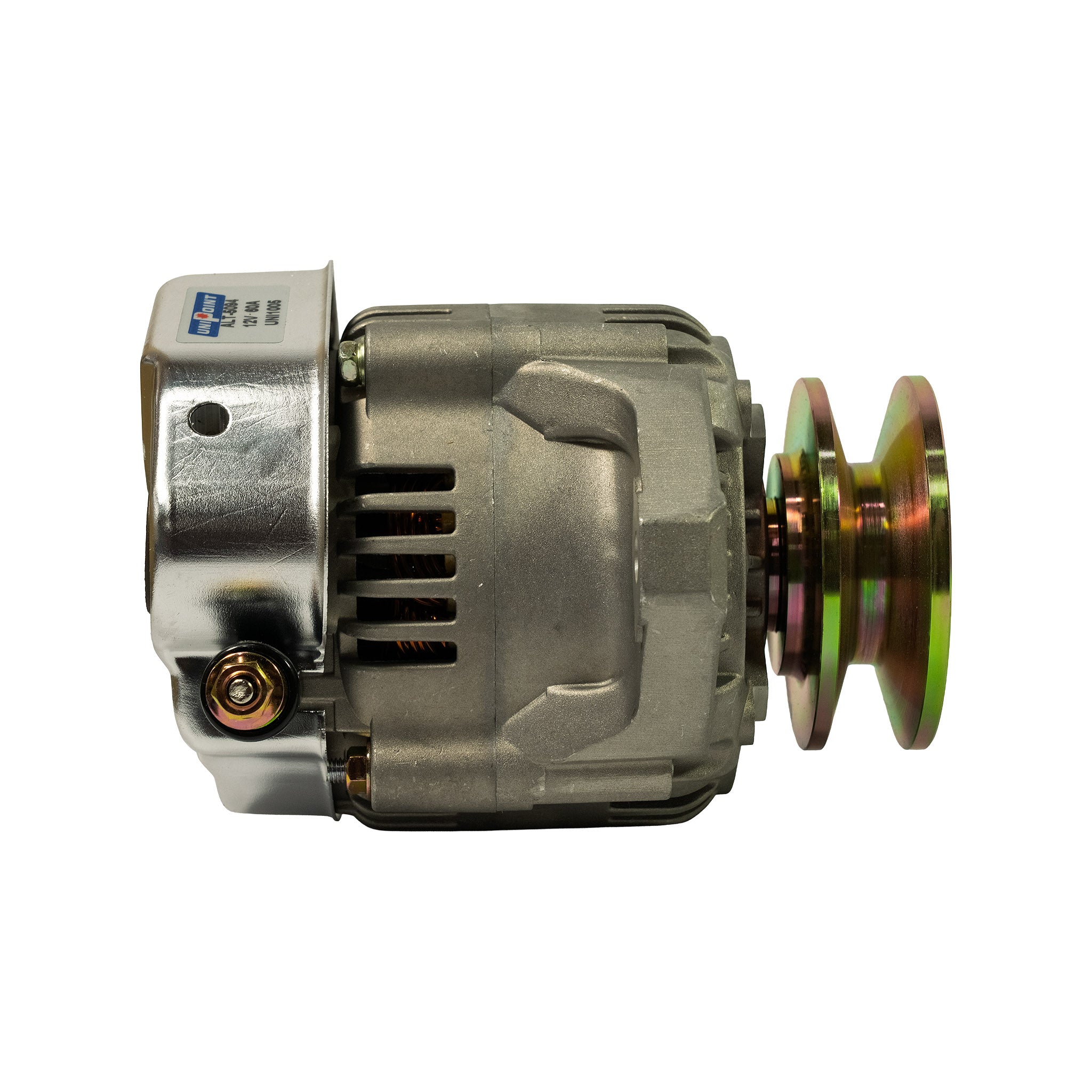

Drive-end profile with pulley facing right; UNIPOINT brand label on regulator cover clearly reading 'ALT-5094 / 12V 60A / UNI1005'; single V-groove pulley (gold zinc-plated) with large bore hub; cast aluminium housings; B+ terminal stud at lower front.

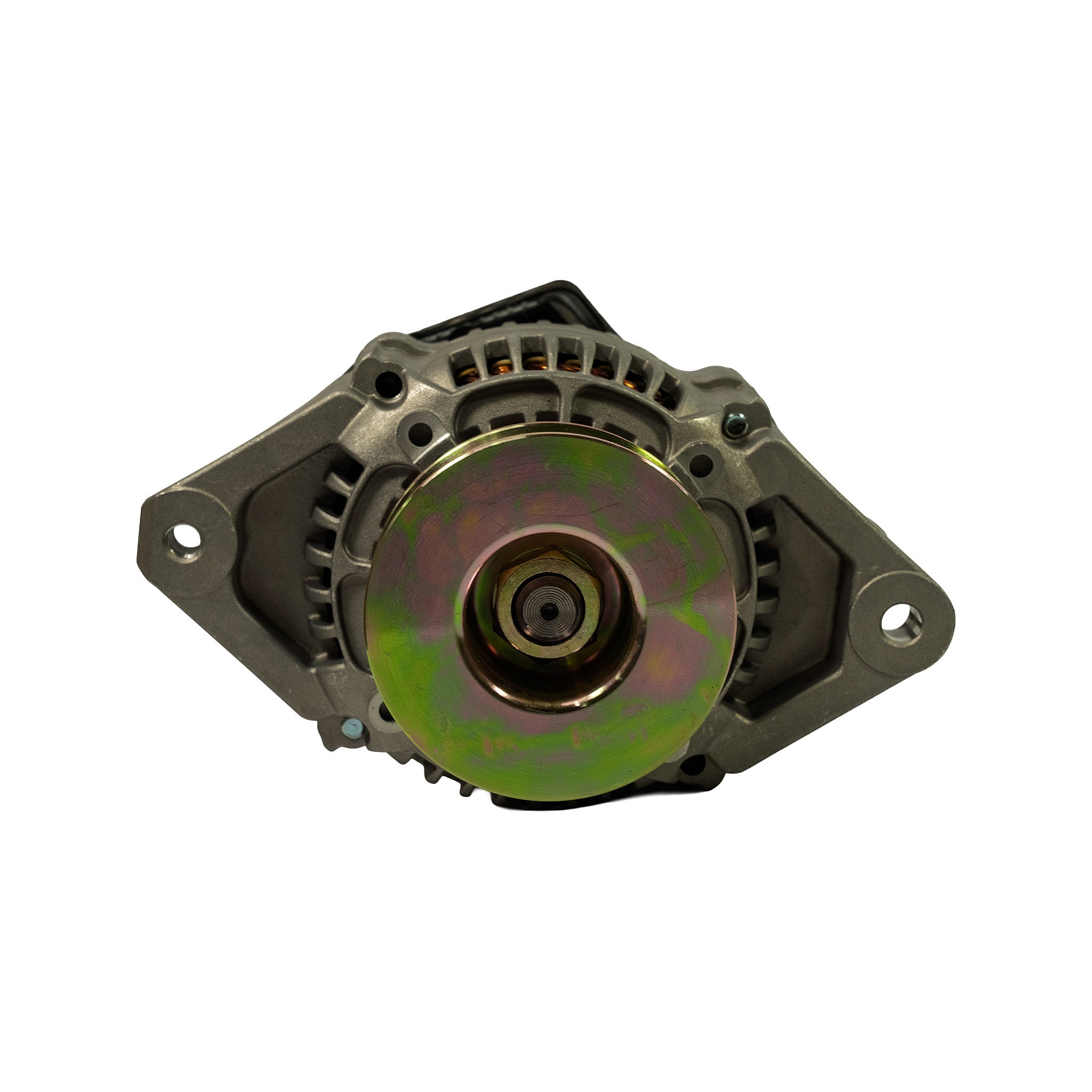

Head-on drive-end view showing full face of single V-groove pulley; shaft centre visible; twin mounting ears at 9 o'clock and 3 o'clock positions; stator laminations and copper windings visible through ventilation slots around perimeter; green QC sticker partly visible at rear.

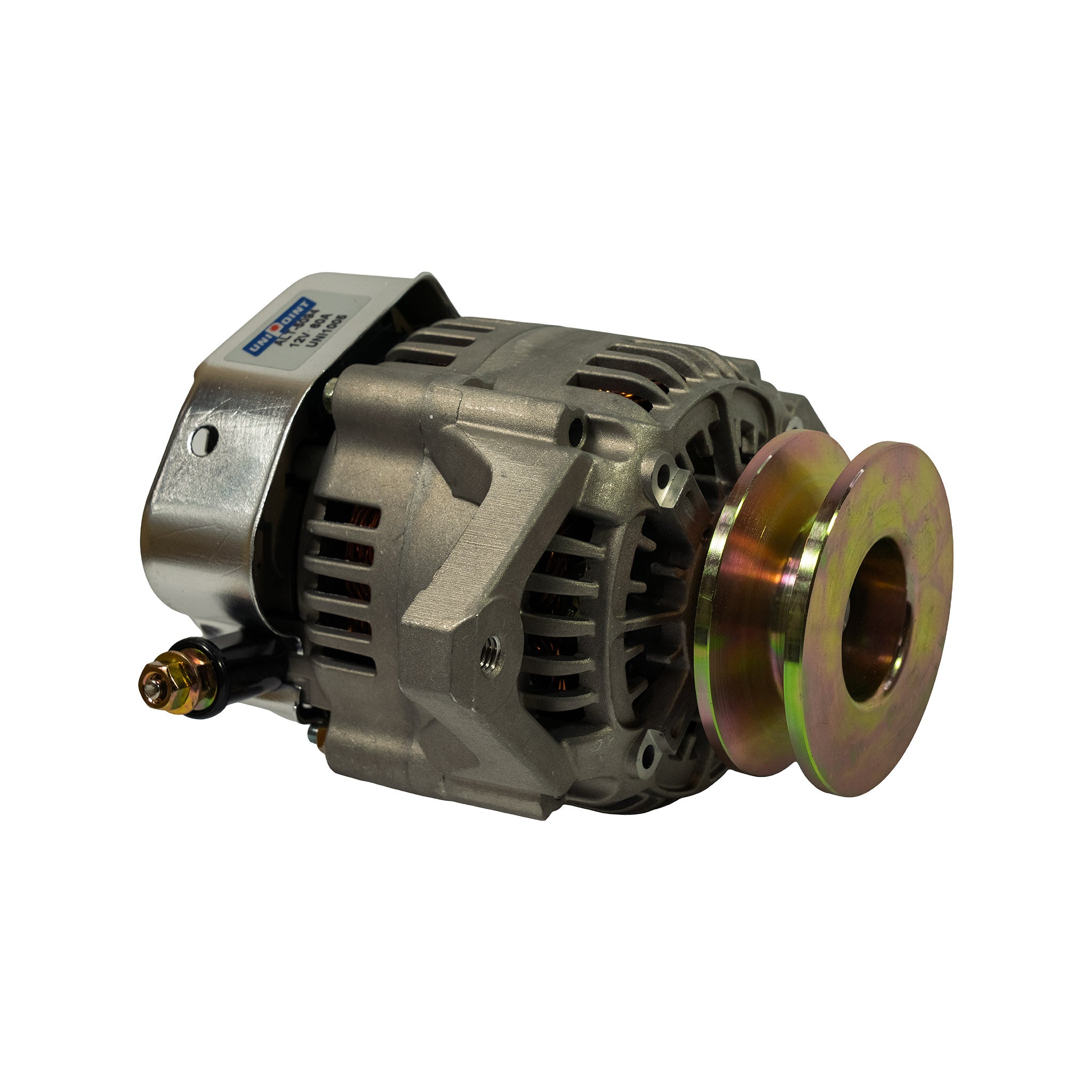

Three-quarter rear-left view showing UNIPOINT label ('ALT-5094 / 12V 60A / UNI1005') on regulator housing; copper B+ stud at lower left with nut; pulley at right with large zinc-plated hub face; twin mounting ears visible; unit appears clean and unused.

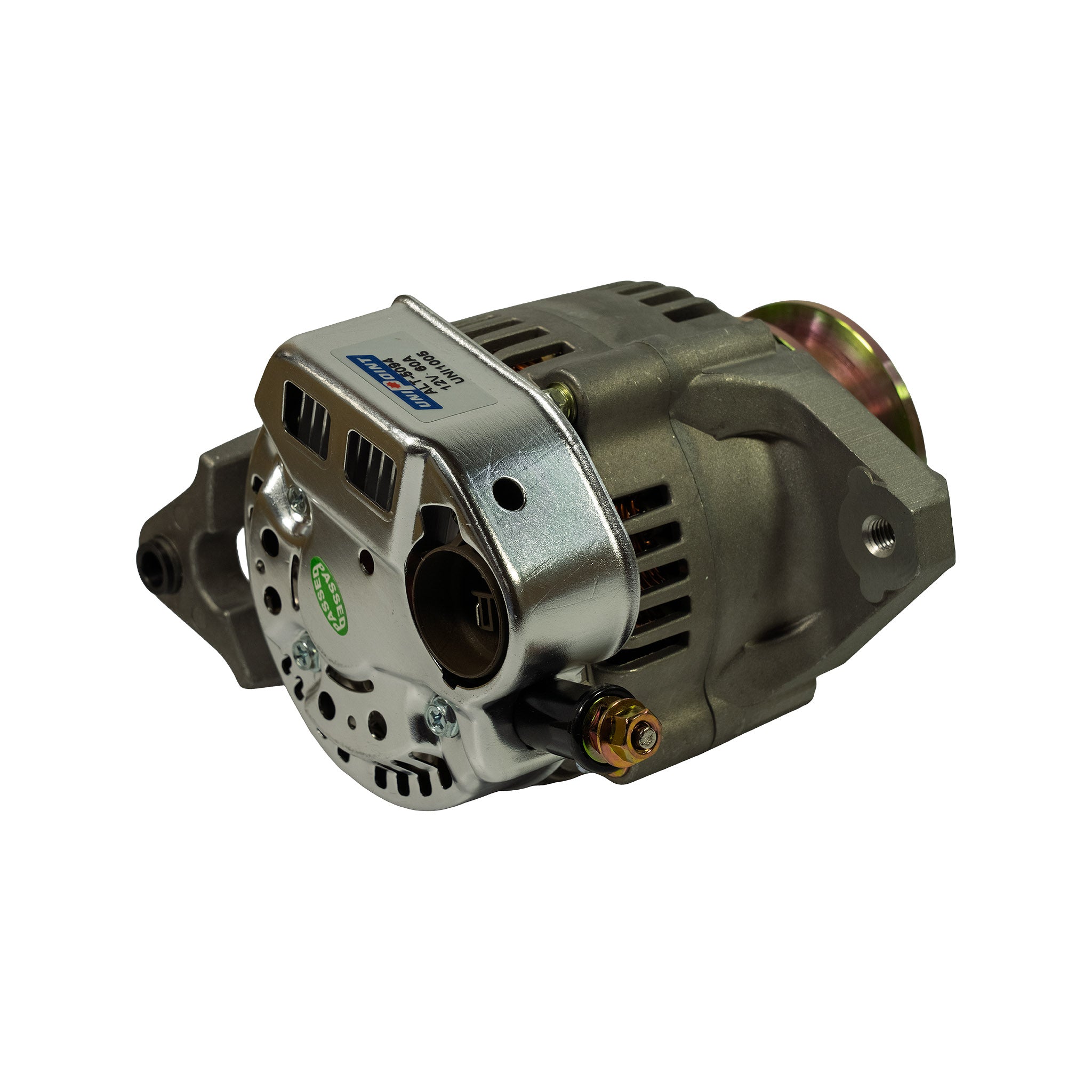

Three-quarter rear-right view with UNIPOINT label facing camera (text now upside-down reading 'ALT-5094 / 12V 60A / UNI1005'); green 'PASSED' QC sticker on slip-ring end cover; three-pin oval connector at upper left; B+ stud with nut at lower right; full housing profile shows neat factory finish with no damage.

Alternator - Toyota - DXA508 - OEX - NOS

Only 1 left!
Brand OEX
Part Number DXA508
Type Alternator
Condition New Old Stock

Specifications

  • Voltage: 12V
  • Output current (rated): 60A

Vehicle Fitment

Toyota Industrial Forklift 5FD35-45 4.4L 11Z Diesel 6cyl 1988-on
Toyota Industrial Forklift 5FD50-80 5.0L 12Z Diesel 6cyl 1993-on
Toyota Industrial Forklift 40-3FG10 2.0L 5R 4cyl 1980-on
Toyota Industrial Forklift 40-3FG14 2.0L 5R 4cyl 1980-on
Toyota Industrial Forklift 40-3FG15 2.0L 5R 4cyl 1980-on

Cross References

Part Numbers Relationship
100211-4000, 100211-4001, 100211-4002, 100211-4003, 100211-4004, 100211-6930, 100211-6931, 100211-6970, 27060-78301-71, 27060-78305-71, 27060-78305, 27070-23001-71 OE original
Ashdown DXA508 equivalent

Additional Information

  • Factory test certificate included in box confirms unit passed all performance tests prior to dispatch.
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock; unit appears uninstalled and unused. Outer cardboard box shows light corner scuffing and minor shelf wear consistent with long-term storage. Yellow 'BRAND NEW UNIT' sticker present. Green factory QC 'PASSED' sticker on slip-ring end. Factory test certificate included inside box. Electrical components should be tested by a qualified auto electrician before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: CHG-00717
