| Brand |
DERALE |
| Part Number |
22010 |
| Type |
Fan Clutch |
| Condition |
New Old Stock |
Specifications
- Body diameter: 7.25 in
- Clutch type: Thermal (import/compact)
- Rotation: Standard (clockwise)

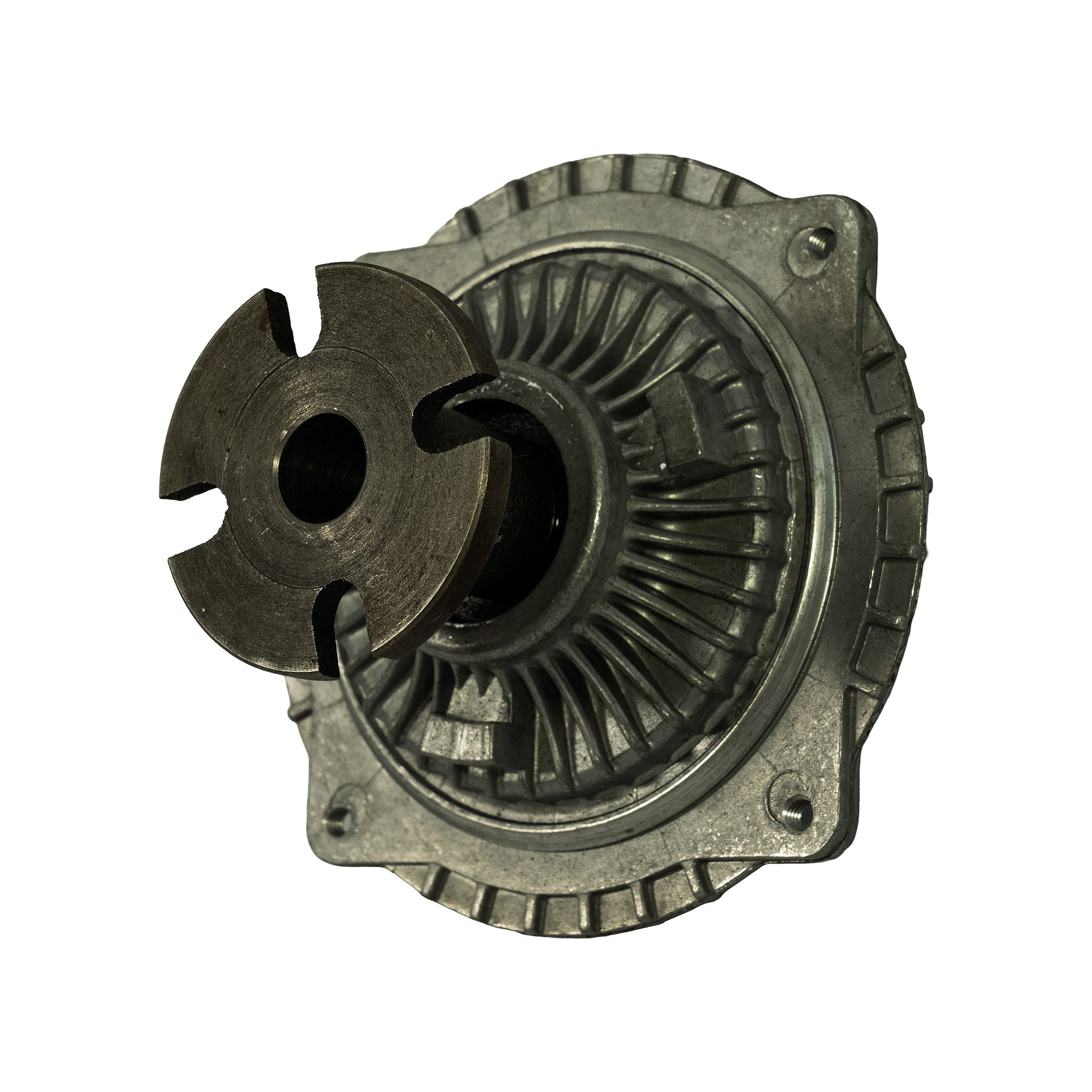

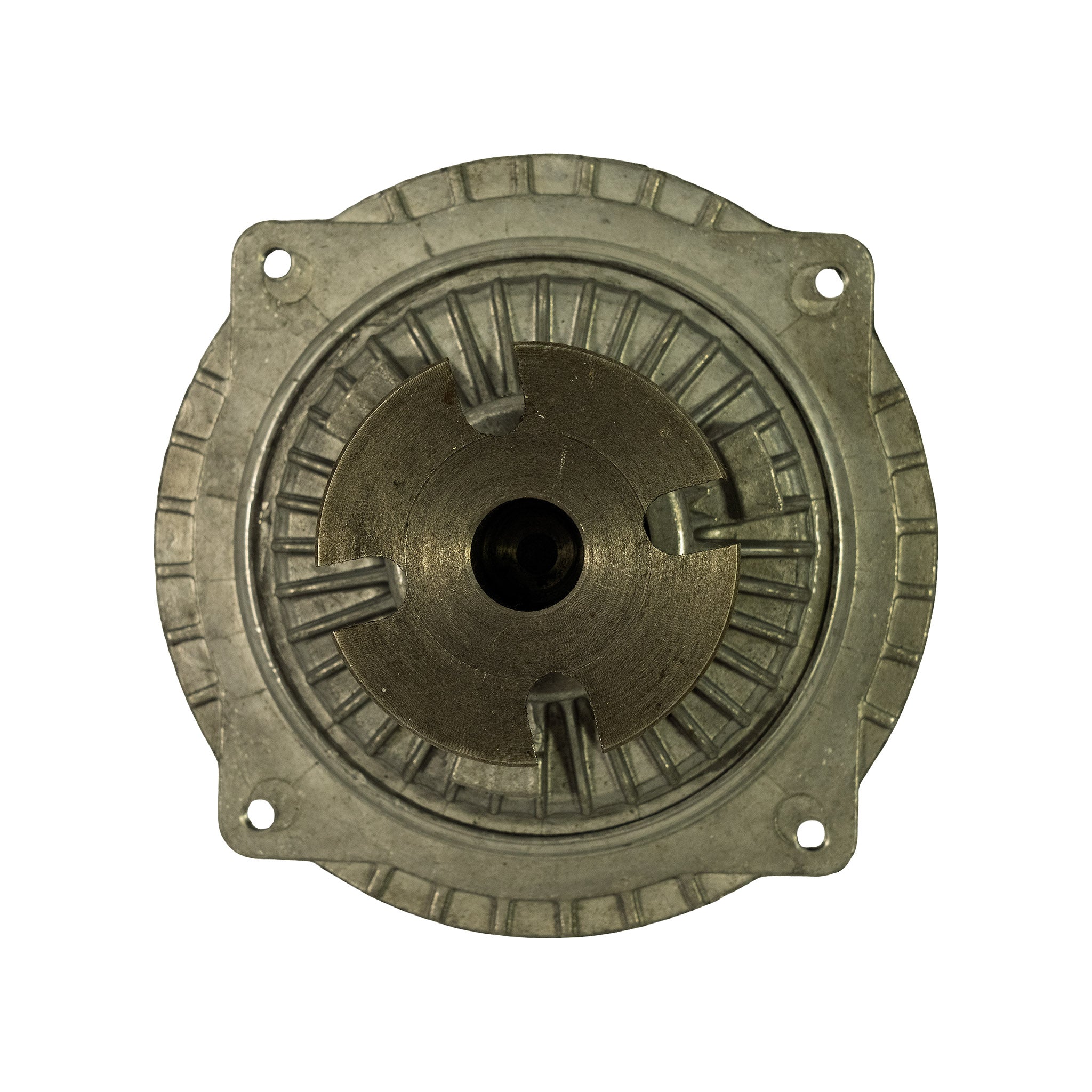

- Flange bore / drive type: Bayonet slot coupling
- Mounting holes (fan blade): 4 holes
- Mounting bolt circle diameter: 4.875 in (C dimension)
- Flange diameter: 2.50 in (A dimension)
- Shaft engagement depth (B): 0.630 in
- Clutch body depth (D): 2.350 in
- Thread diameter (mounting bolts): M6 x 1.0
- Country of manufacture: USA
Vehicle Fitment
| Ford |
Aerostar 1986–1987 L4 2.3L (without A/C) |
| Ford |
Bronco II 1994–1983 (per box label — likely 1983–1994 era cross-reference; see notes) |
| Ford |
Ranger 1983–2001 L4 2.0/2.3/2.5L (without A/C on later years) |
| Ford |
Thunderbird 1983–1984 L4 2.3L |
| Ford |
F-100 Ranger 1996–2000 L4 2.5L (without A/C) |
| Mazda |
B2300 1994–1997 L4 2.3L (without A/C) |
| Mazda |
B2500 1998–2001 L4 2.5L (without A/C) |
| Chevrolet |
Astro 1985 L4 2.5L (front-mounted fan, without A/C) |
| GMC |
Safari 1985 L4 2.5L (front-mounted fan, without A/C) |
Cross References
| Part Numbers |
Relationship |
| FC22010D, 2557, 215010, 36966, 273376, 9252220, 115010, YB433, YB434, YB439, YB553, A8199 |
equivalent |
| ZZP315210, E3TZ8A616F, E3TZ8A616G, 19189688, 89000131 |
OE original |

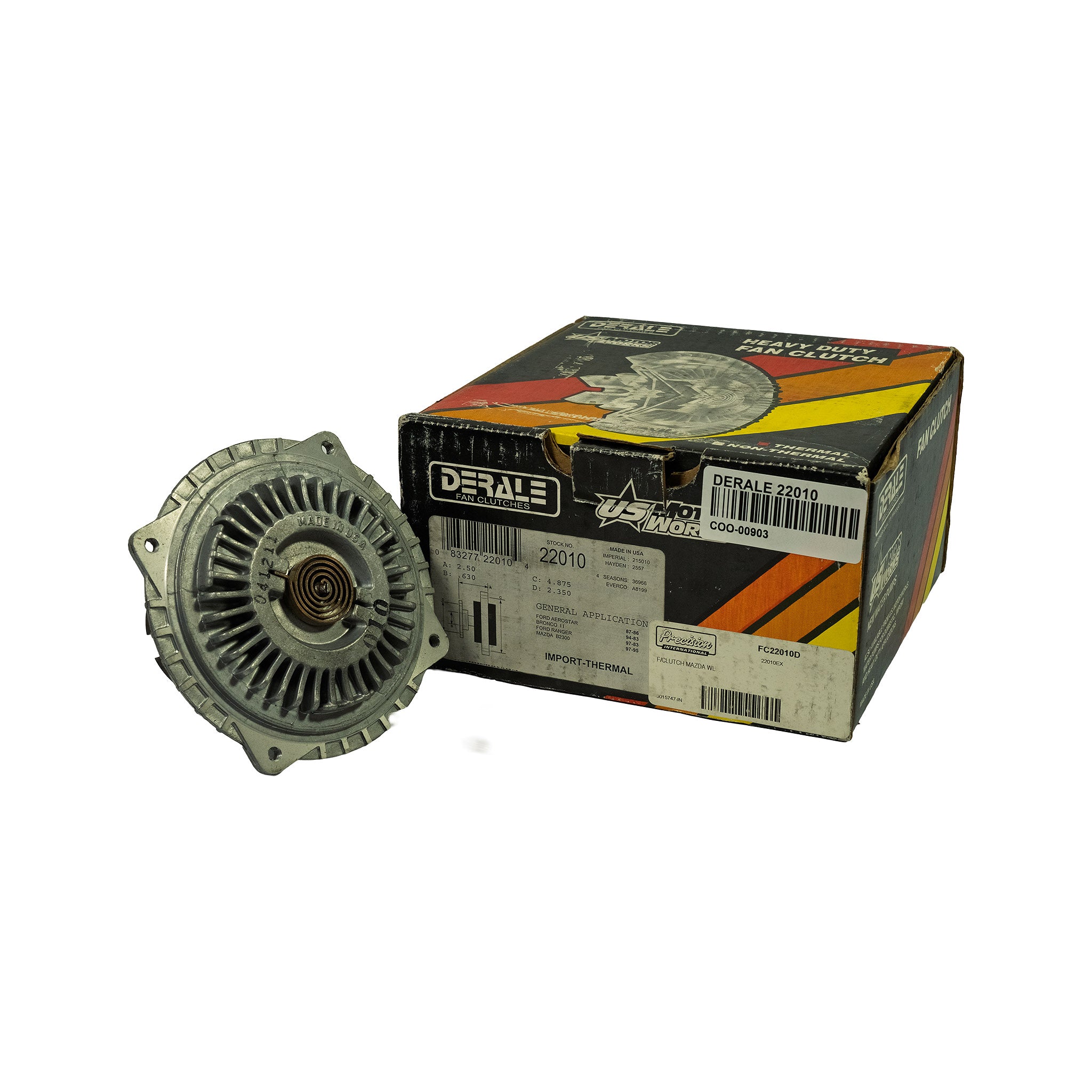

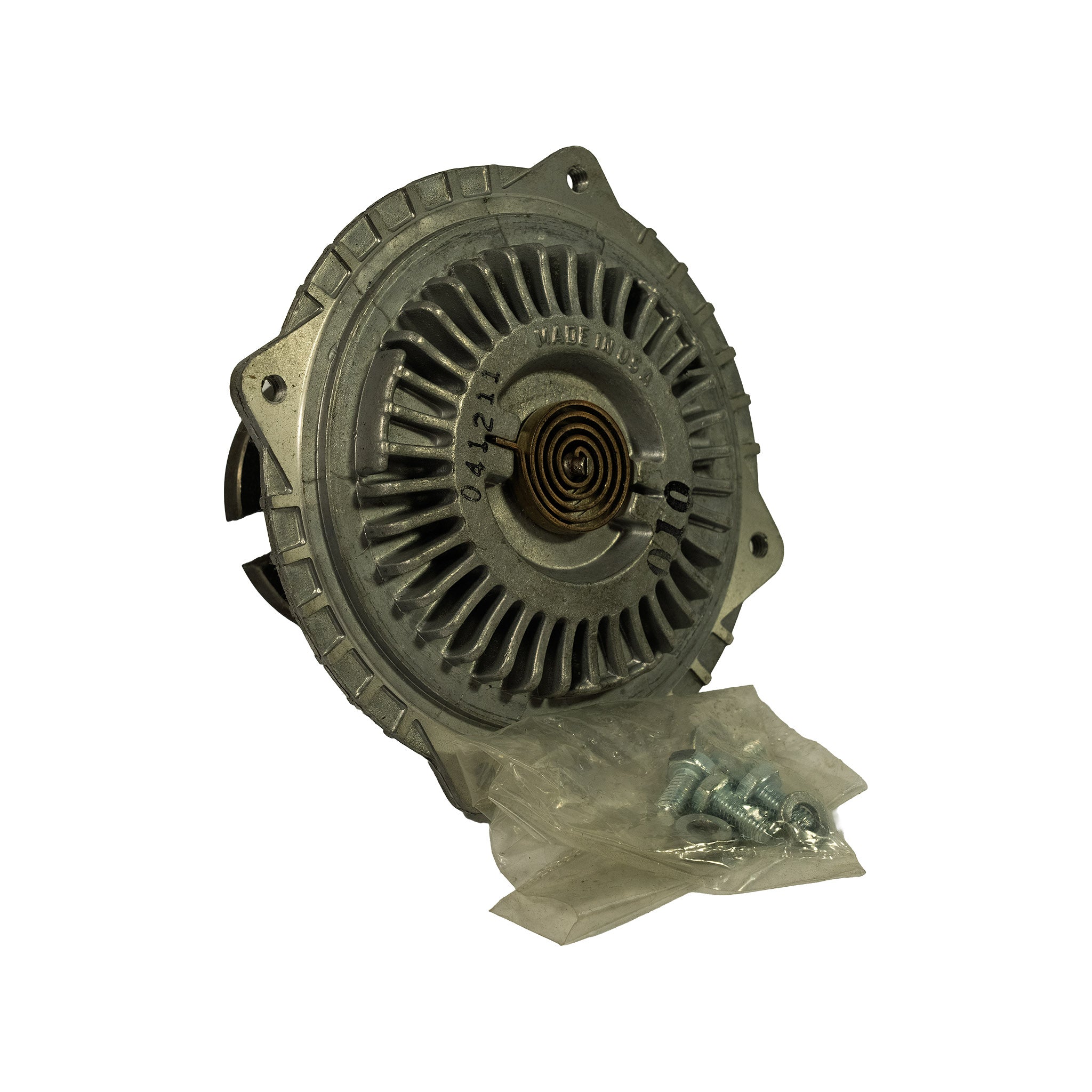

New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. NOS in original retail box. Box shows shelf wear — scuffing to edges, minor corner crush, tape residue on lid — consistent with long storage. Part itself appears unused with no signs of fluid leakage, corrosion, or bearing play. Hardware bag intact and sealed. Rubber hoses and seals may harden during extended storage — inspect before fitting. Please confirm this part number suits your vehicle before purchasing.
SKU: COO-00903
