Outer CV Joint - Subaru - 806230 - Fargo - NOS

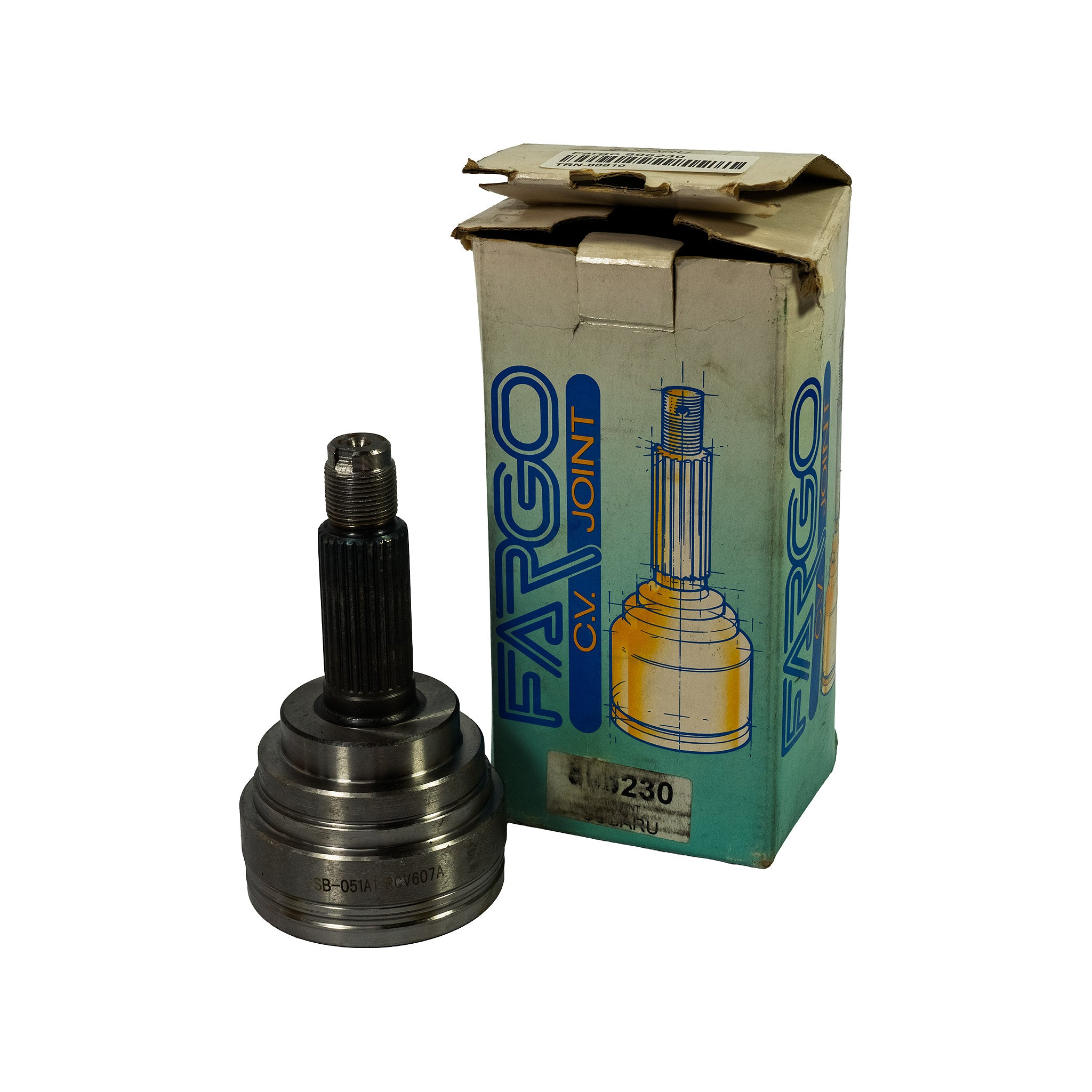

Joint and original Fargo box displayed together. Box shows 'FARGO C.V. JOINT' branding in blue with technical illustration of a CV joint. Part number label on box reads '806230 / CV JOINT / SUBARU'. Joint shows stamping 'SB-051A1 RCV607A' on housing.
Top-down view of CV joint showing ball-race end (hub side). Six ball bearings visible within the cage and outer race. Central splined inner race bore clearly visible. Splined stub shaft and threaded tip protrude downward.

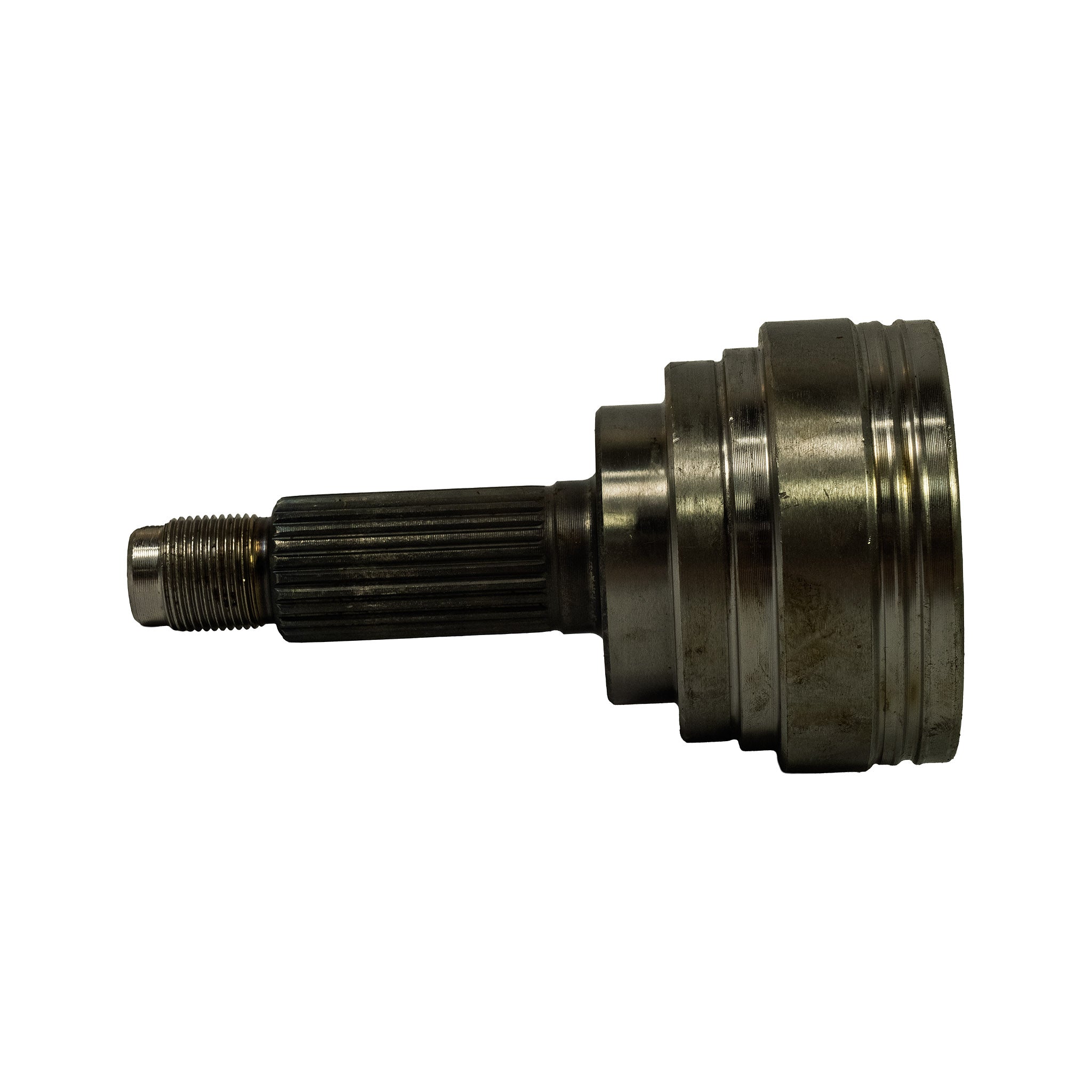

Side profile of CV joint in horizontal orientation. Full splined shaft length visible, transitioning to stepped housing. Three grooves machined into outer housing perimeter. Stub shaft thread at right end.

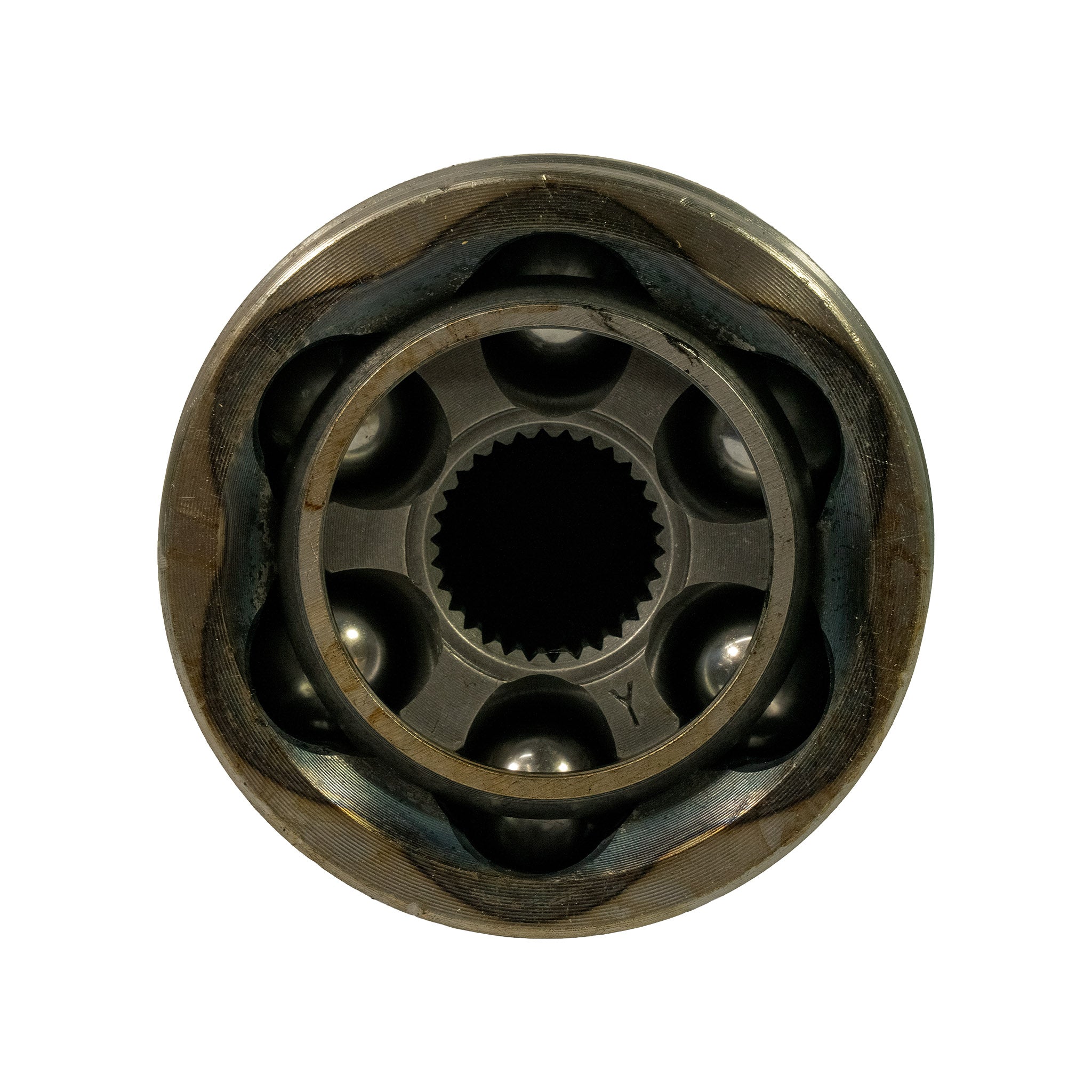

Direct face-on view of the open ball-race end of the CV joint housing. Six large balls seated in the outer race with cage visible. Inner splined hub bore prominent at centre. Minor surface oxidation visible on outer race face.

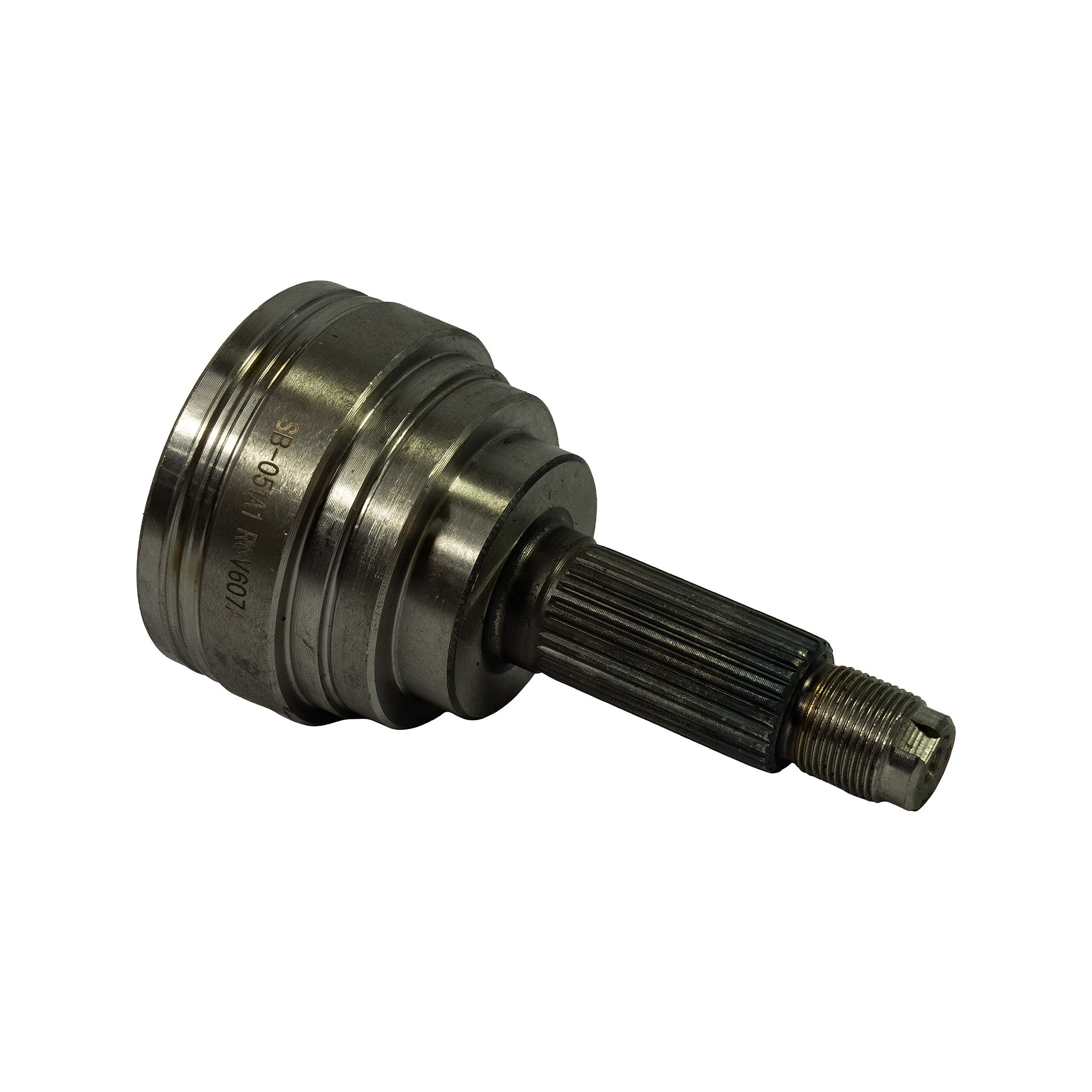

Opposite-side profile view showing the larger end of the housing. Stamping 'SB-051A1 RCV607A' legible on housing. Three machined grooves on outer diameter. Boot groove visible at shaft base.

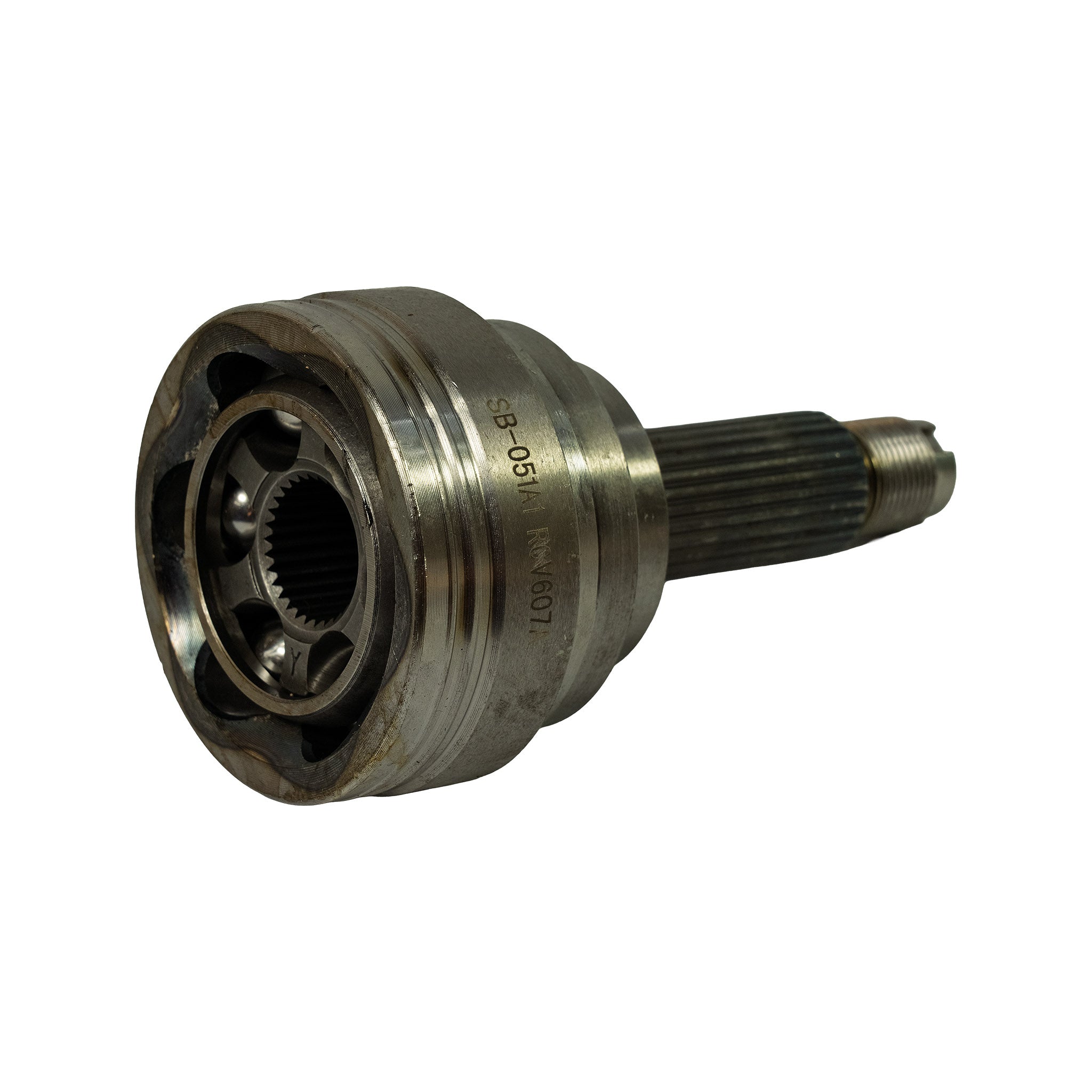

Three-quarter view angled toward the open ball-race face and shaft simultaneously. Cage and balls visible within housing. Splined shaft with threaded end extends to right. Stamping 'SB-051A1 RCV607A' readable on housing side.

Outer CV Joint - Subaru - 806230 - Fargo - NOS

Only 1 left!
Brand Fargo
Part Number 806230
Type CV Joint
Condition New Old Stock

Specifications

  • Outer splines (hub side): 27
  • Oil seal seat diameter: 56 mm
  • Ball count: 6

Vehicle Fitment

Subaru Legacy BD/BG 1994–1999 (front outer)
Subaru Forester SF5 1997–2002 (front outer)
Subaru Impreza GC/GF 1993–2000 (front outer)

Additional Information

  • Part is joint-only — no CV boot, grease, or clamps included.
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. NOS in original Fargo box. Box shows heavy shelf wear, yellowing, and corner crushing consistent with approximately 25–30 years of storage. The joint itself appears unused with no wear marks or grease contamination; minor surface oxidation on ball-race face consistent with long-term storage. No boot included — joint only. We recommend the item is inspected before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: TRN-00810
