Combination Switch - Holden - HO36 - NOS

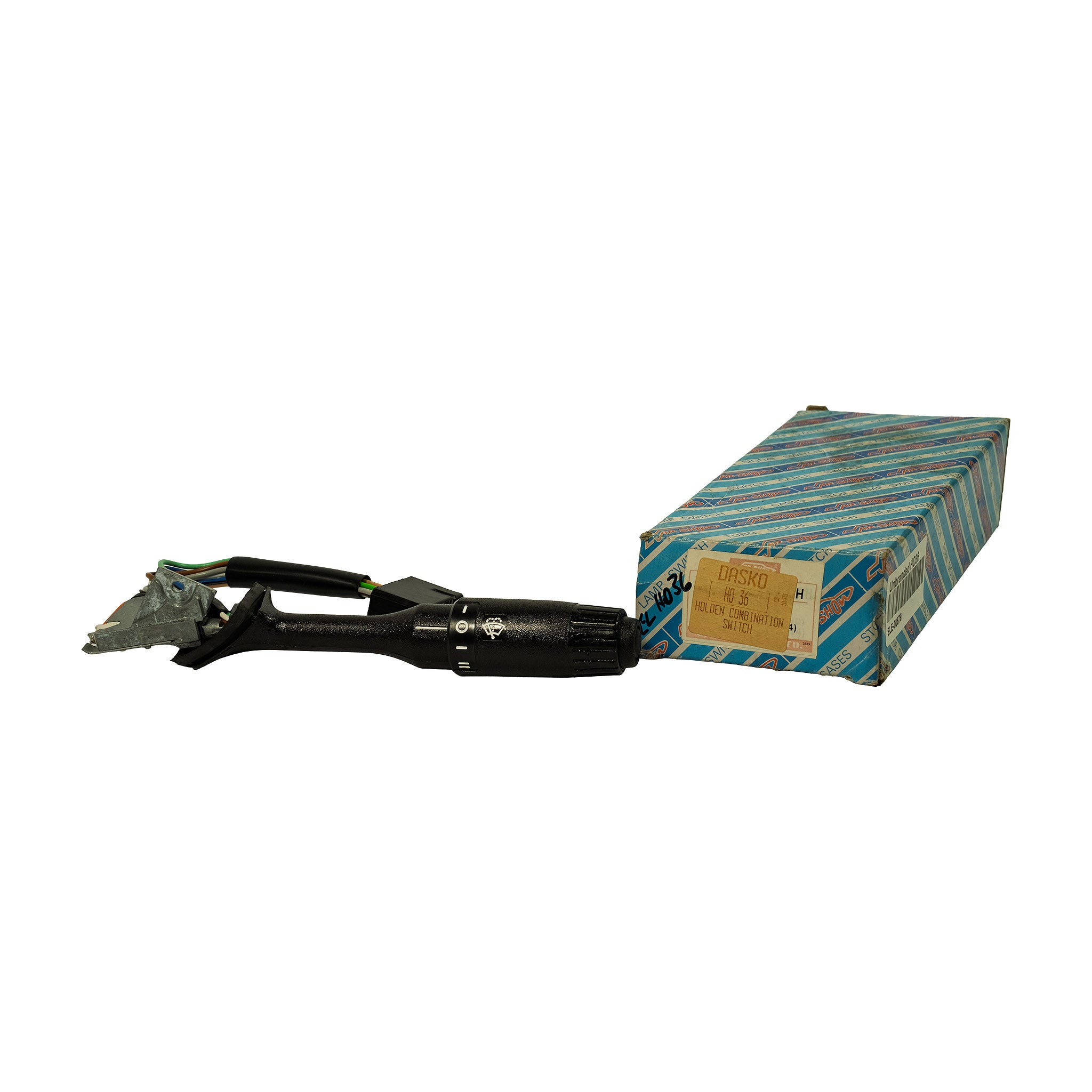

Part laid beside open box, three-quarter angle; both items on white background; Dasko box label fully visible; stalk shows wiper symbol on knob face; loom exits base plate and runs to connector at rear; metal mounting plate visible.

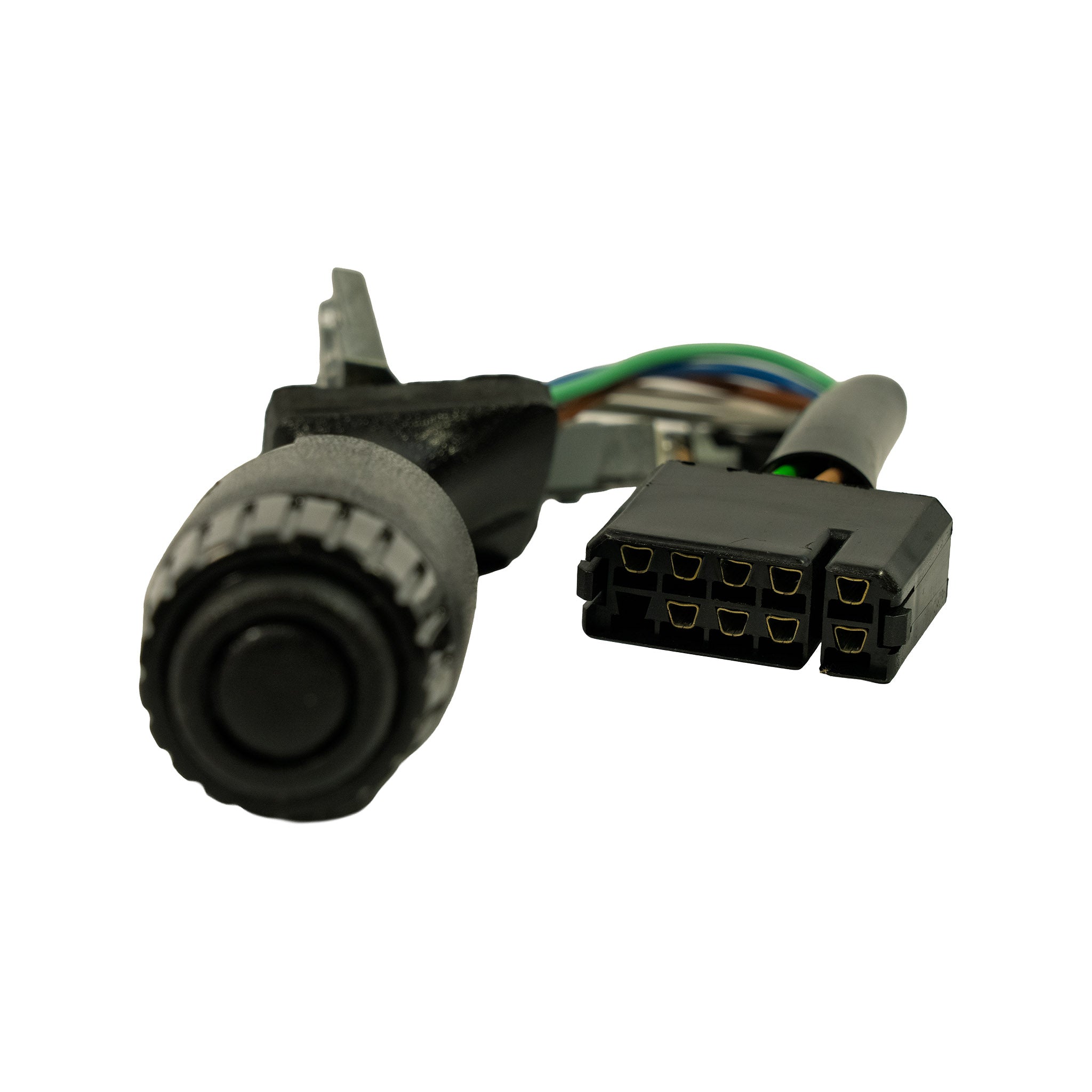

Close-up of rotary wiper-speed knob end and connector; knob is large-diameter cylindrical ribbed black plastic with central push-button; black rectangular 8-pin or 9-pin multi-pin connector shown face-on with gold terminal contacts visible in two rows; coloured wires (green, blue, orange, white, brown) visible between body and connector.

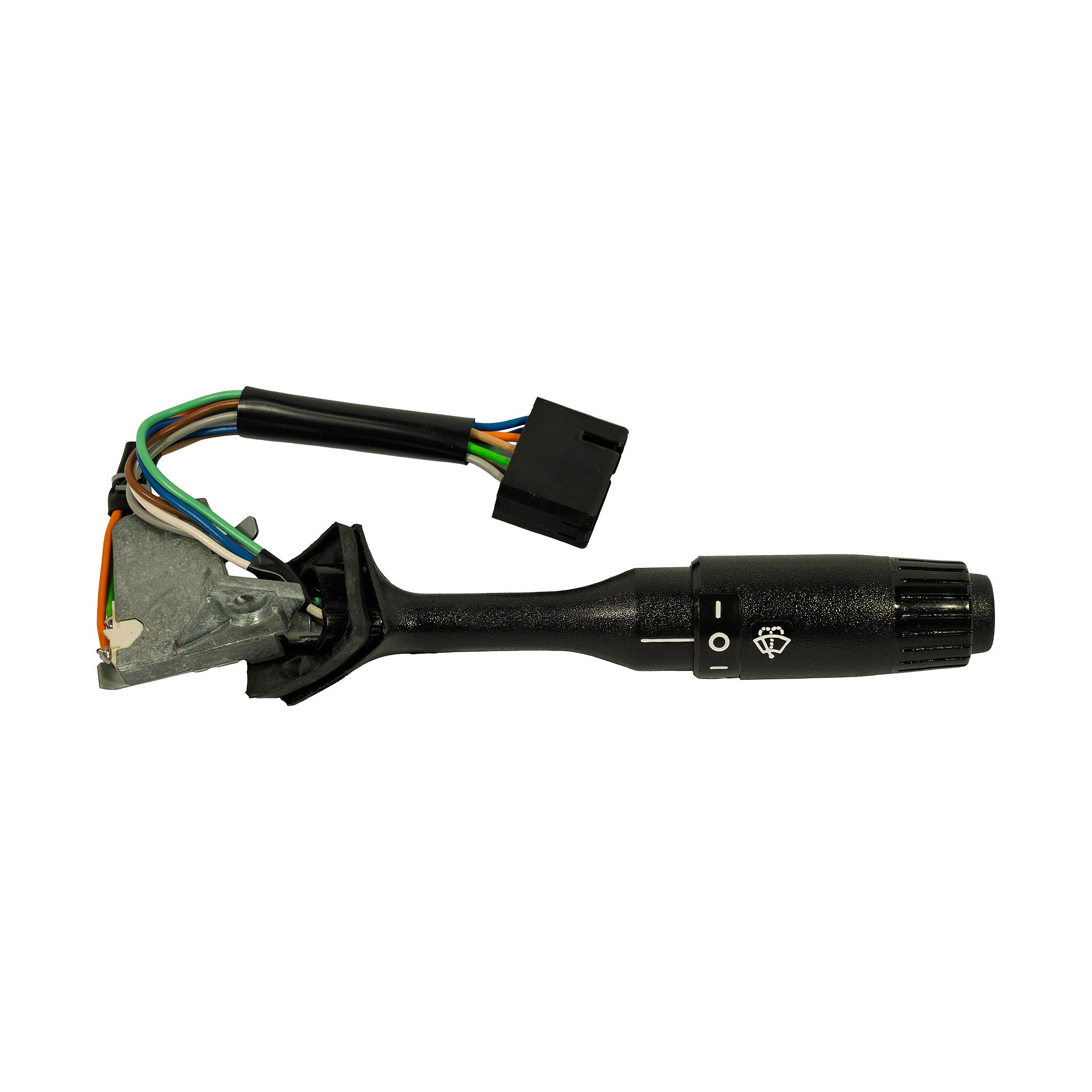

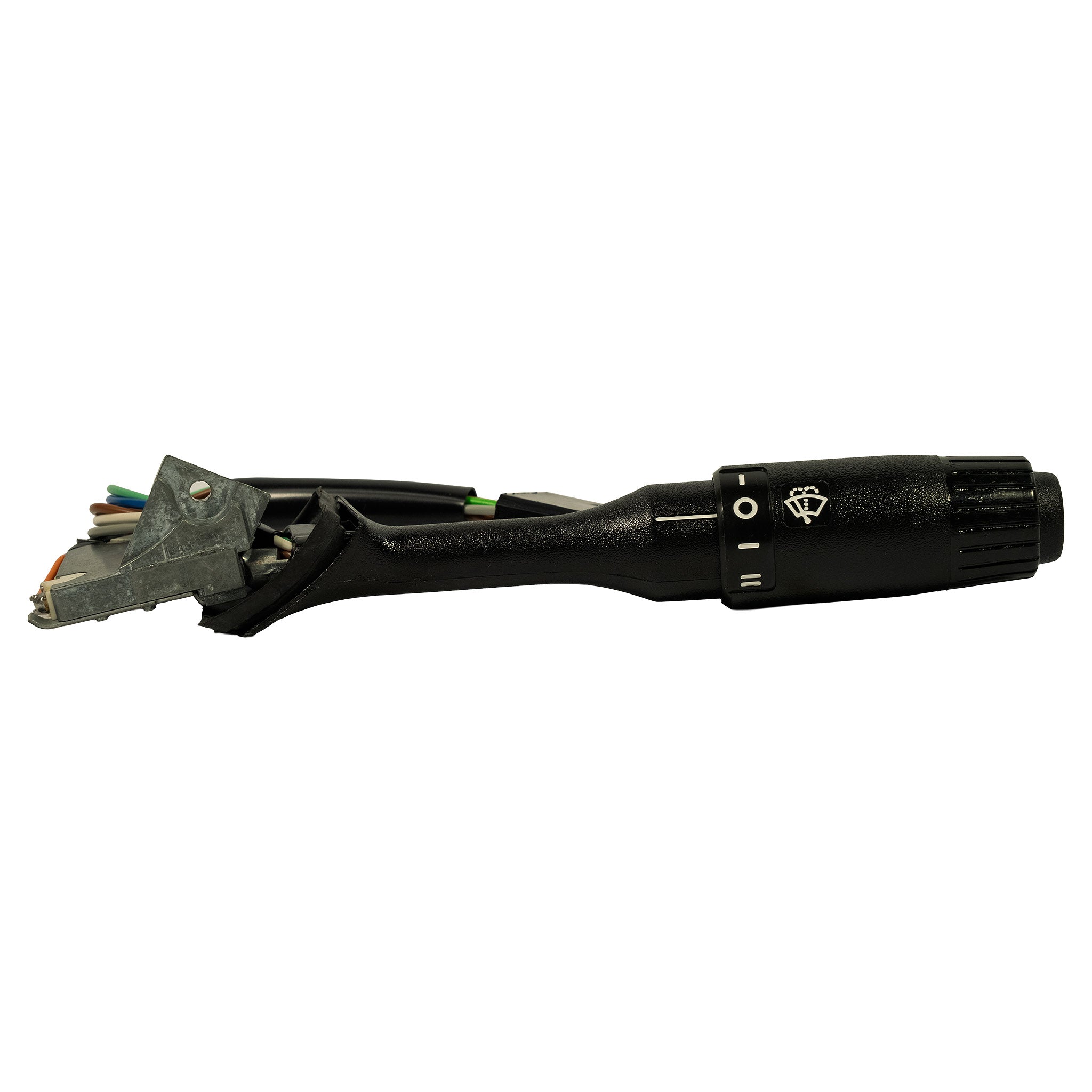

Opposite profile (right side) of full stalk assembly; wiper speed positions (I, O, I, =) legible on stalk shaft in white print; metal mounting bracket with screw hole visible at left end; loom routing visible along underside.

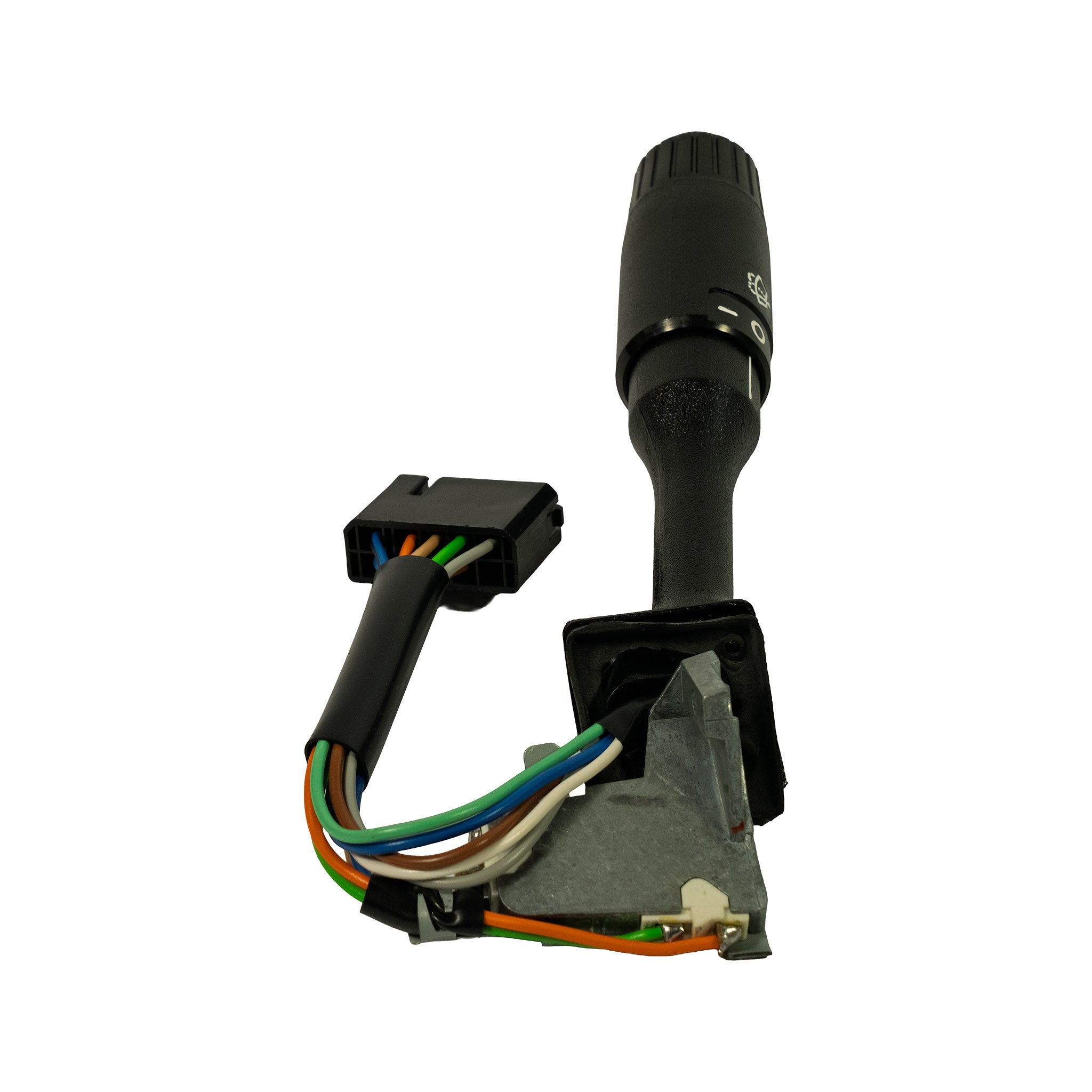

Three-quarter rear view showing stalk body pointing upward with connector hanging to lower left; multi-pin connector face visible; wiper symbol and position markings on stalk shaft; wire colours (orange, green, blue, white, brown) clearly visible.

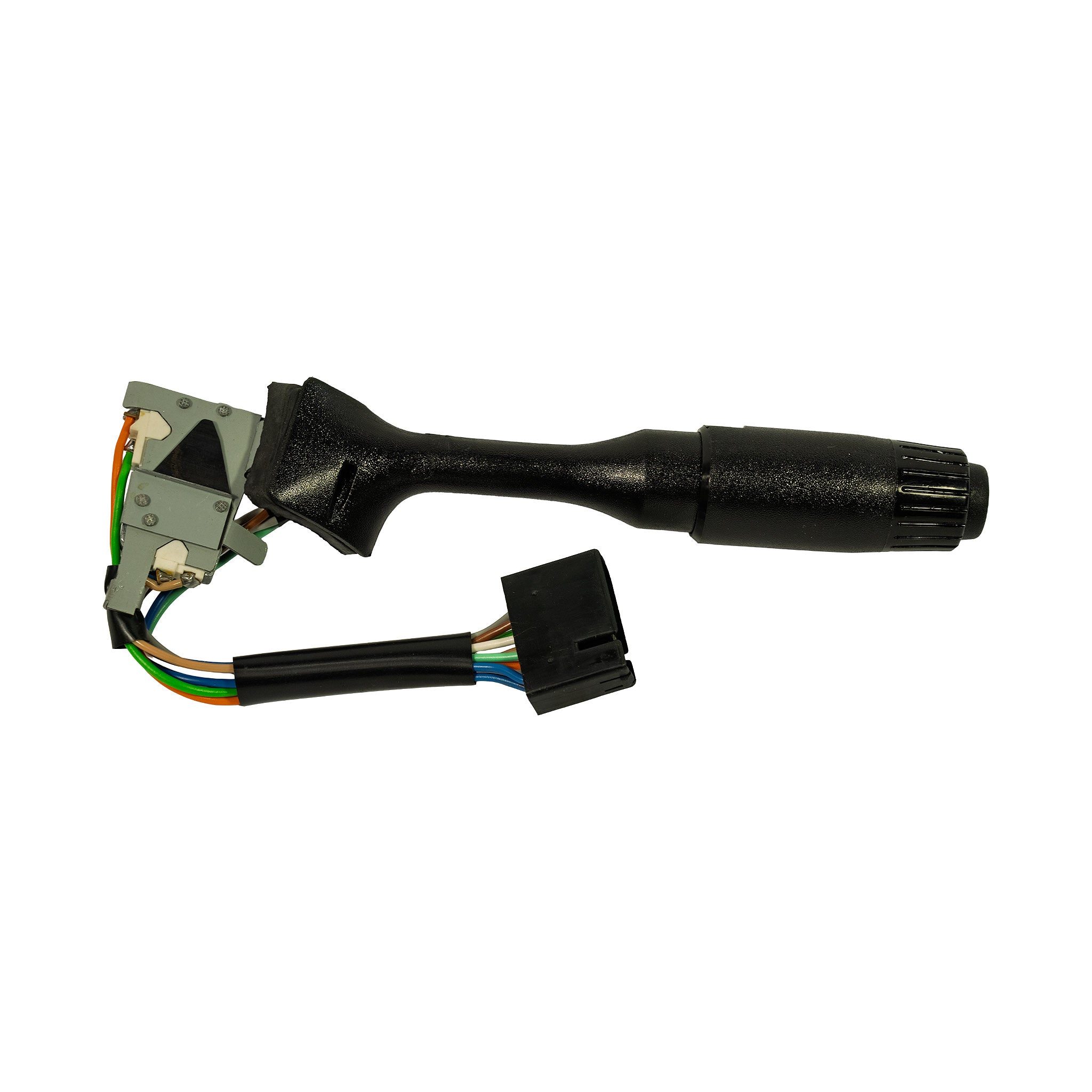

Right-side profile, part only without box; full length of stalk visible from die-cast metal base plate through plastic body to ribbed rotary tip; multi-pin connector hangs below; loom exits base plate at left; no visible markings on this side of the shaft.

Combination Switch - Holden - HO36 - NOS

Only 1 left!
Part Number HO36
Type Switch
Condition New Old Stock

Specifications

  • Connector type: Multi-pin rectangular plug (approx. 8–9 pin)
  • Wiper speed positions: Off / Intermittent / Low / High (4 positions)
  • System voltage: 12V

Vehicle Fitment

Holden Commodore VH 1981–1984
Holden Commodore VK 1984–1986
Holden Commodore VH/VK Calais 1982–1986

Cross References

Part Numbers Relationship
GVH92004, RS-TS1007BK, HDCMC-65320 equivalent

Additional Information

  • Controls indicator (turn signal), windscreen wiper speed, hi-beam flash, and washer functions from the steering column.
  • Short wiring harness variant — fits VH and VK only; not compatible with VB or VC which use a longer harness.
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock in original Dasko box. Box shows age wear, mild corner crushing, and yellowing of label; part itself appears uninstalled and unused with no signs of wear or corrosion. Handwritten stock notation on box is internal retailer marking. Electrical components should be tested before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: ELE-00679
