| Brand |
Stebel |
| Part Number |
HF80 430 HZ 12V |
| Type |
Horn |
| Condition |
New Old Stock |
Specifications
- Nominal voltage: 12V
- Absorbed current (12V): < 4.5A
- Absorbed current (24V): < 2.5A
- Fundamental frequency: 430 Hz
- Sound pressure level at 2m: > 109 dB(A)
- Sound pressure level at 10cm (approx. 4in): > 133 dB(A)
- Diameter: 80mm
- Recommended fuse (12V): 20A
- Recommended fuse (24V): 10A
- Minimum wire gauge (12V): 1.5mm²
- Minimum wire gauge (24V): 1mm²
- Endurance rating: 50,000 on/off cycles
- Salt fog resistance: 96 hours
- Operating temperature range: -25°C to +80°C
Vehicle Fitment
| Universal |
fitment — suitable for all 12V passenger cars, motorcycles, 4x4s, and light commercial vehicles |
Cross References
| Part Numbers |
Relationship |
| 11510021 |
equivalent |
Additional Information

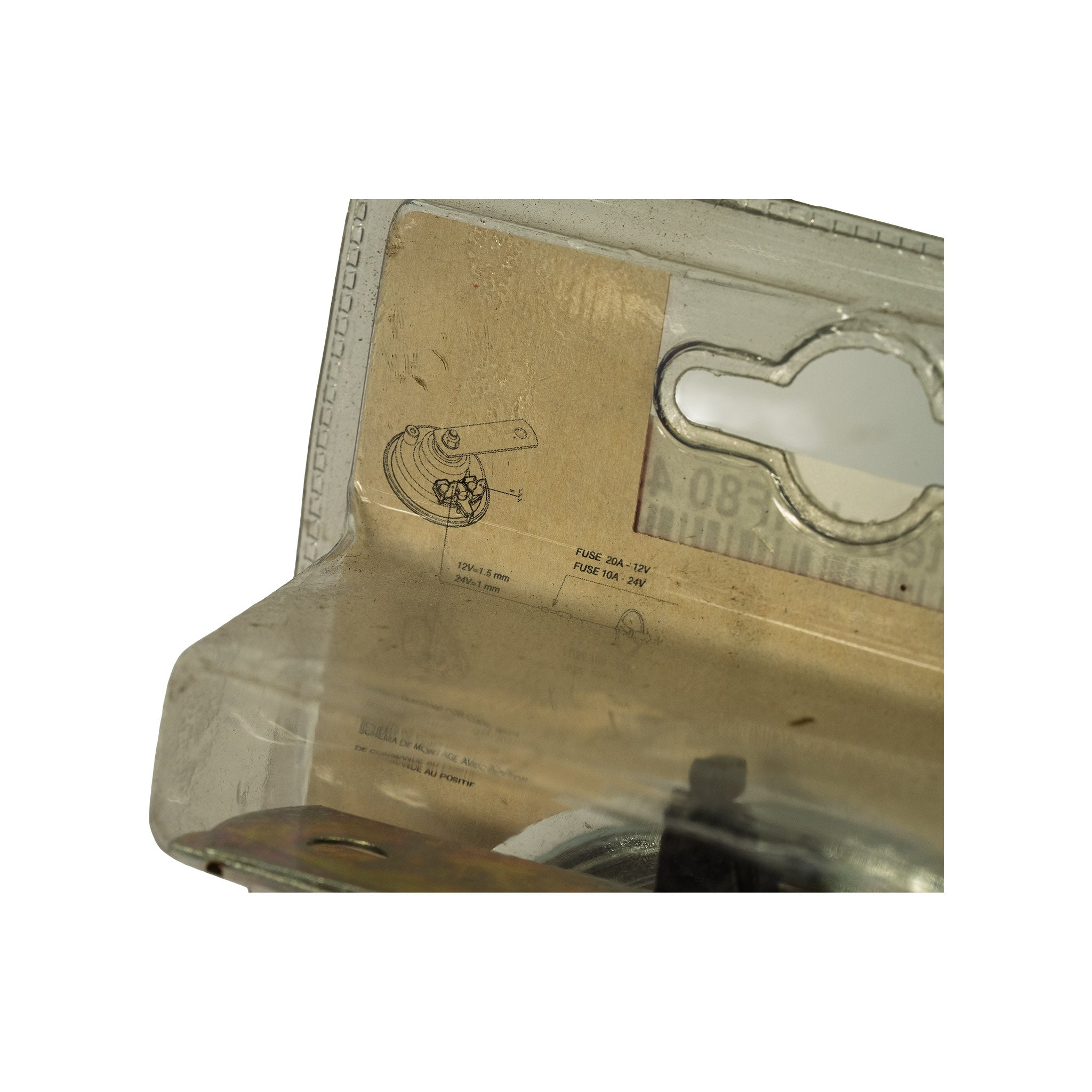

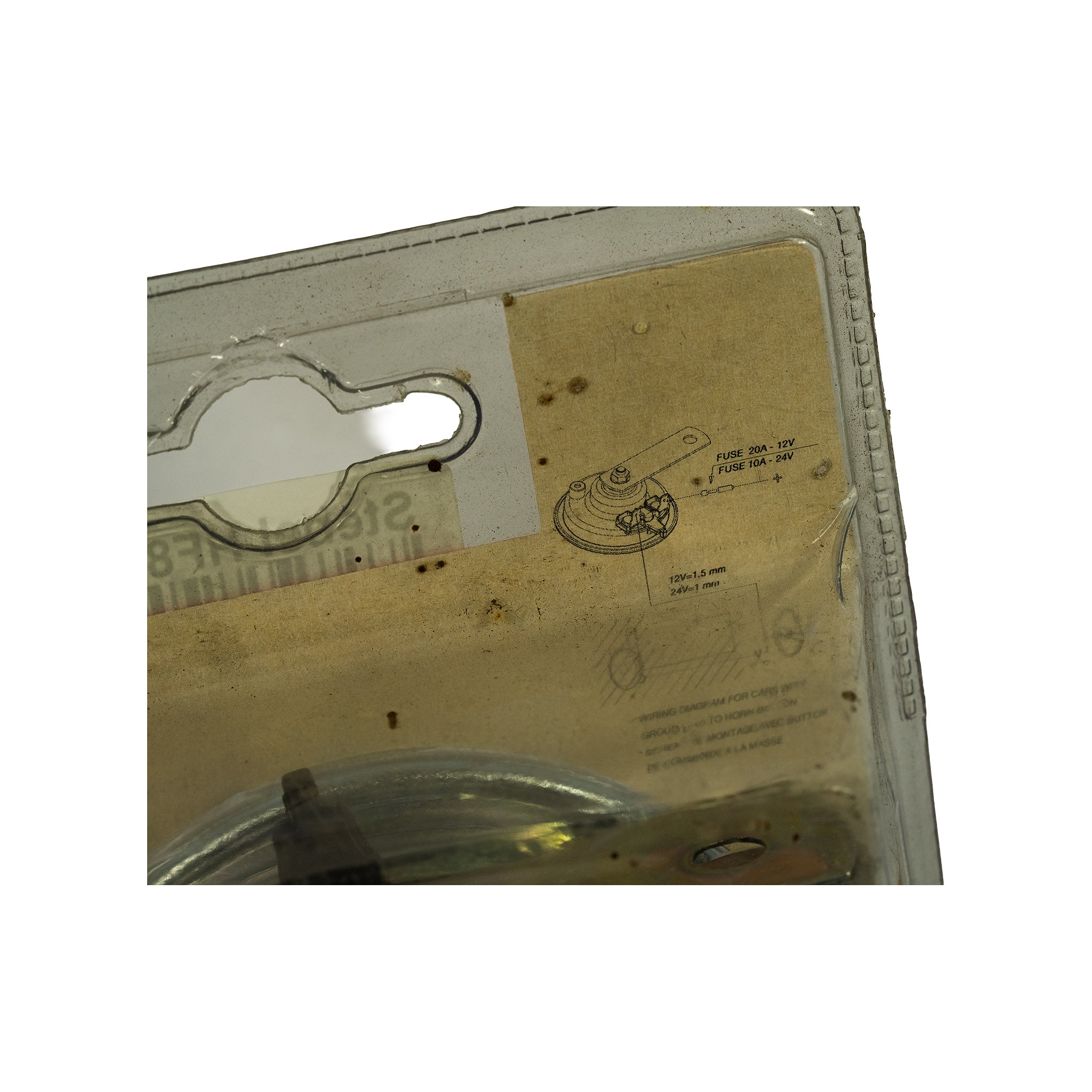

- Packaging is dual-rated: the horn operates on both 12V and 24V systems despite the primary designation being 12V — wiring diagram and specs on rear card cover both voltages.

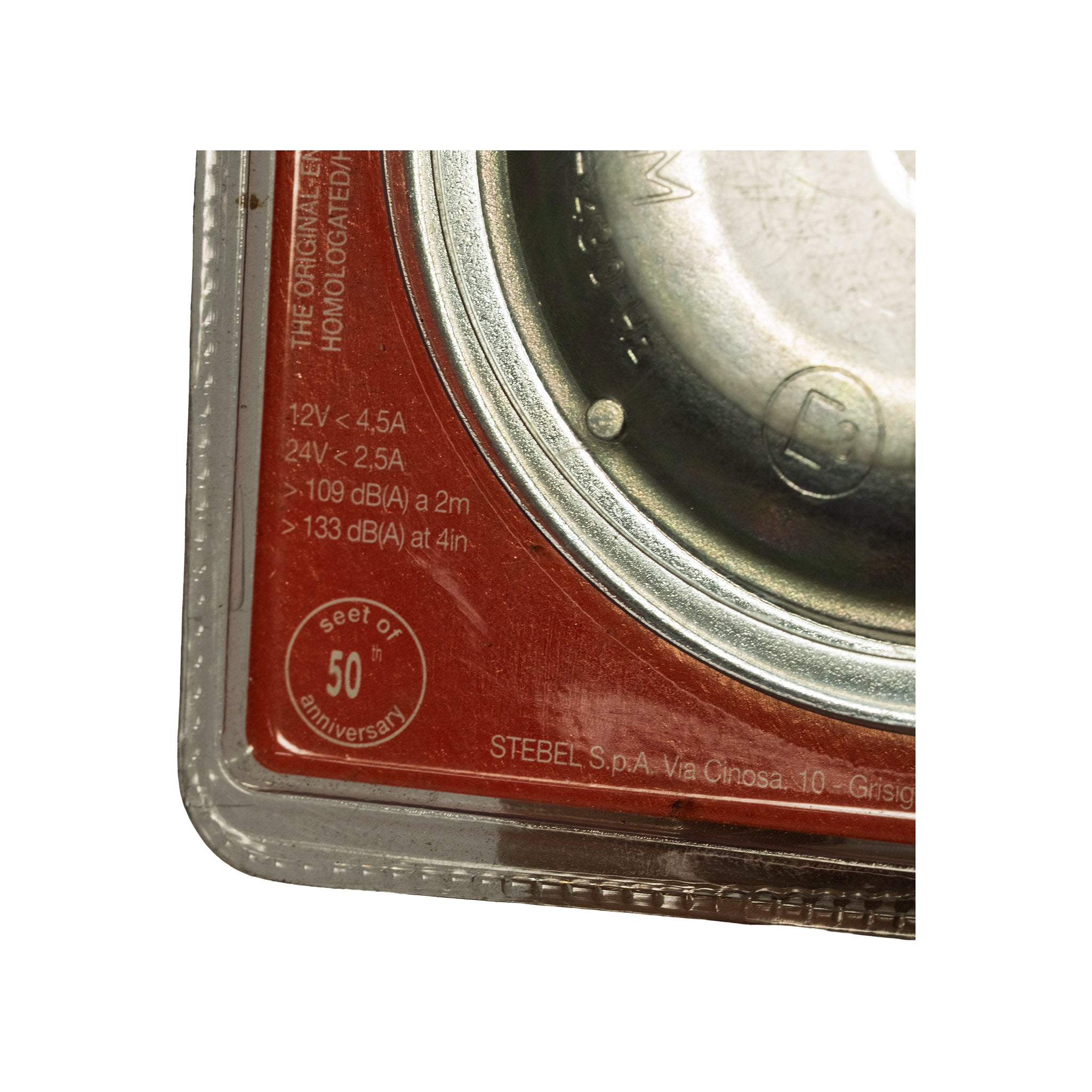

- Stebel S.p.A. has manufactured horns since 1955; the '50th anniversary' roundel on the packaging dates this blister packaging to approximately 2005.

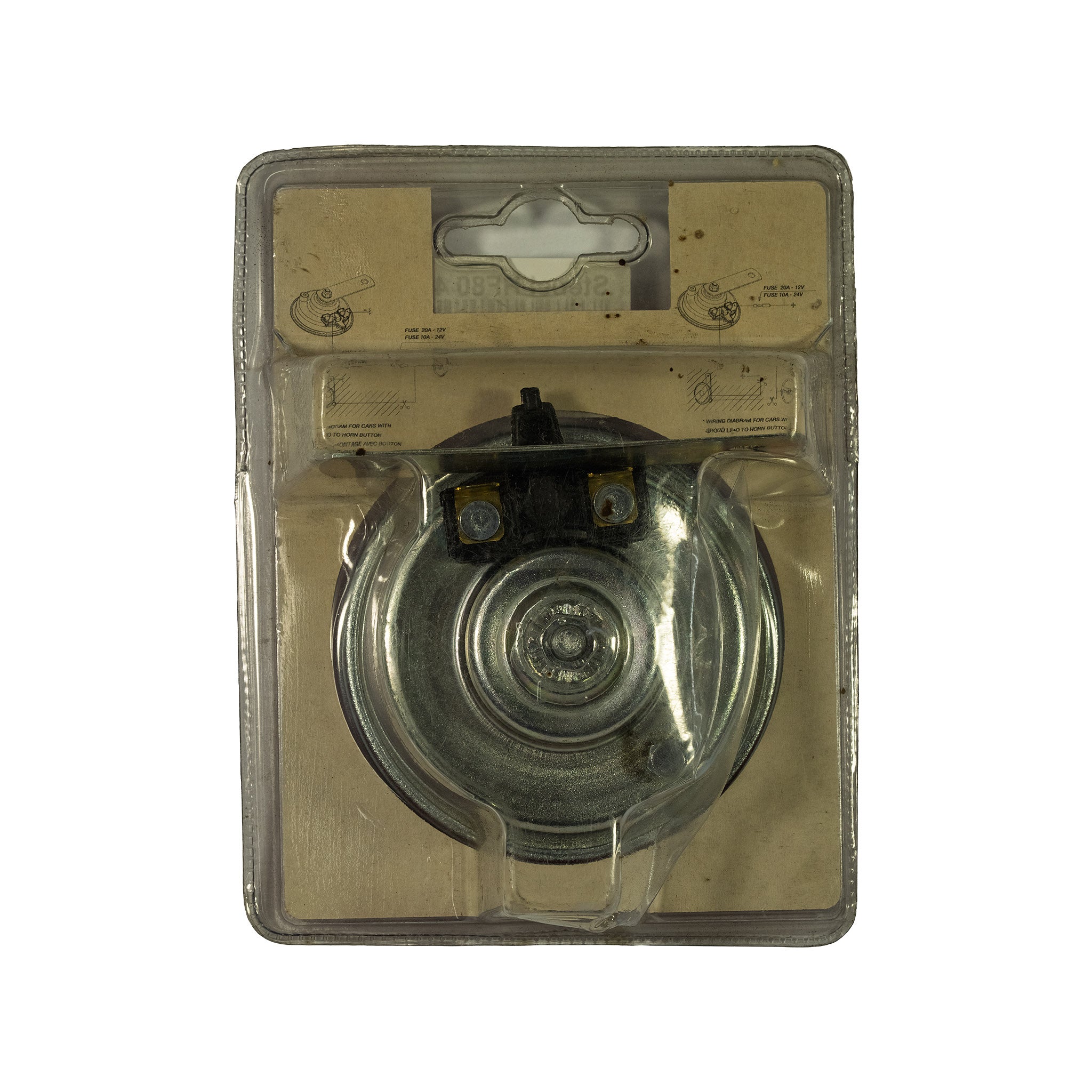

- Two spade terminals on rear — compatible with standard push-on automotive wiring connectors.
- Universal single-bolt mount — direct drop-in replacement for OEM disc horns.

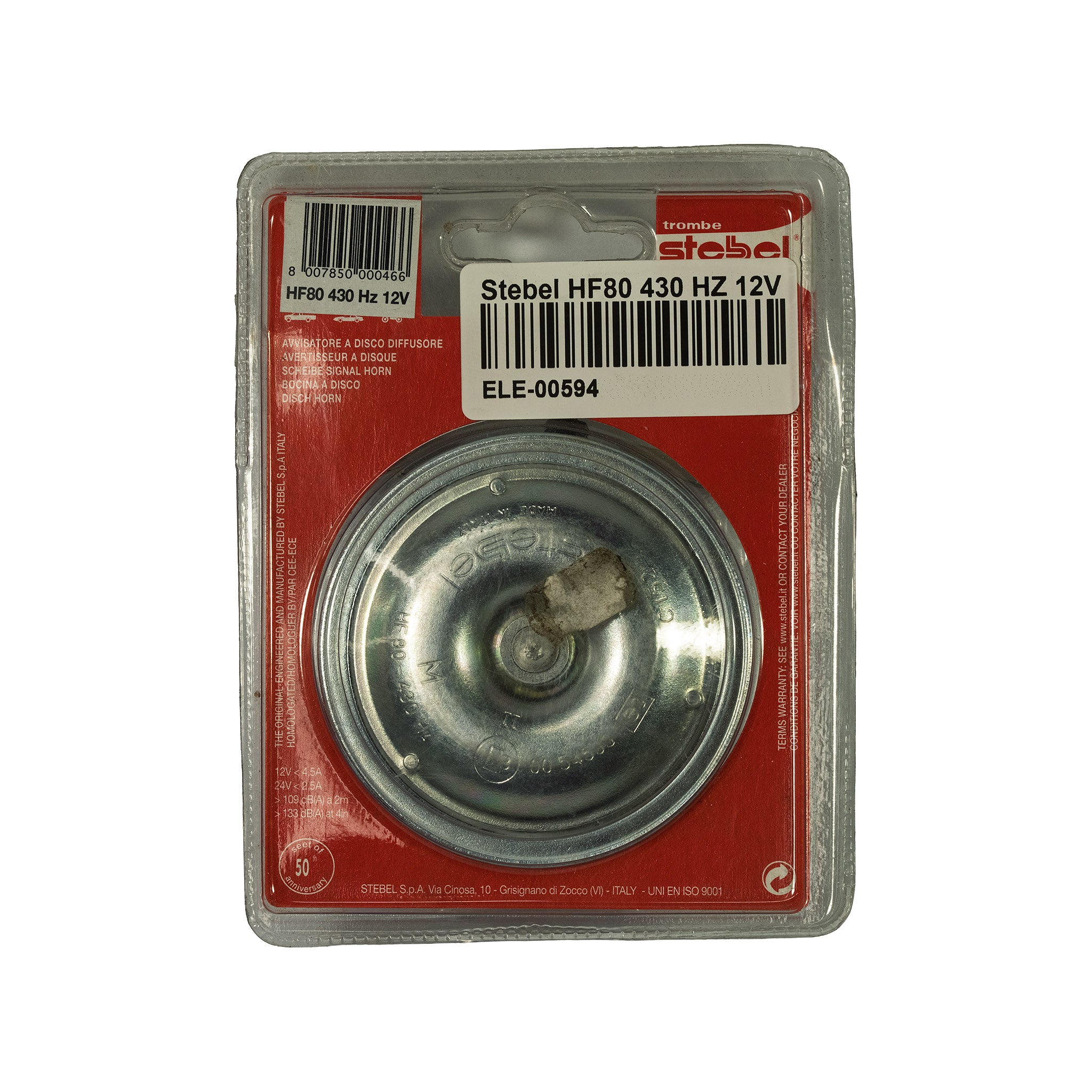

New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. Sealed in original blister pack, part appears unused. Card insert shows age yellowing and minor shelf wear. Horn itself shows no corrosion or damage. Blister plastic intact. Electrical components should be tested before installation. Please confirm this part number suits your vehicle before purchasing.
SKU: ELE-00594
