Main Bearing Set - Toyota - 7M8397-STD - ACL - NOS
| Brand | ACL |
| Part Number | 7M8397-STD |
| Type | Main Bearing |
| Condition | New Old Stock |
Specifications
- Number of journals (bearing positions): 7
- Size: Standard (STD)
- Max overall length per shell: 22.1 mm
- Max shaft diameter: 67.005 mm
- Max tunnel size: 71.000 mm
- Max vertical oil clearance: 0.124 mm
Vehicle Fitment
| Toyota | Land Cruiser 80 Series (HDJ80, HDJ81) 4.2L 1HD-T Turbo Diesel 1990–1997 |
| Toyota | Land Cruiser 100 Series (HDJ100) 4.2L 1HD-T Turbo Diesel 1998–2002 |
| Toyota | Coaster Bus (HDB20, HDB30, HDB31) 4.2L 1HD-T Turbo Diesel |
| Toyota | Land Cruiser 70 Series (HZJ70, HZJ73, HZJ75, HZJ76, HZJ78, HZJ79) 4.2L 1HZ Diesel 1990–2007 |
| Toyota | Land Cruiser 80 Series (HZJ80, HZJ81) 4.2L 1HZ Diesel 1990–1997 |
| Toyota | Land Cruiser 90 Series (Prado) 4.2L 1HZ Diesel |
| Toyota | Land Cruiser 100 Series (HZJ105) 4.2L 1HZ Diesel |
| Toyota | Coaster Bus (HZB30) 4.2L 1HZ Diesel |
Cross References
| Part Numbers | Relationship |
|---|---|
| 7M8397H-STD, 7M8397HX-STD | equivalent |

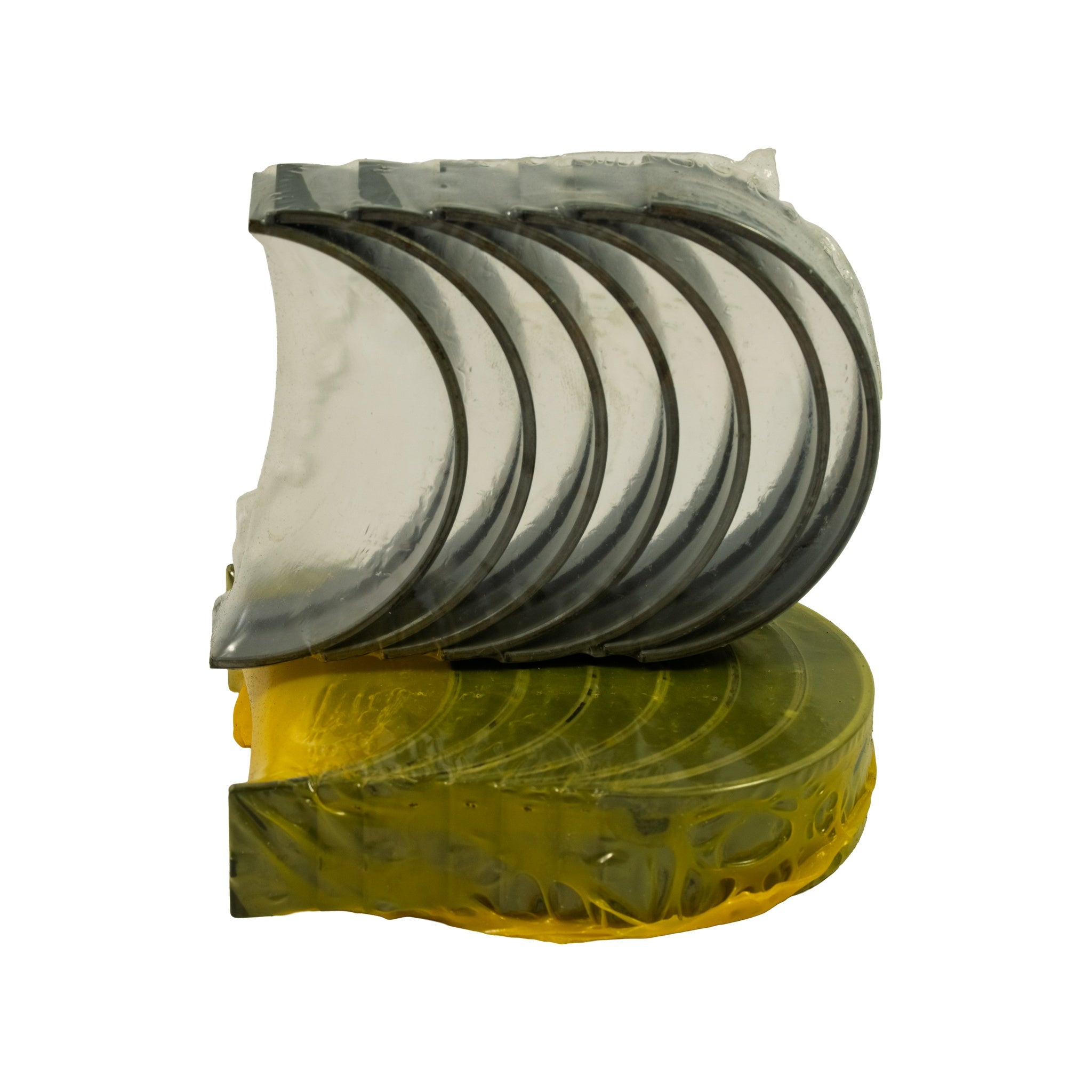

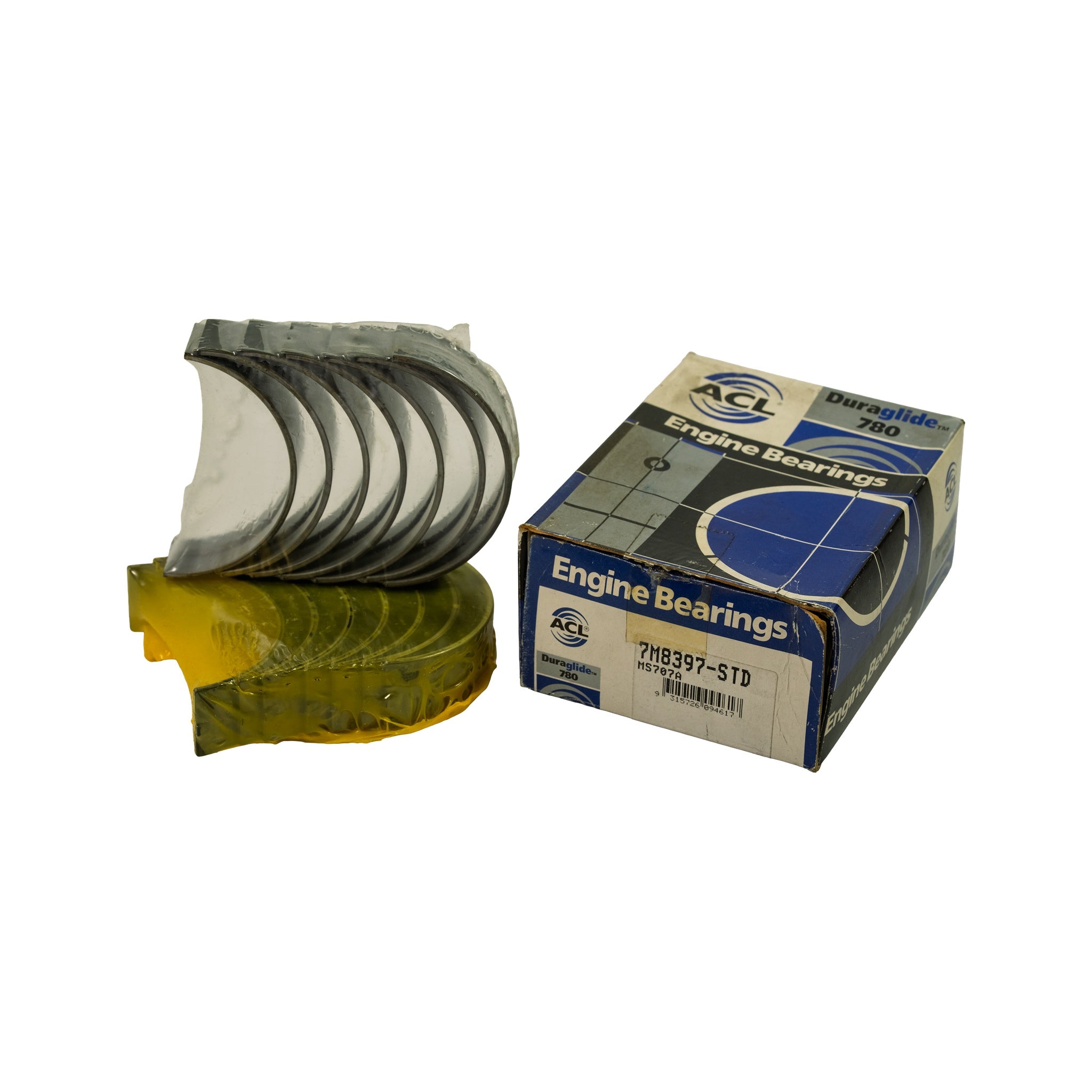

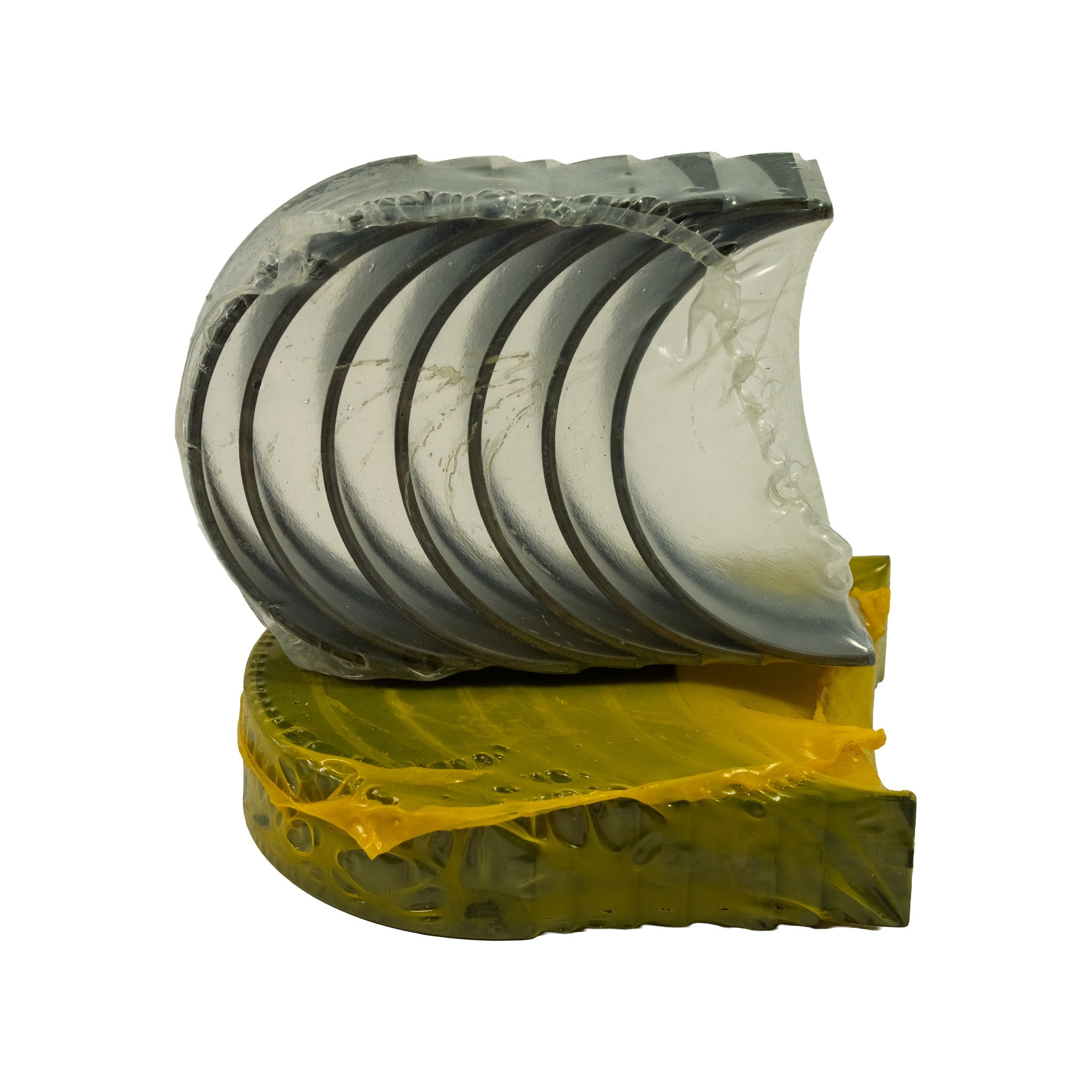

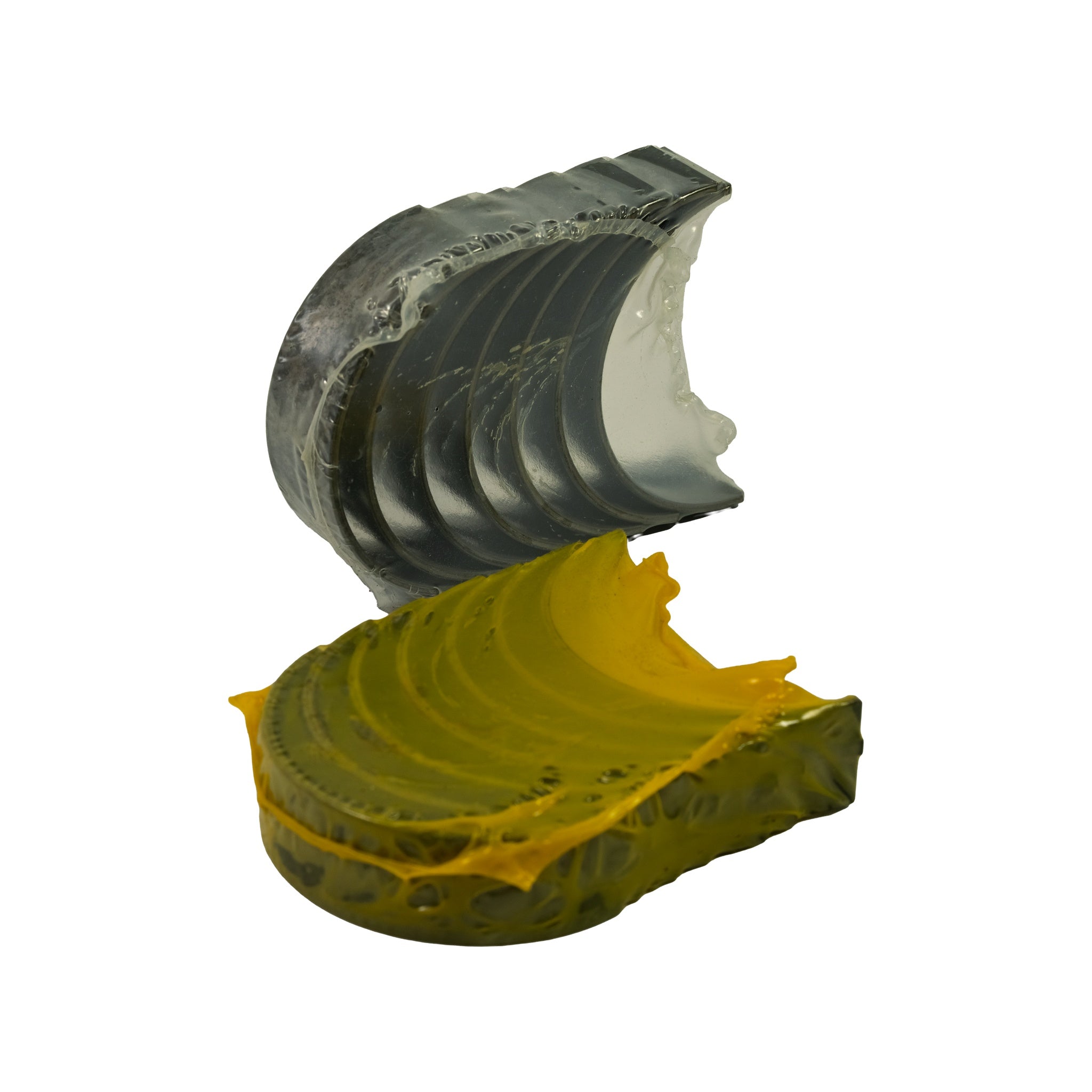

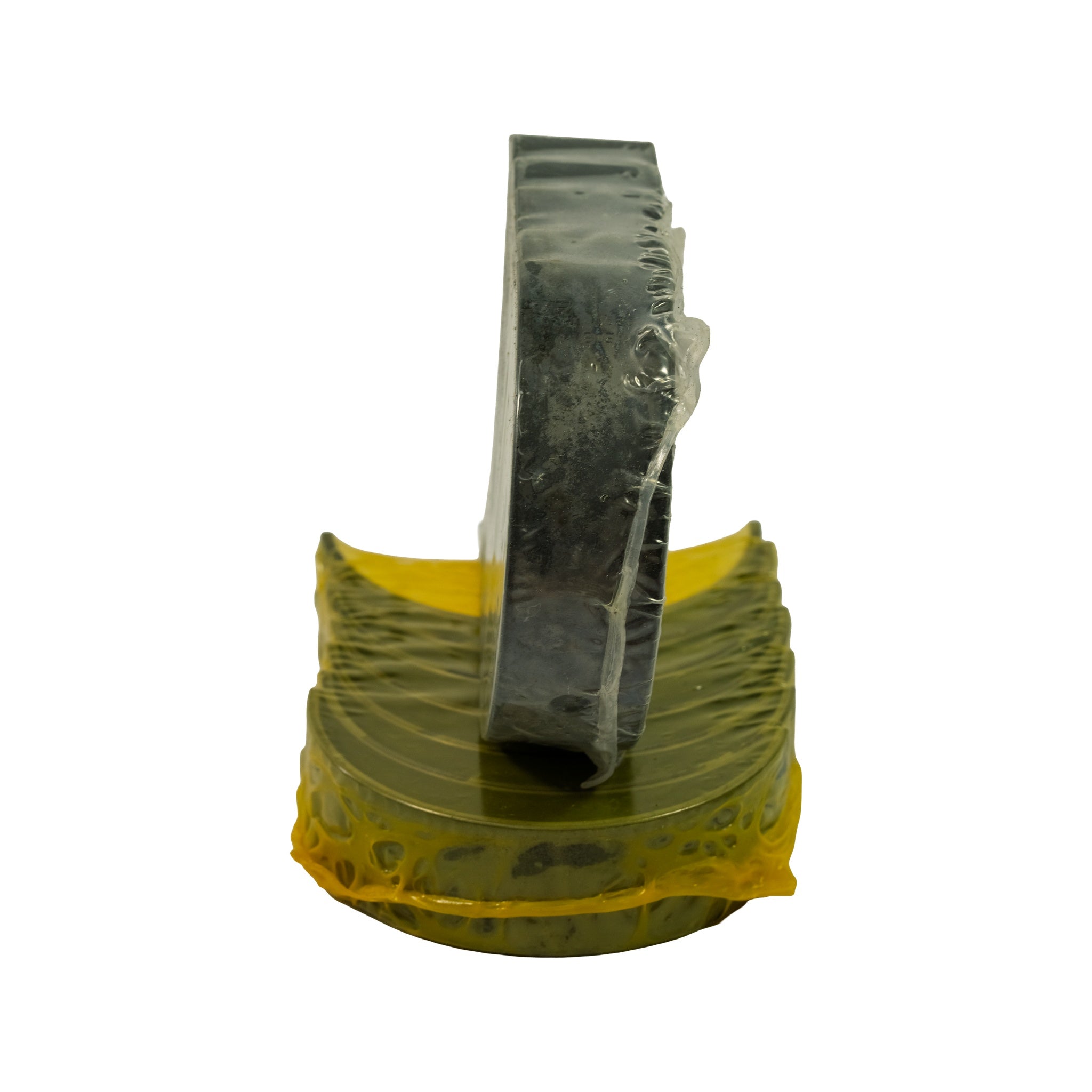

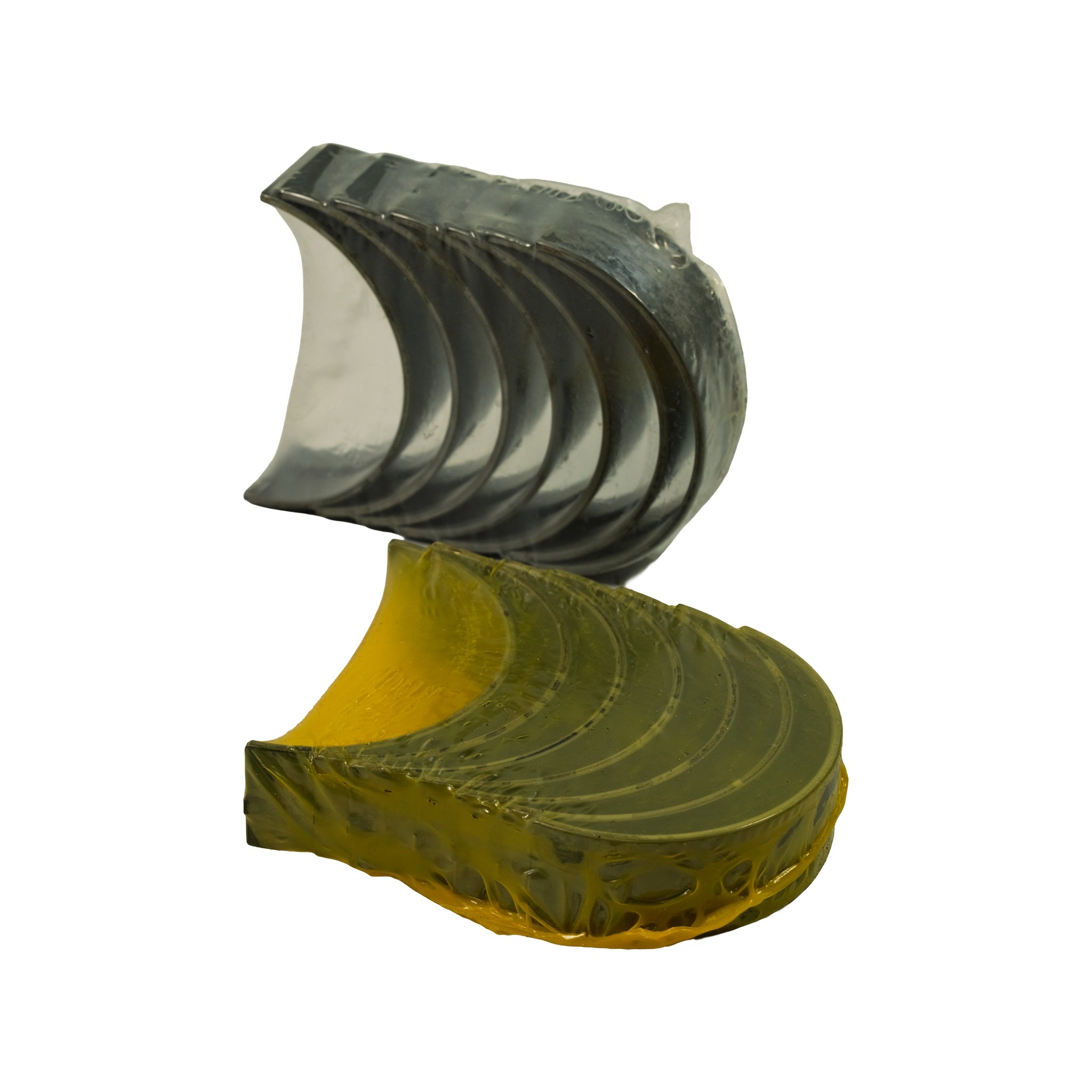

New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. NOS. Part is unused and in original clear plastic wrapping. Both upper and lower shell stacks appear uninstalled with no wear marks. Box shows age-related scuffs and corner wear consistent with storage; one edge has light crushing. Yellow coating on lower shells is intact. Rubber and elastomer components such as belts, seals, and gaskets may harden or degrade during extended storage — inspect before fitting. Please confirm this part number suits your vehicle before purchasing.
SKU: ENG-00311
