Hydraulic Filter – Komatsu Equipment – 51412 – Wix – NOS

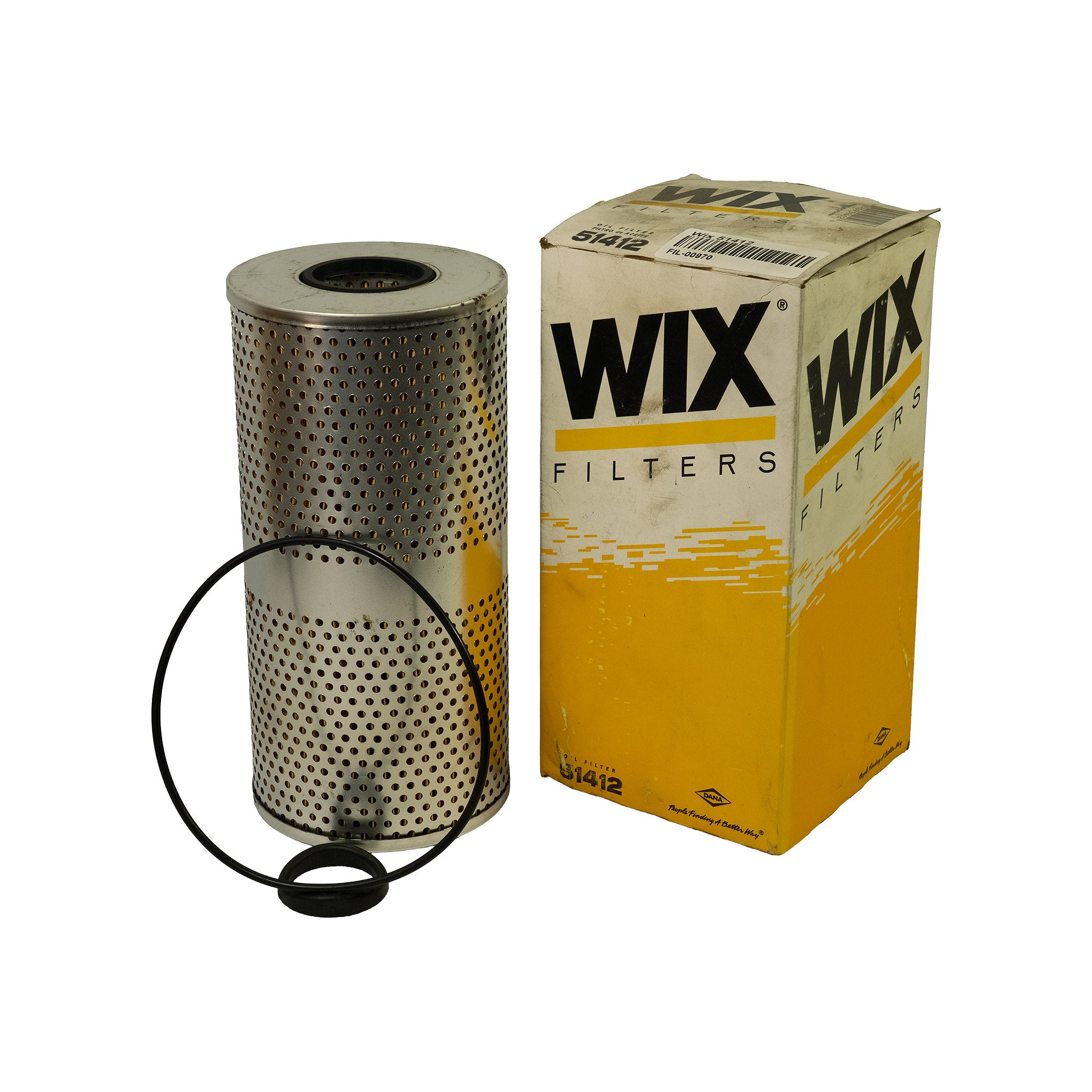

Filter beside its yellow and white Wix Filters box; box face shows the WIX logo, Dana ownership mark, large 51412 part number and a barcode label on the top flap

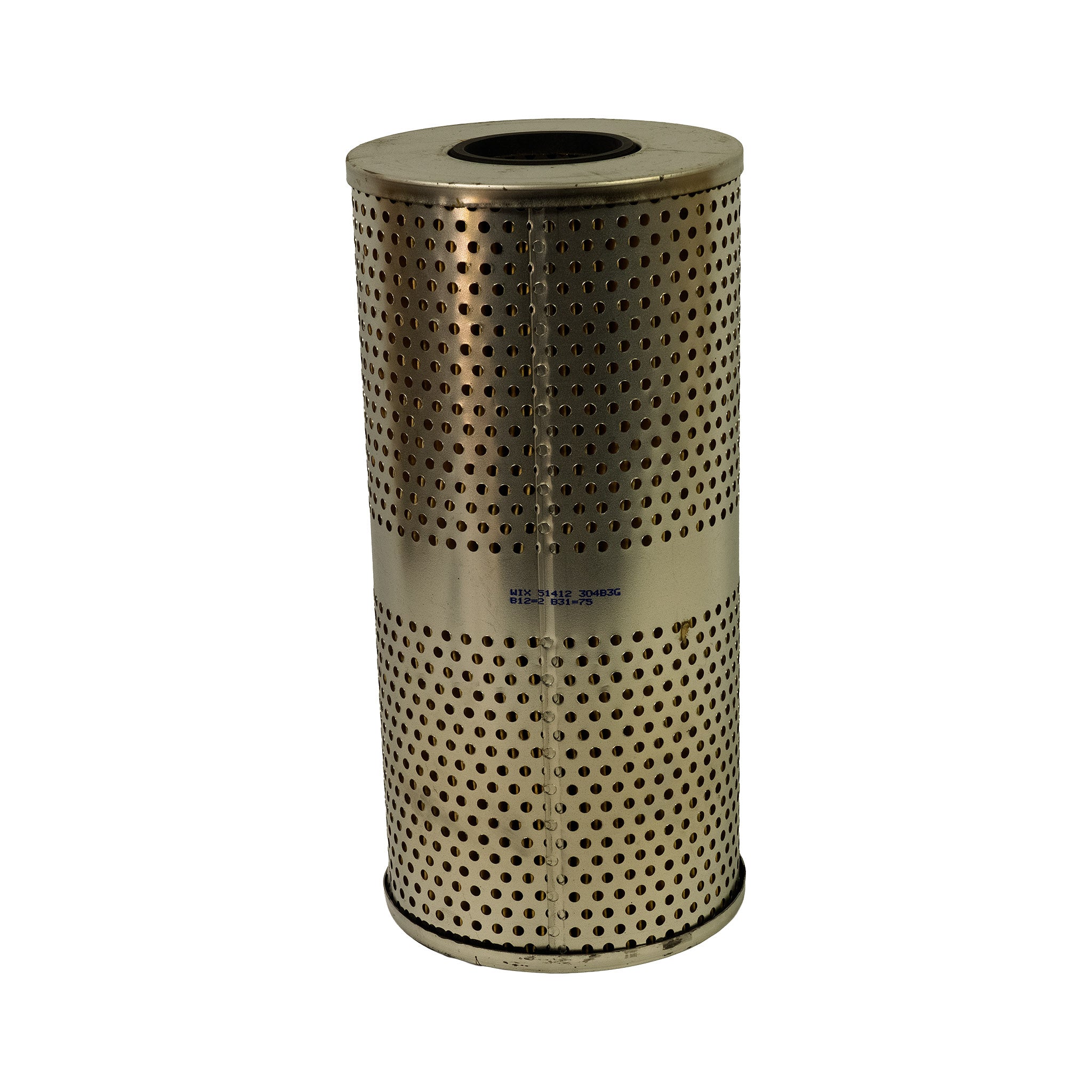

Side view of the cartridge showing the welded vertical seam and a blue ink stamp reading WIX 51412 30483G B12-2 B31-75 across the centre band

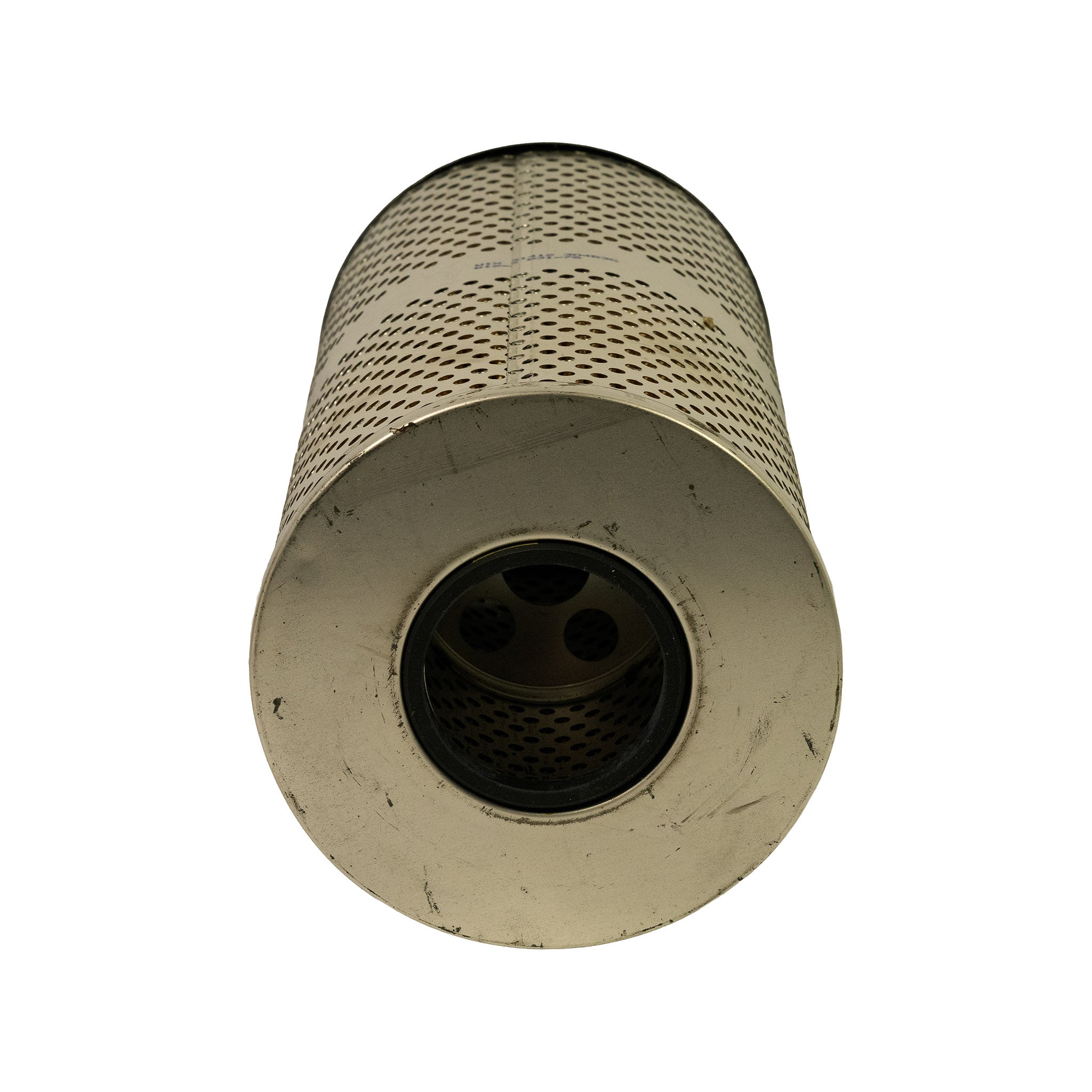

Top-down view looking into one end cap, showing the central black sealing ring around the open bore with light scuffing on the metal end face

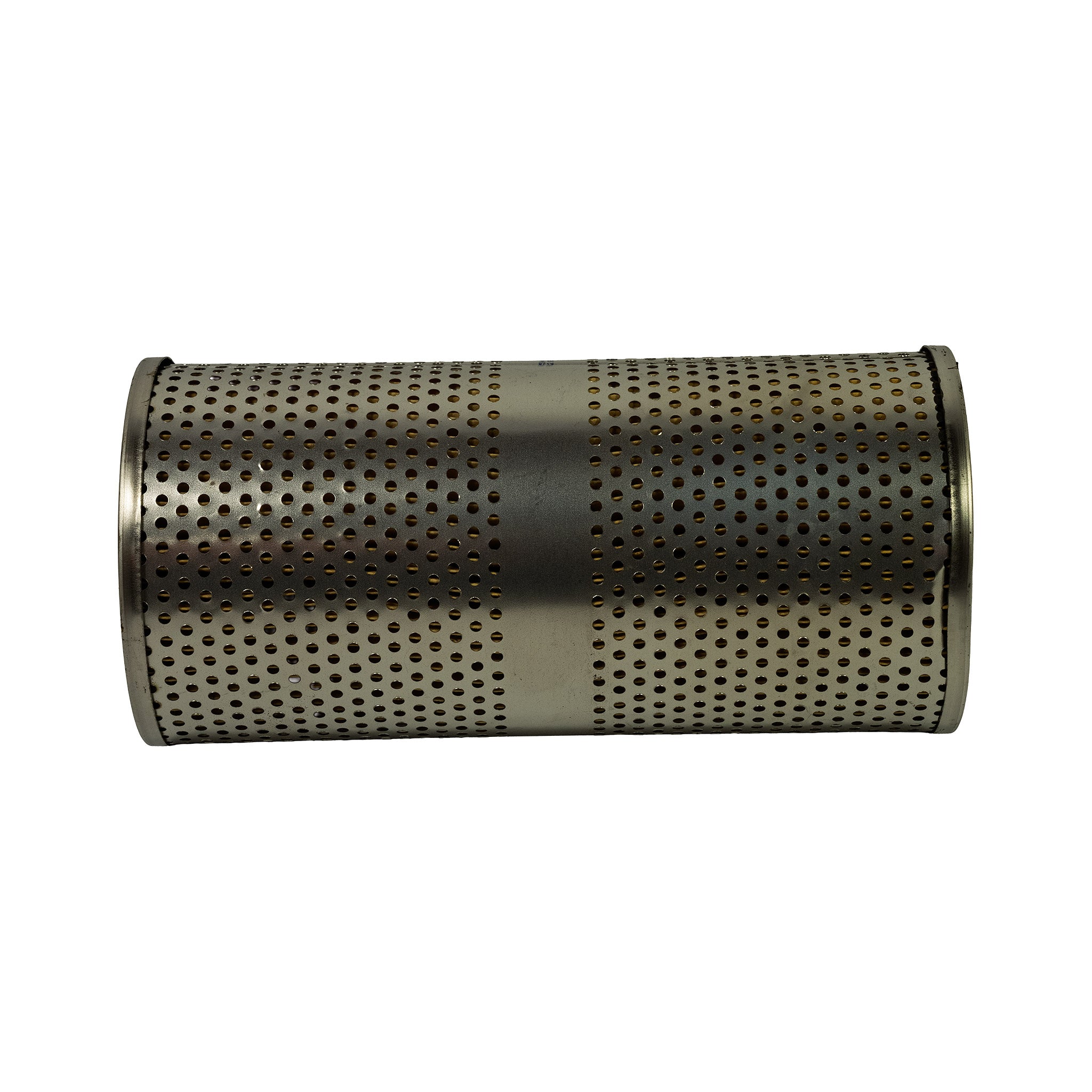

Filter laid horizontally, broadside view emphasising the smooth metal centre band that divides the upper and lower perforated zones

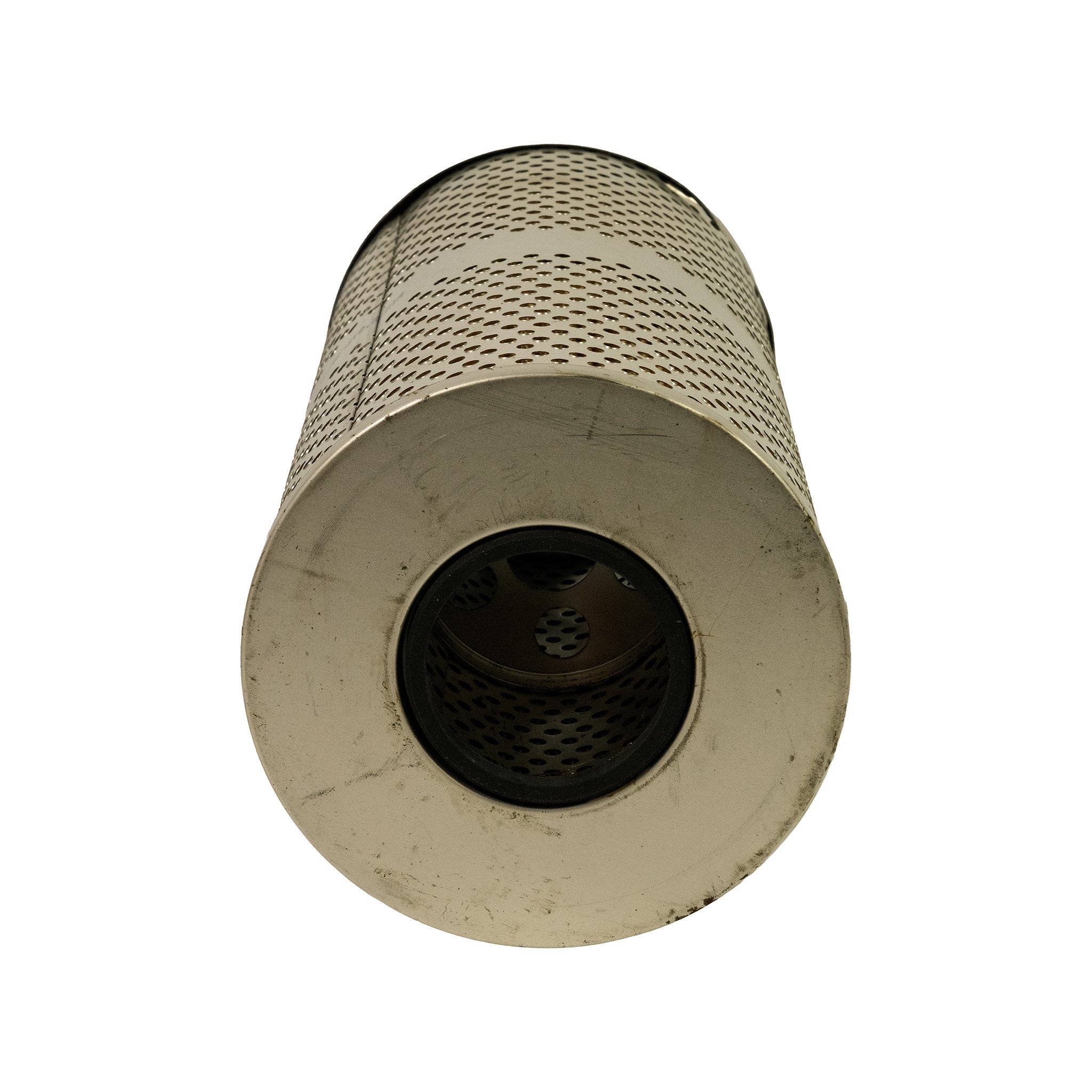

Opposite end cap viewed straight on, showing the inner mesh tube visible through the central bore and a faint ink stamp partially visible on the canister body

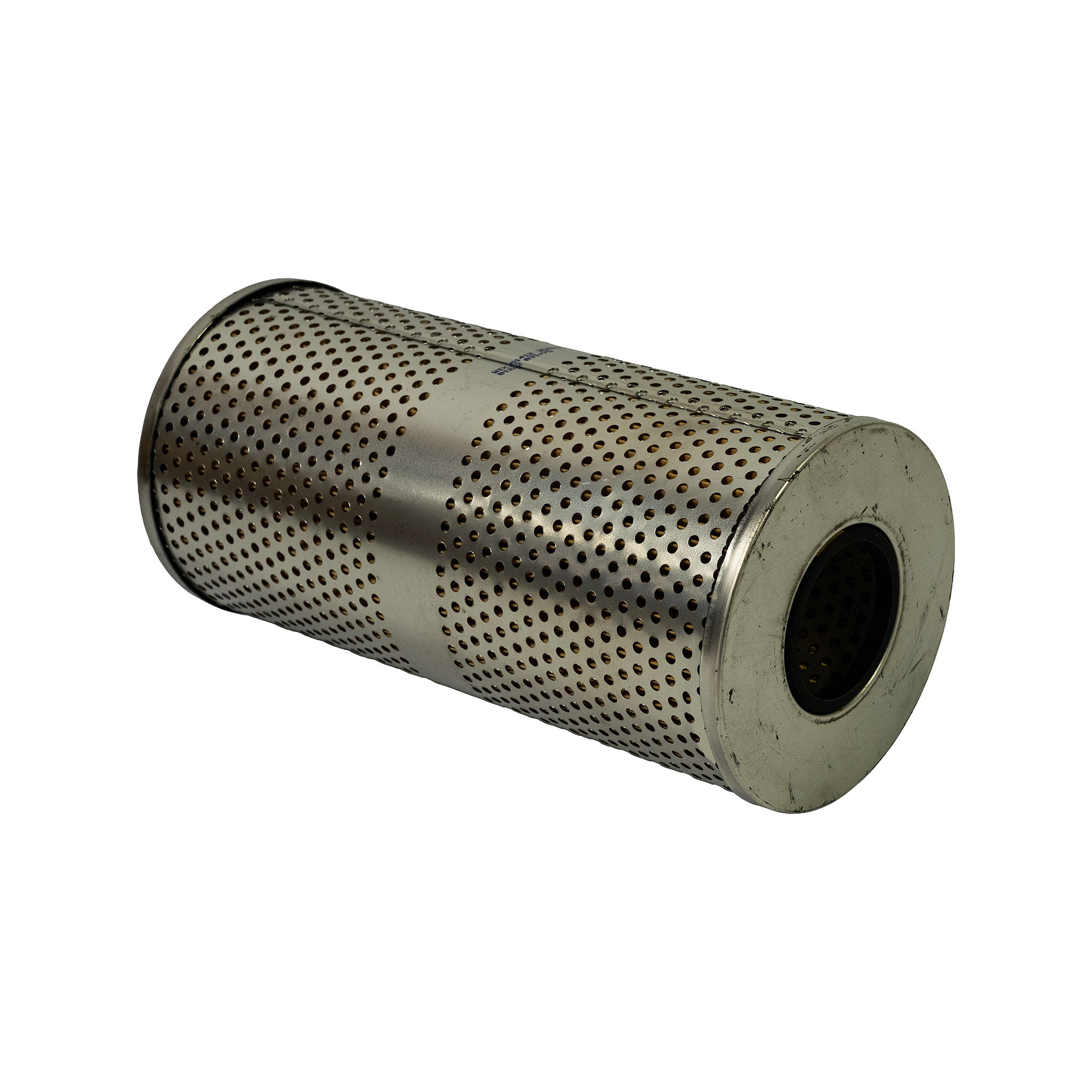

Three-quarter angled view of the filter on its side, one end cap and centre bore facing the camera

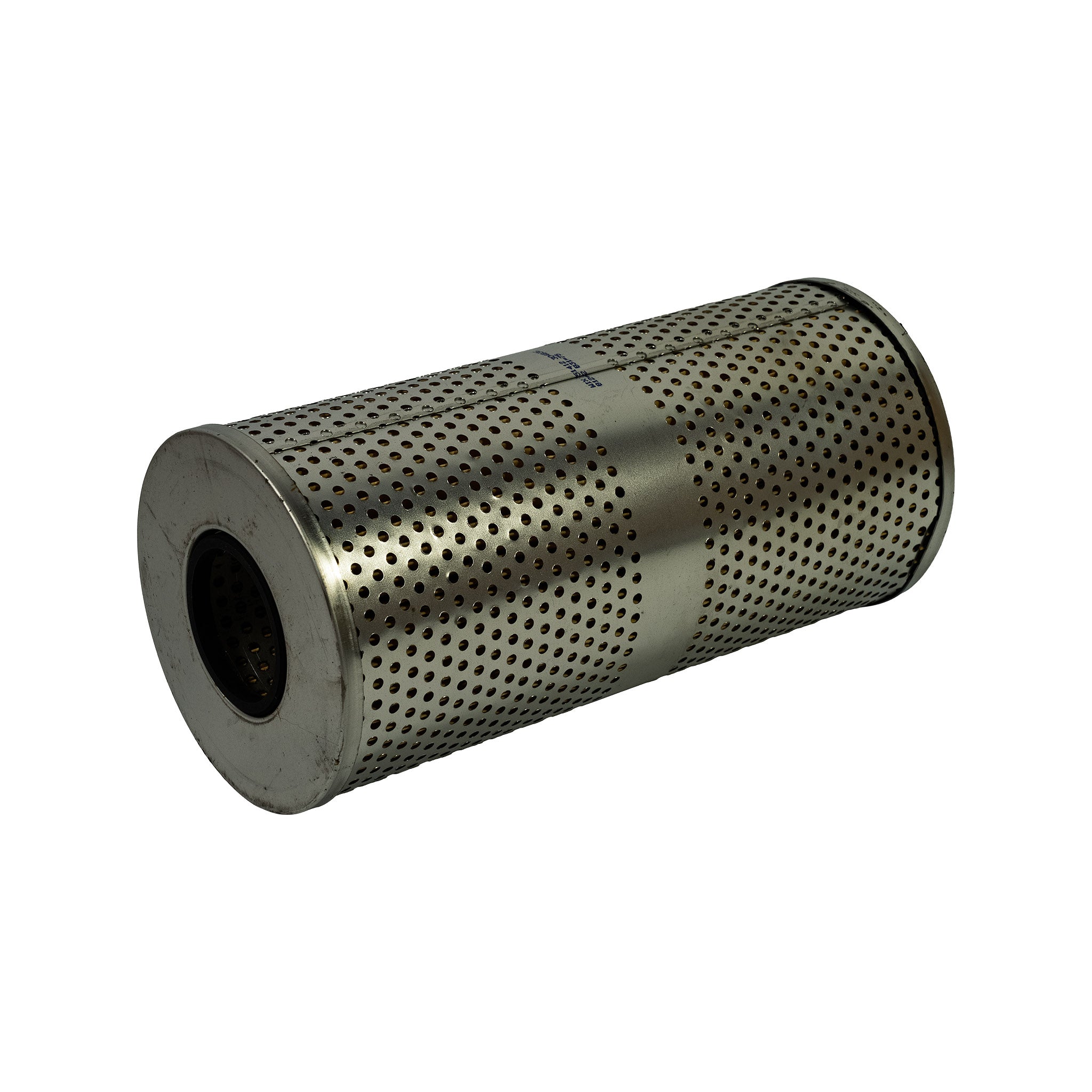

Three-quarter angled view from the opposite side, showing the second end cap and the perforated body from the alternate angle

Hydraulic Filter – Komatsu Equipment – 51412 – Wix – NOS

Only 1 left!
Brand Wix
Part Number 51412
Type Hydraulic Filter
Condition New Old Stock

Specifications

  • Height: 8.950 in (~227 mm)
  • Outer diameter: 4.343 in (~110 mm)
  • Inner diameter (bottom): 2.094 in (~53 mm)
  • Nominal micron rating: 19 micron
  • Beta ratio: 2/20=12/27
  • Media material: Cellulose
  • Duty class: HD (Heavy Duty)
  • Style: Cartridge, metal canister

Vehicle Fitment

Komatsu PC1250 / PC1250SP / PC1250-7 / PC1250-8 hydraulic excavators (transmission and PPC pump circuits)
Komatsu WA500 / WA600 / WA800 / WA900 wheel loaders (torque converter and transmission oil filter)
Komatsu WD600 wheel dozer
Komatsu HD255 / HD325 / HD405 / HD465 / HD605 / HD785 / HD985 dump trucks
Komatsu CD60R / CD110R crawler carriers
Komatsu GD755 motor grader
Komatsu 330M dump truck and 512–568 series wheel loaders
Komatsu PC1100 / PC1100SE / PC1100SP excavators
Komatsu LW100 / LW250 cranes

Cross References

Part Numbers Relationship
4241611140, 3851010-0021, 3851010-0022, 3851108-9831, 569-16-81160, 2030880, 1010002C1, 25313798, 3I1480, 4222602 OE original
PF2216, PT510, P550084, P550648, C7578, HF35255, HF6332, HF900, HD1164/1X, 1412, H-5618, L412, LP2307, H55151, 92412, 85412, UH2101, WGH6332, SH56382, ML1230, SH4711 equivalent
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock; original Wix box present but visibly scuffed and aged with light edge wear and minor dirt marks; filter itself appears unused with faint handling marks on end caps. Filter media and sealing surfaces should be visually inspected before use. Please confirm this part number suits your vehicle before purchasing.

SKU: FIL-00970
