Oil Filter - IC / International / IHC / Champion - LF9025 - Fleetguard - NOS
| Brand | Fleetguard |
| Part Number | LF9025 |
| Type | Oil Filter |
| Condition | New Old Stock |
Specifications
- Overall height: 352.5 mm (13.88 in)
- Largest OD: 118.11 mm (4.65 in)
- Gasket OD: 118.87 mm (4.68 in)
- Gasket inside diameter: 101.6 mm (4.00 in)
- Thread size: M95 x 2-7H INT
- Filtration efficiency (TWA): 98.7% at 30 micron
- Bypass valve setting: 0 kPa (no bypass valve)
- Filter media type: StrataPore
- Standpipe: None
Vehicle Fitment
| International/IHC | trucks with DT466E engine 2003–2009 |
| International/IHC | trucks with DT570 engine |
| International/IHC | trucks with HT570 engine |
| International | MaxxForce DT engines 2005-on (L6 7.6L) |
| Blue | Bird Buses (Conventional Bus) with International Turbo Diesel 2005 |
| Champion | Buses Defender DF270 with DT466 L6 7.6L |
| Champion | Buses Defender DF280 with MaxxForce DT L6 7.6L |
| IC | Buses CE Series DT466 2003–2009 L6 7.6L |
| IC | Buses CE Series MaxxForce DT 2010–2011 L6 7.6L |
| IC | Buses HC Series MaxxForce DT 2008–2017 L6 7.6L |
| IC | Buses RE Series MaxxForce DT 2010–2011 L6 7.6L |
Cross References
| Part Numbers | Relationship |
|---|---|
| 1841606C1, 1842639C91, 1842639C92 | OE original |
| BD7250, LFP9025, P552025, P550656, PH9971, PH9971A, 57744XD, 7744XD, 84744XD, LF597, L65965, 219P550656 | equivalent |

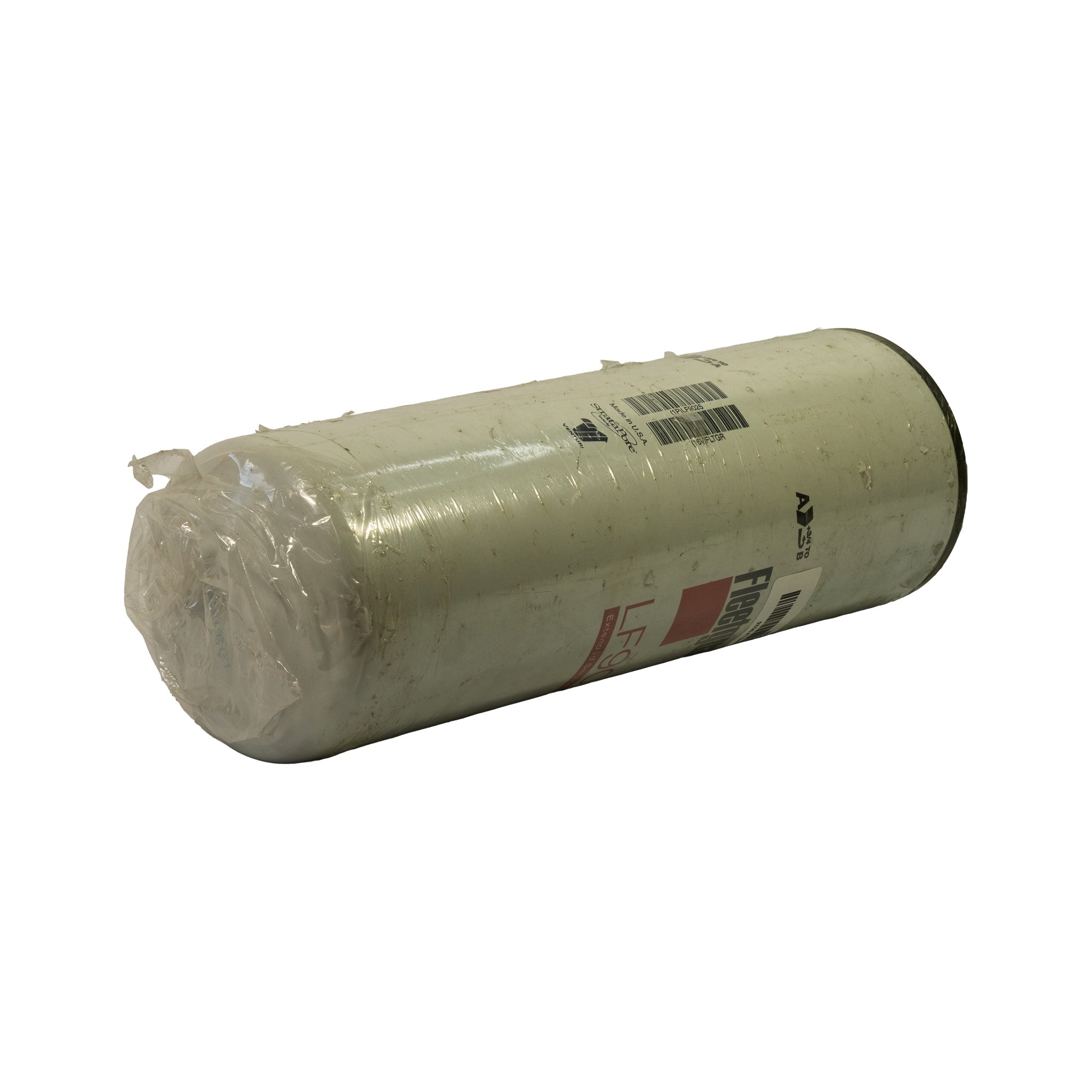

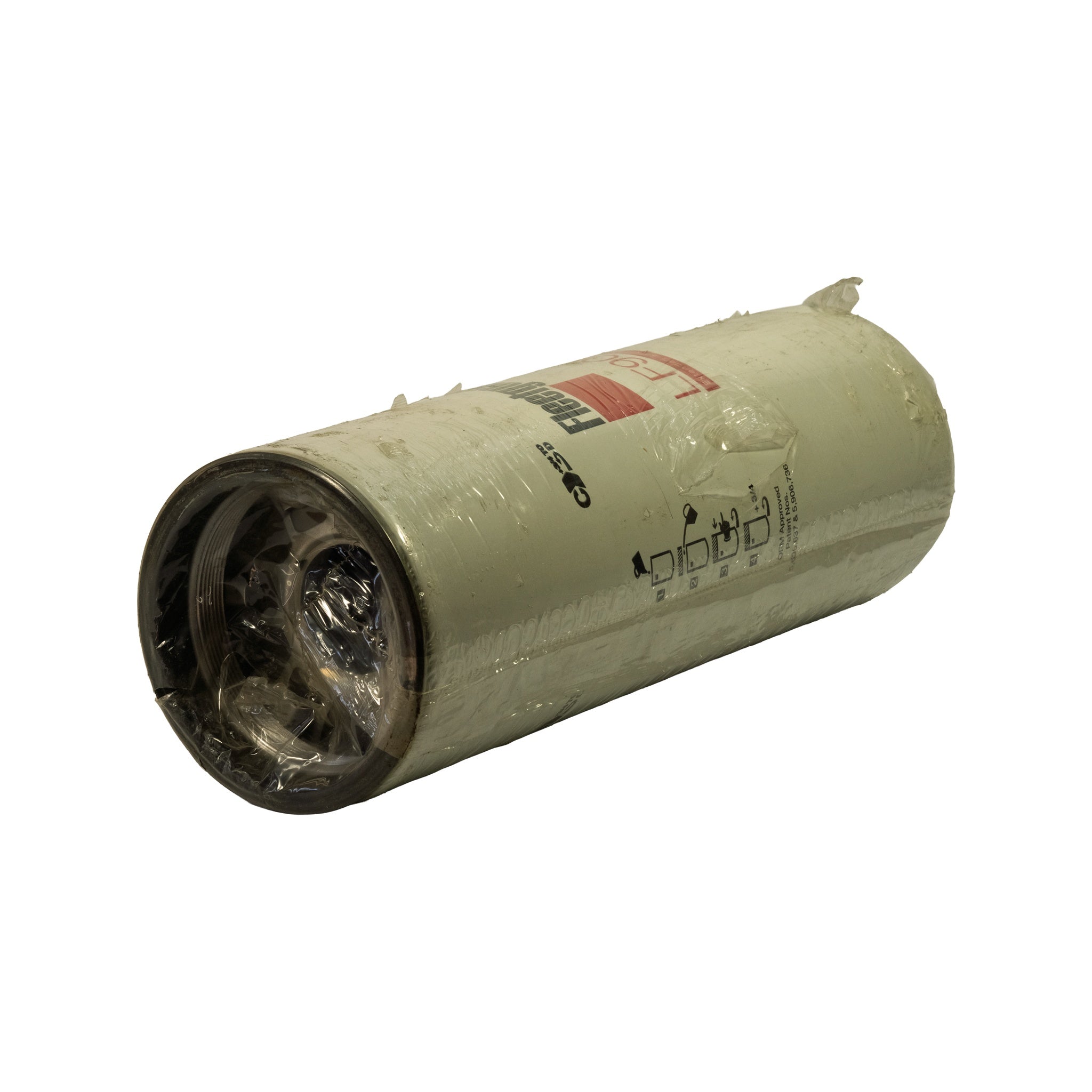

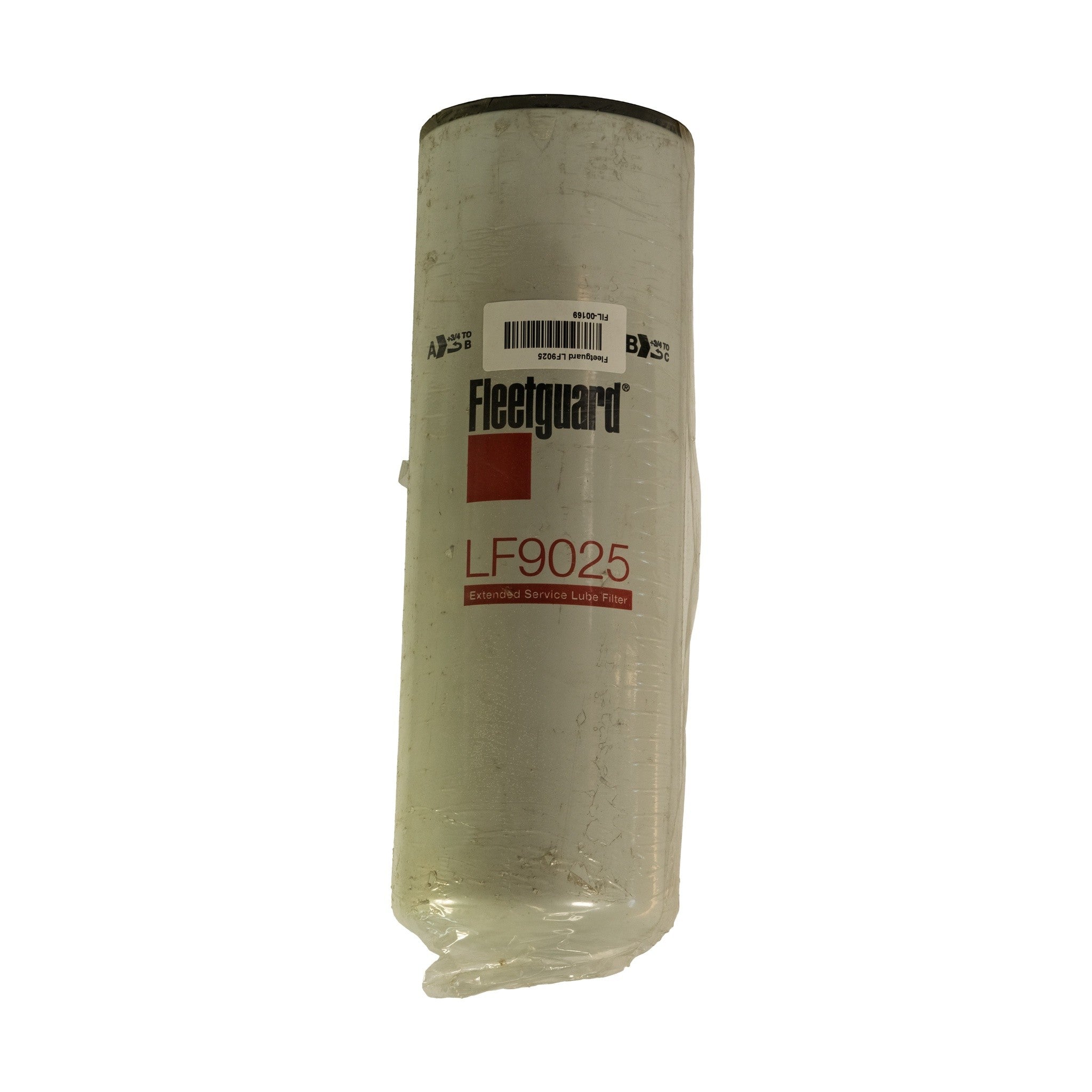

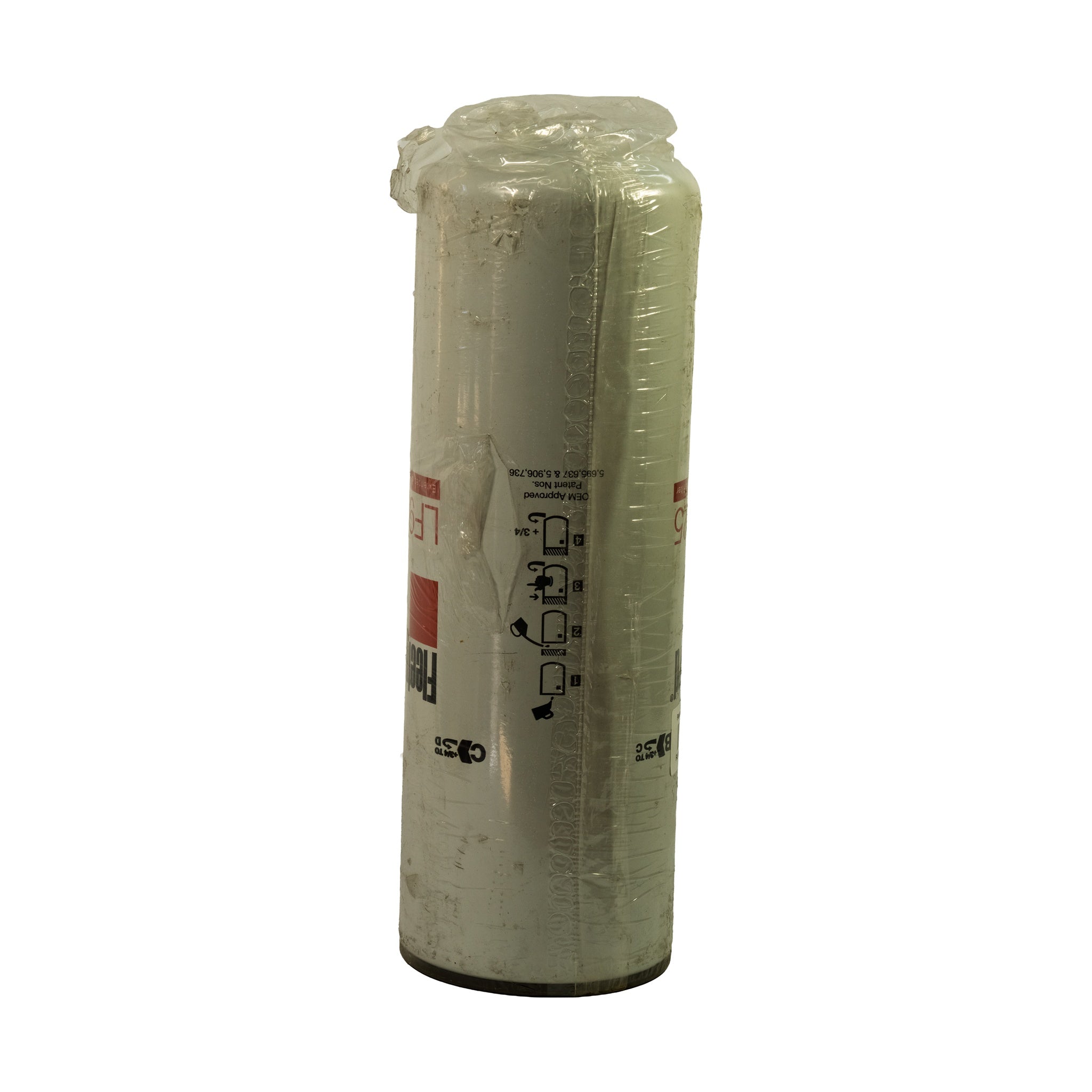

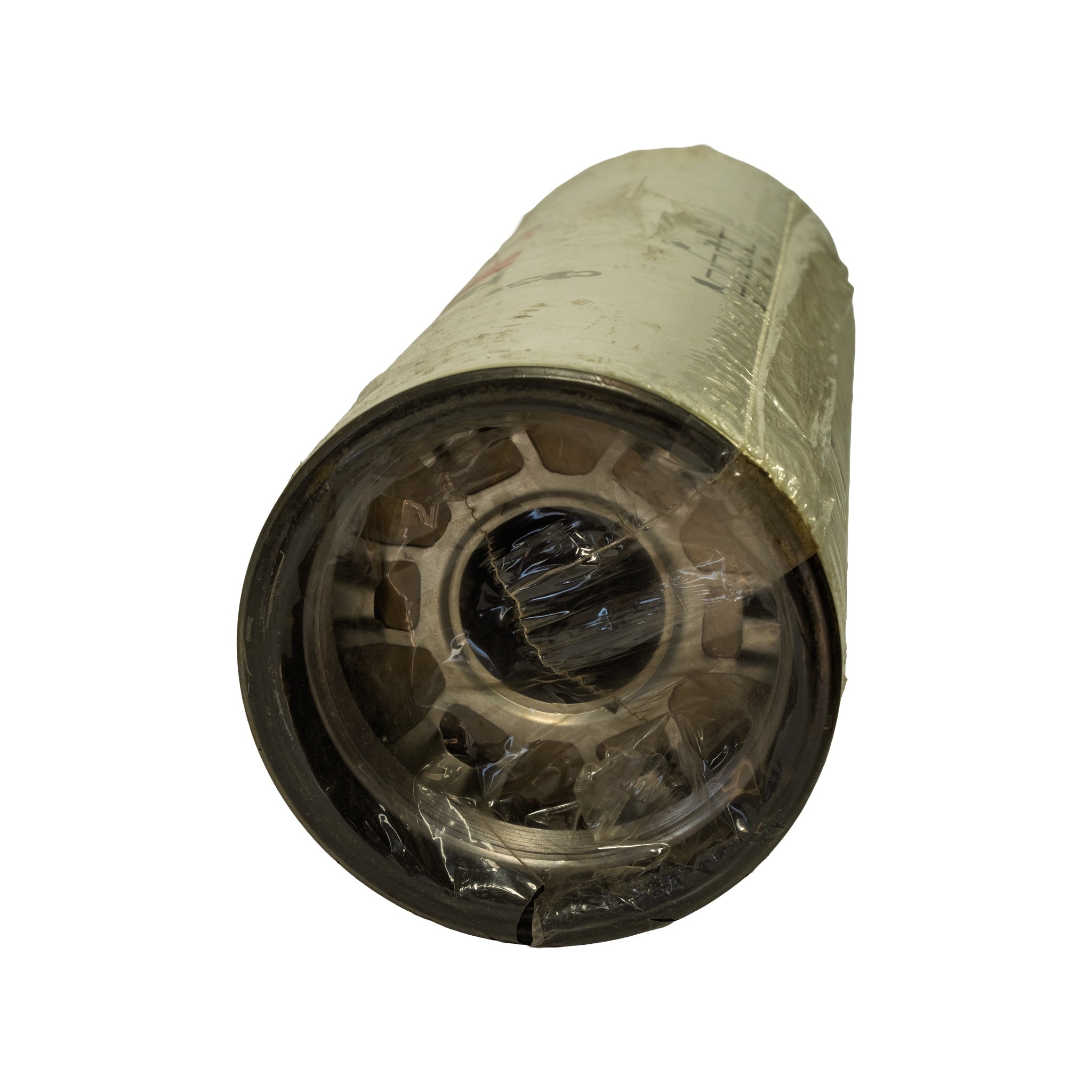

New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. NOS in original polywrap. Wrap intact but heavily scuffed and soiled from storage. Label visible but heavily grime-marked. Steel base plate shows surface oxidation/patina consistent with extended shelf storage. Part itself appears unused and structurally sound. Filter media and sealing surfaces should be visually inspected before use. Please confirm this part number suits your vehicle before purchasing.
