Starter Motor - Ruggerini / Lombardini - LRS1589 - Lucas - NOS

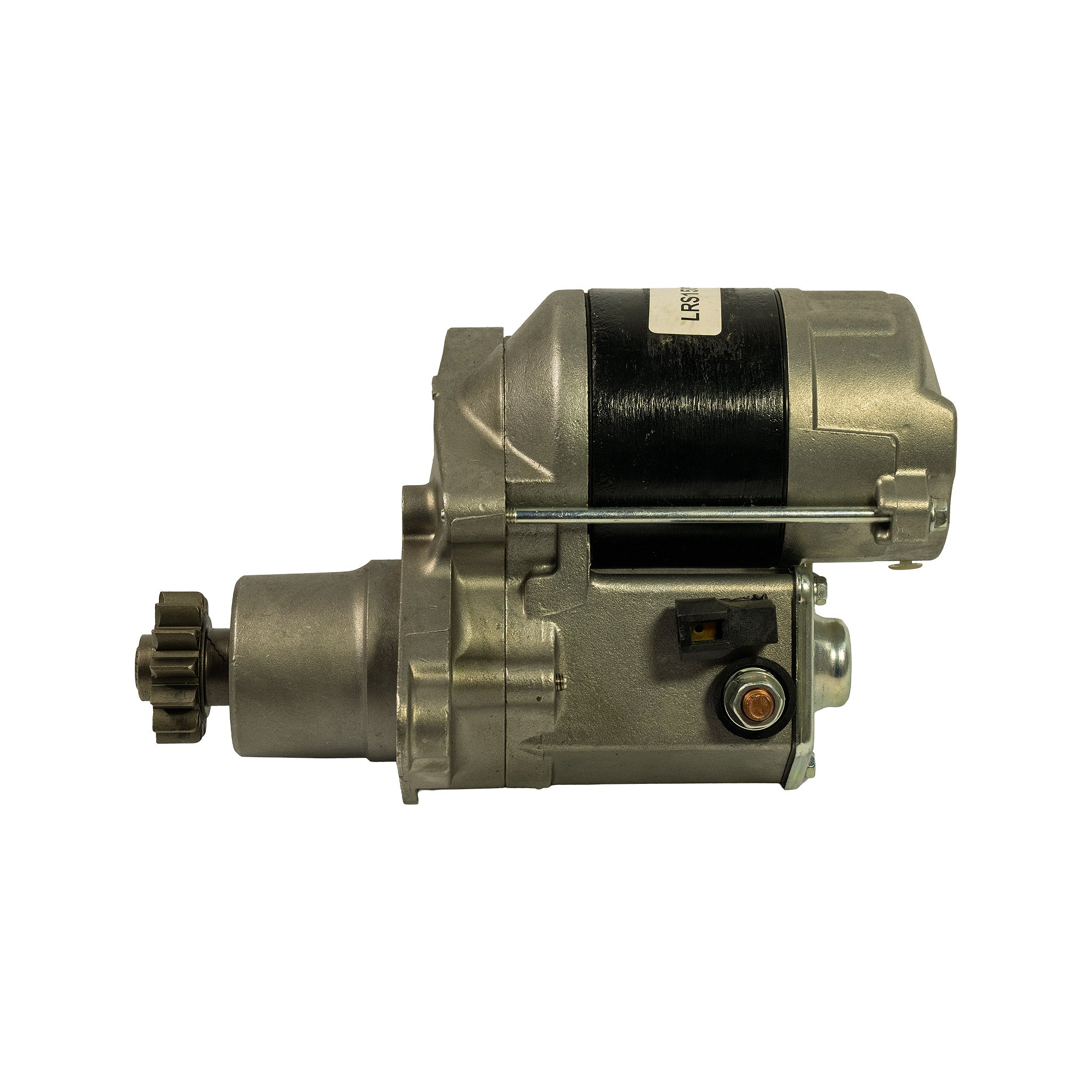

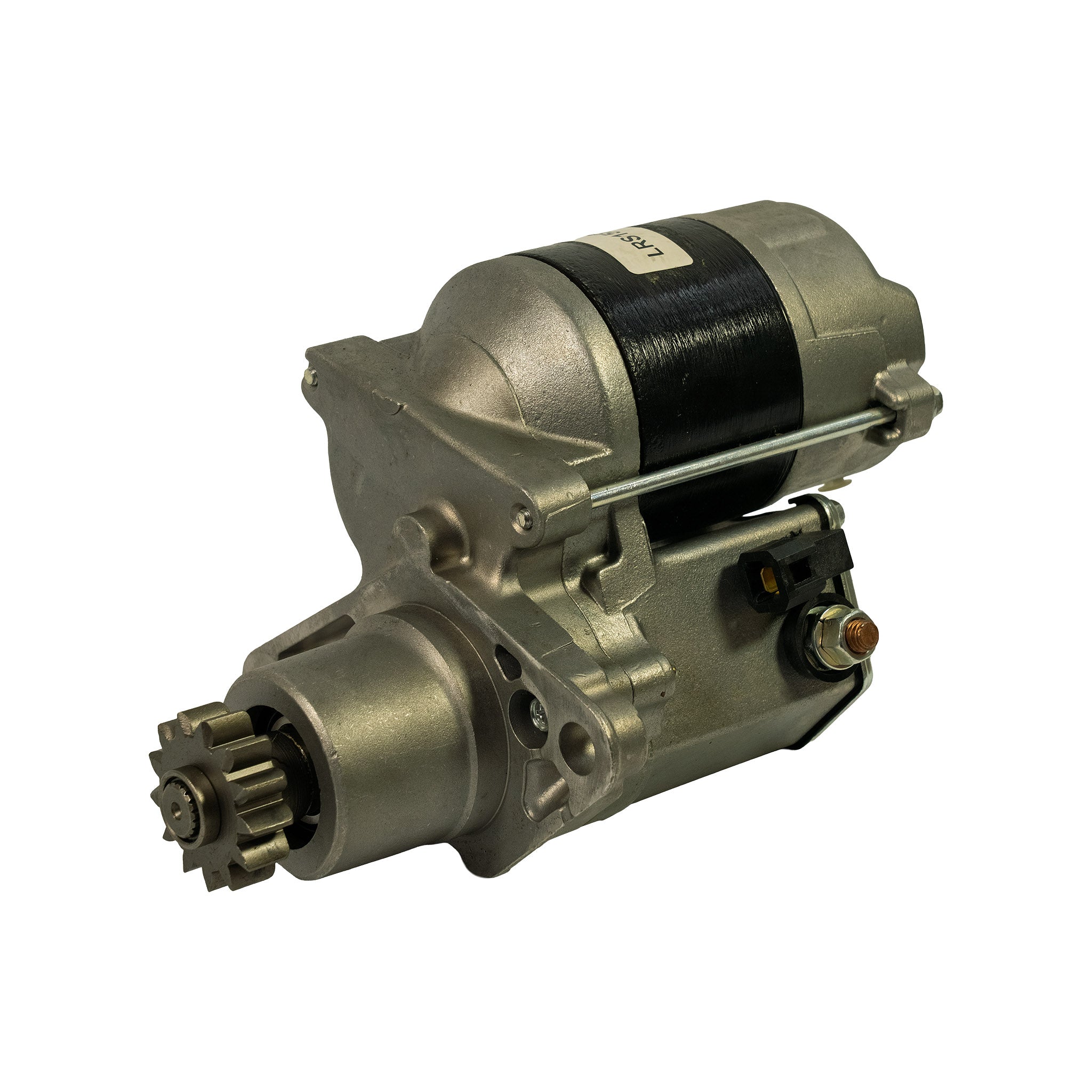

Right-side profile view showing the solenoid with yellow connector tab and copper B+ terminal stud, the gear reduction housing in the centre, and the drive pinion to the left. LRS1589 sticker visible on motor body.

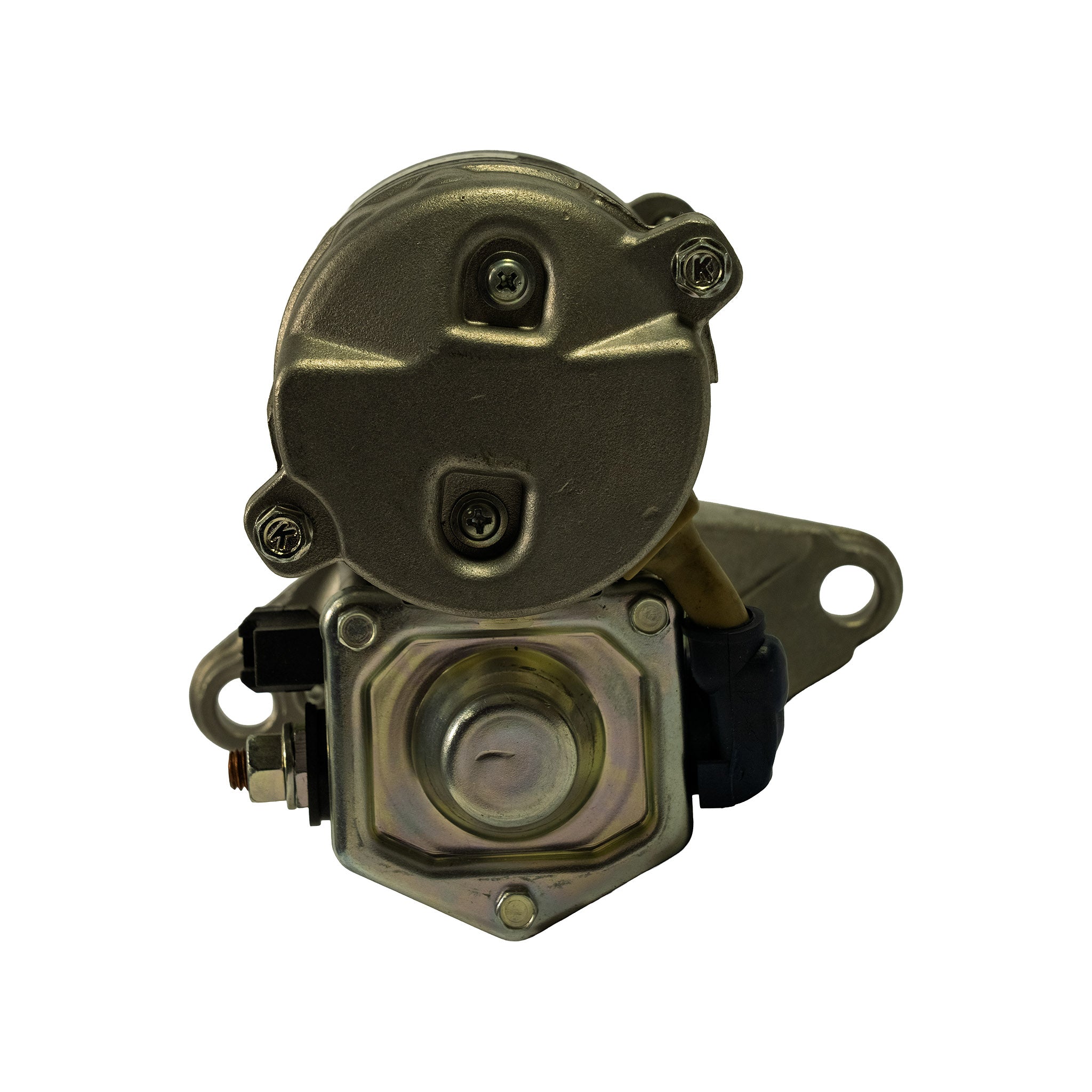

Rear/commutator-end view showing the circular brush-holder end cap secured with four cross-head screws, a separate mounting lug bracket with one bolt hole visible to the right, and the square-sectioned solenoid housing with yellow and brown wire connectors at bottom-left.

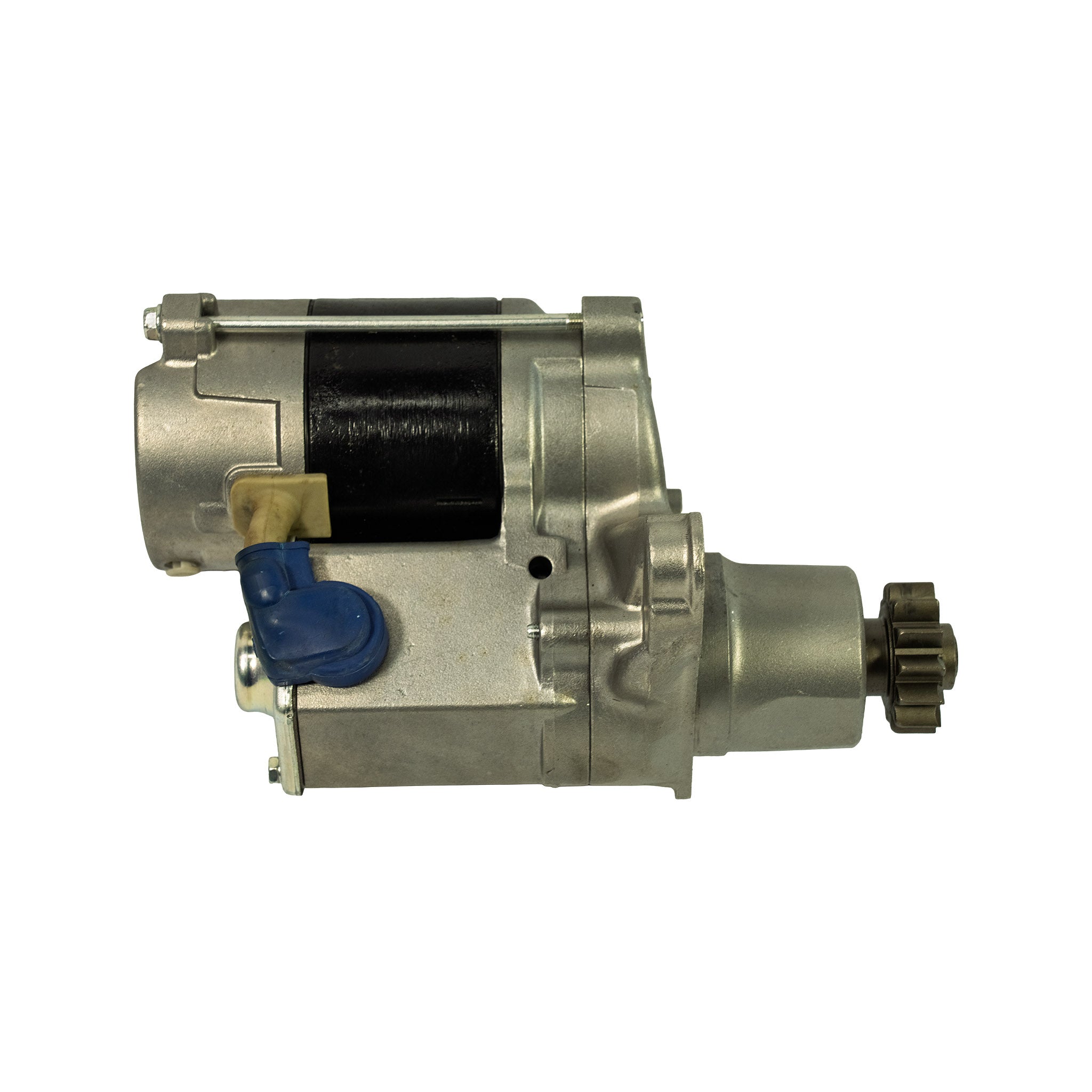

Left-side profile view showing the opposite solenoid face with blue rubber protective cap over one terminal, beige connector tab for ignition bypass wire, and the drive pinion extending to the right. Motor body wrap and top sticker (LRS1589) clearly visible.

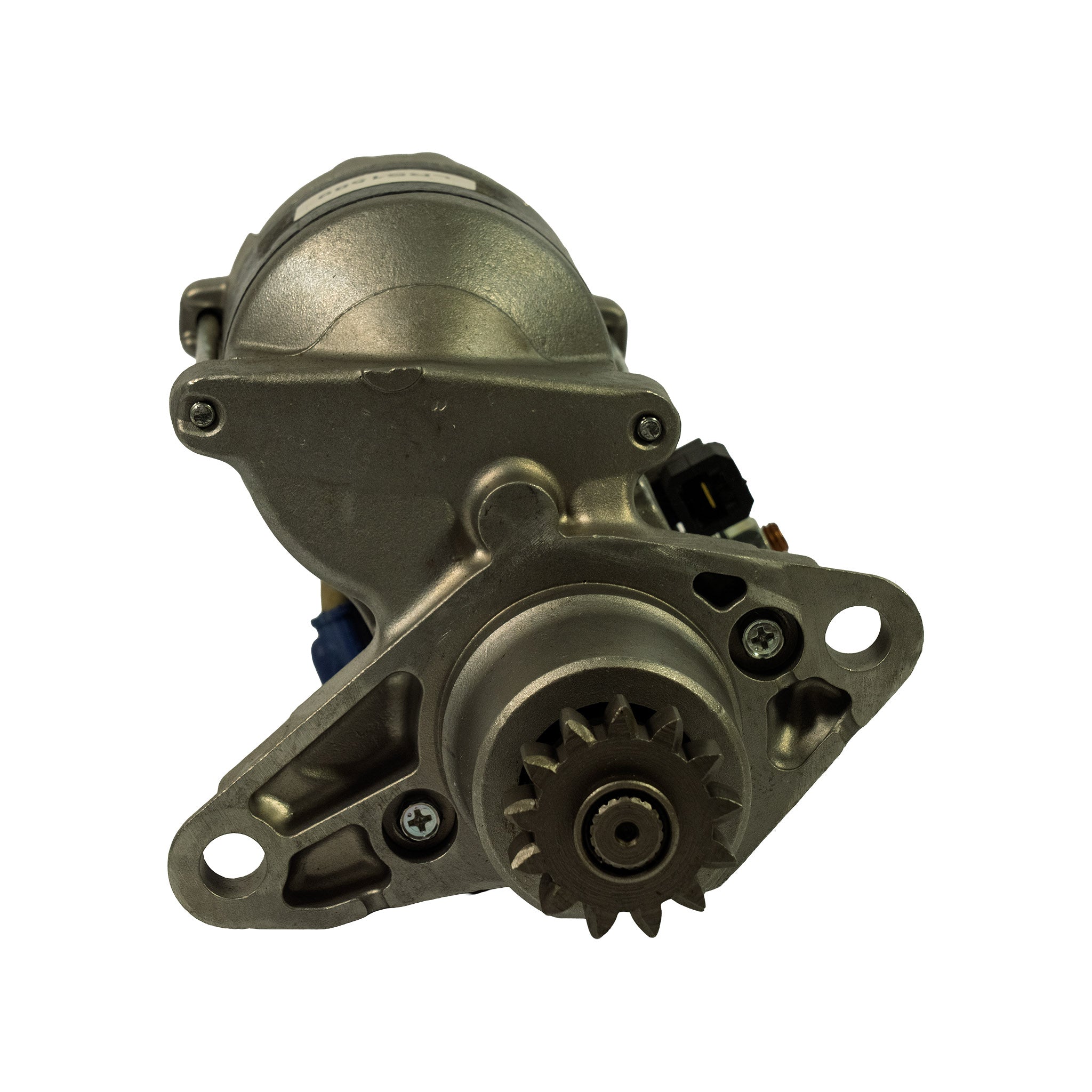

Front/drive-end view showing the nose cone mounting flange with two large bolt holes, the exposed pinion gear teeth, and partial solenoid body at upper-left. Connector tabs visible — yellow and blue.

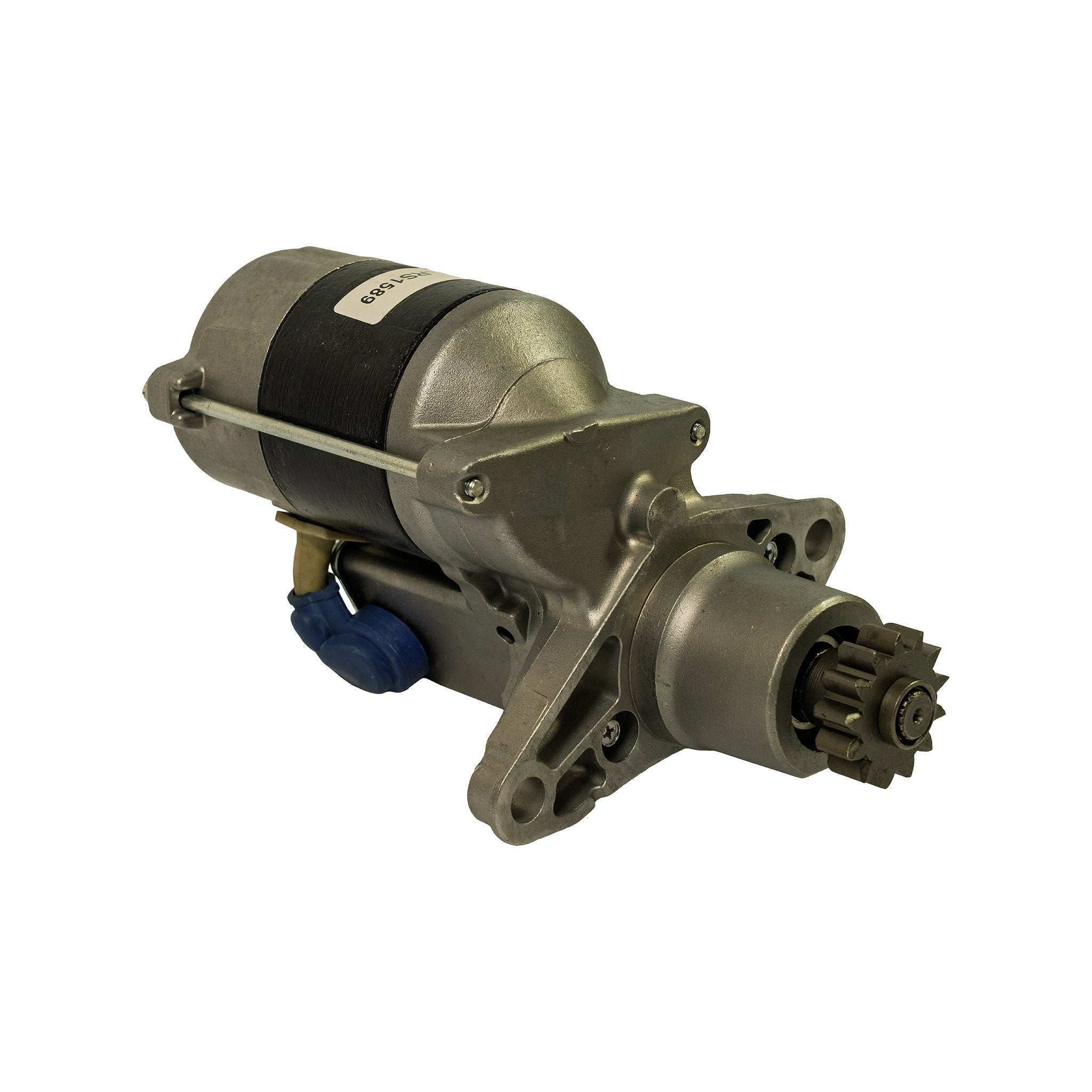

Three-quarter rear-left view showing the opposite side of the motor to photo 2 — reveals the second mounting lug, the blue terminal cap on the solenoid, and the pinion extending to the right. LRS1589 sticker on motor body partially visible.

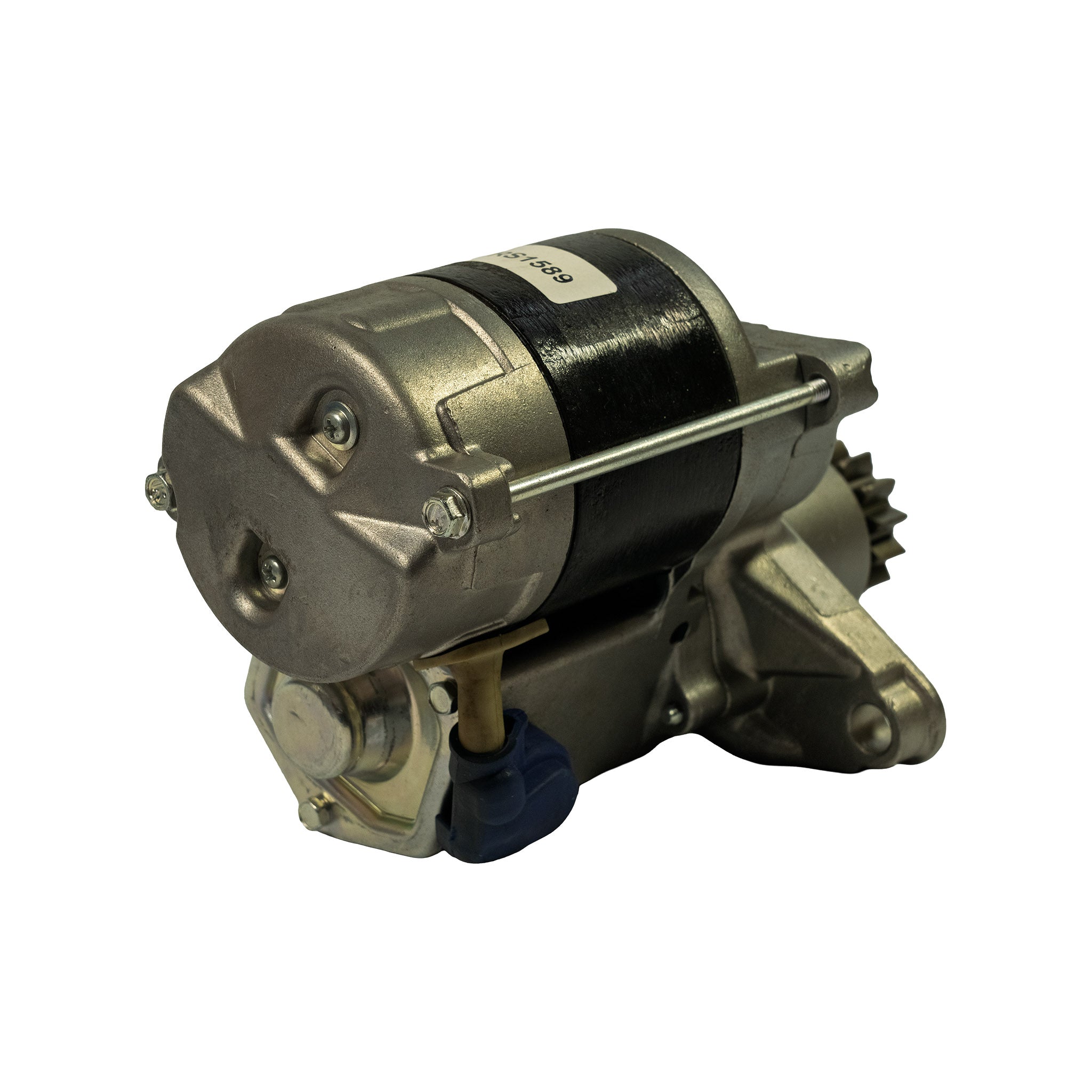

Three-quarter rear view from the commutator end, showing the end-cap with cross-head screws, the gold-toned solenoid end cover, drive pinion at upper right, and blue terminal cap. Clearly a gear-reduction pre-engaged type starter.

Starter Motor - Ruggerini / Lombardini - LRS1589 - Lucas - NOS

Only 1 left!
Brand Lucas
Part Number LRS1589
Type Starter Motor
Condition New Old Stock

Specifications

  • Voltage: 12V
  • Number of teeth (pinion): 9
  • Power output: 1.1 kW

Vehicle Fitment

Ruggerini MD191 diesel engine 1989–1997
Ruggerini MD196 diesel engine 1989–1997
Ruggerini MD199 diesel engine 1989–1997
Ruggerini MM150 diesel engine
Ruggerini MW150 diesel engine
Ruggerini MW151 diesel engine
Ruggerini MW190 diesel engine
Lombardini diesel engines (cross-compatible via Bosch 0001107057 / 0001107058)

Cross References

Part Numbers Relationship
0001107057, 0001107058, 0001108050, LRS1588, STR50197, 116624, MSN2013, DRS3964 equivalent
563R0540 OE original
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock. Housed in original cardboard box, which shows age-related yellowing, dust, and minor surface scuffs consistent with long-term storage. The starter unit itself appears uninstalled and in excellent cosmetic condition. No visible corrosion on terminals or pinion. Electrical components should be tested by a qualified auto electrician before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: CHG-00708
