Main Bearing Set - Suzuki - M4264SA STD/MS1123 STD - AE Engine Parts - NOS
Stacked bearing shells in heat-shrunk plastic wrap viewed end-on, showing curved cross-section and crescent profile of each half-shell

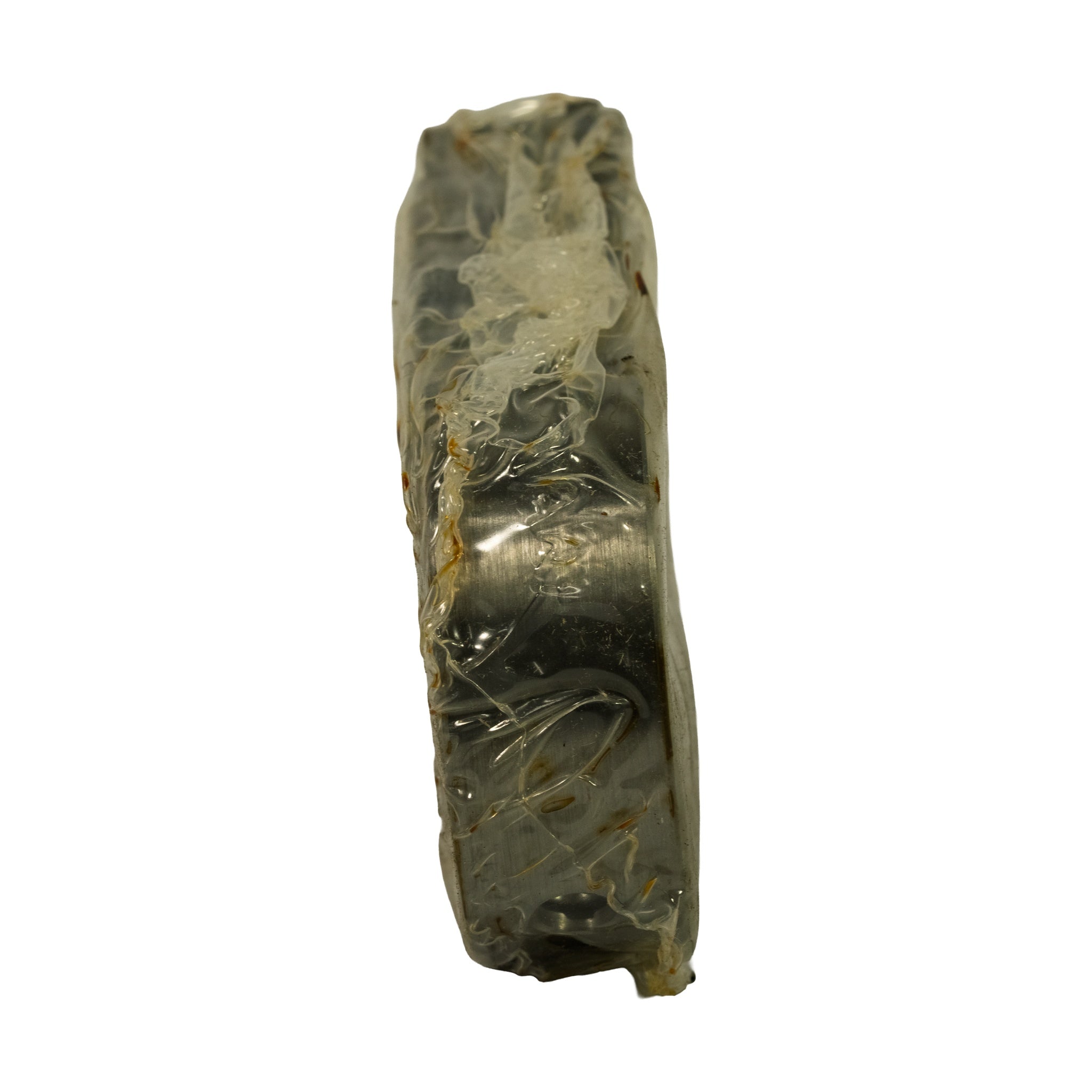

Narrow side profile of the sealed shell stack showing the machined outer edges of the bearing backs through the plastic

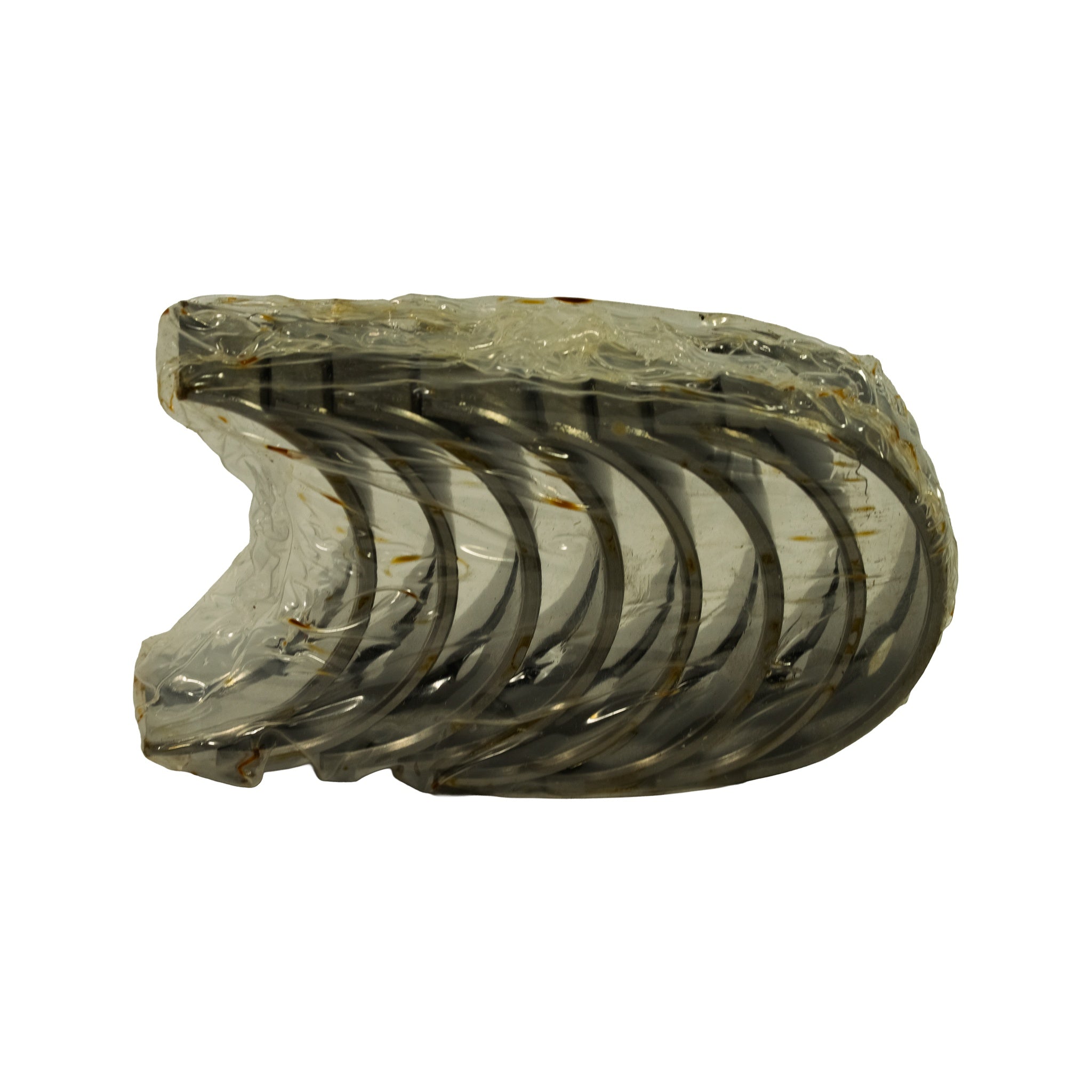

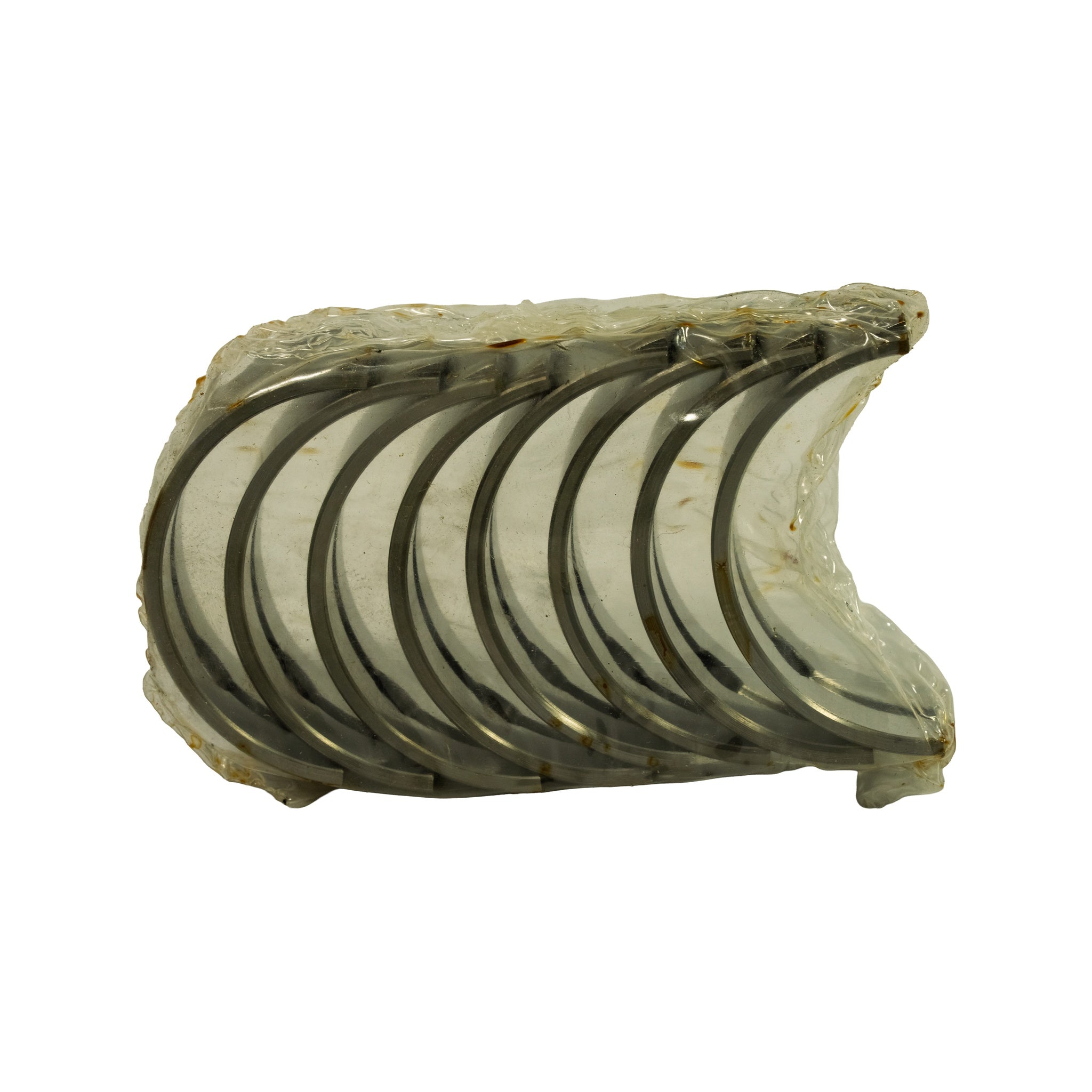

Sealed stack laid horizontally, eight plain half-shells clearly visible with grey steel backs and tri-metal overlay surfaces
Angled end-on view of the wrapped stack showing two flanged thrust half-shells on the right with raised side flanges against the plain mains

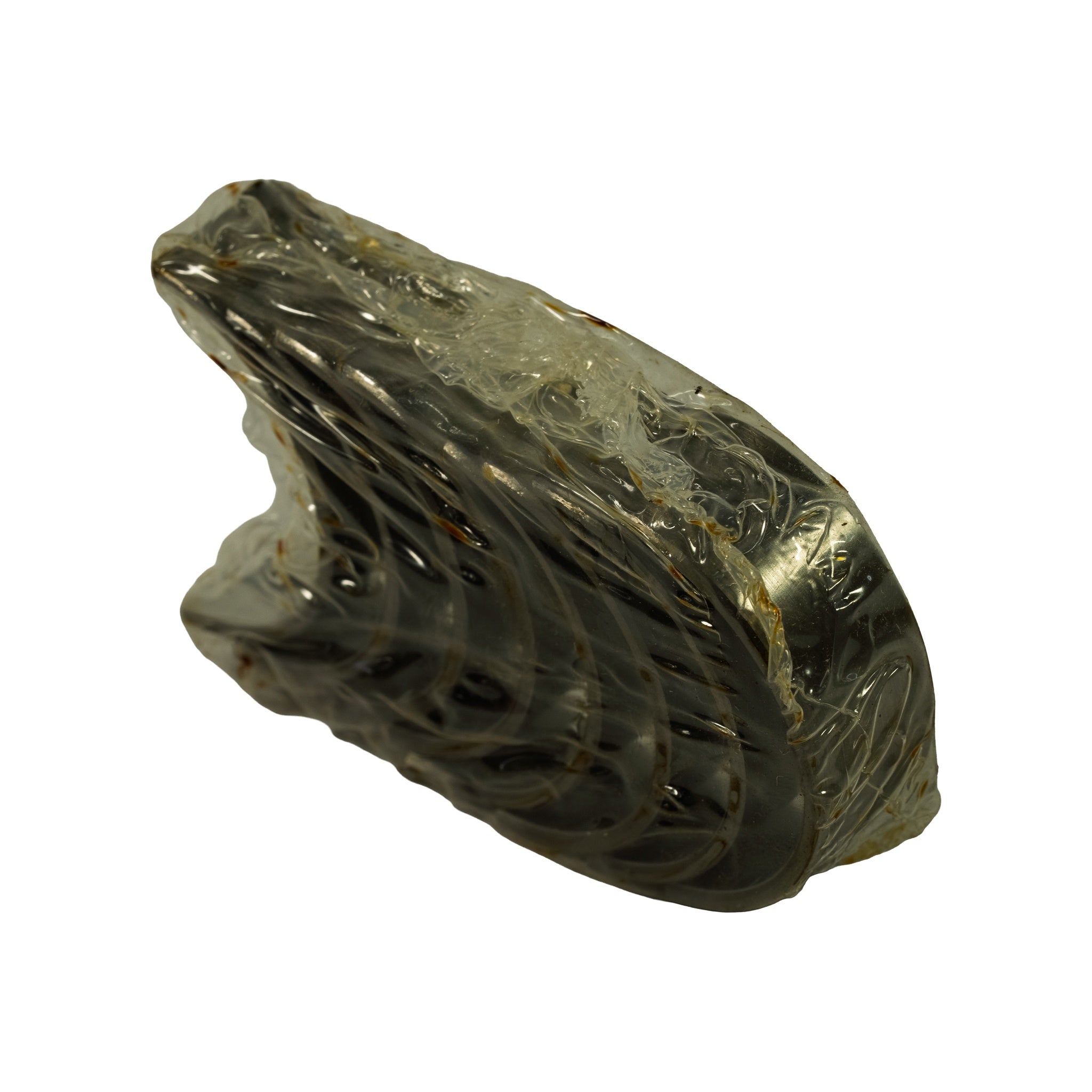

Top-down angle on sealed package showing full length of the shell pack and shrink-wrap creasing, highlighting the tapered thrust-bearing end

Main Bearing Set - Suzuki - M4264SA STD/MS1123 STD - AE Engine Parts - NOS

Only 1 left!
Brand AE Engine Parts
Part Number M4264SA STD
Type Main Bearing
Condition New Old Stock

Specifications

  • Size: STD (standard, unworn journals)
  • Engine configuration: 3-cylinder, 4 main journals (one flanged thrust main)

Vehicle Fitment

Suzuki Carry 550 / Every Van (DA71V) Turbo, F5A engine, 1987-1989
Suzuki Alto CA71 (F5A turbo) 1985-1988
Suzuki Cervo SS40C (F5A turbo) 1985-1987
Suzuki Jimny JA71 (F5A turbo) 1986-1990
Suzuki Fronte CB71 (F5A) 1981-1988
Suzuki Mighty Boy SS40T (F5A) 1983-1988

Cross References

Part Numbers Relationship
AEM4264 STD, 4M8355, 77 054 609 equivalent

Additional Information

  • Applies to the Suzuki F5A 543cc 3-cylinder engine (bore 62mm, stroke 60mm), covering naturally aspirated, turbocharged and supercharged variants across Suzuki's kei car and kei truck/van range of the mid-to-late 1980s

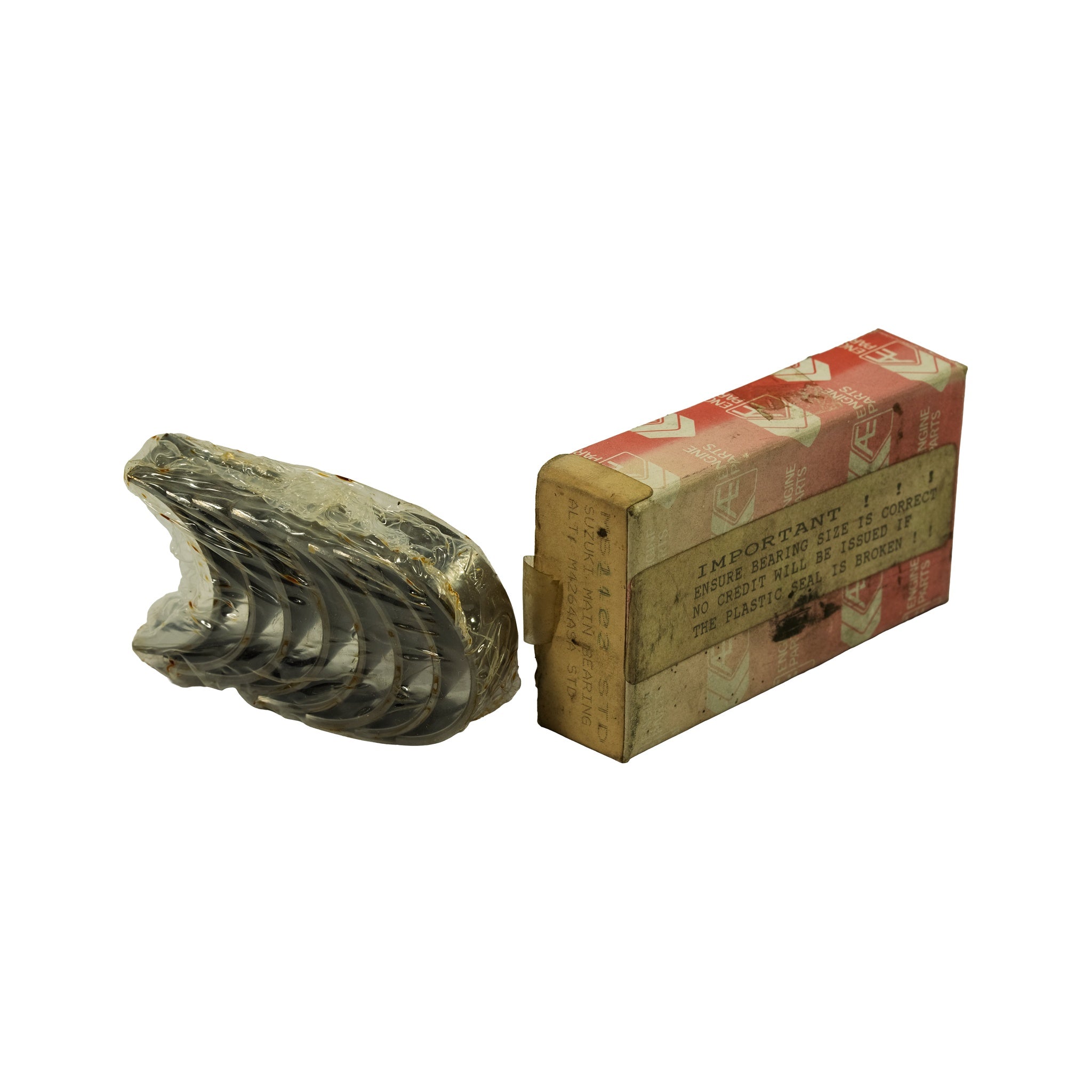

New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New Old Stock, factory plastic seal intact, original AE Engine Parts box shows shelf wear, light staining and minor corner scuffing consistent with long storage. Rubber and elastomer components such as belts, seals, and gaskets may harden or degrade during extended storage — inspect before fitting. Please confirm this part number suits your vehicle before purchasing.

SKU: ENG-00347
