CV Joint Kit - Mazda 626 / Capella / MX-6 '82-87

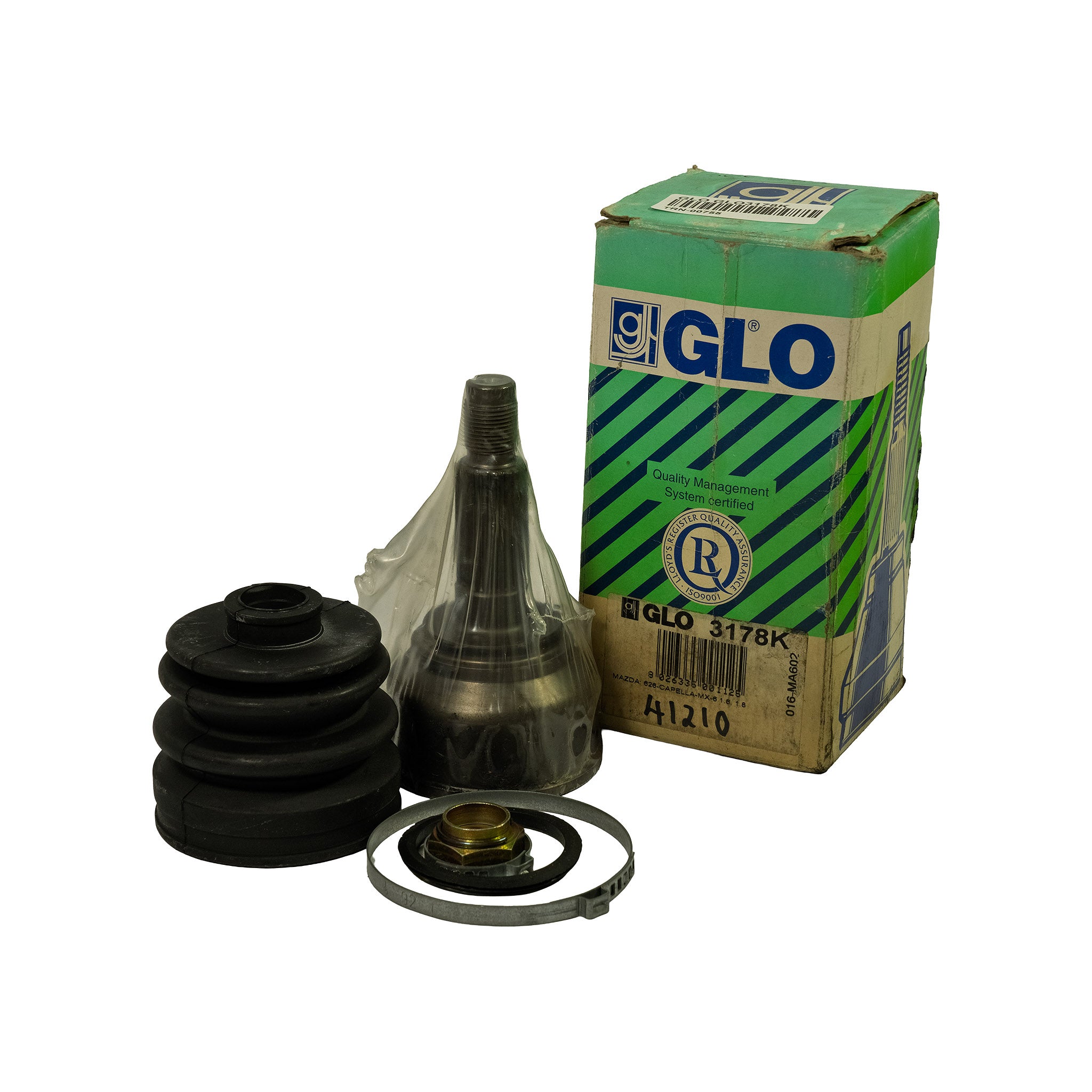

Overview shot: all kit contents displayed beside the opened box. Full GLO branding visible on box front — large GLO logo with diagonal green/navy stripe livery. Part number 3178K, barcode, and 016-MA602 / 41210 visible on label. Joint, boot, clamp and nut arranged in front.

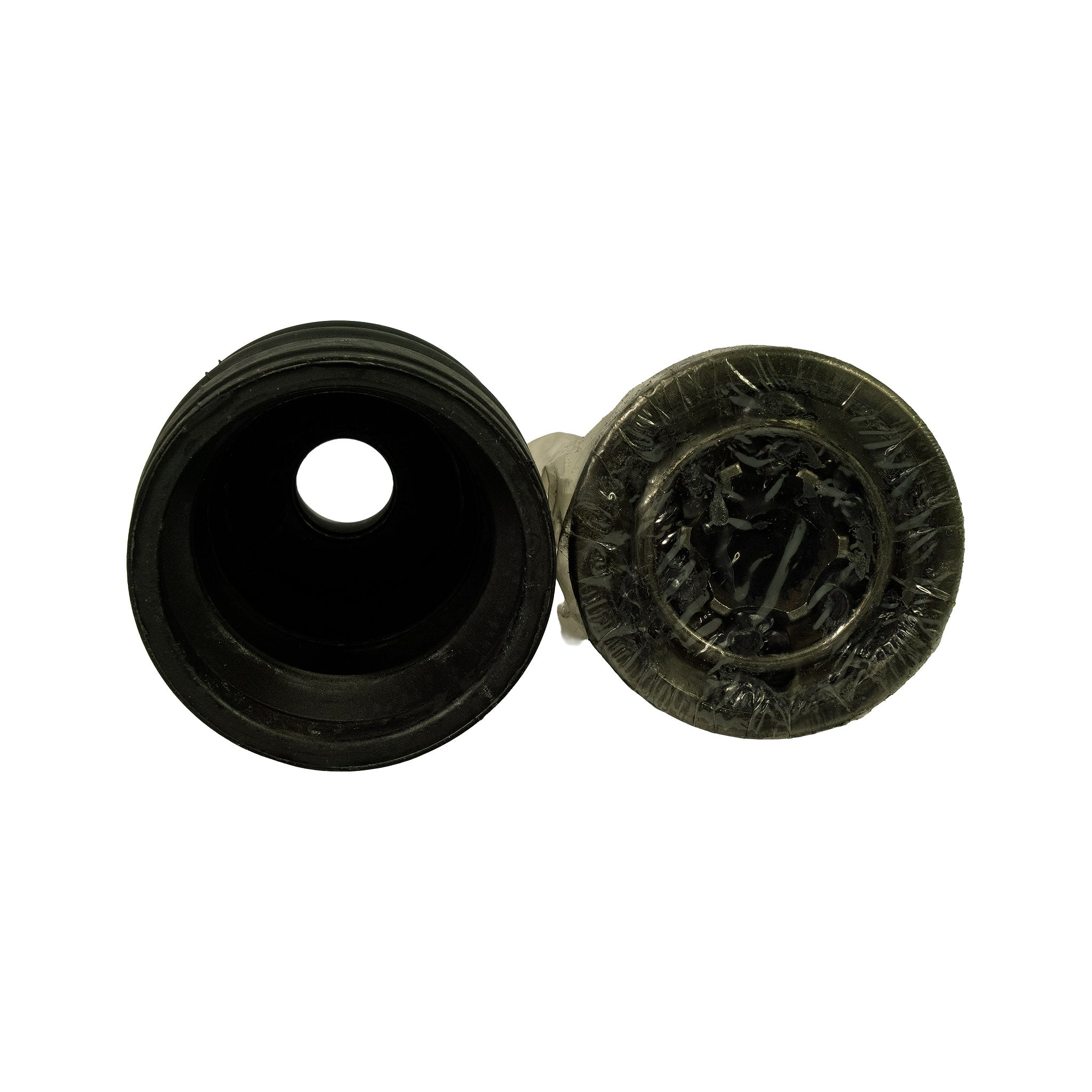

Top-down view of the two main components: rubber boot open end (showing central bore for shaft) on left, and base of joint outer race under plastic wrap on right (showing internal ball-race/cage assembly). Grease residue visible inside wrapped housing.

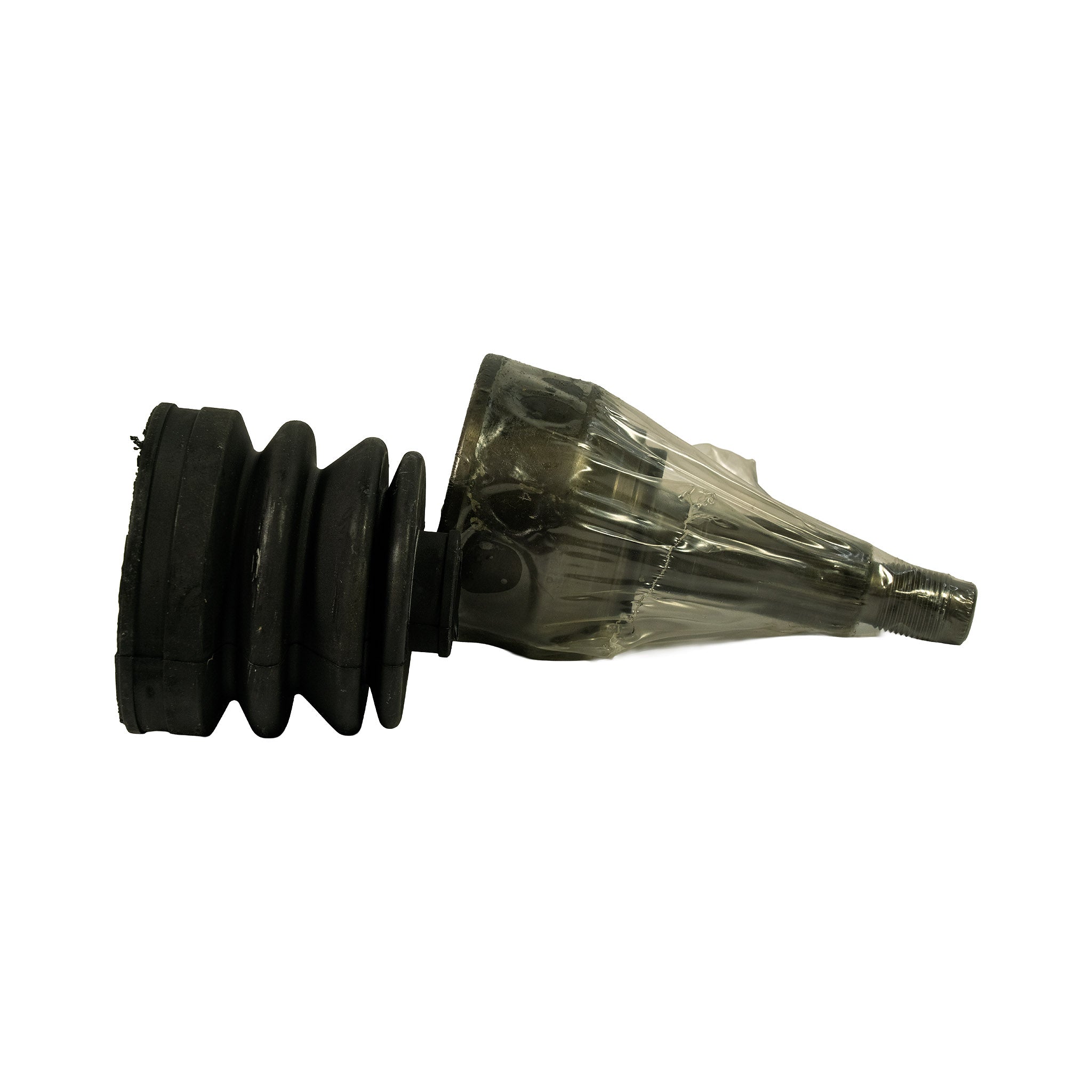

Side profile of the assembled joint showing boot fitted over the joint housing. Bellows boot (4 convolutions) sits on the wide end of the conical joint housing; threaded stub shaft protrudes from the narrow end. Clear plastic wrapping still on the joint. Good used-stock clarity of rubber condition.
Three-quarter view of the two main components separated: boot standing upright on left showing bore and base flange; joint housing with plastic wrap on right, revealing the internally splined race and stub shaft tip. Grease visible inside housing through wrap.

CV Joint Kit - Mazda 626 / Capella / MX-6 '82-87

Only 1 left!
Brand GLO
Part Number GLO3178K
Type CV Joint
Condition New Old Stock

Specifications

  • Joint type: Outer (wheel-side) ball-and-cage CV joint
  • Boot convolutions: 4
  • Outer CV joint dimensions (comparable GC 1.6 application): 25 x 52 x 26 mm

Vehicle Fitment

Mazda 626 Mk II (GC) 1.6 Saloon 1982/11–1987/06
Mazda 626 / Capella / MX-6 1.6 and 1.8 (per box label)

Cross References

Part Numbers Relationship
G00125500, G00125600, G00225500A OE original
A178352A, 302112, GI302, 62302, 490426, VKJA5125, 0510-003 equivalent
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. NOS in original GLO box. Box shows age-related tanning, shelf scuffing on corners and edges, and minor soiling on the label area consistent with long-term storage. Part appears never installed — joint is still in original plastic wrap with factory grease. Rubber boot shows no cracking or degradation visible. We recommend the item is inspected before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: TRN-00755
