Oil Pressure Gauge - SUSUKI - NOS

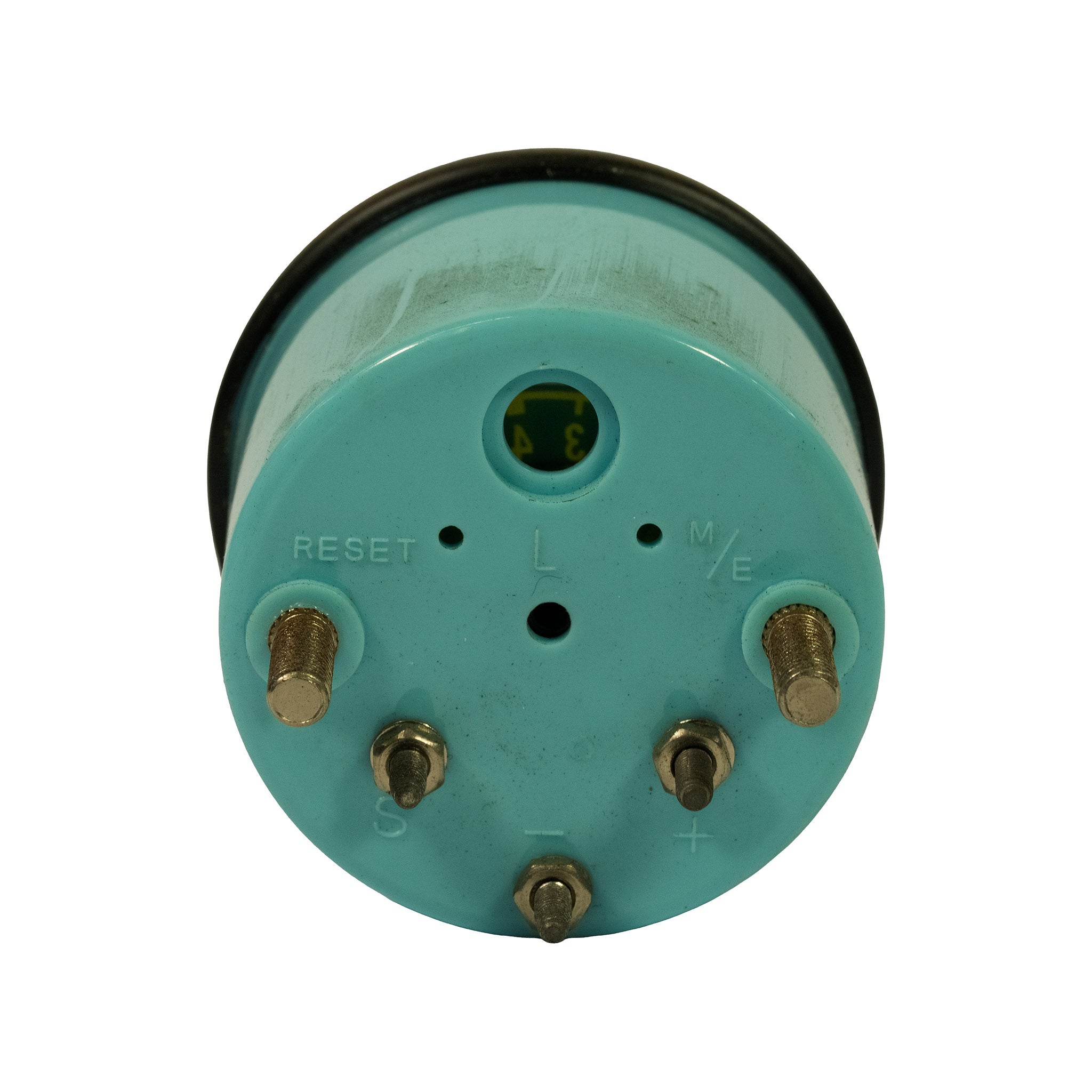

Rear face of gauge body (teal/turquoise plastic housing) showing five stud terminals labelled: RESET (upper left), L (upper centre), M/E (upper right), S (lower left), − (lower centre), + (lower right); circular bulb socket port at top centre labelled '3·4' with yellow bulb visible.

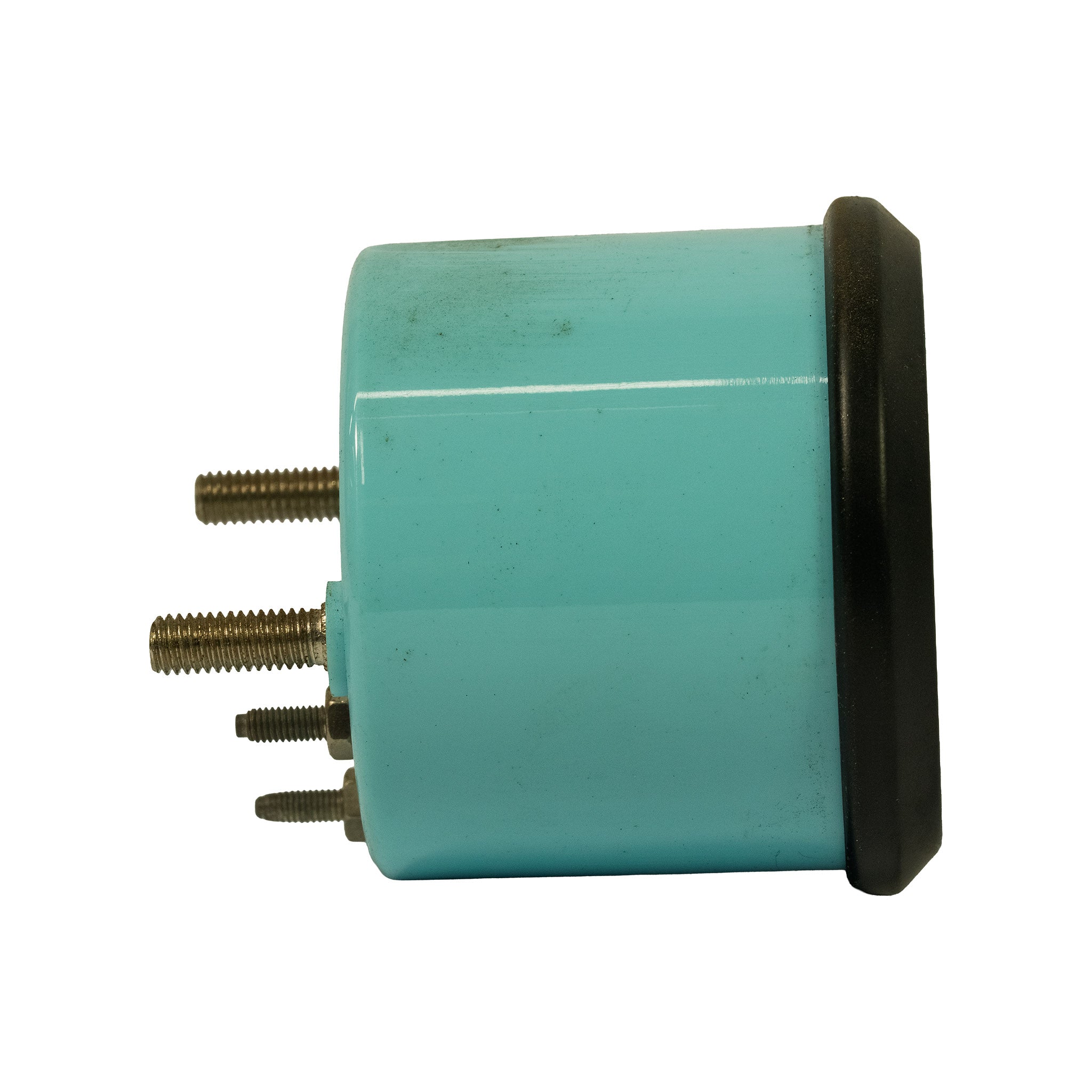

Left-side profile showing teal cylindrical housing with black bezel rim at front; cluster of four threaded stud terminals protruding from rear (two pairs visible side-on).

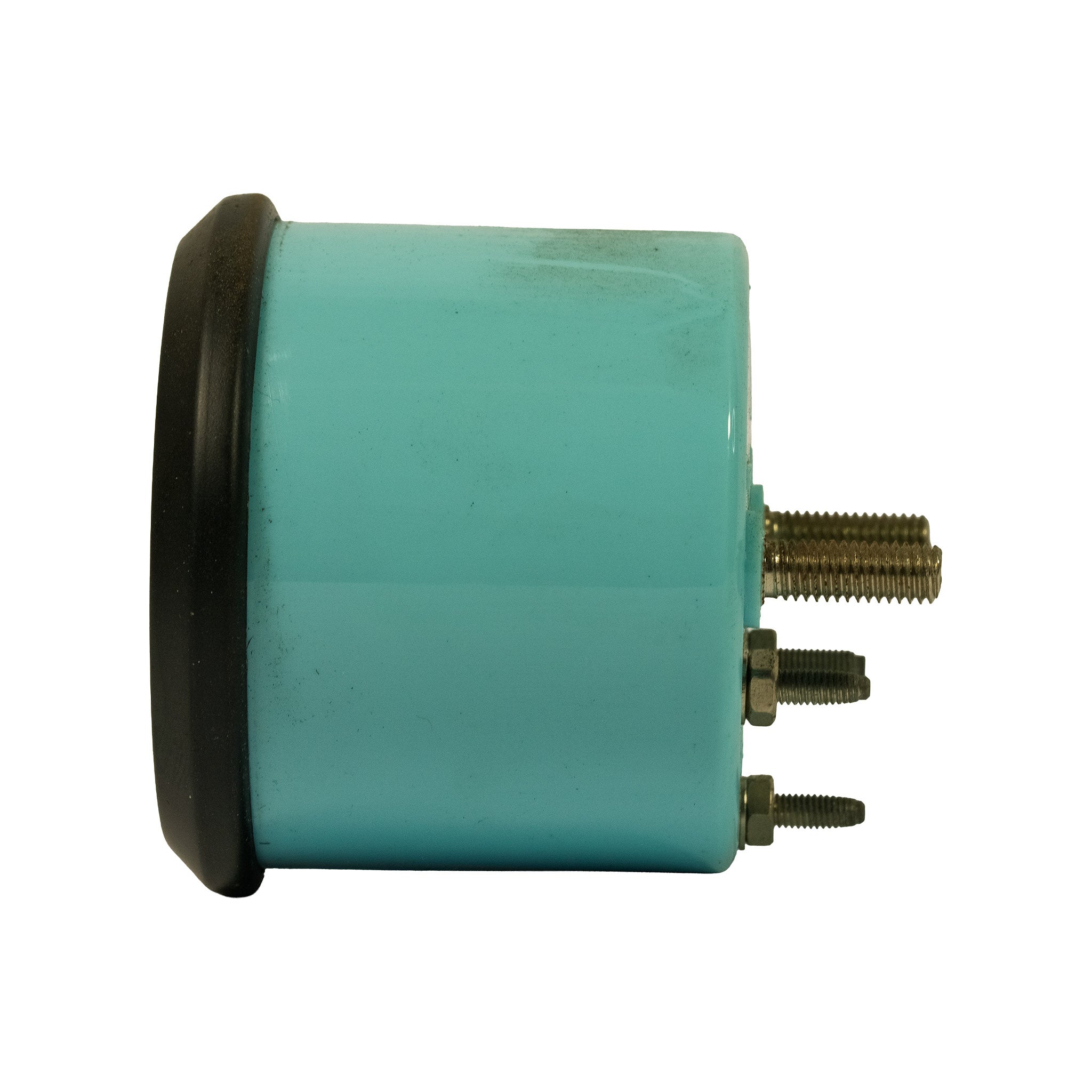

Right-side profile of gauge showing teal housing, black bezel, and opposite cluster of stud terminals; some terminals have small nuts already fitted.

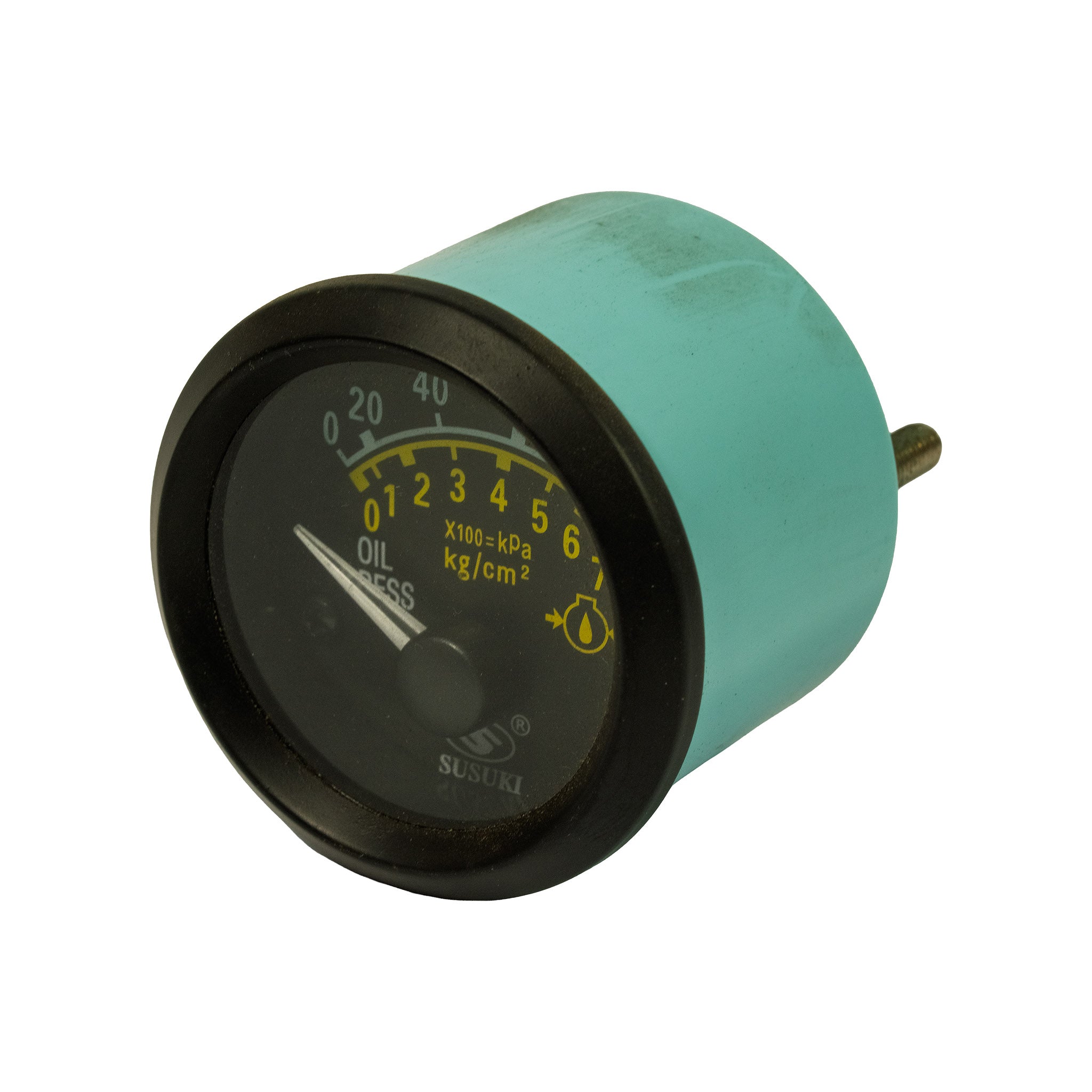

Three-quarter front-left view showing dial face with Susuki logo and dual PSI/kg/cm² scales, teal housing, and single stud terminal visible at upper right of housing.

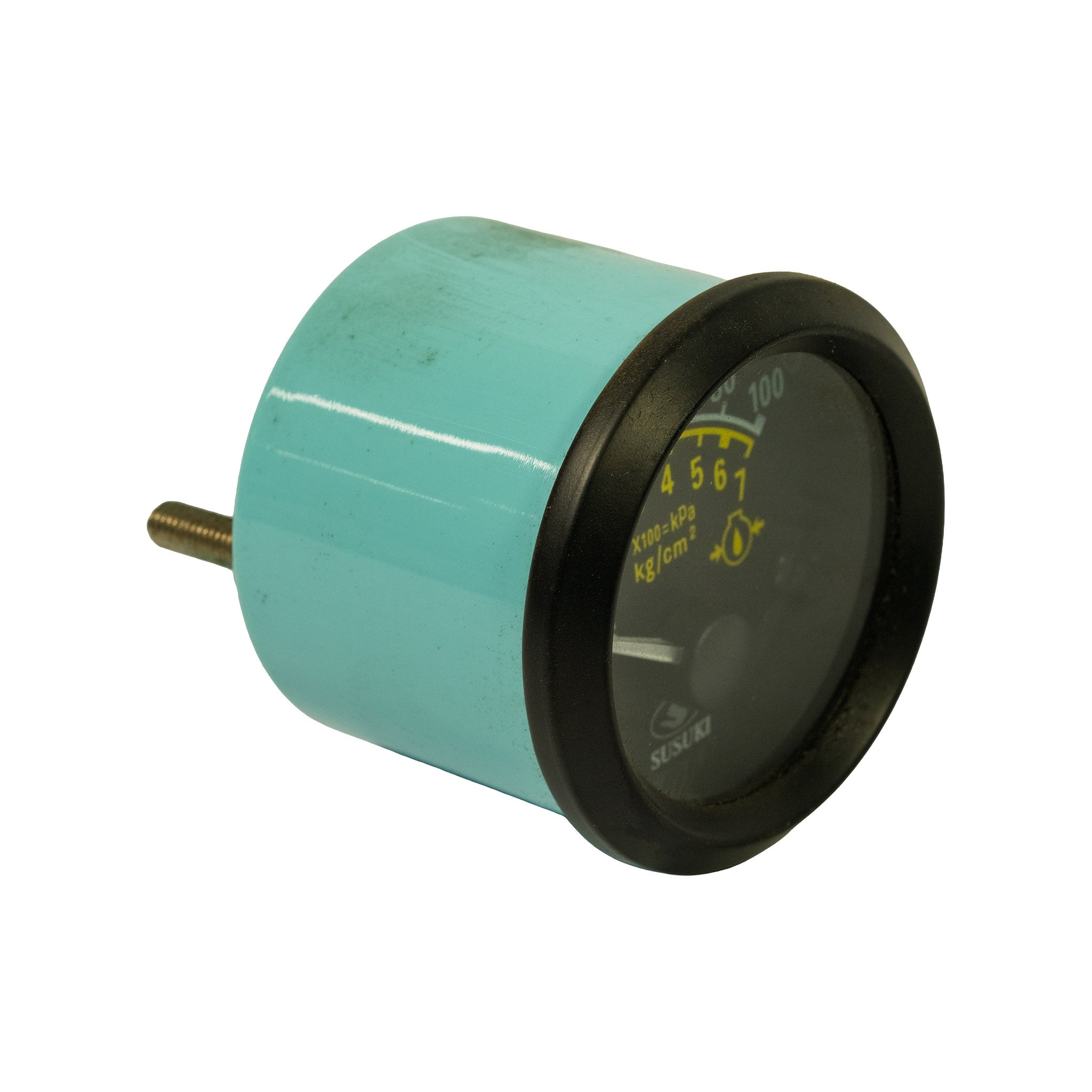

Three-quarter rear-right view showing teal housing and single stud terminal protruding from right side; dial face partially visible showing upper right portion of scale arc including '100 PSI' marking and kg/cm² numbers 4–7.

Oil Pressure Gauge - SUSUKI - NOS

Only 1 left!
Part Number OILPG
Type Gauge
Condition New Old Stock

Specifications

  • Dial diameter: 52mm (2 inch)
  • Pressure range (PSI scale): 0–100 PSI
  • Pressure range (metric scale): 0–7 kg/cm² (×100 kPa)
  • Operating voltage: 12V (compatible; Susuki 52mm gauges offered in 12V and 24V variants)
  • Illumination bulb: 12V 3W bulb (socket visible on rear)

Additional Information

  • Terminal markings on rear: RESET, L (lamp/light), M/E (Main/Engine), S (sender), − (ground), + (power); consistent with an electric gauge with low-pressure warning alert function.

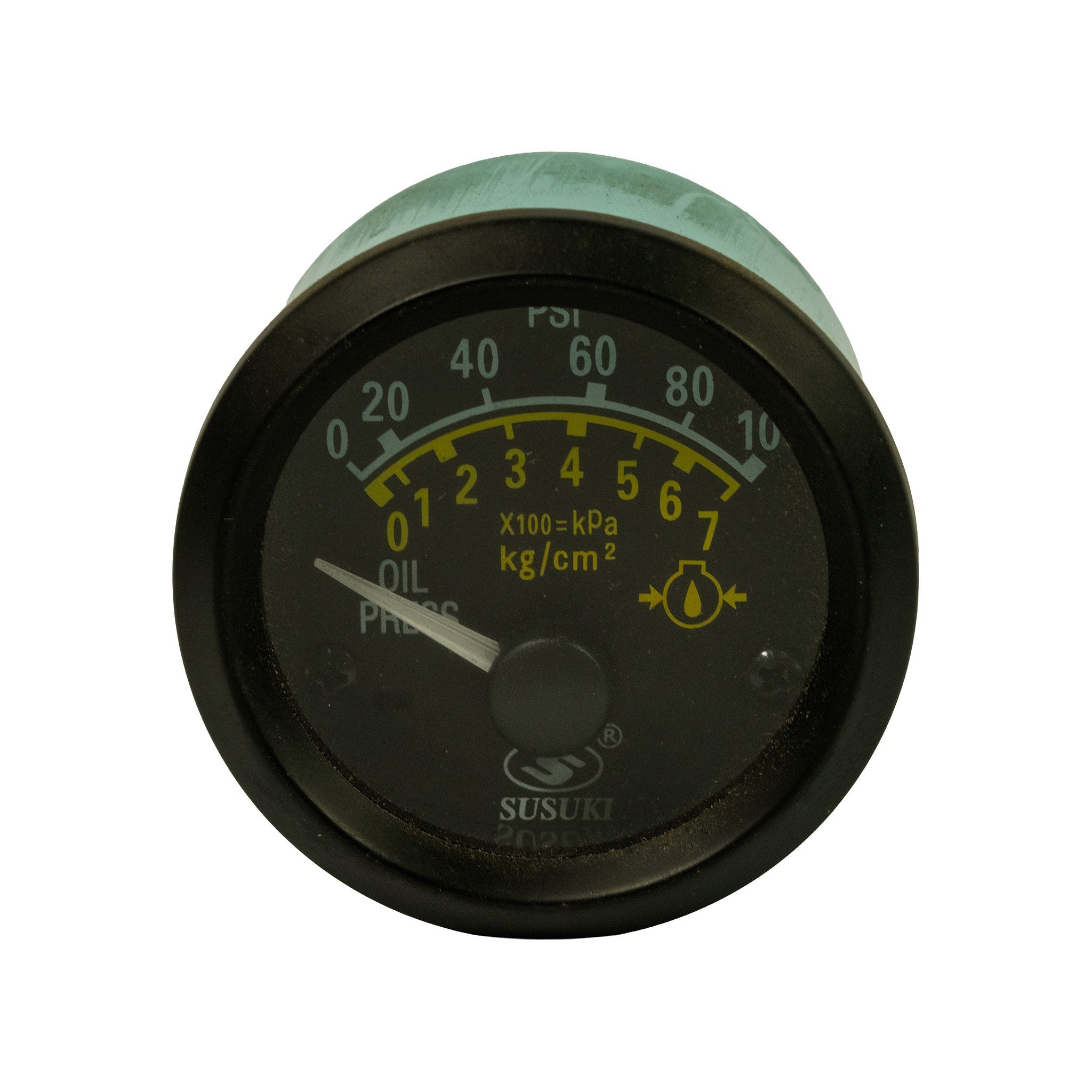

  • Dual-scale dial reads in both PSI (outer white arc) and kg/cm² (inner yellow arc), making it suitable for markets using either measurement standard.
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. Appears unused/uninstalled; teal housing shows minor surface scuffs and light dust marks consistent with long-term shelf storage; no corrosion on terminals; dial face clean with no visible damage. Electrical components should be tested before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: ELE-00601
