A/C Expansion Valve - Toyota - TX1007 - JayAir - NOS

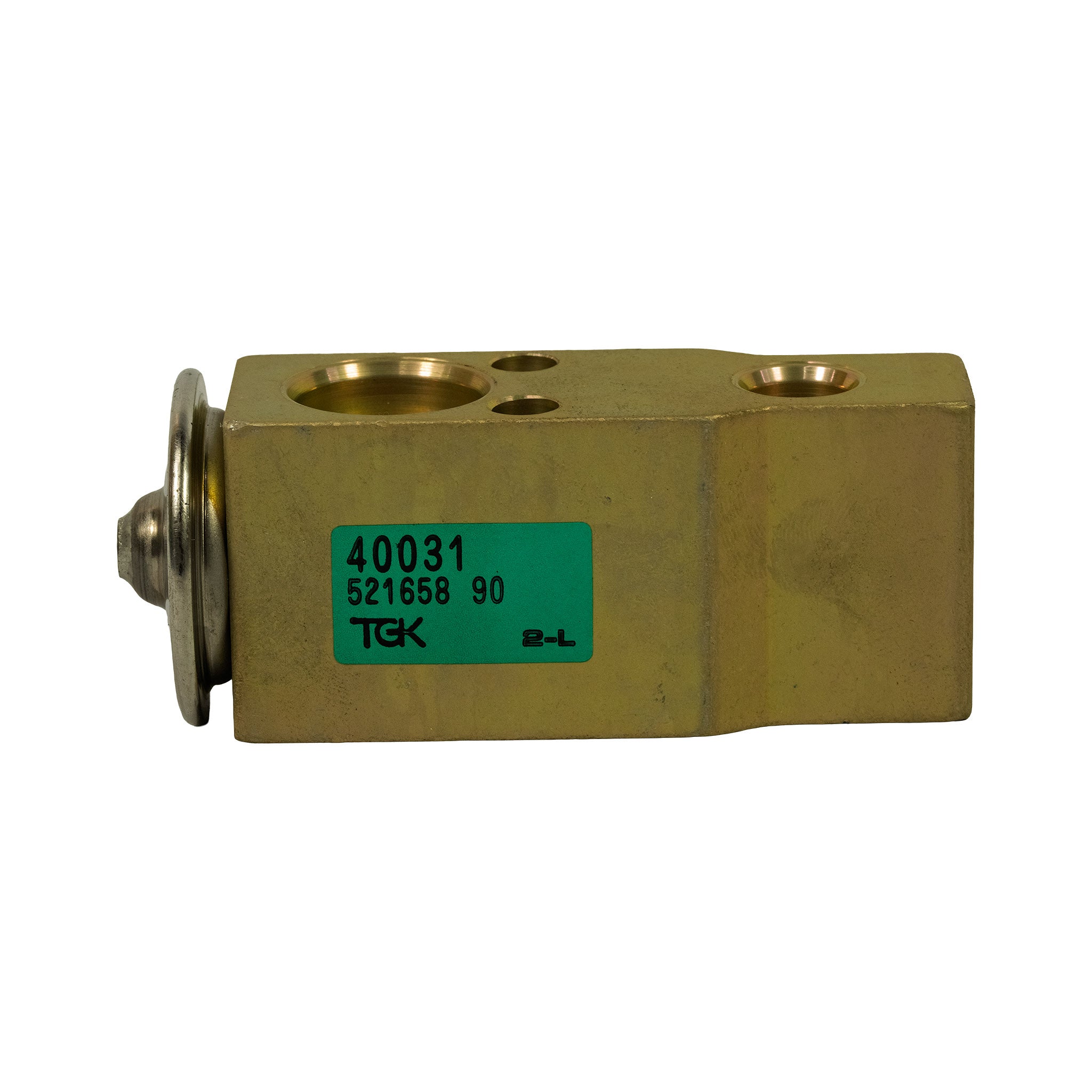

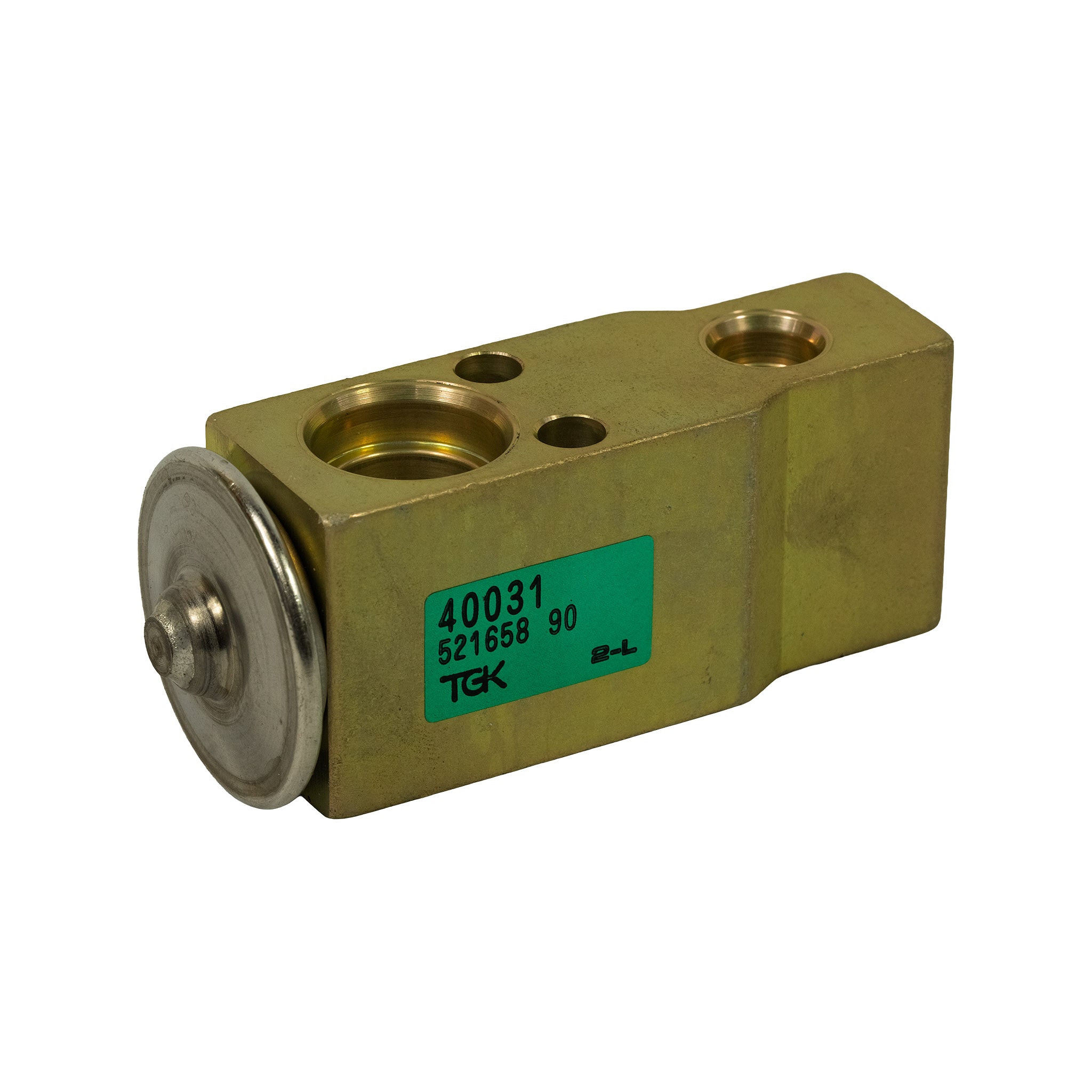

Front/side view of the same valve from a slightly different angle showing the TGK green label clearly: 40031 / 521658 90 / TGK / 2-L. Power element (thermostatic capsule) protrudes from left end with central pin. Machined bore openings and mounting tab visible.

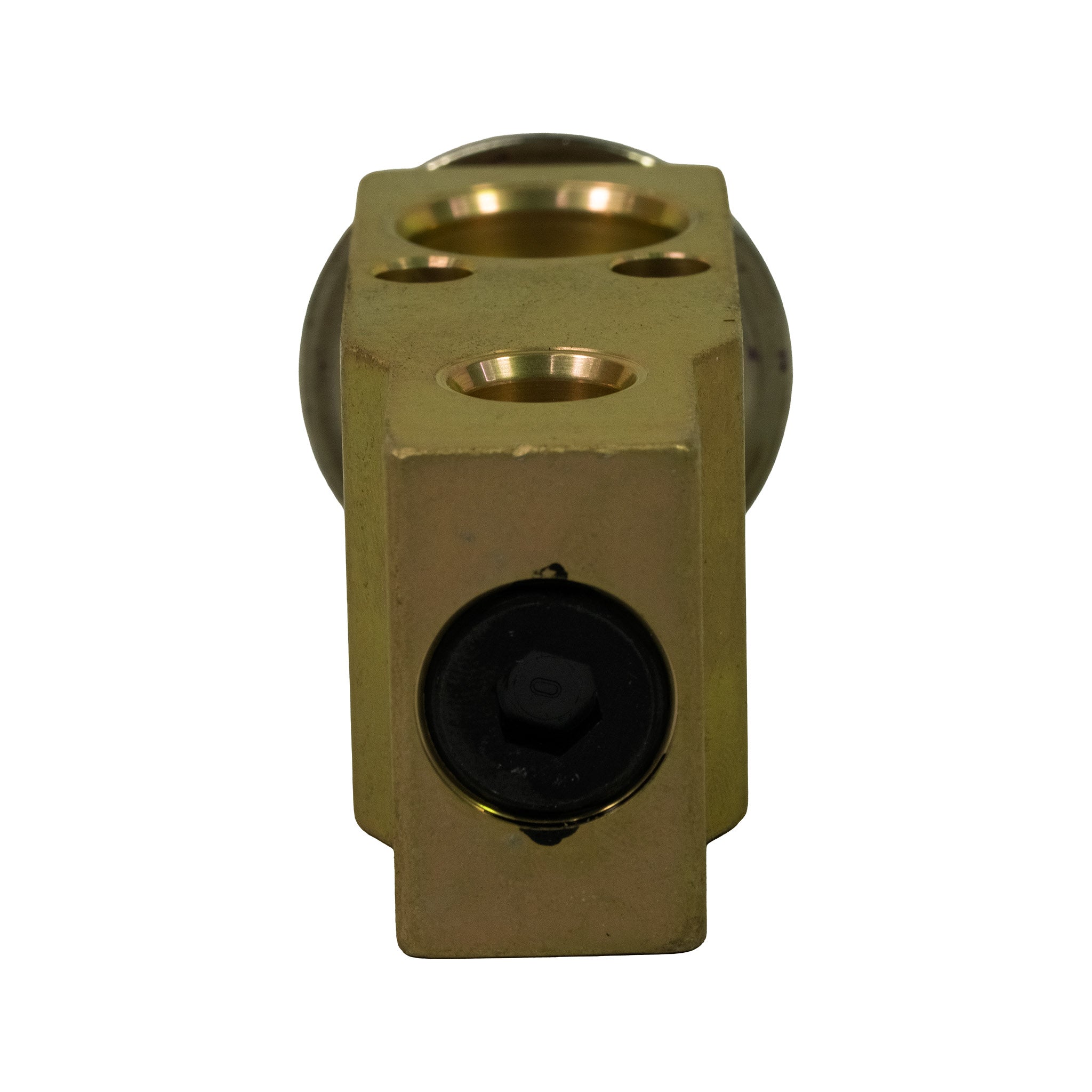

End-on view of the refrigerant inlet/outlet face showing two large concentric port bores (high-side and low-side passages) plus a small equaliser port, all machined into the brass block body. Schrader-type valve core visible in the lower port.

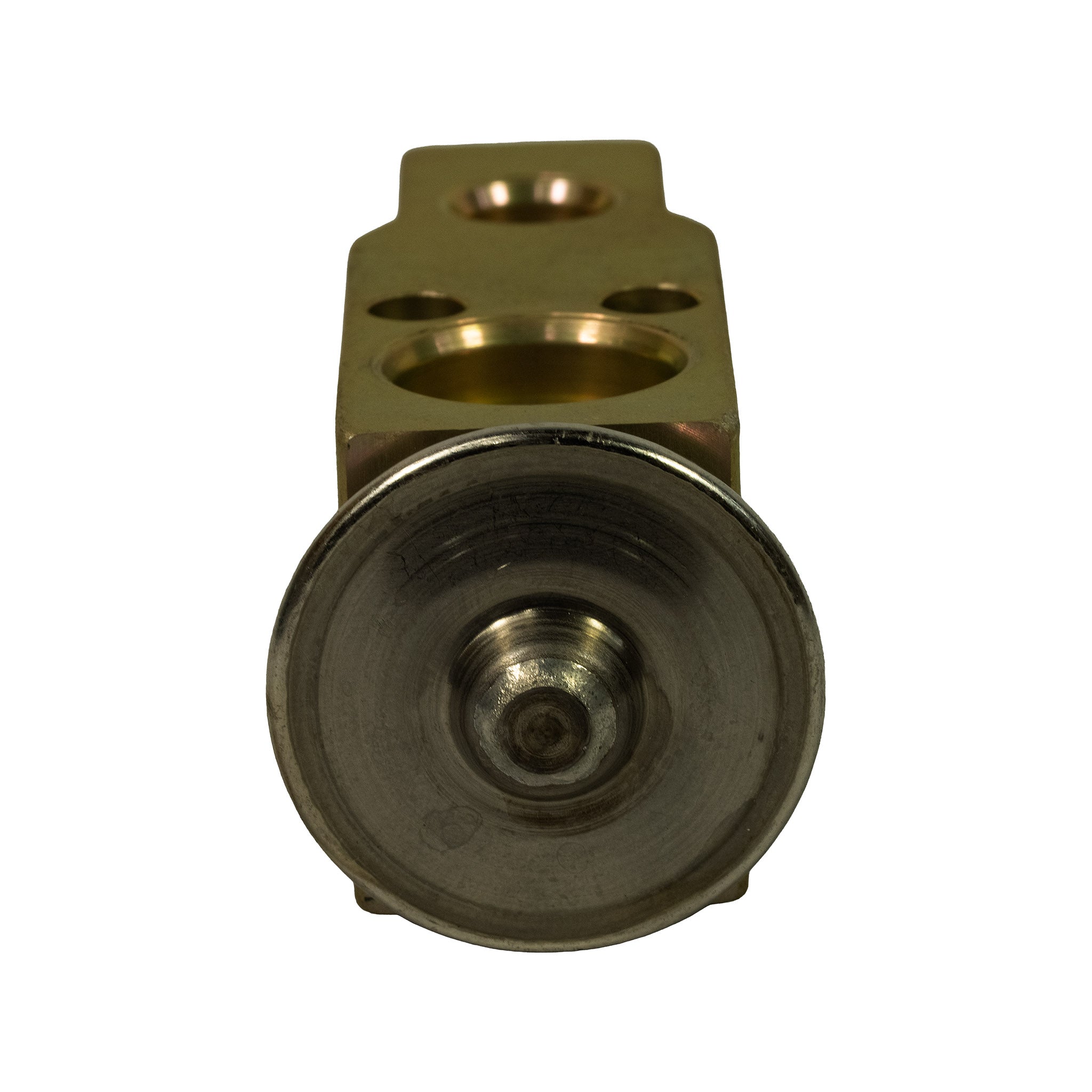

Direct end-on view of the thermostatic power element capsule (stainless steel disc with central actuator pin). Mounting tab and inlet/outlet bores partially visible behind. Surface shows minor oxidation tarnish consistent with storage age.
Flat-face view (block mating face) showing two large circular refrigerant ports with internal cross-pin orifice detail, two oval mounting bolt clearance slots, one small equaliser port, and a small bleed/pilot hole at base. This is the evaporator-side mating face.
Opposite flat-face view (condenser-side mating face) showing the larger suction port with internal cross-pin and the smaller liquid port with Schrader core, plus two mounting slots and equaliser port. Minor surface oxidation on brass body.

A/C Expansion Valve - Toyota - TX1007 - JayAir - NOS

Brand JayAir
Part Number TX1007
Type Thermostat
Condition New Old Stock

Specifications

  • Valve type: Block-type (pad-mount) thermostatic expansion valve
  • Body material: Brass

Vehicle Fitment

Toyota Camry SDV10R 1993-1997 (4-cylinder, Australian market wide-body)
Toyota Corolla AE101 1993-1997 (4-cylinder)

Cross References

Part Numbers Relationship
88515-06010, 88515-06030, 88515-33010, 88515-16040 OE original
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock in original polybag with warehouse stock label dated 27/11/2009. Minor surface tarnish/oxidation on brass consistent with long-term shelf storage. No structural damage, ports appear uncontaminated. Packaging creased and yellowed. Rubber hoses and seals may harden during extended storage — inspect before fitting. Please confirm this part number suits your vehicle before purchasing.

SKU: COO-00577
