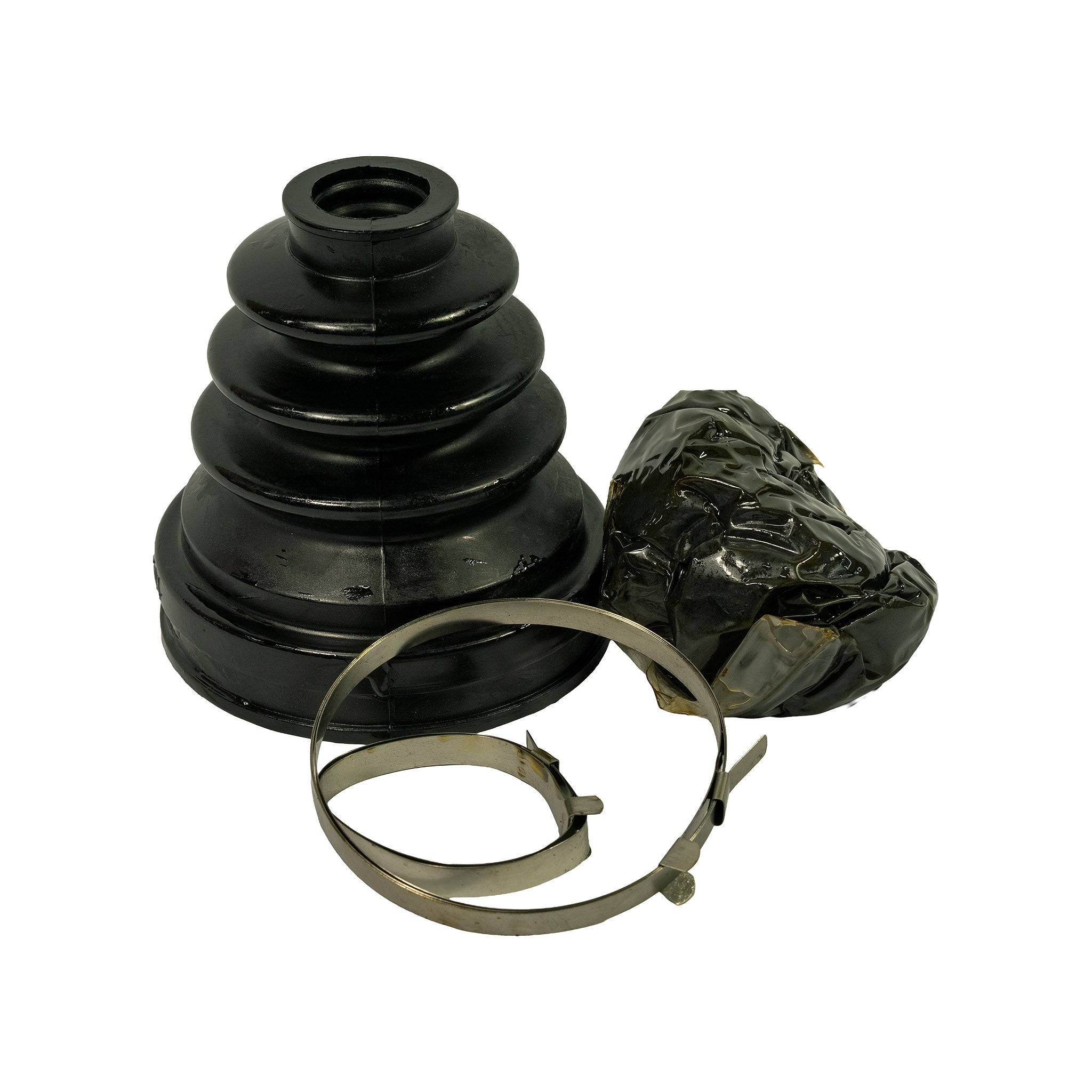

Three-quarter view of kit components: bellows boot showing four-convolute profile, grease sachet, and clamp ring displayed together on white background.
CV Boot Kit - Ford / Mazda - CVB328 - NZCVs - NOS

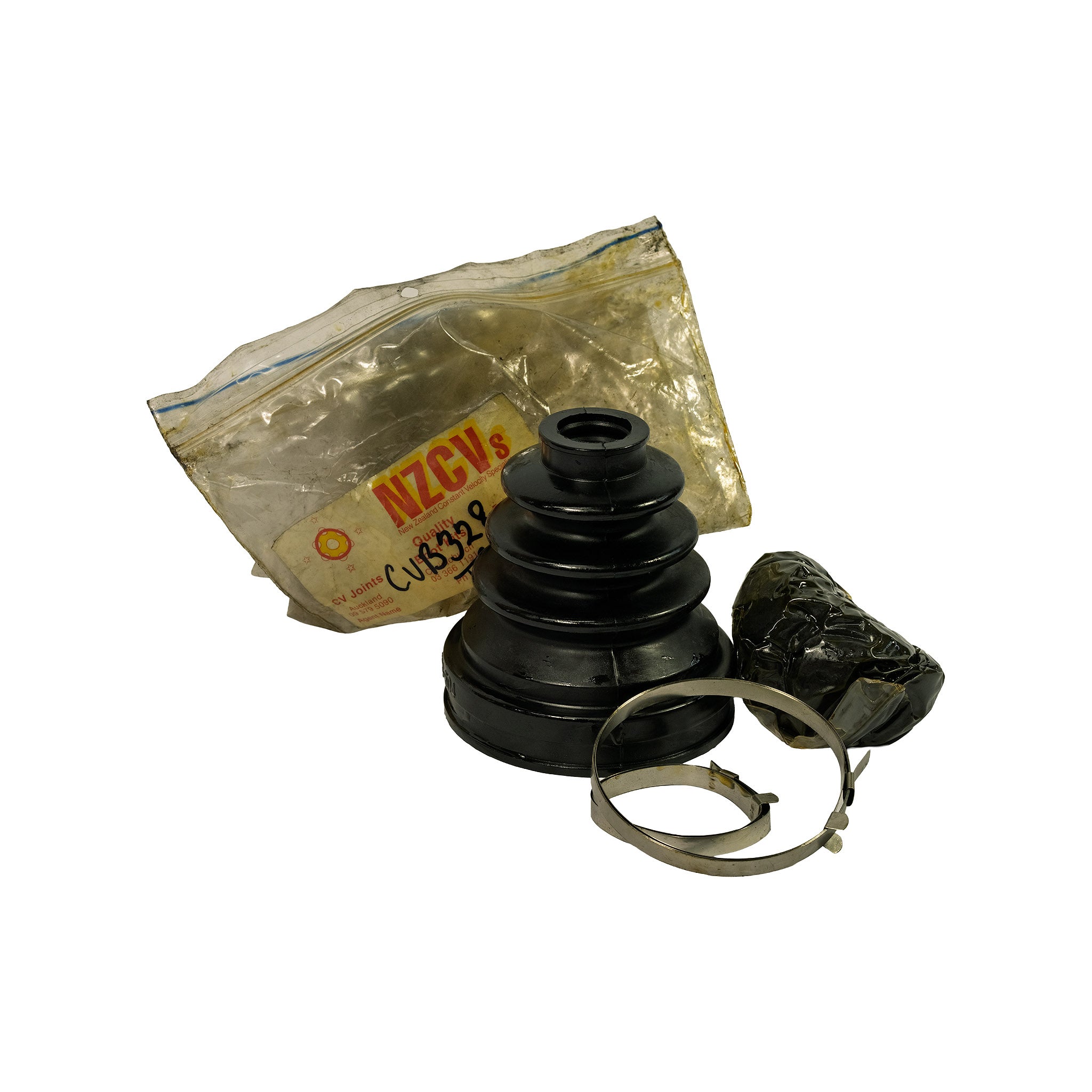

Kit laid out beside its bag: black rubber bellows-style CV boot standing upright, a crumpled black grease sachet, and one open-ear stainless steel clamp. NZCVs label with 'CVB328' partially visible on bag.

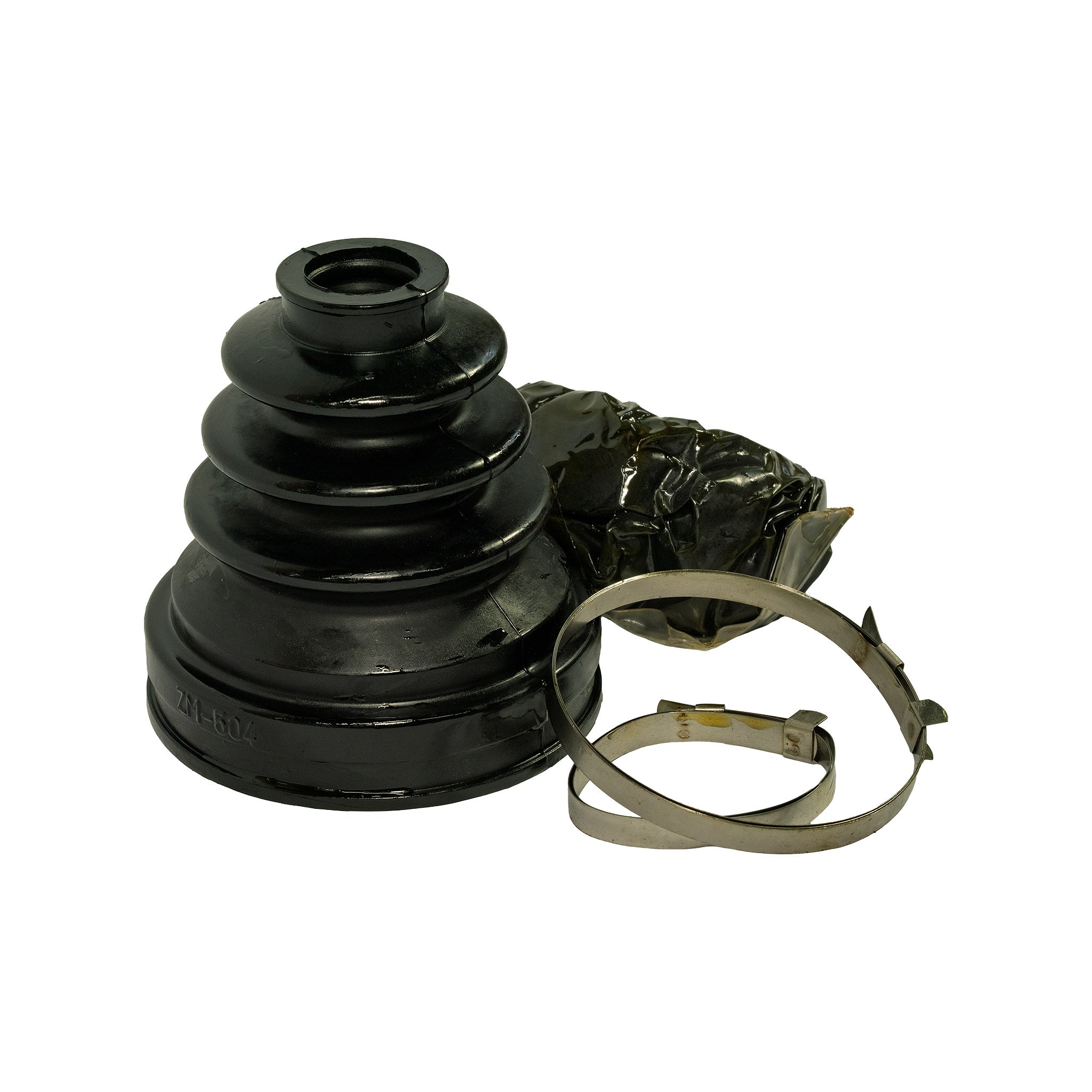

Side-angle view of boot showing moulded code 'ZM-504' stamped into the base flange. Clamp and grease sachet also visible.

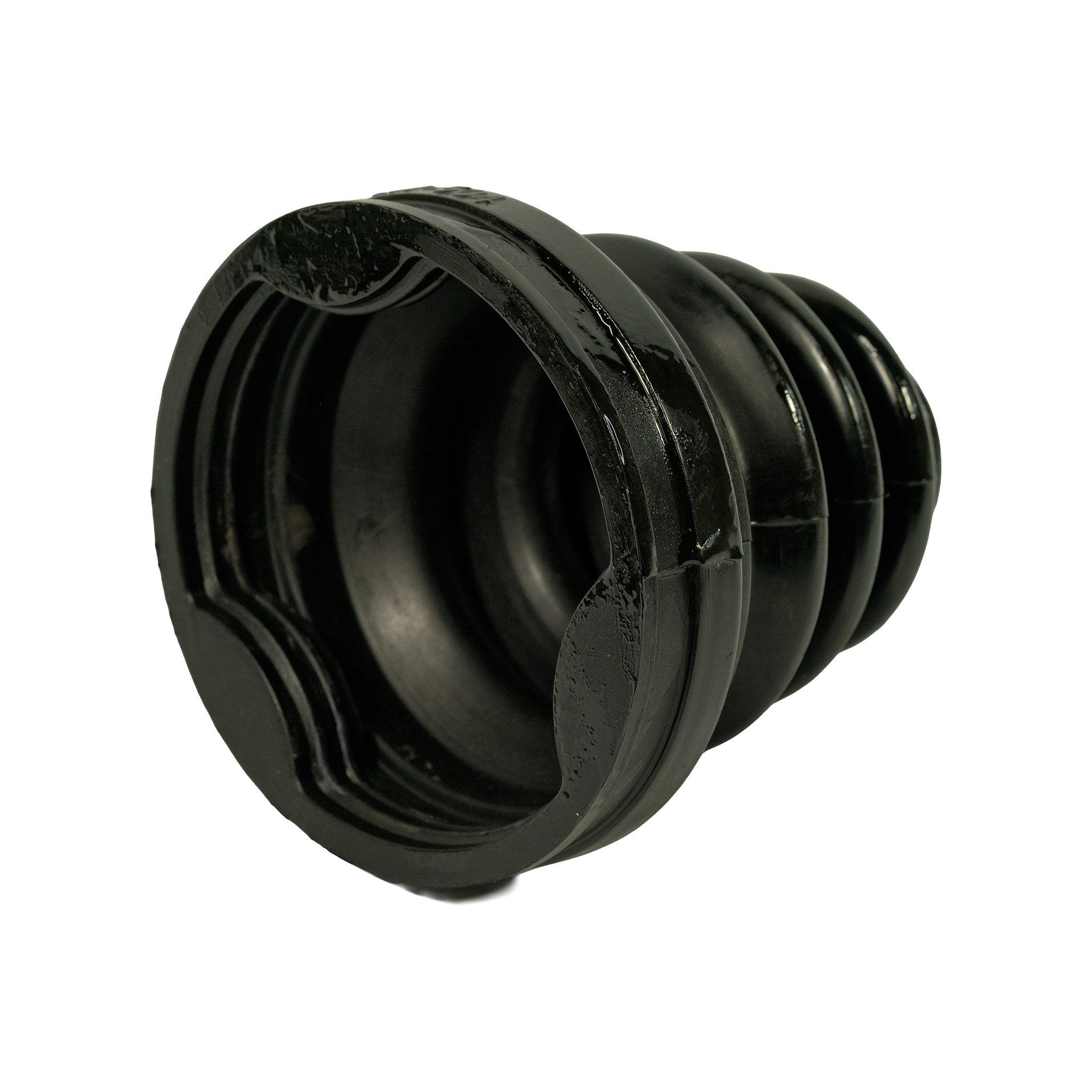

Underside/large-end view of boot showing wide open flange bore and internal sealing groove detail — consistent with tripod-style inner CV joint housing interface.

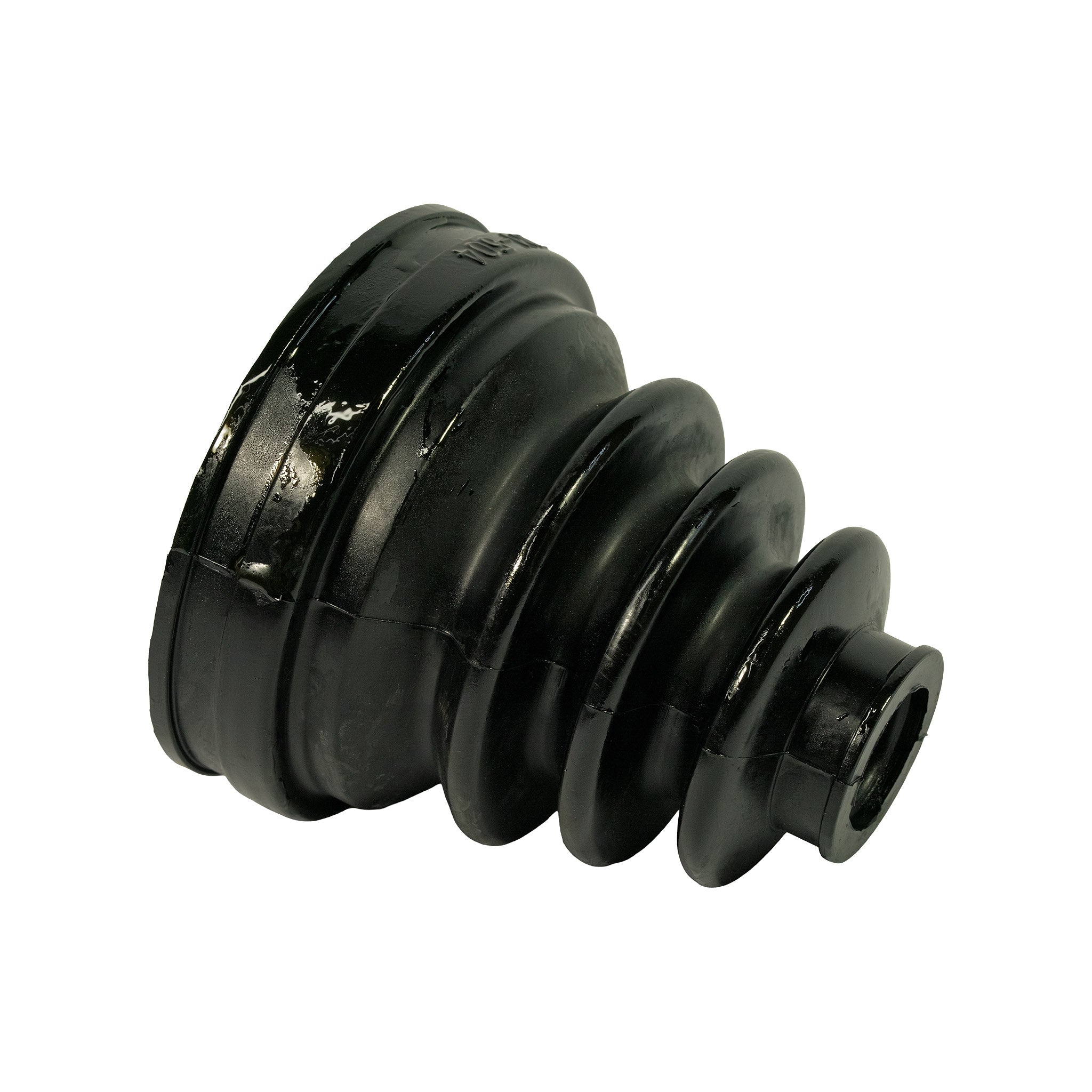

Profile view of boot alone showing classic four-convolute bellows taper from large-diameter base flange to small-diameter shaft neck, with partial moulded code visible on upper ridge.

CV Boot Kit - Ford / Mazda - CVB328 - NZCVs - NOS

Only 1 left!
Brand NZCVs
Part Number CVB328
Type CV Boot
Condition New Old Stock

Specifications

  • Small-end bore diameter: 23 mm
  • Large-end bore diameter: 77 mm
  • Height: 96 mm
  • CV joint type: Tripod (inner)

Vehicle Fitment

Ford Telstar (Mazda 626-based) — year range not confirmed, inner tripod CV joint
Mazda 626 — year range not confirmed, inner tripod CV joint

Cross References

Part Numbers Relationship
CBK7526, CIB-526 equivalent

Additional Information

  • Kit includes a grease sachet consistent with tripod inner joint re-packing requirements.
  • Ford Telstar and Mazda 626 share the same platform; this boot suits both vehicles' inner tripod joint.

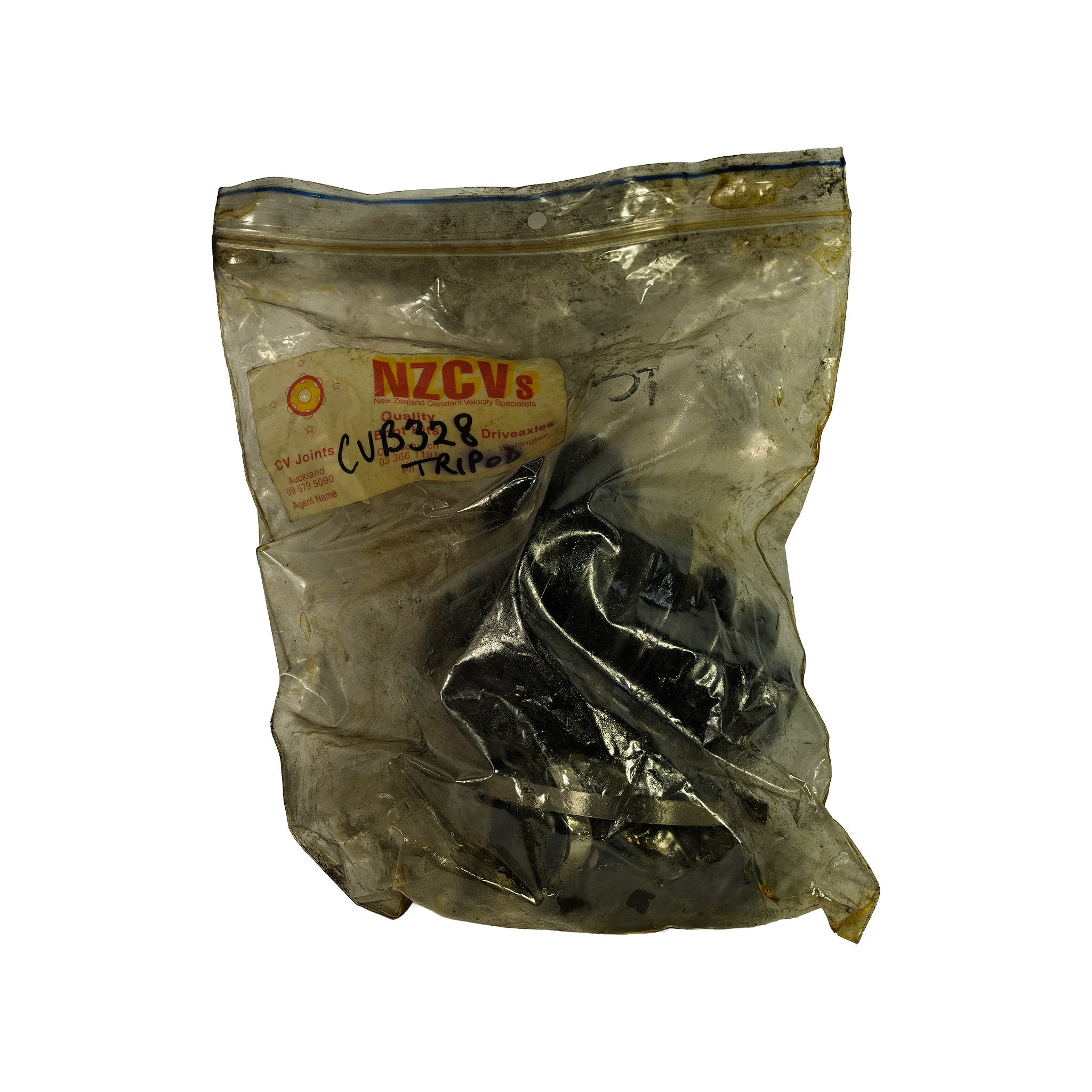

New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. Polythene bag is heavily soiled and aged with grime and yellowing, consistent with long shelf storage. Boot itself appears uninstalled and unused; rubber shows no cracking or deterioration visible. Grease sachet present. We recommend the item is inspected before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: TRN-00557
