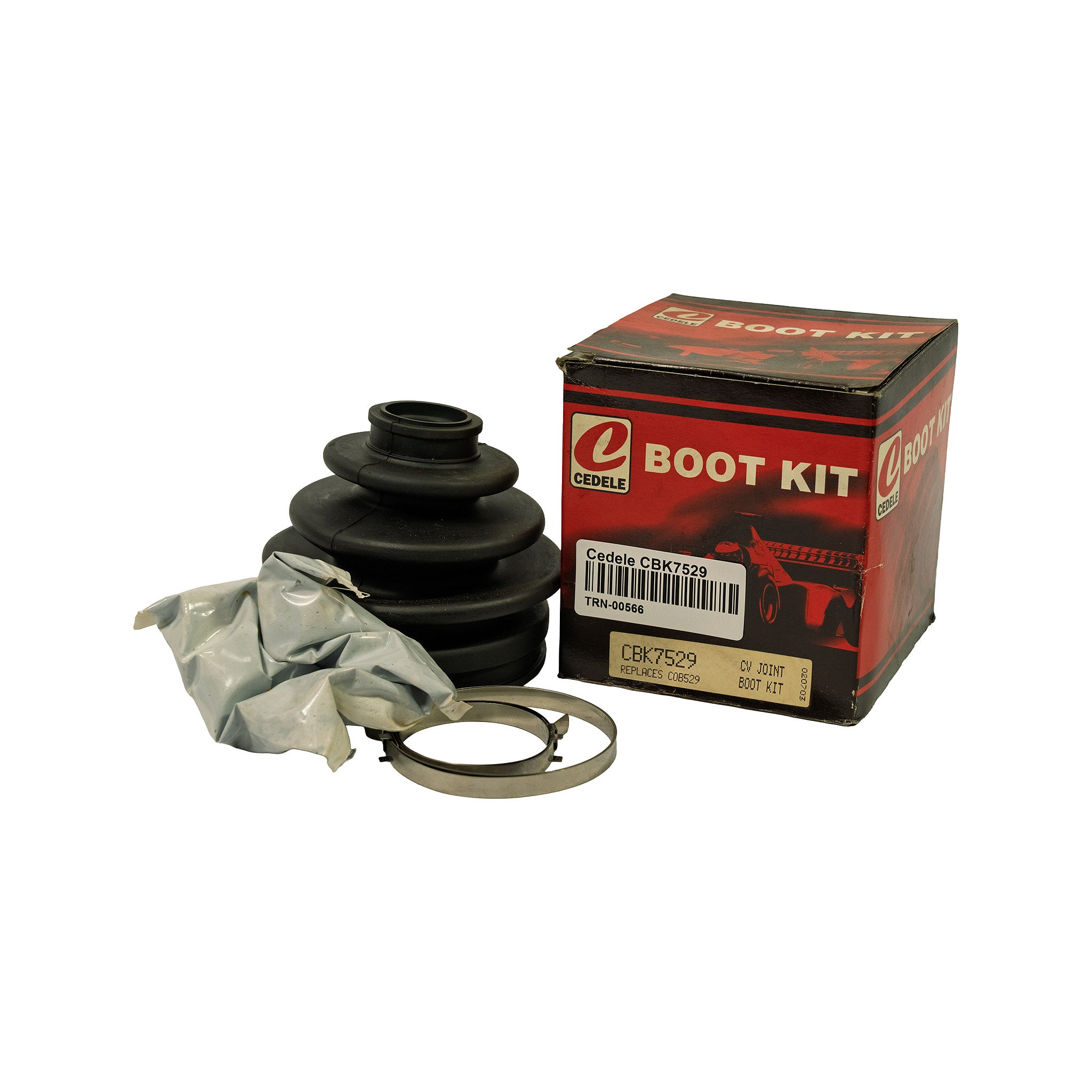

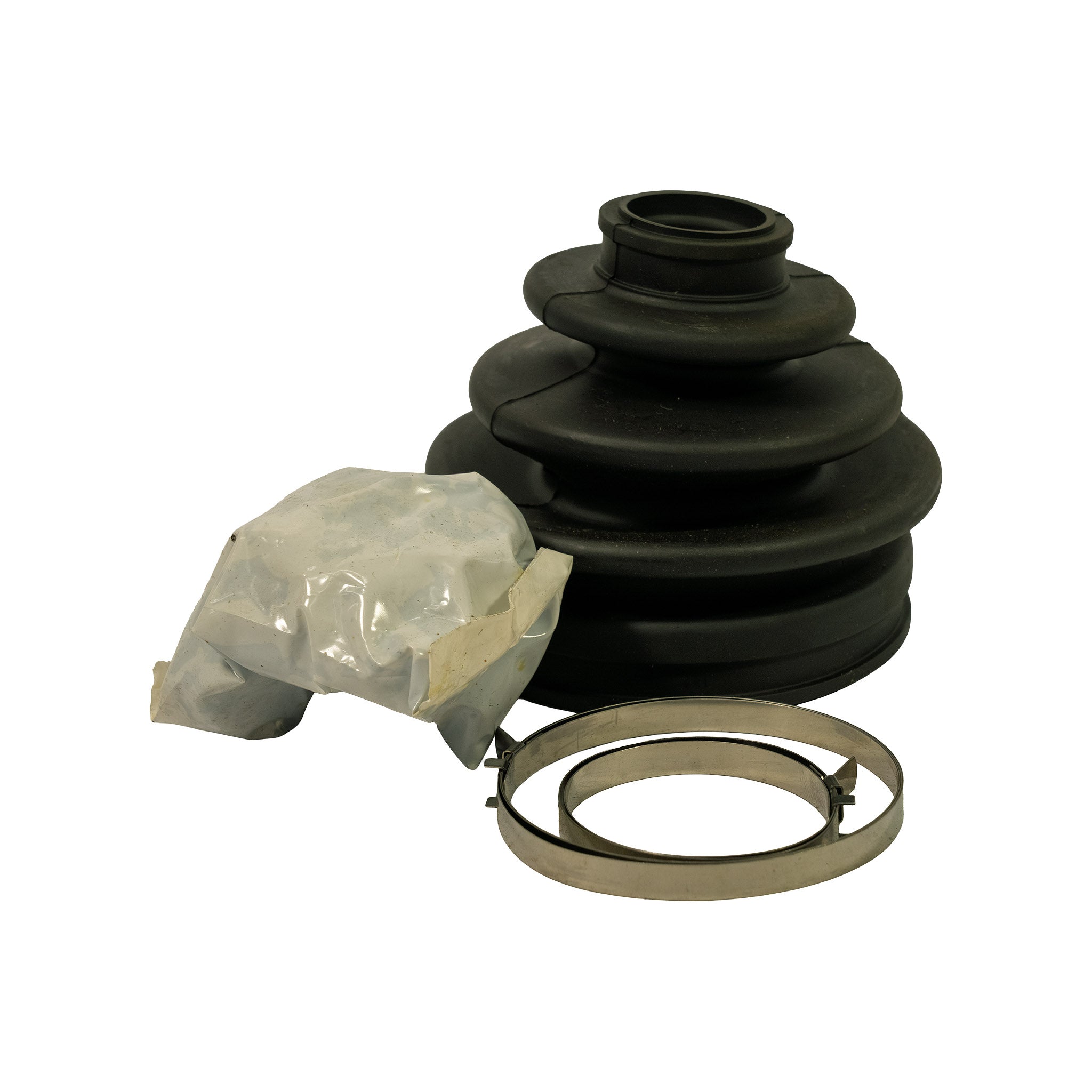

Three-quarter top view of kit components on white background: stepped black rubber boot (four-bellows, wide base), one open grease sachet with light-coloured grease partially extruded, and one large stainless band-style clamp with locking tab.
CV Boot Kit - Toyota - CBK7529 - Cedele - NOS

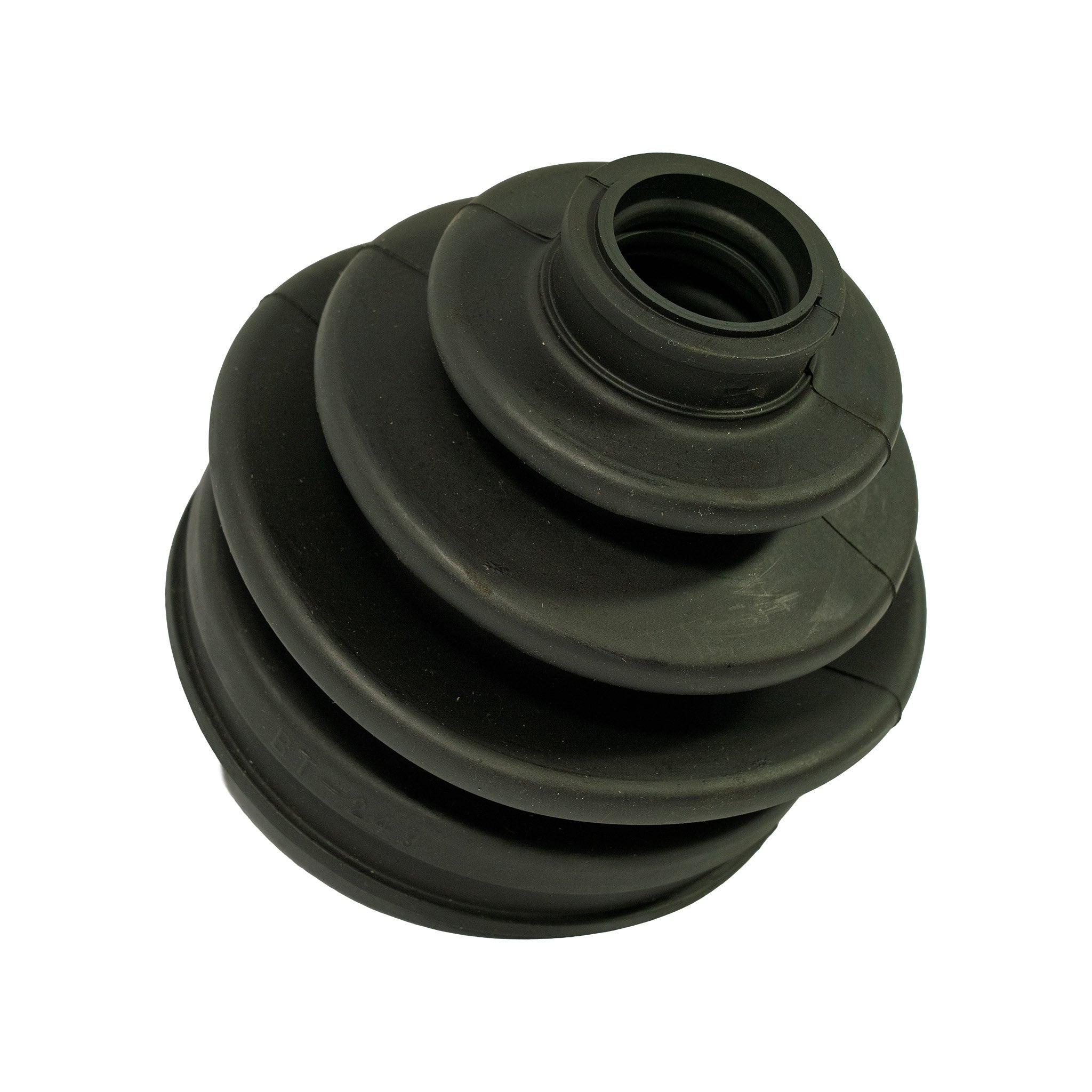

Top-down three-quarter view of rubber CV boot alone, showing four concentric stepped bellows from narrow shaft neck at top to wide base flange. Mould parting lines visible on bellows flanks. Outer surface smooth with no cracks or tears.

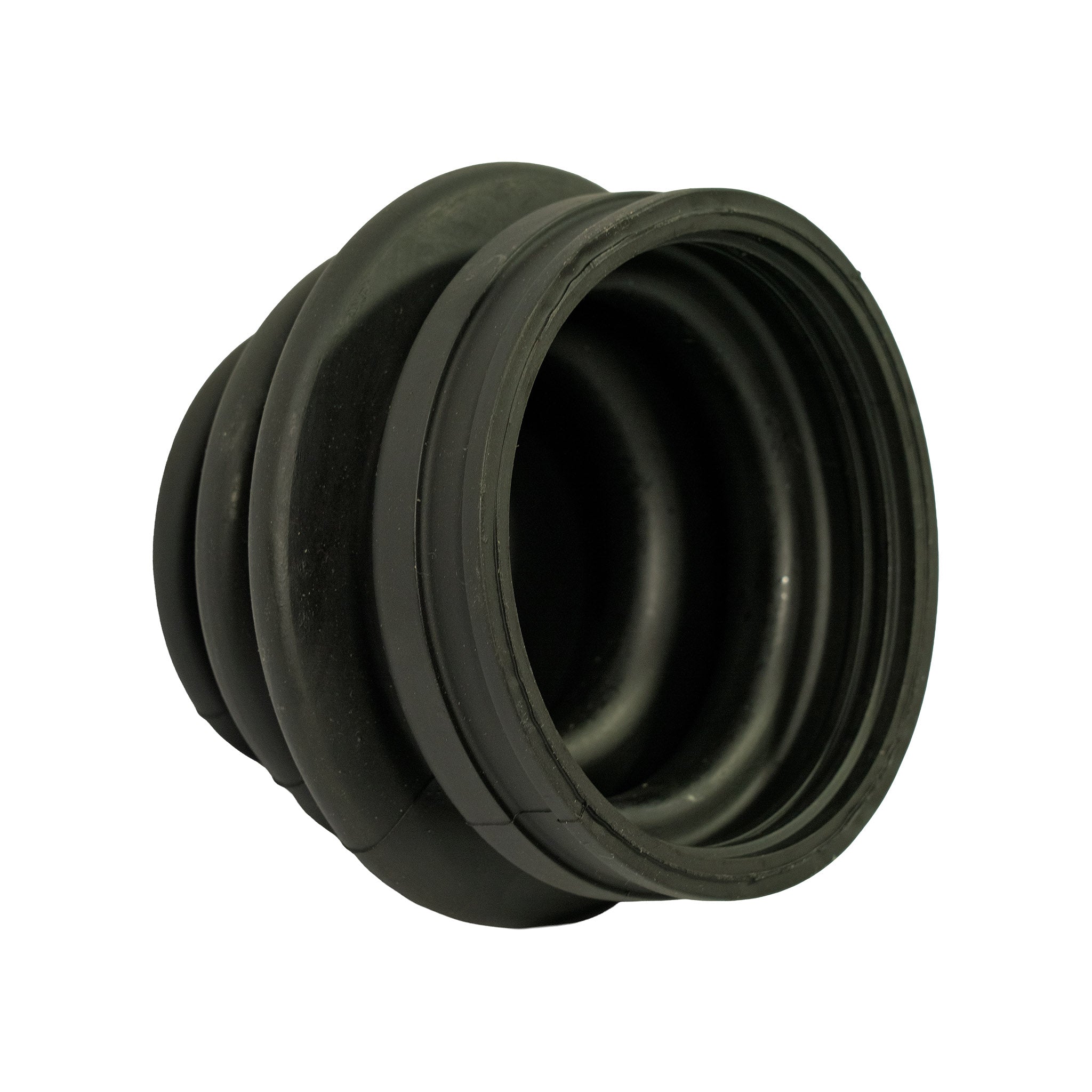

Base-up view of the CV boot looking into the large-diameter opening. Shows multi-ribbed internal bore sealing surfaces and smooth outer bead at base rim. Rubber appears pliable with no deformation.

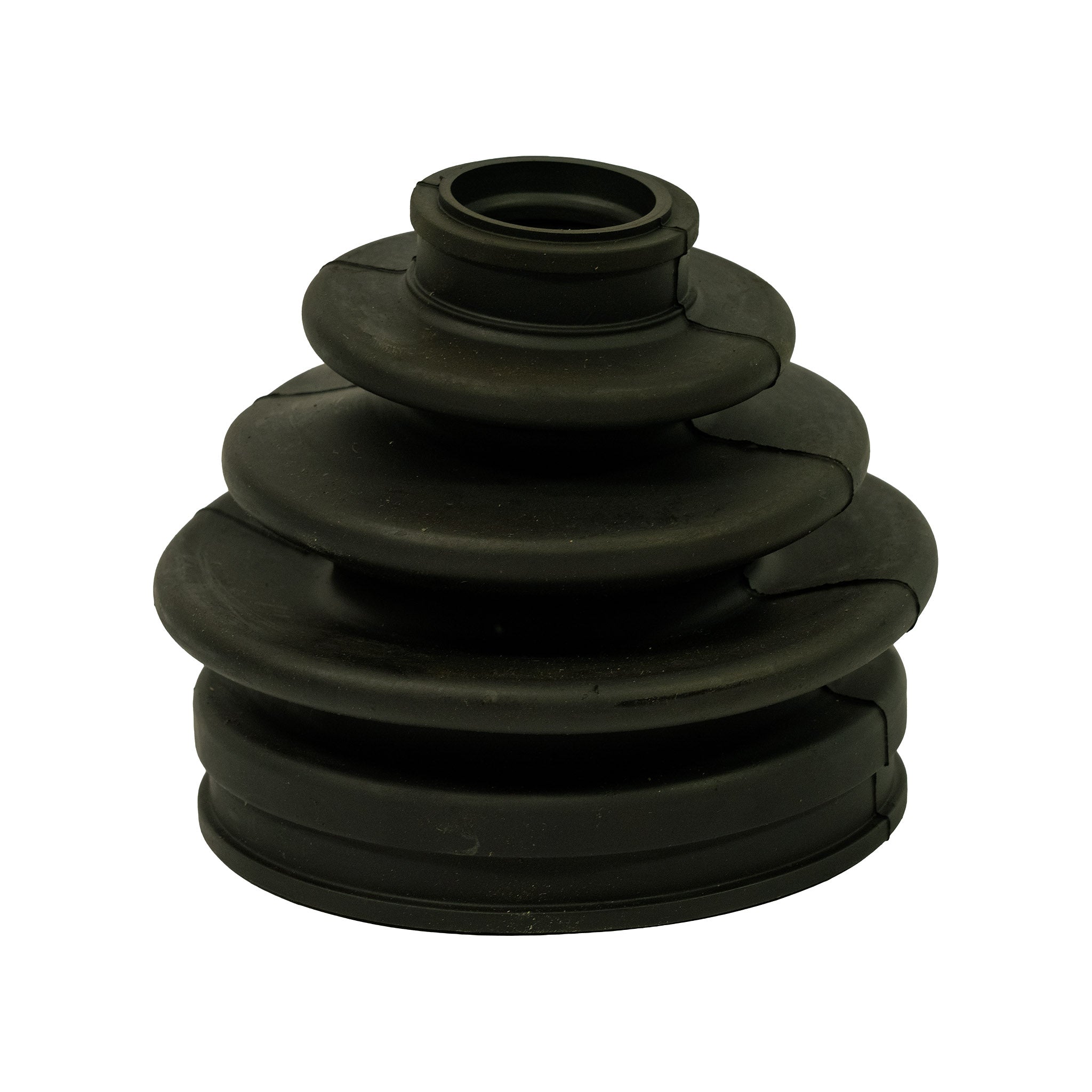

Angled side view highlighting the boot's broad stepped-dome profile. Faint mould date or batch code stamp partially visible near base flange. Four-bellows construction clearly defined from this angle.

CV Boot Kit - Toyota - CBK7529 - Cedele - NOS

Only 7 left!
Brand Cedele
Part Number CBK7529
Type CV Boot
Condition New Old Stock

Specifications

  • Boot style: Four-bellows stepped dome, outer CV joint type
  • Clamp type: Ear-type stainless steel band clamps (large and small)
  • OEM reference: 04438-35021 (Toyota)

Vehicle Fitment

Toyota Hilux KUN26 4WD (3.0L 1KD-FTV Diesel) 2005–2015
Toyota Avensis Verso ACM21/ACM21R (2.4L 2AZ-FE Petrol) 2007–2011

Cross References

Part Numbers Relationship
COB-529 equivalent
04438-35021 OE original
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. Original Cedele box present with moderate shelf wear and minor corner crushing. Grease sachet opened in photography but contents appear intact. Boot and clamps appear uninstalled and in good condition with no visible cracks, tears or deformation. We recommend the item is inspected before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: TRN-00566
