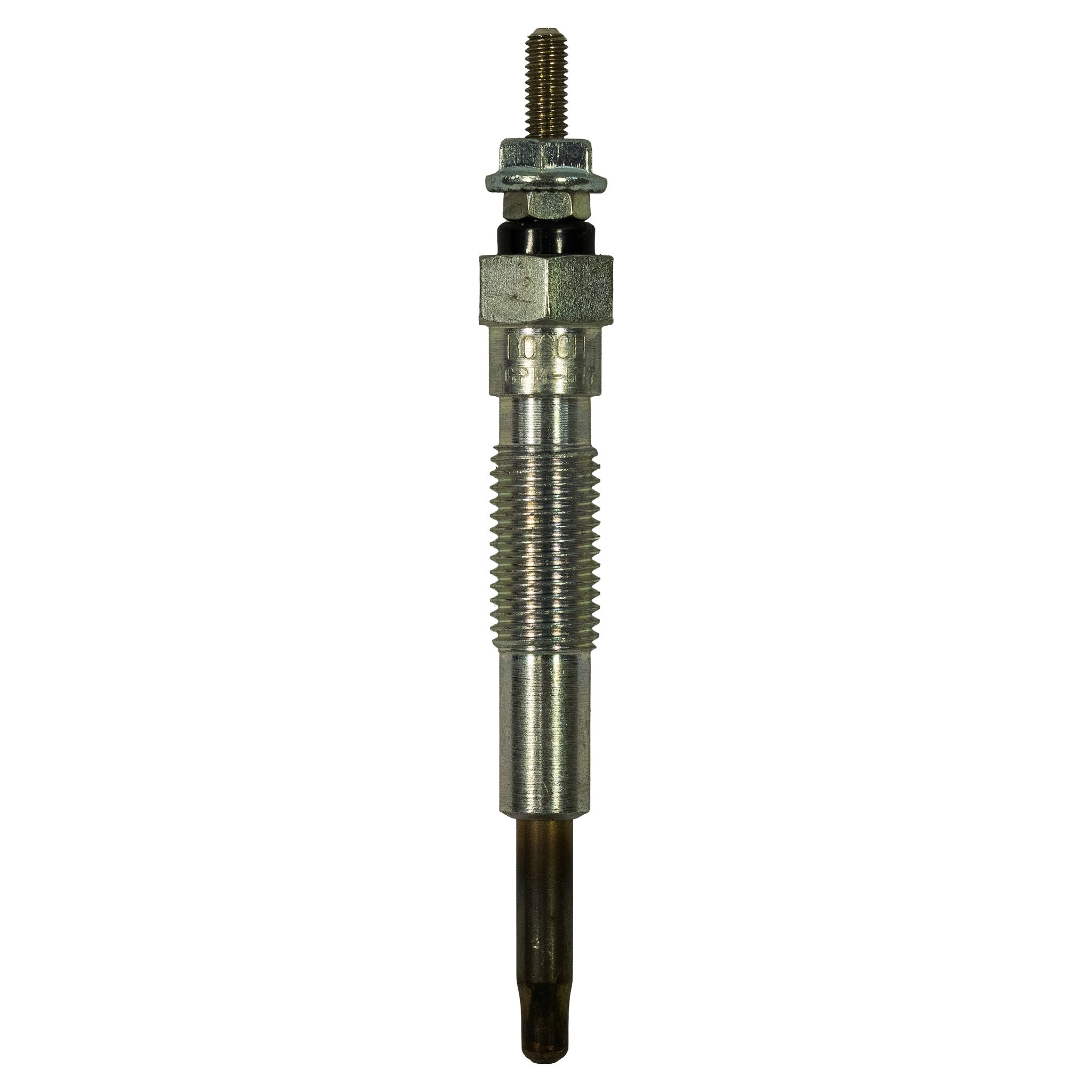

Full-length vertical shot of the glow plug, connector end uppermost; BOSCH and GPM-517 markings faintly visible on the hex body; black rubber insulating collar, hex nut, and threaded terminal stud visible at top
Glow Plug - Mazda - GPM-517 - Bosch - NOS

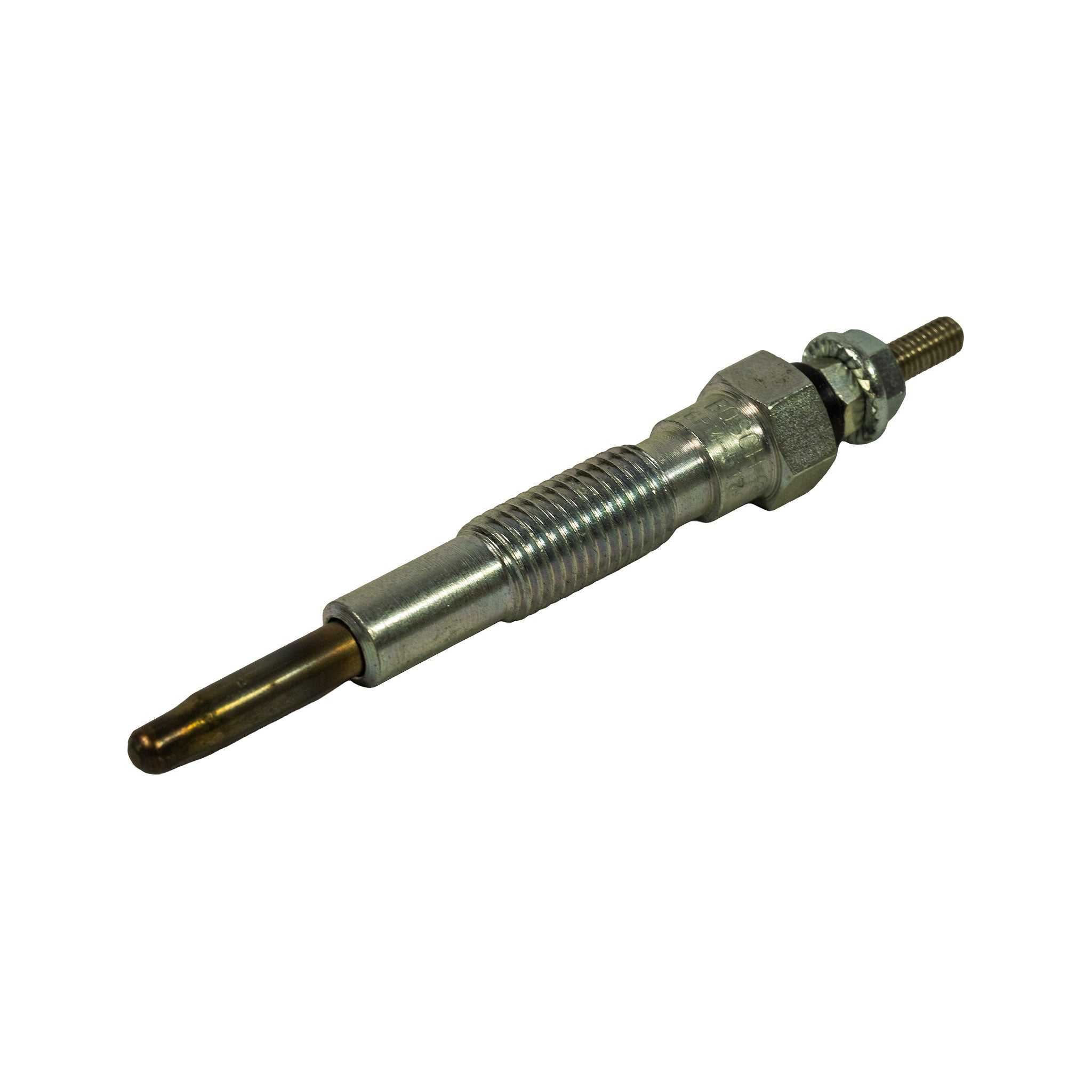

Three-quarter diagonal view of the plug, heating tip end to the left; full thread length, hex body, insulating collar, and terminal stud visible; minor surface scuffing consistent with NOS shelf storage

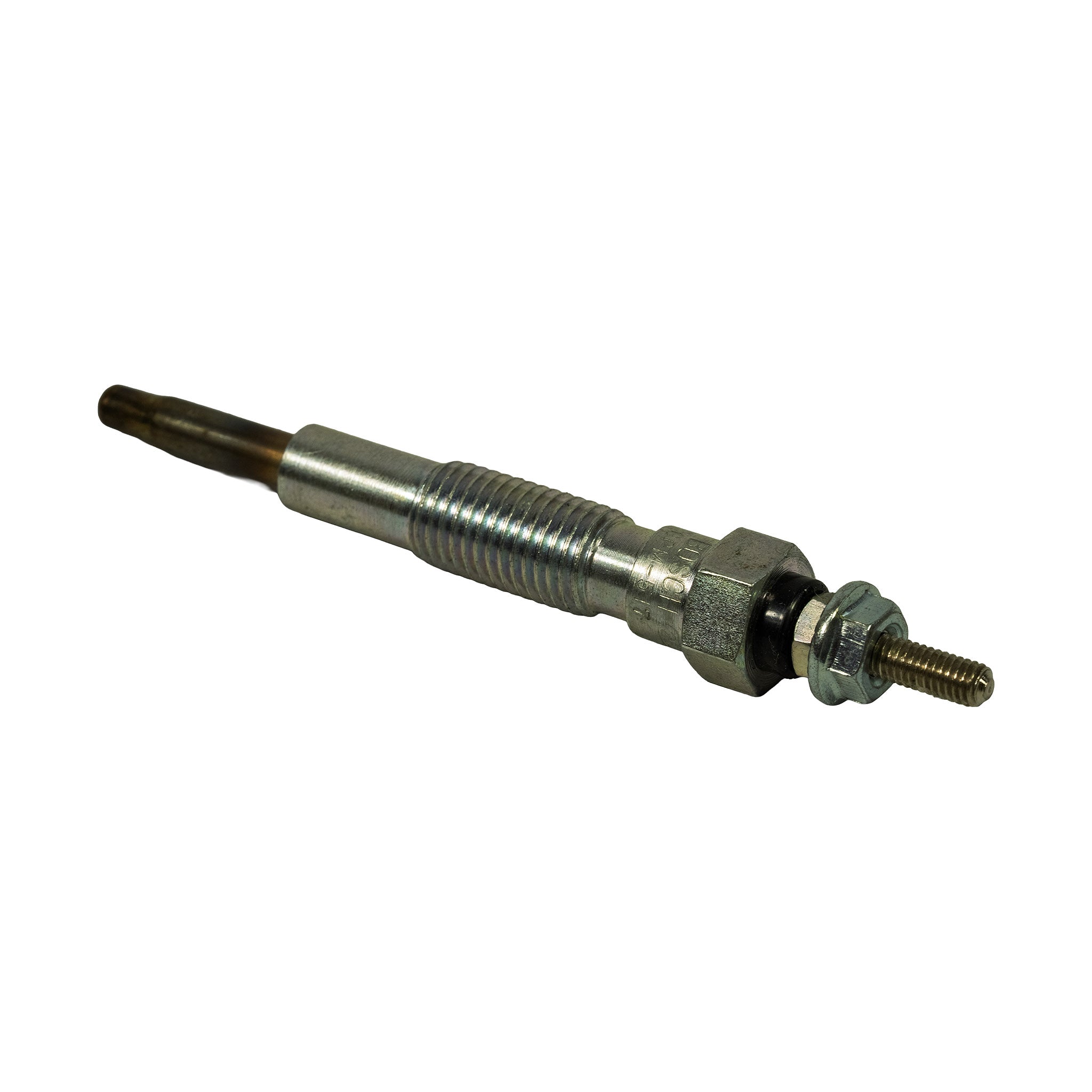

Opposite diagonal view of the plug, heating tip end to the left; reverse side of hex and thread section; BOSCH markings faintly readable on body

Glow Plug - Mazda - GPM-517 - Bosch - NOS

Only 6 left!
Brand Bosch
Part Number GPM-517
Type Glow Plug
Condition New Old Stock

Specifications

  • Voltage: 11.0V
  • Thread size: M10 x 1.25
  • Hex size (H): 12mm
  • Overall length (LT): 93mm
  • Thread reach (L1): 50mm
  • Glow tube length (L2): 22mm
  • Terminal connector: M4
  • Glow tube diameter (O): 5mm

Vehicle Fitment

Mazda Capella Van 2.0 RFT 1995-1999 (Chassis SSF8W, SSF8R)
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. Part appears unused and uninstalled. Original retail box present with minor shelf wear — slight creasing at one end of the box. Part surface shows very minor storage marks consistent with NOS age; no corrosion, no thread damage, no tip damage visible. Electrical and ignition components should be tested by a qualified auto electrician before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: IGN-00448
