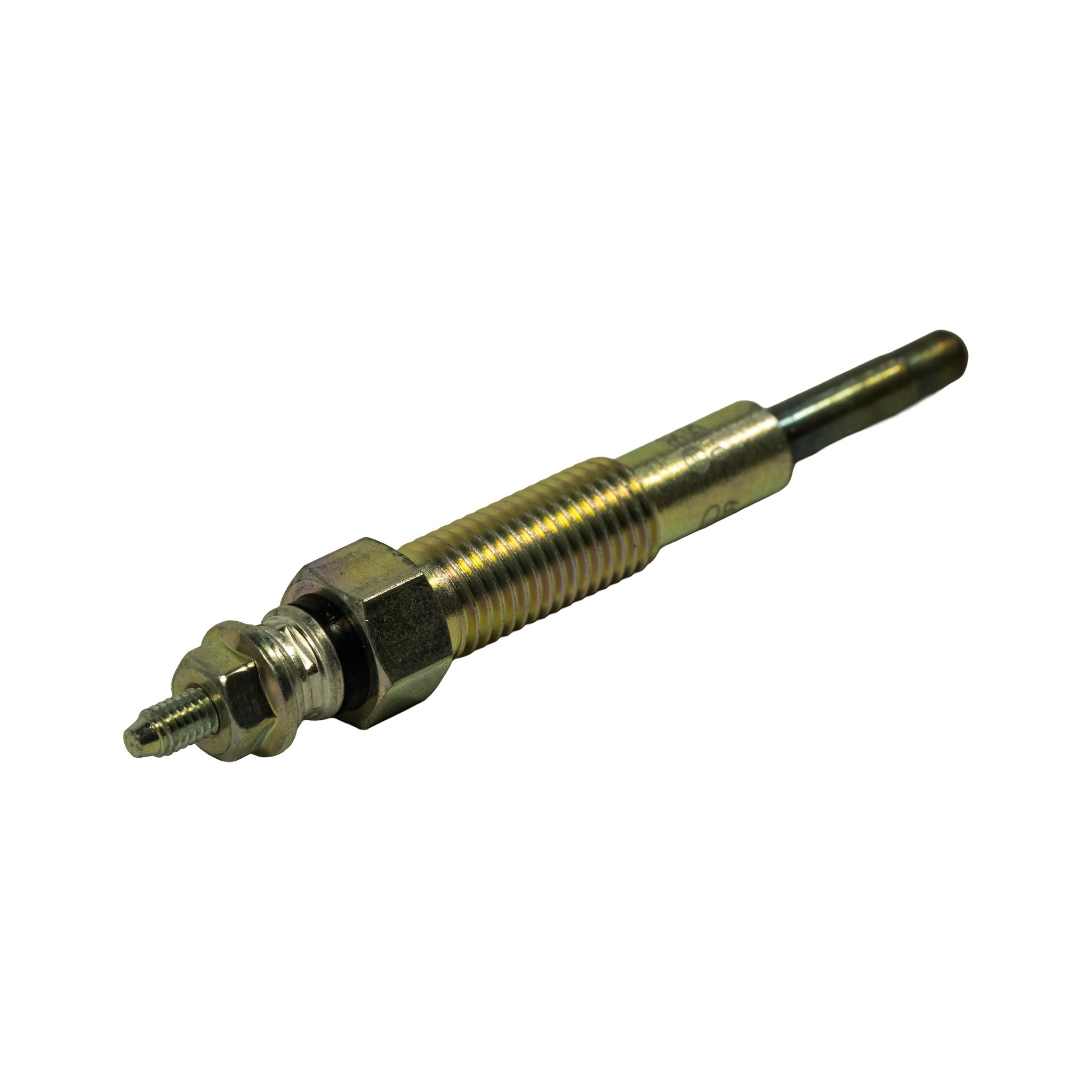

Angled view from heating element tip end, showing tapered glow tube tip and mid-body thread section. Faint stamped codes visible on the barrel.
Glow Plug - Mazda/Kia/Ford - 0250202089 - Bosch - NOS

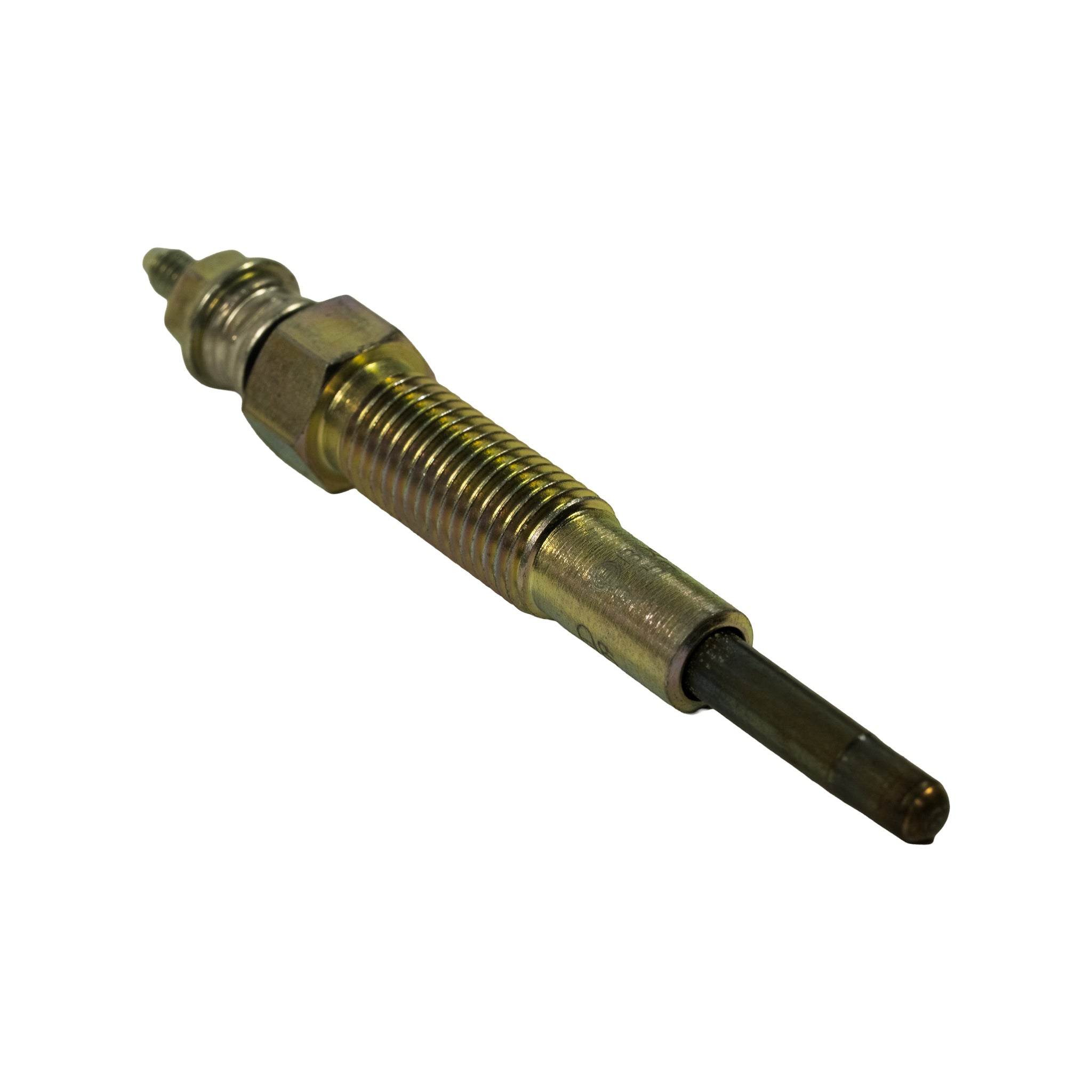

Angled view from terminal stud end, showing M4 terminal pin, rubber seal ring at base of hex, and transition shoulder between threaded body and smooth glow tube sheath.

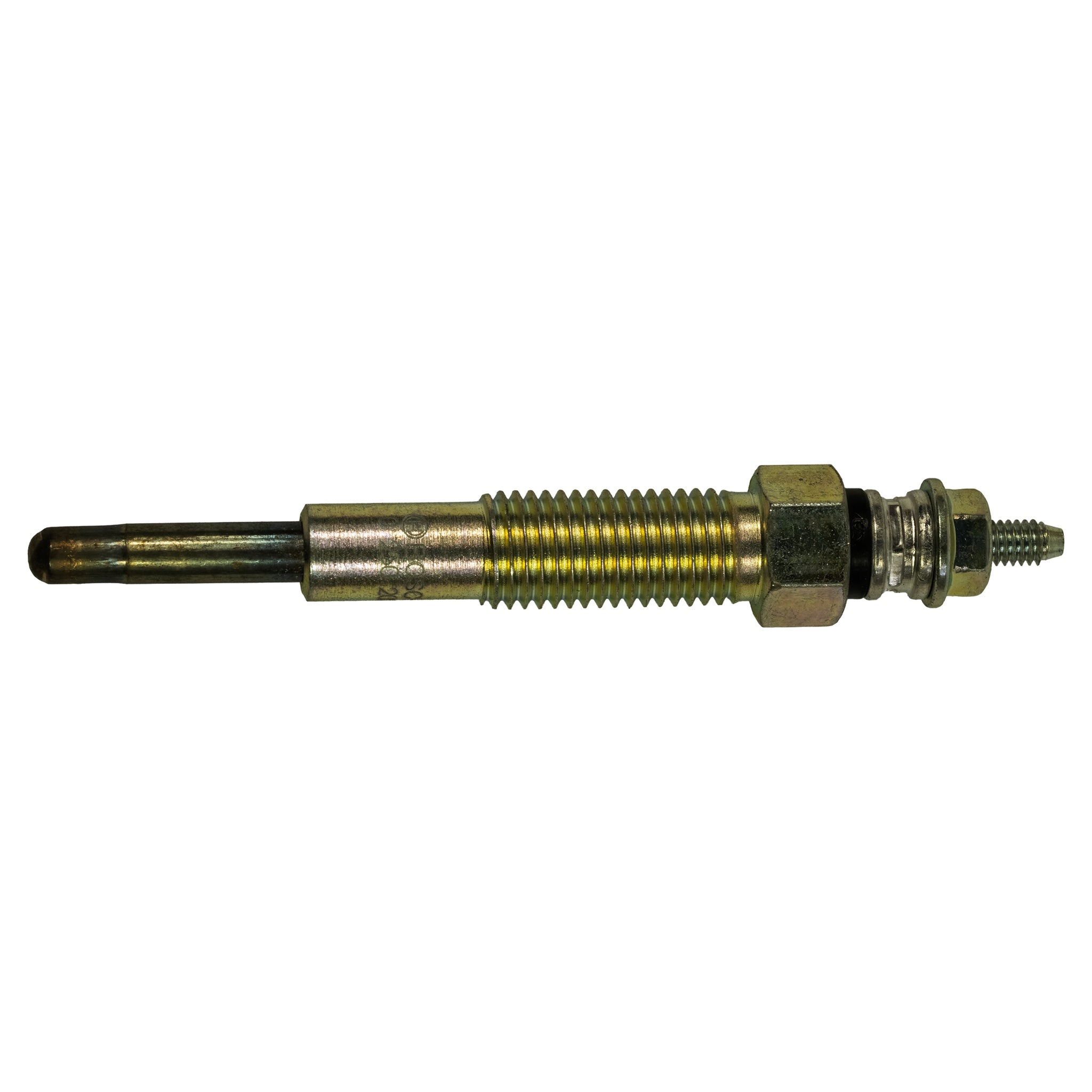

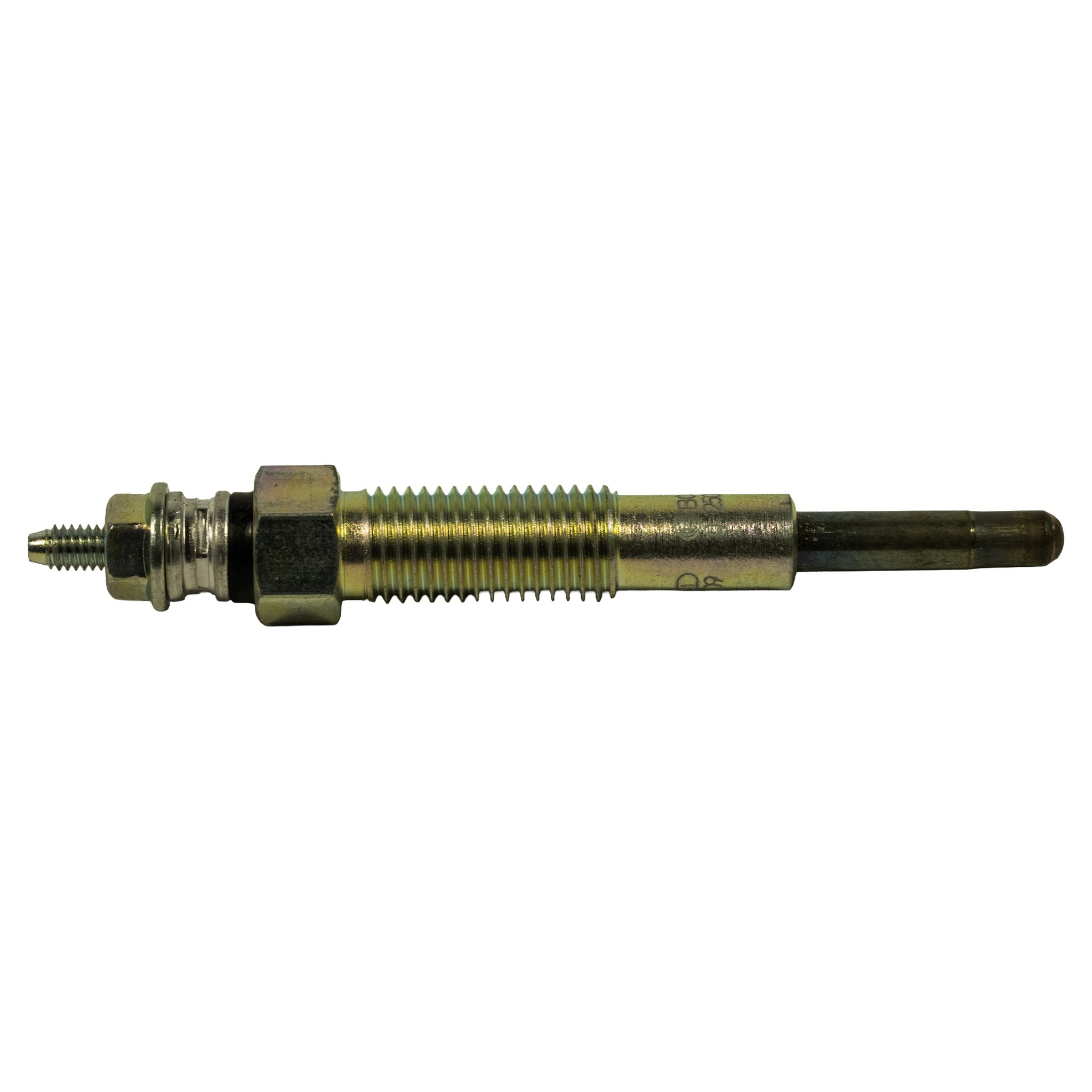

Horizontal full-length view showing opposite side of barrel with partially legible stamped text — appears to include manufacturer code and date markings.

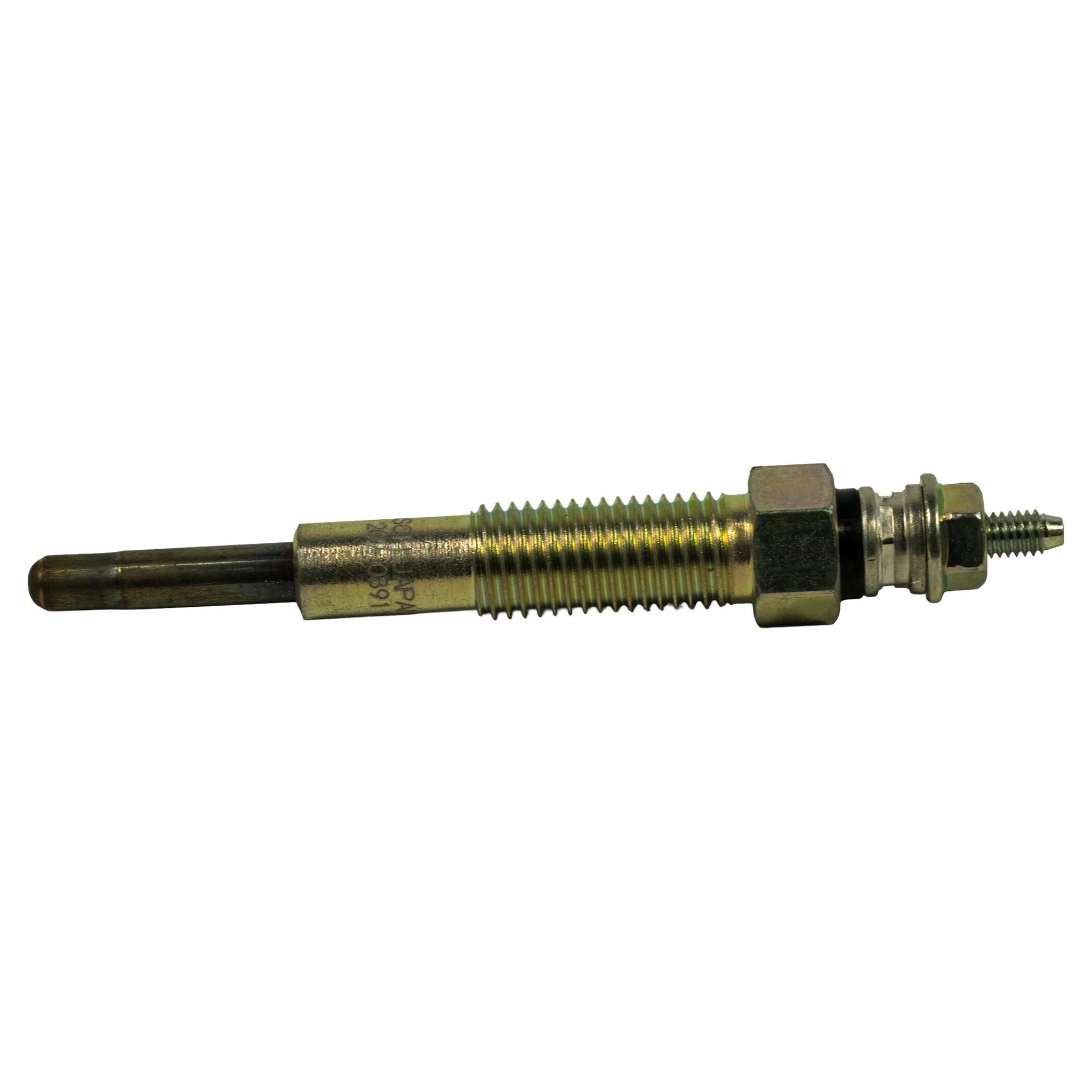

Side view with box label in background; body shows faint stamped characters including what appears to be '0250202089' or abbreviated form and date code.

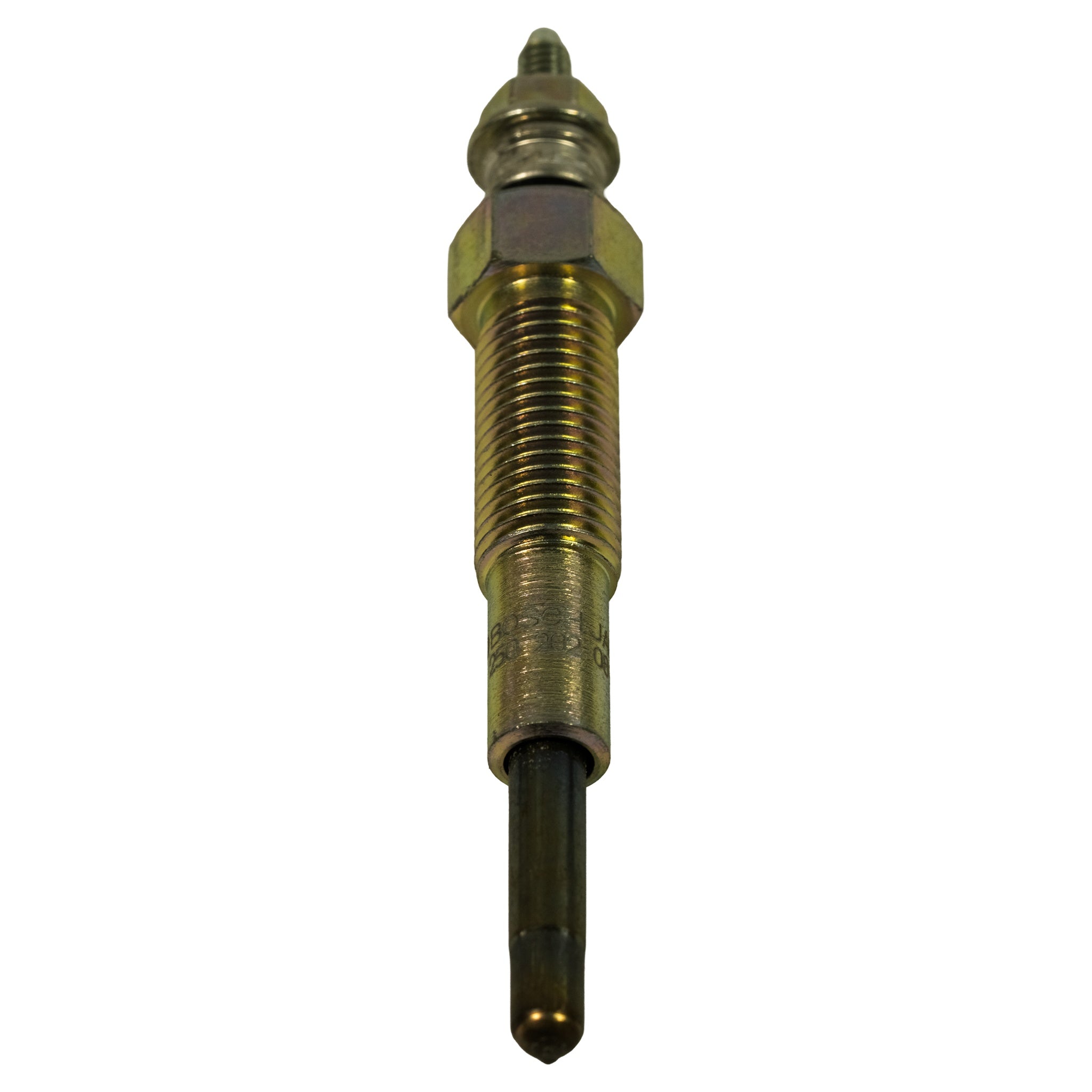

Vertical end-on view showing terminal stud assembly: M4 stud, washer, and rubber seal clearly visible; hex nut body and transition shoulder below.

Glow Plug - Mazda/Kia/Ford - 0250202089 - Bosch - NOS

Only 1 left!
Brand Bosch
Part Number 0250202089
Type Glow Plug
Condition New Old Stock

Specifications

  • Thread size: M10 x 1.25
  • System voltage: 12V
  • Total length: 86mm
  • Thread reach: 22mm
  • Terminal type: M4 stud
  • Glow tube outer diameter: 4mm

Vehicle Fitment

Mazda B2200 1982-1984 (diesel)
Mazda 626 / Cronos / MS6 diesel 2.0D
Kia Pregio diesel
Kia B2700 diesel
Ford (various diesel models, per OE cross-reference)
Mazda Bongo / B-Series diesel (WL, RF engine family, various)
Suzuki diesel

Cross References

Part Numbers Relationship
80020, DG-146, GN005, CH242, DS394, ADM51801, F002G50079 equivalent
WL0118601, WLY7-18-601, 0K75A-18-140 OE original
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. Box shows moderate shelf wear — scuffing and slight deformation to one end flap. Part itself appears unused and uninstalled; no thread damage, corrosion, or installation marks observed. Electrical and ignition components should be tested by a qualified auto electrician before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: IGN-00402
