H4 Headlight Insert - 4x4 - 1042 - Hella - NOS

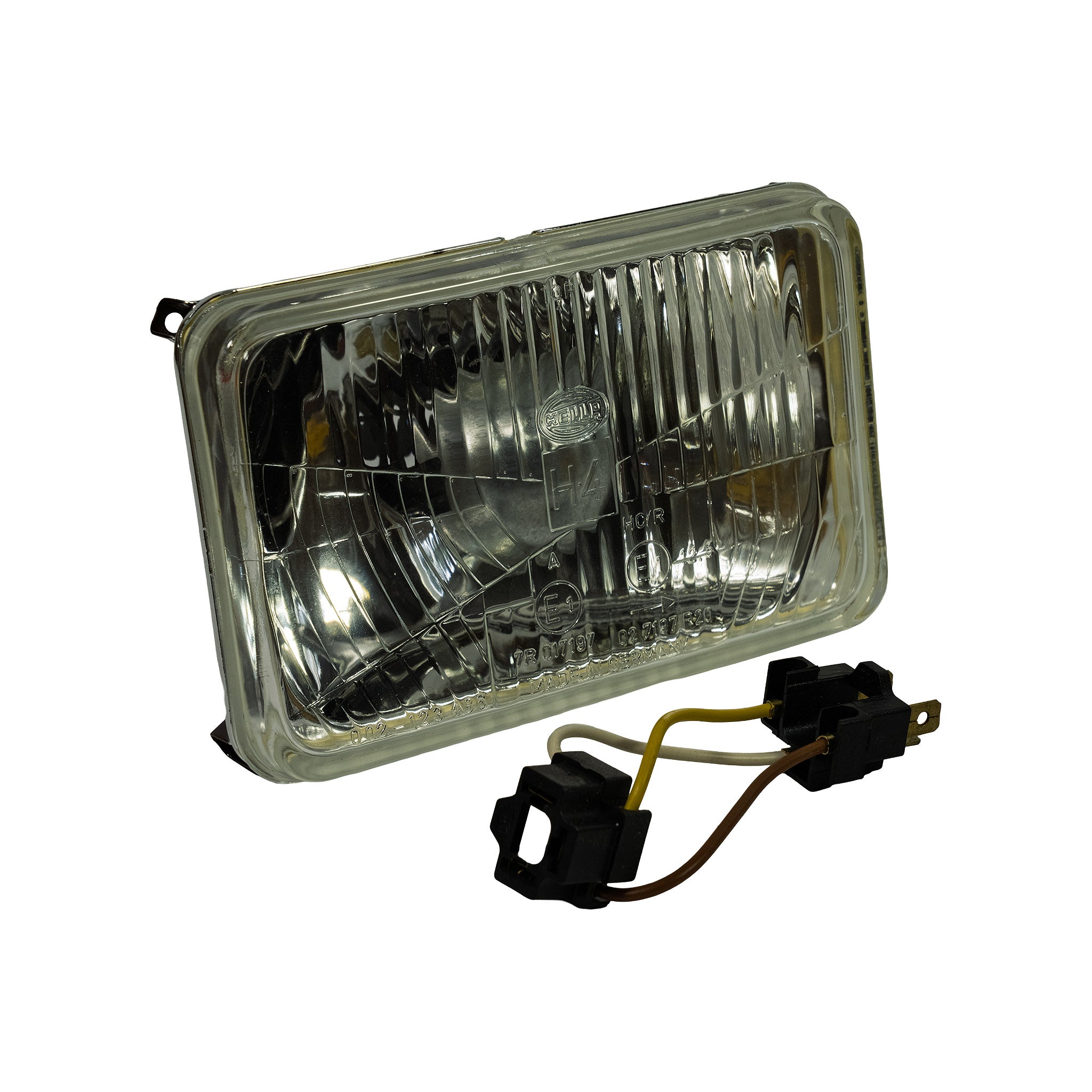

Three-quarter front-right view of the headlight insert showing rectangular profile, mounting tab at top-left corner, and wiring harness with connectors resting below; same lens markings as photo 4 partially visible.

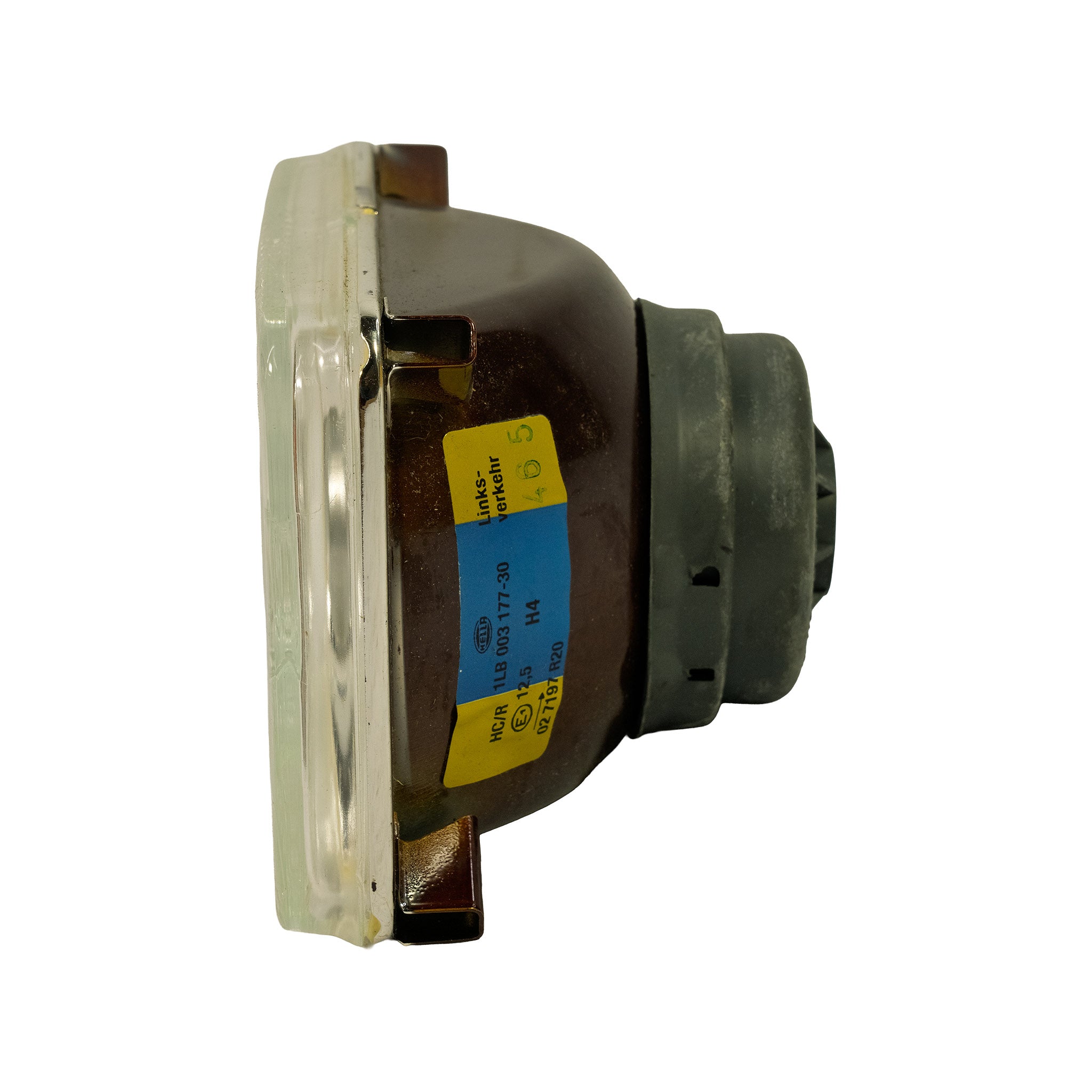

Side profile of the headlight insert showing depth of reflector housing; blue-and-yellow Hella label on rear housing reads '1LB 003177-30', 'H4', 'HC/R', '12.5', ECE mark, '02 7197 R20'. German-language 'Linksverkehr' (left-hand traffic) designation visible on label.

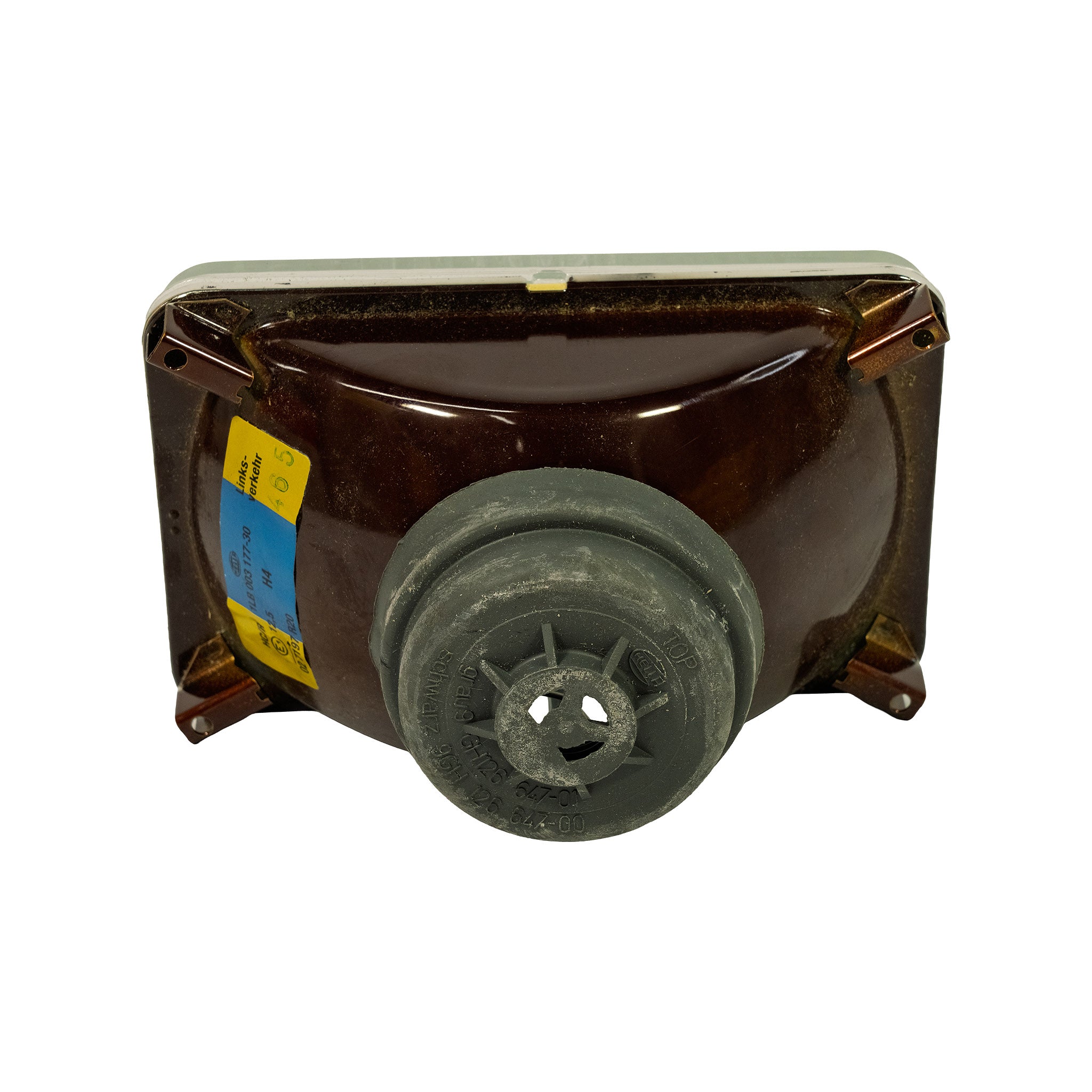

Rear view of headlight insert — dark brown painted reflector housing with four corner mounting clips, central circular bulb access port with grey plastic dust cap fitted; Hella label with 'Linksverkehr' / 1LB 003177-30 / H4 markings visible on left side.

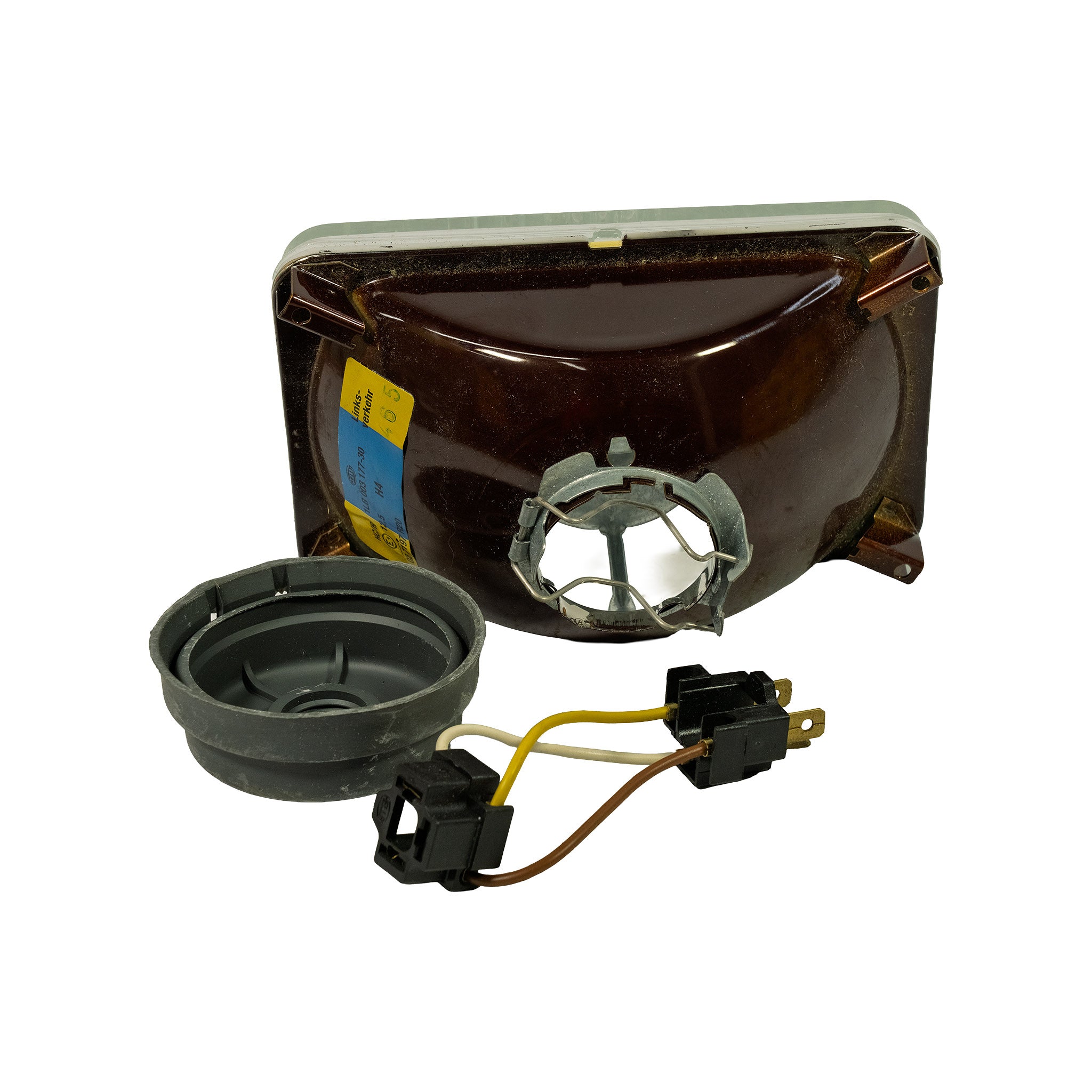

Rear of unit with dust cap and sealing boot removed; H4 bulb retaining wire clip exposed inside the bulb aperture. Sealing boot (grey rubber) and three-wire harness with two connectors laid beside the unit, showing contents of the box.

H4 Headlight Insert - 4x4 - 1042 - Hella - NOS

Only 1 left!
Brand Hella
Part Number 1042
Type Headlight
Condition New Old Stock

Specifications

  • Lens dimensions: 165 x 100mm
  • Bulb type: H4
  • Voltage (12V globe): 12V
  • Voltage (24V globe): 24V
  • 12V globe part number: XD 1260/55 (H4 60/55W)
  • 24V globe part number: XD 2475/70 (H4 75/70W)

Vehicle Fitment

4x4 and commercial vehicles with 165 x 100mm rectangular headlamp housings (universal fitment — commonly used as a sealed-beam replacement on a wide range of trucks, buses, and 4WDs)

Cross References

Part Numbers Relationship
1LB 003177-30 equivalent
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock in original Hella retail box; box shows age-related yellowing and minor corner wear consistent with long shelf storage; the unit itself appears unused and undamaged. Electrical components should be tested before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: ELE-00793
