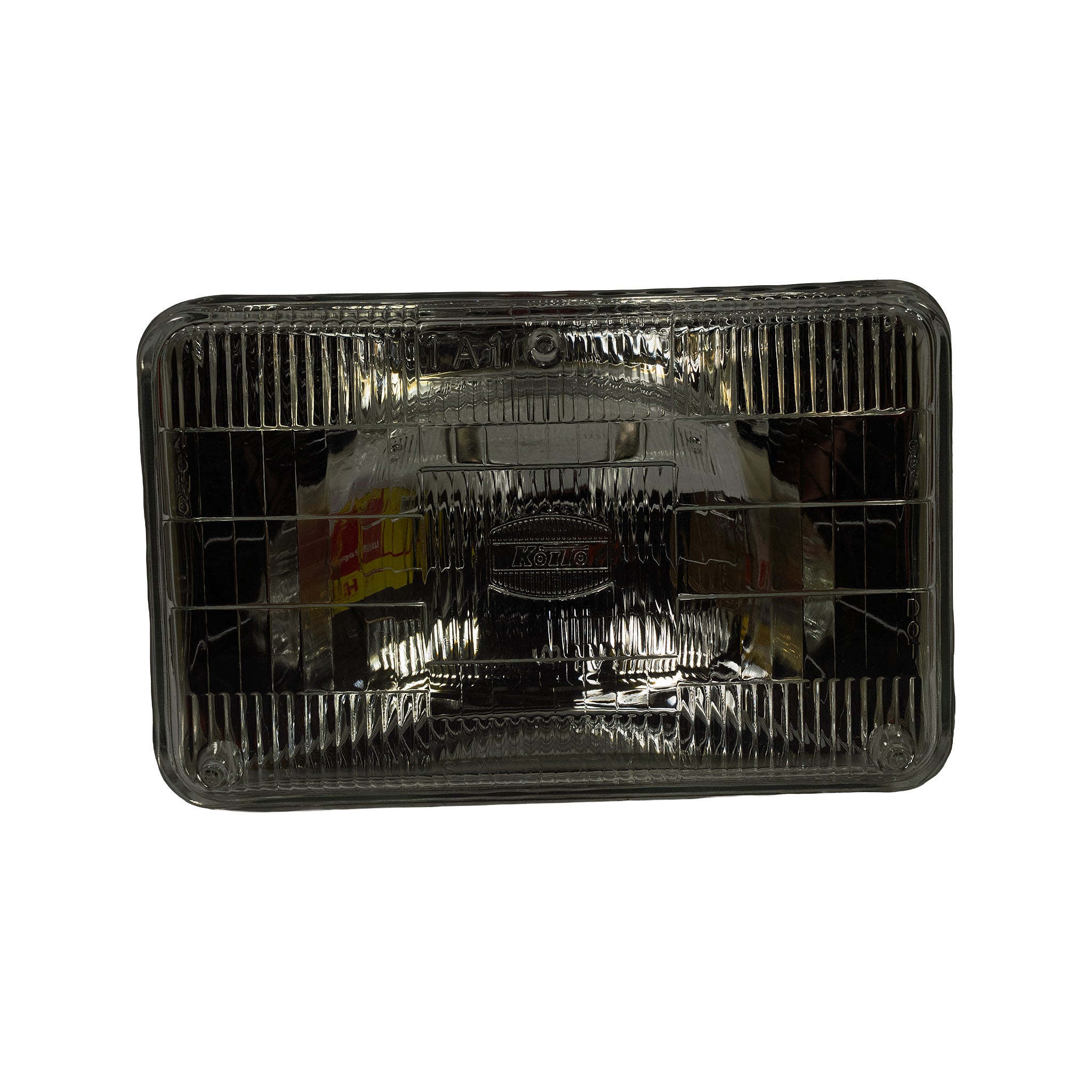

Front lens face of the sealed beam lamp, straight-on view. Clear ribbed glass lens with typical Type 1A1 rectangular pattern. Koito brand oval badge partially visible through lens on reflector rear housing, confirming Japanese manufacture. Box label visible in reflection.

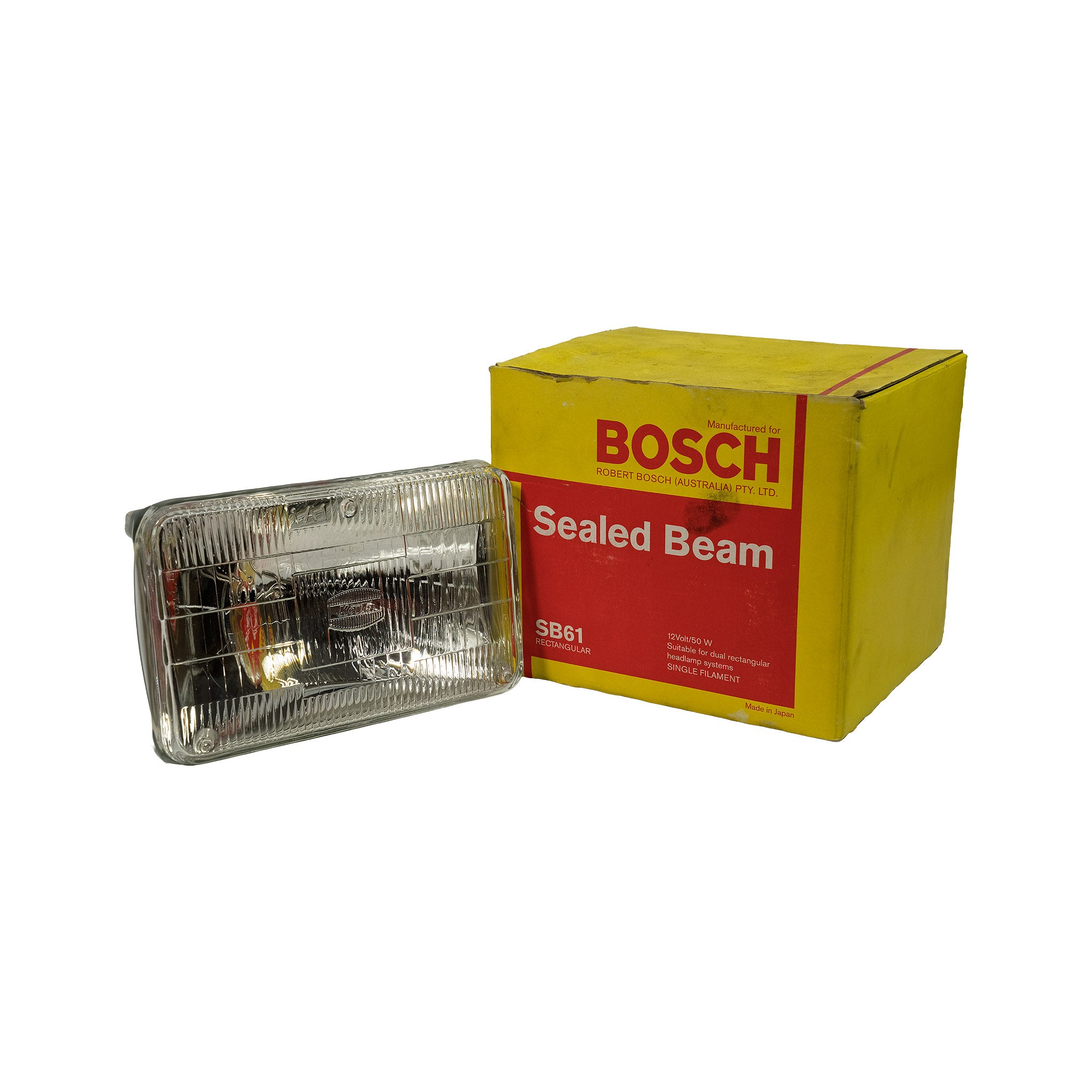

Three-quarter view showing lamp removed from box alongside original packaging. Both box front and lamp lens face visible together. Lamp glass is clear and undamaged. Box shows slight corner crushing.

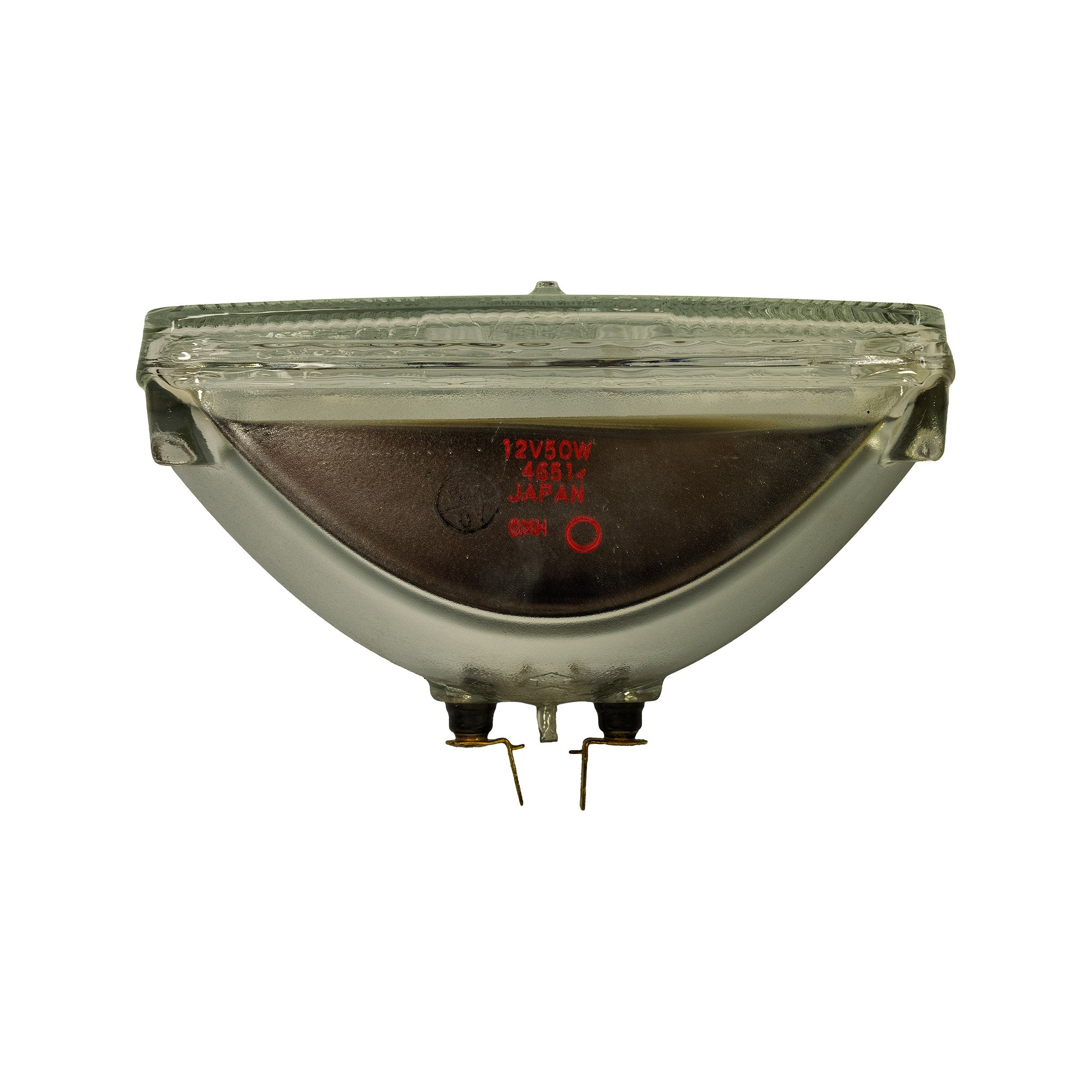

Rear face of lamp, straight-on. Stamped in red: '12V50W / 4651 / JAPAN'. Circular ECE-style approval mark and an additional small circle mark (possibly quality stamp) visible. Two brass spade terminal lugs protruding from base. Reflector housing is polished bare metal.

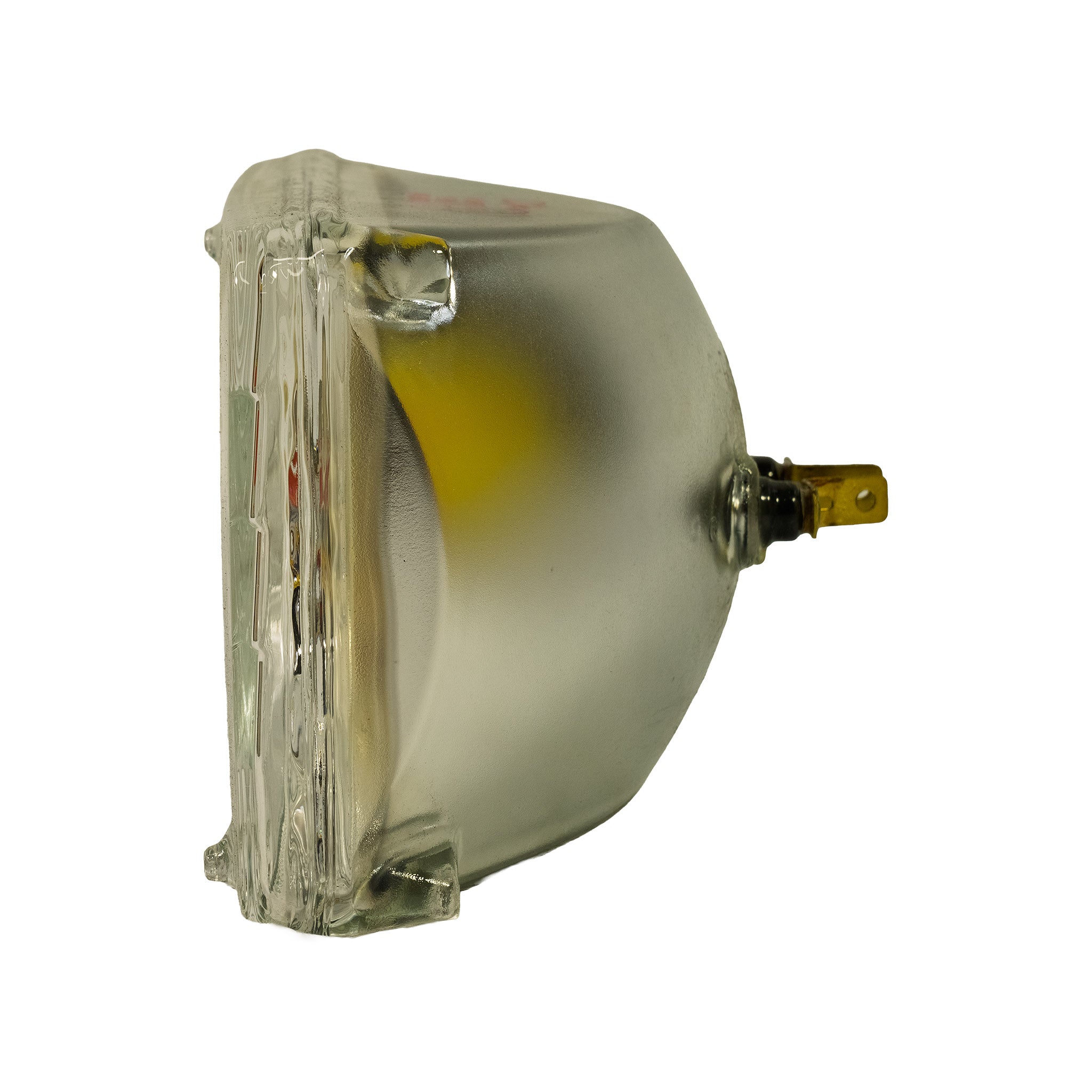

Side profile of lamp showing depth and curvature of the reflector housing. One brass spade terminal lug visible at right edge. Polished reflector bowl visible through glass edge.

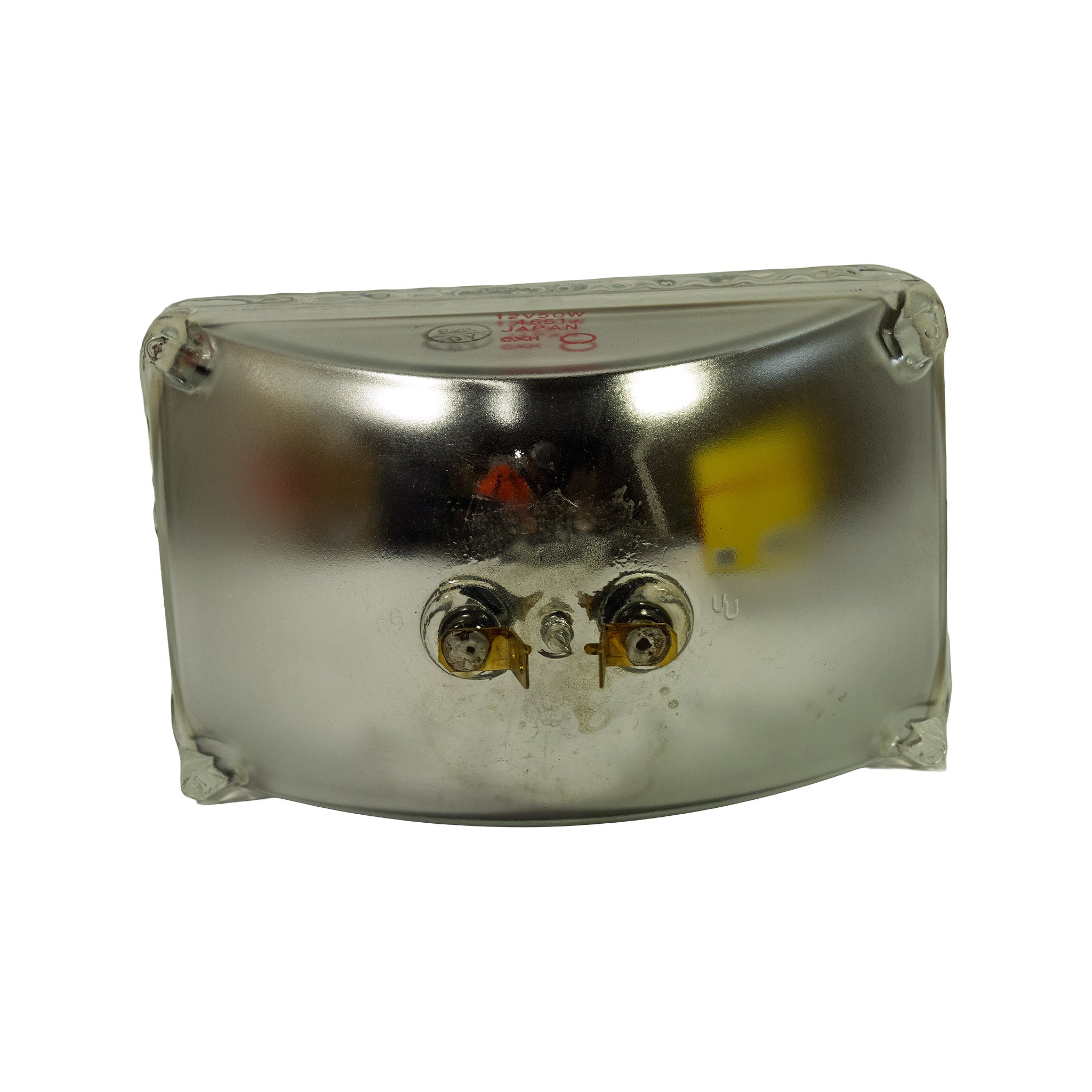

Rear face of lamp from slightly elevated angle showing the full width. Both brass spade terminals visible centrally. Stamped markings '12V50W / 4651 / JAPAN' and circular marks visible in red on upper portion of reflector. Reflector metal has minor surface oxidation consistent with age.

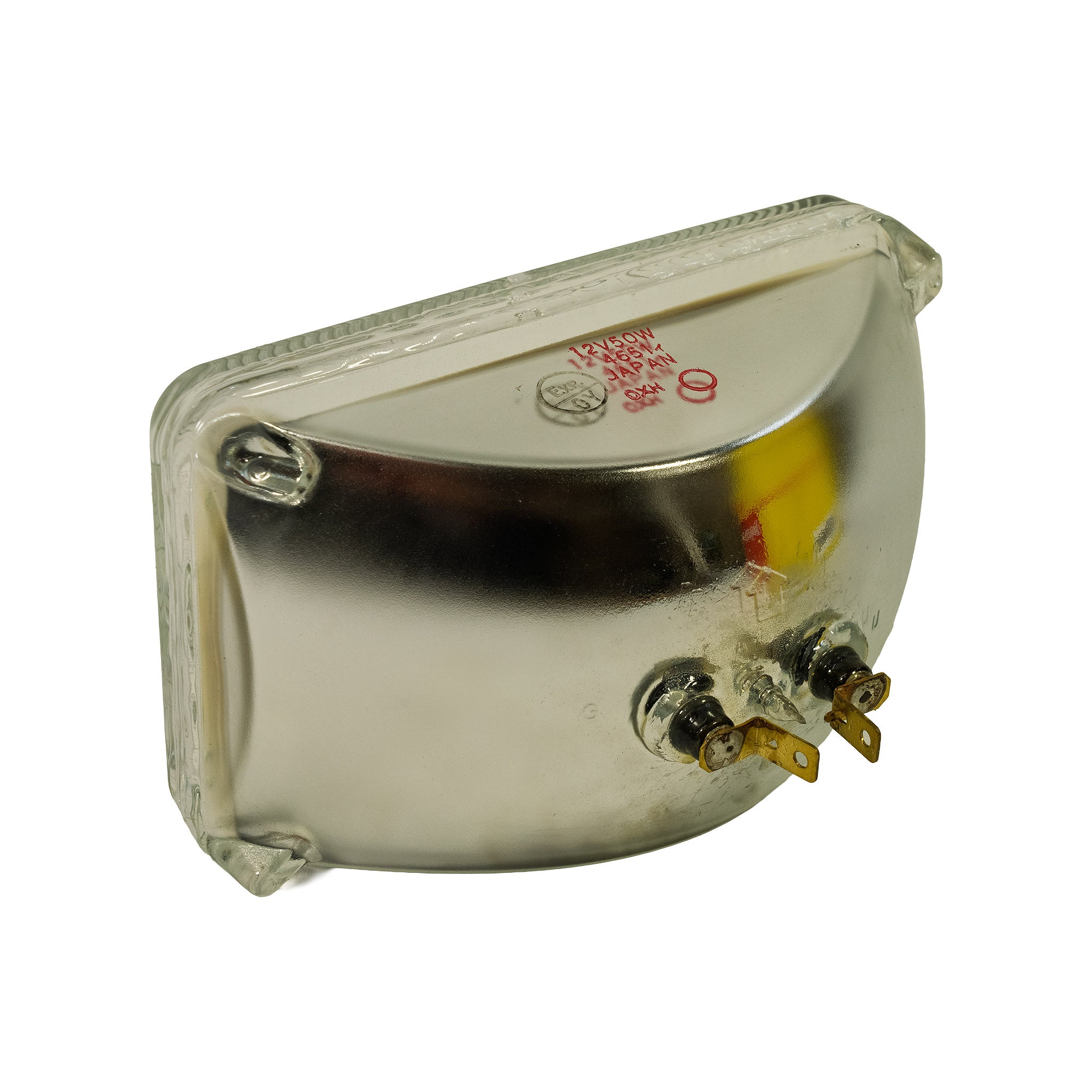

Three-quarter rear view showing lamp from corner. Both spade lug terminals visible. Stamped markings '12V50W / 4651 / JAPAN' legible on reflector rear. Minor surface tarnish on metal reflector housing.

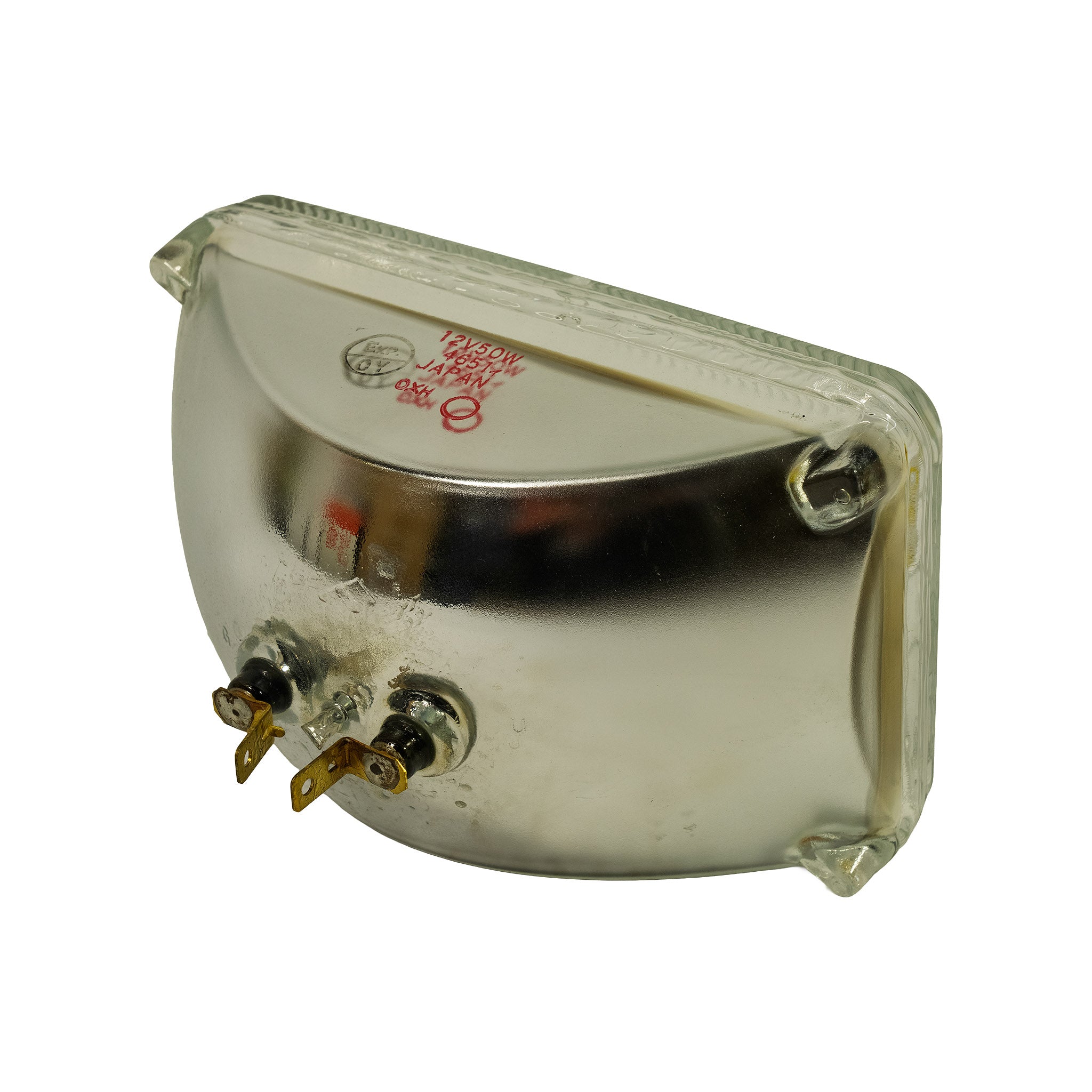

Three-quarter rear view from opposite corner showing second terminal lug side. Stamped markings visible. Glass lens edge shows intact seal all around perimeter. Yellow box partially visible.

Sealed beam lamp - 12V 50W - SB61 - Bosch - NOS

Only 1 left!
Brand Bosch
Part Number SB61
Type Headlight
Condition New Old Stock

Specifications

  • Voltage: 12V
  • Wattage: 50W
  • Dimensions (width x height): 165 x 100 mm
  • Glass dimensions (nominal): 167.9 x 107.5 mm (6.61 x 4.23 in)
  • Maximum overall length (MOL): 4.7 in / 121 mm
  • Filament type: Single filament (high beam only)
  • Connector type: 2-lug spade contacts
  • Lamp type: Type 1A1 rectangular sealed beam

Vehicle Fitment

Hyundai Excel (Hyundai 3-C) — dual rectangular headlamp system
Any vehicle equipped with 4x6 inch (100x165mm) dual rectangular headlamp system requiring a high-beam-only sealed beam (4651 type)

Cross References

Part Numbers Relationship
H4651, 4651, 62-99961 equivalent
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock in original Bosch Australia box. Box shows shelf wear, soiling and minor corner crushing consistent with age. Lamp itself appears unused with clear undamaged lens. Minor surface oxidation on rear reflector metal consistent with long storage. Terminals show slight tarnish. Electrical components should be tested before installation. Please confirm this part number suits your vehicle before purchasing.
