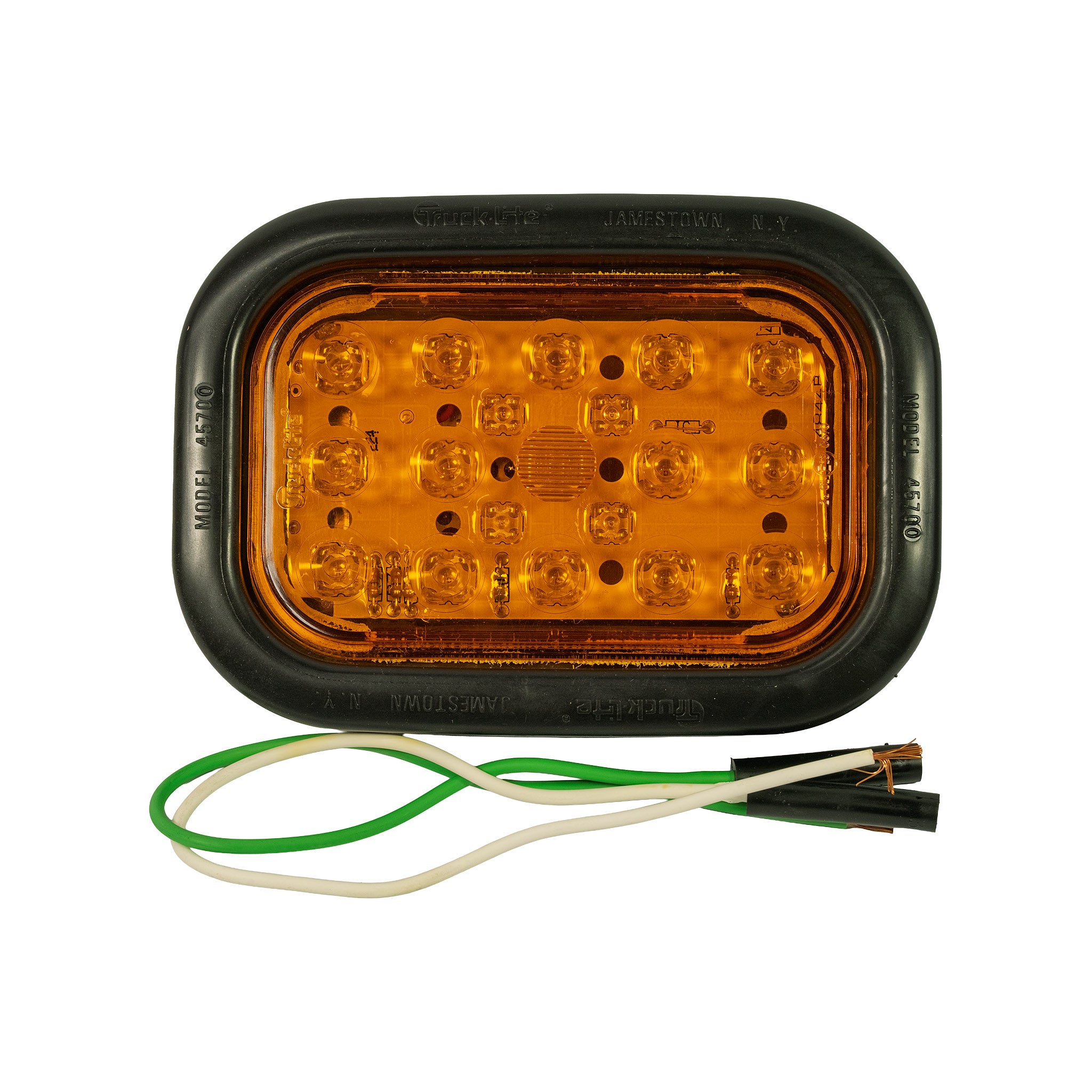

Lamp and grommet face-up, near-straight-on view; amber lens and full LED array clearly visible; 'MODEL 45700' legible on both long sides of grommet; wire leads visible at bottom.
LED Indicator Lamp Kit - Trucks - 94602 - Narva - NOS

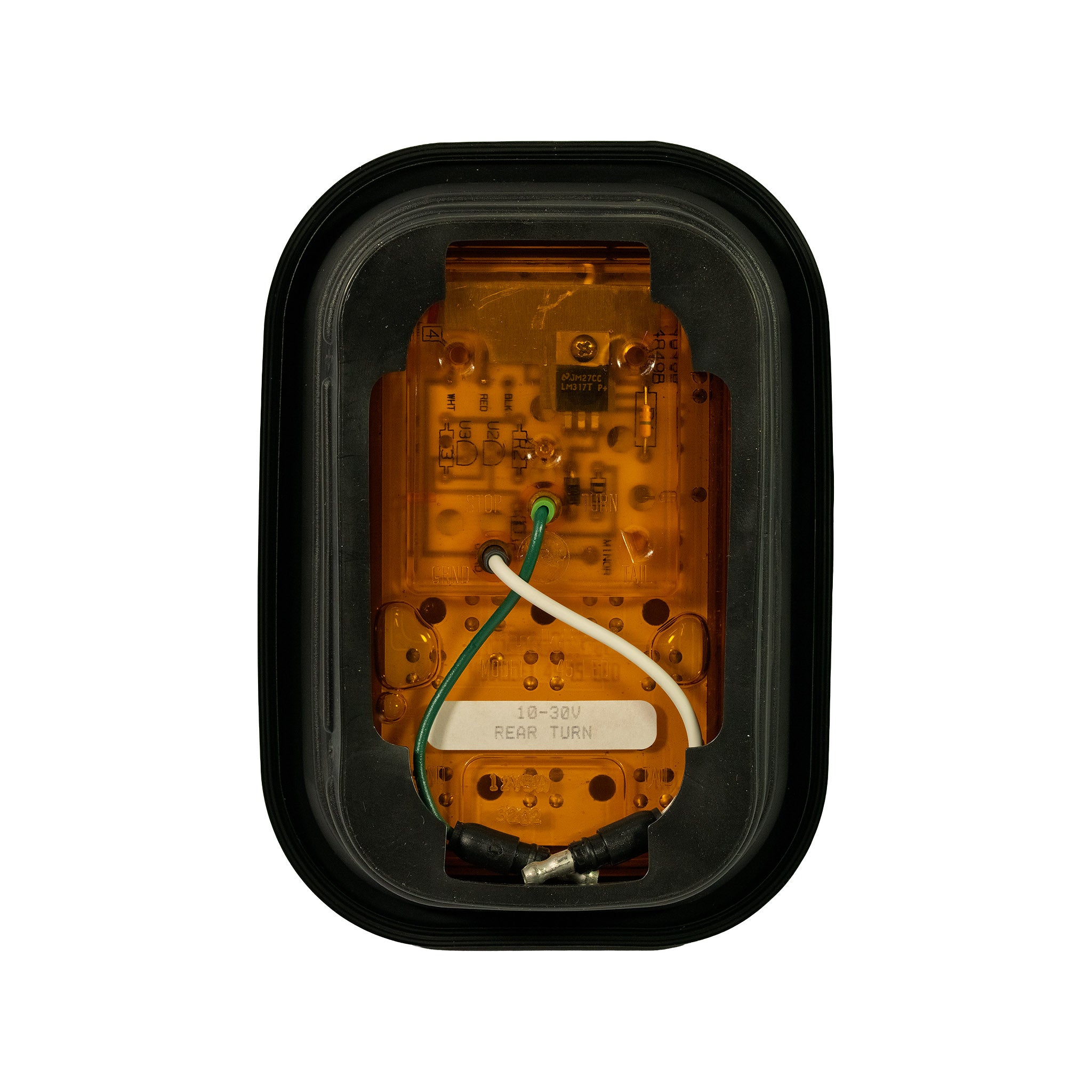

Rear/back face of lamp showing amber-tinted PCB housing with visible circuit board and LM317T IC chip; white sticker reads '10-30V / REAR TURN'; wire colour coding labels (WHT, RED, BLK) printed on PCB; green and white leads visible; grommet back open-frame design.

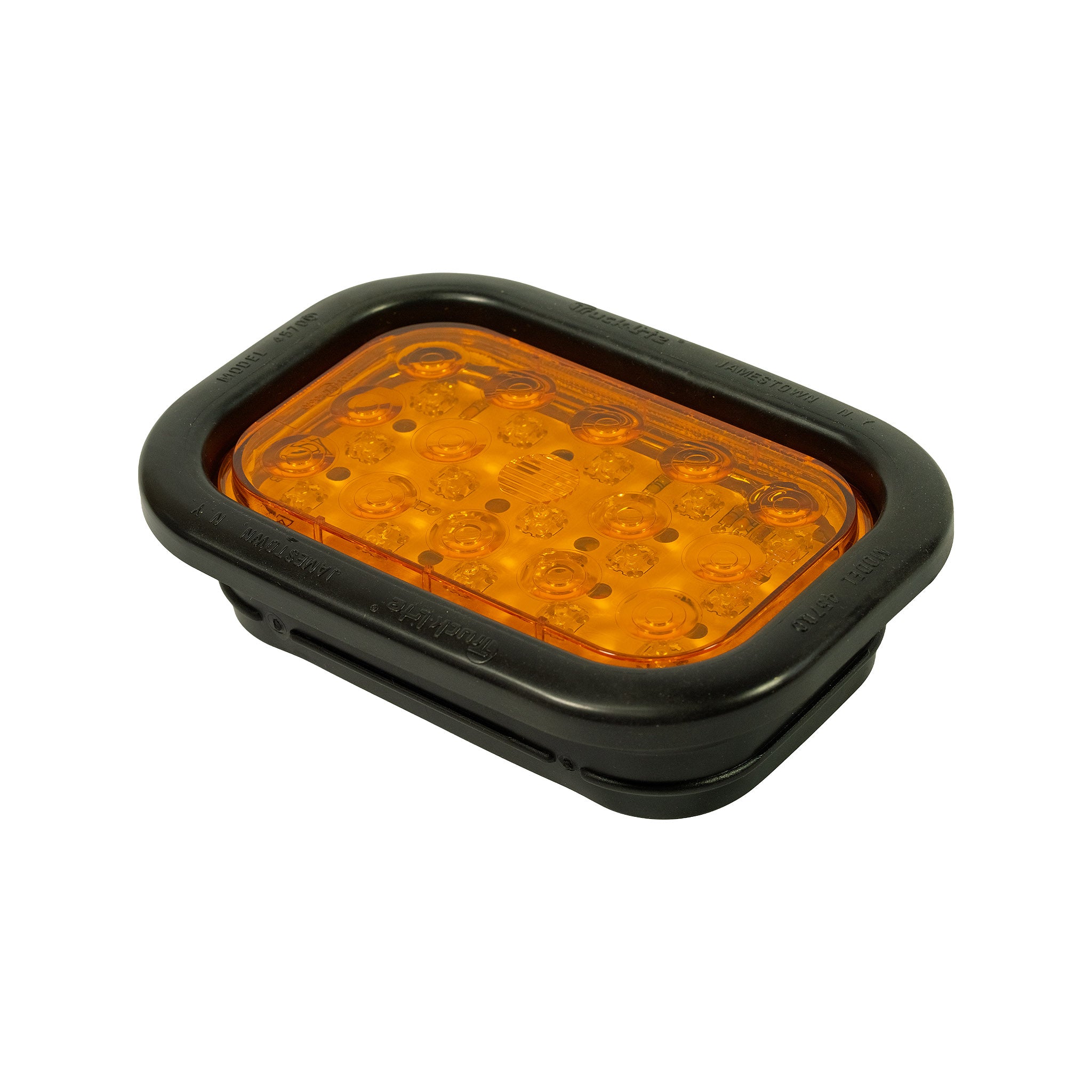

Three-quarter isometric view from front-right showing depth of lamp and grommet assembly; amber lens face and black grommet profile both visible; 'MODEL 45700' readable on grommet side.

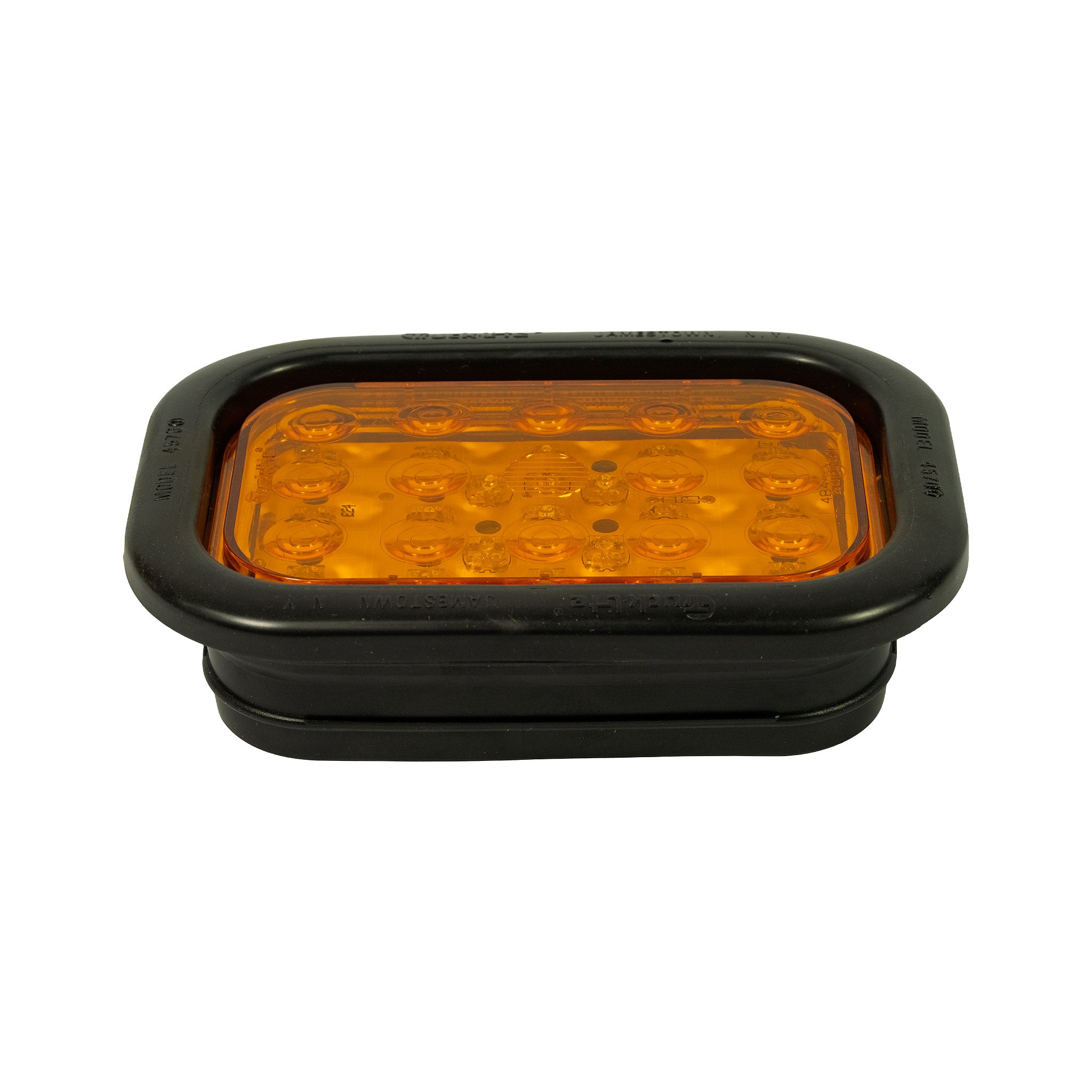

Three-quarter isometric view from front-left; full lamp depth and grommet thickness visible; 'TruckLite / Jamestown' moulding on grommet top edge partially visible.

LED Indicator Lamp Kit - Trucks - 94602 - Narva - NOS

Only 1 left!
Brand Narva
Part Number 94620
Type Tail Light
Condition New Old Stock

Specifications

  • Input voltage range: 10–30V
  • Current draw: 0.28A
  • Lamp dimensions: 160 x 112 mm
  • IP rating: IP66 and IP68
  • Candela rating: 44 cd
  • ADR compliance: ADR 6/00 cat 2a (30895)
  • LED warranty: 5 years
  • Wire function (photo label): WHT, RED, BLK (3-wire: ground, indicator, power)

Vehicle Fitment

Trucks and trailers — universal fitment for 10–30V systems (12V and 24V compatible); widely used by Australian and New Zealand truck and trailer manufacturers

Cross References

Part Numbers Relationship
94600, 94580 equivalent
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock; sealed in original polybag; packaging shows minor shelf wear and slight yellowing consistent with age but intact; lamp appears unused and uninstalled. Electrical components should be tested before installation. Please confirm this part number suits your vehicle before purchasing.
