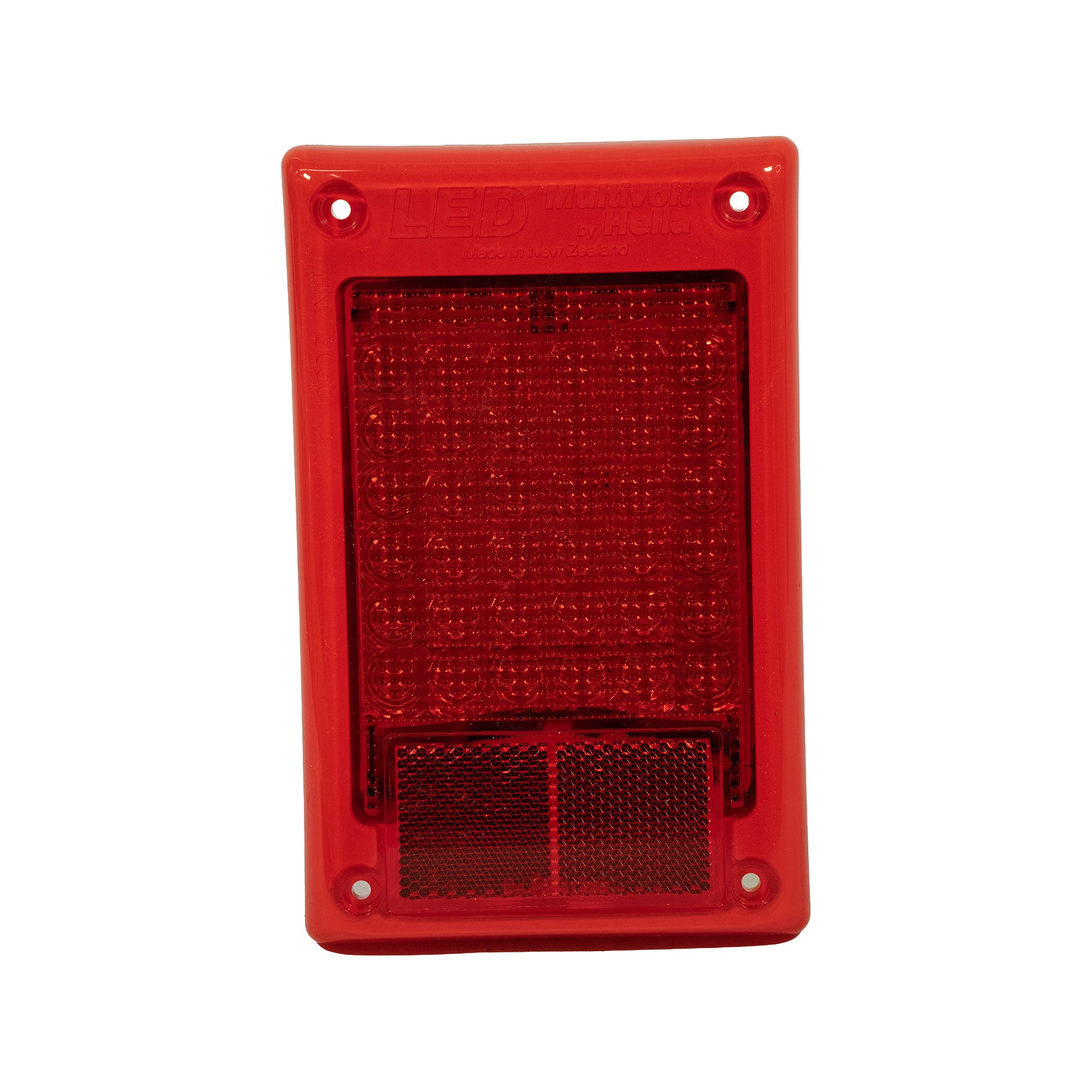

Front face of lamp module showing large LED array with red lens covering upper three-quarters and red retro-reflector section in lower quarter; moulded text 'LED Multivolt by Hella' and 'Made in New Zealand' visible at top
LED Stop/Tail Lamp - Trucks - 2317 - Hella - NOS

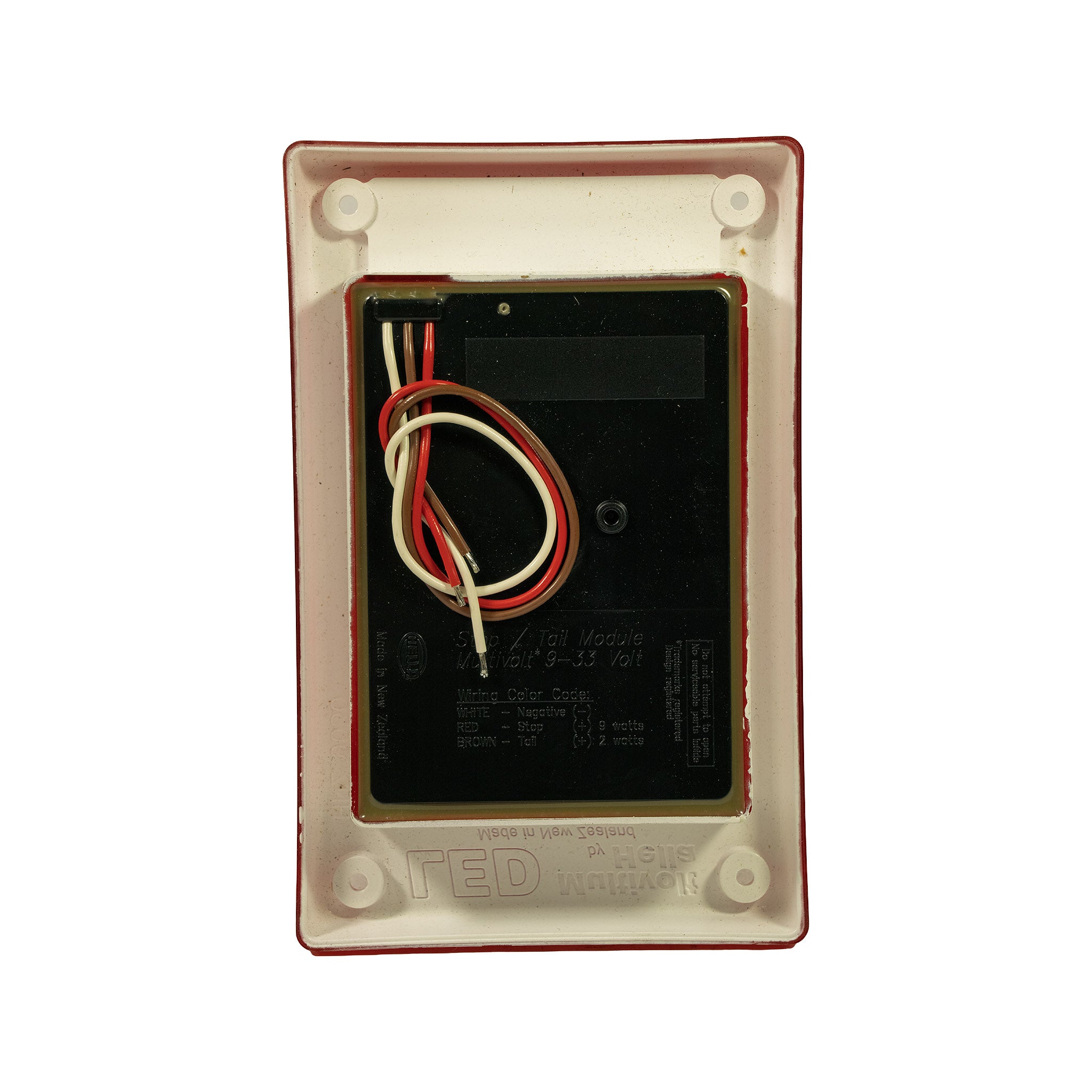

Rear of lamp module: black electronics housing with pre-wired leads (white, red, brown wires), white plastic recess-mount flange with four mounting bosses; moulded label reads 'Stop / Tail Module Multivolt 9-33 Volt' with wiring colour code: White=Negative, Red=Stop 9W, Brown=Tail 2W; 'Made in New Zealand' embossed on base of flange

LED Stop/Tail Lamp - Trucks - 2317 - Hella - NOS

Only 2 left!
Brand Hella
Part Number 2317
Type Tail Light
Condition New Old Stock

Specifications

  • Voltage range: 9–33V DC (Multivolt)
  • Stop power consumption: 9W
  • Tail power consumption: 2W
  • Reflector area: 33 cm²
  • Cable length (pre-wired): 200 mm
  • Transient Voltage Suppressor rating: 5000W TVS
  • ADR compliance: ADR 49/00 (Rear Position/Stop Lamp), ADR 47/00 (Reflex Reflector Red/Rear)

Vehicle Fitment

Trucks and trailers (universal fitment, any make/model) — replaces Jumbo or Designline bulb-type lamp housings

Cross References

Part Numbers Relationship
2TA 959 030-101 superseded
ELH2317, 2317HE equivalent

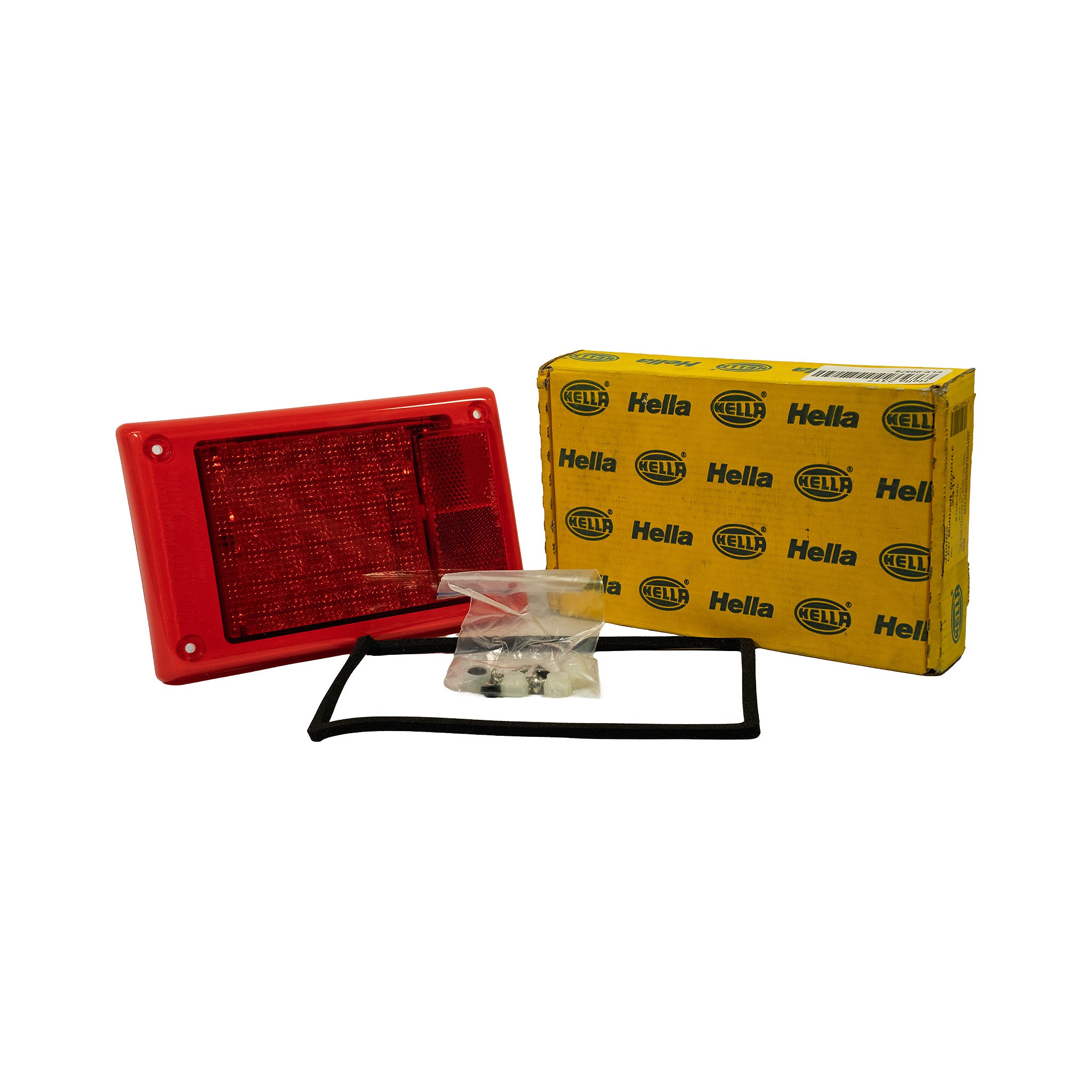

New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock in original Hella retail box; box shows minor shelf wear and scuffing on corners consistent with storage age; part itself appears unused and uninstalled. Electrical components should be tested before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: ELE-00579
