Outer CV Joint - Mazda - MZ009 - HNT - NOS

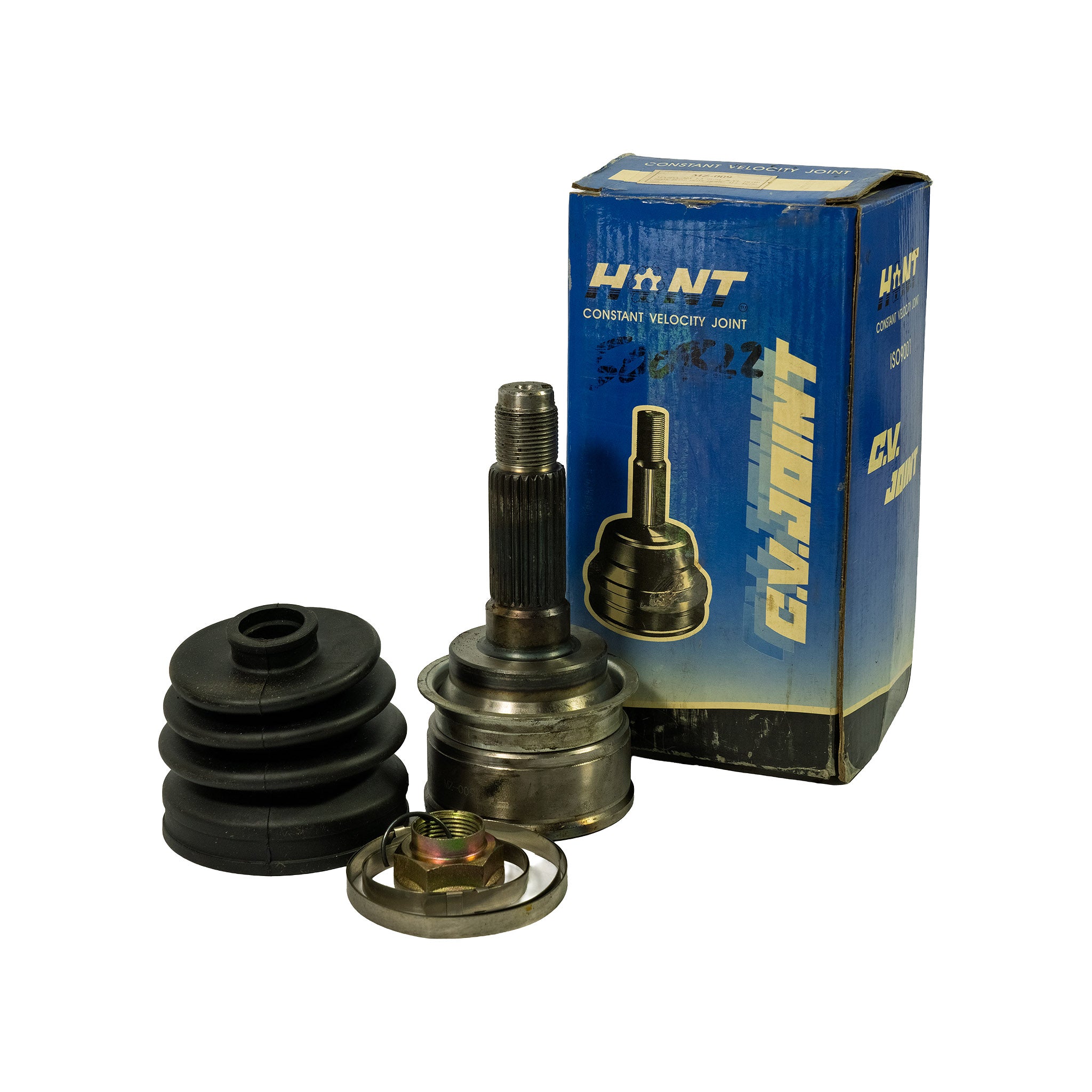

Kit components displayed in front of HONT blue box. Box front panel visible with 'HONT CONSTANT VELOCITY JOINT' branding and 'C.V. JOINT' in large text. Handwritten/stamped number '500822' visible on box surface. ISO9001 certification text visible on box spine. Joint, boot, clamp ring, and nut laid out at front.

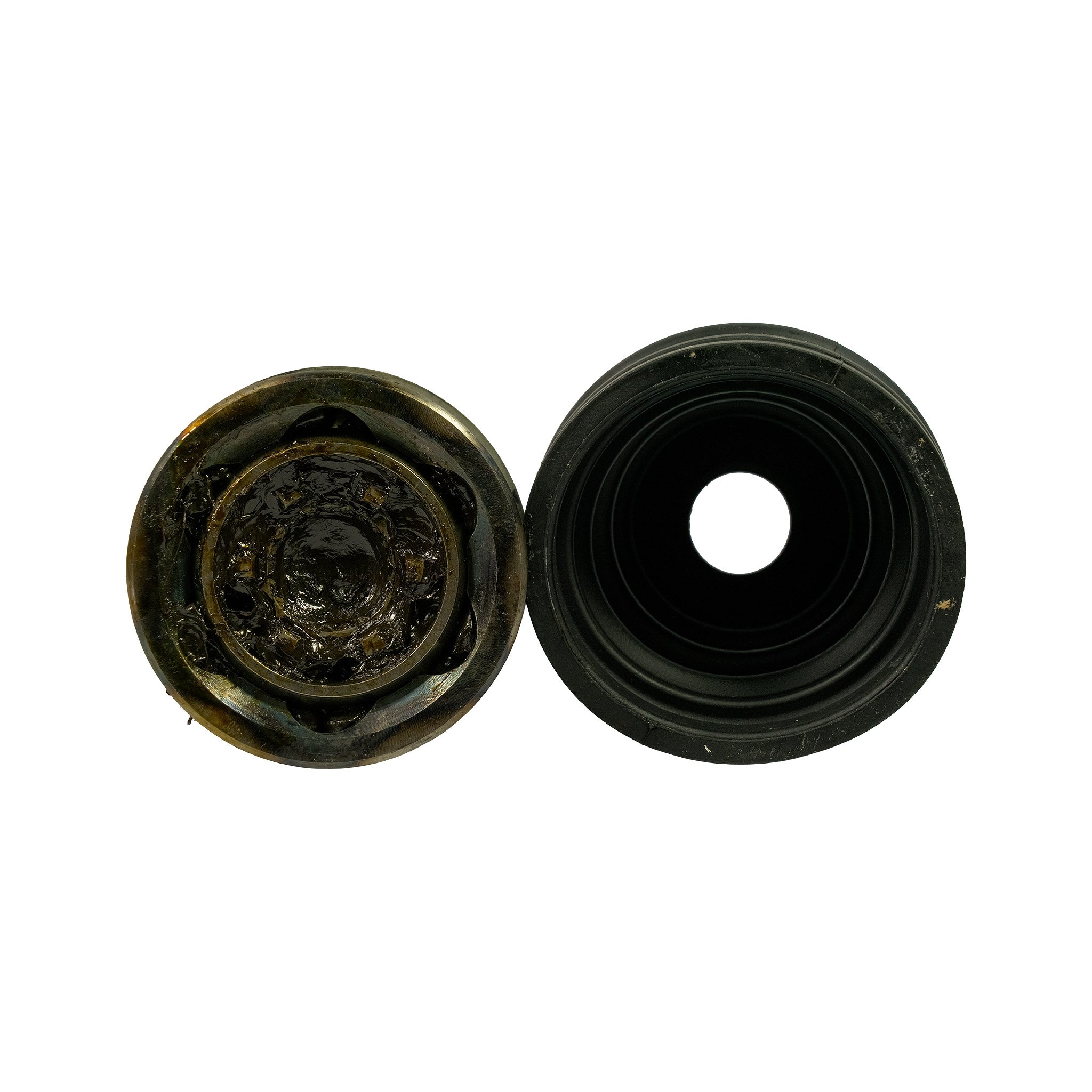

Top-down view of two components side by side: left is the CV joint housing open face showing Rzeppa ball cage packed with dark factory grease; right is the interior of the rubber boot showing large-bore opening. Grease appears wet and intact.

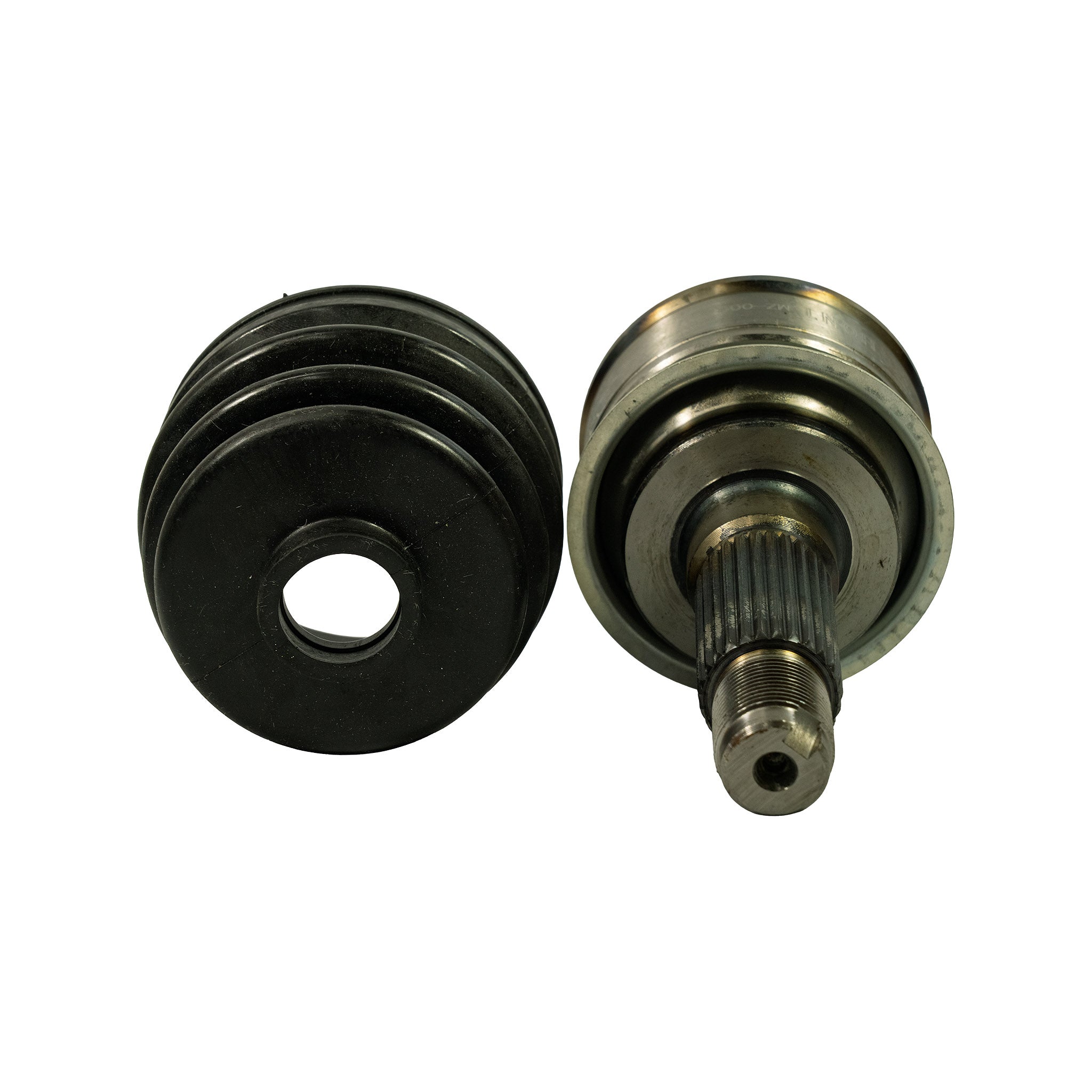

Side profile of CV joint (stub shaft pointing down) alongside flat-flanged rubber boot. Shows splined stub shaft with metric thread and centre pin hole at tip. Joint body displays two-piece outer housing with stepped flange. Surface has light age oxidation on housing outer diameter.

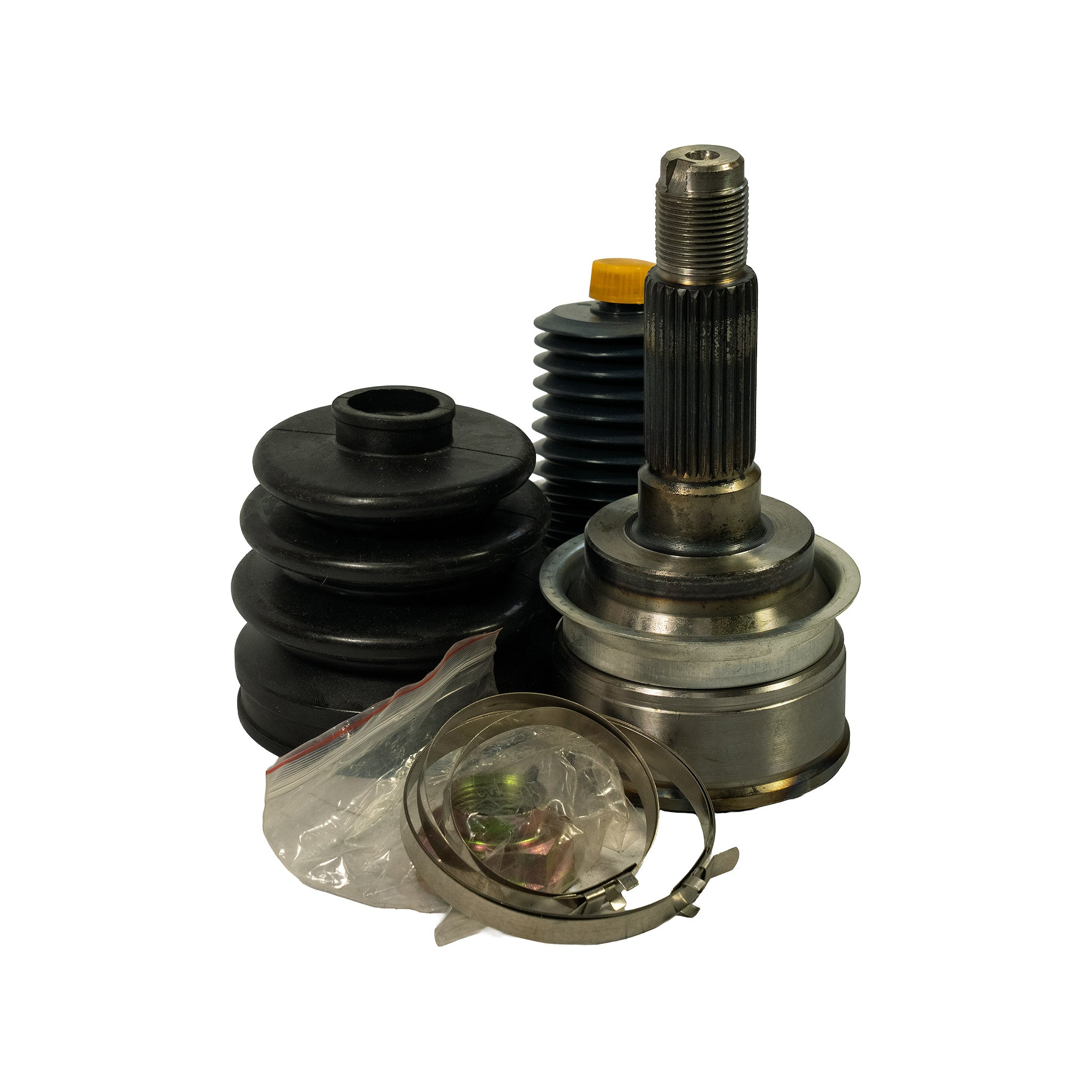

Full kit with box removed: CV joint assembly, large accordion rubber boot, wire/worm boot clamp set in clear polybag, castellated hub nut also in polybag. Outer CV joint with stub shaft up, yellow protective cap on thread tip visible. All hardware in sealed bag.

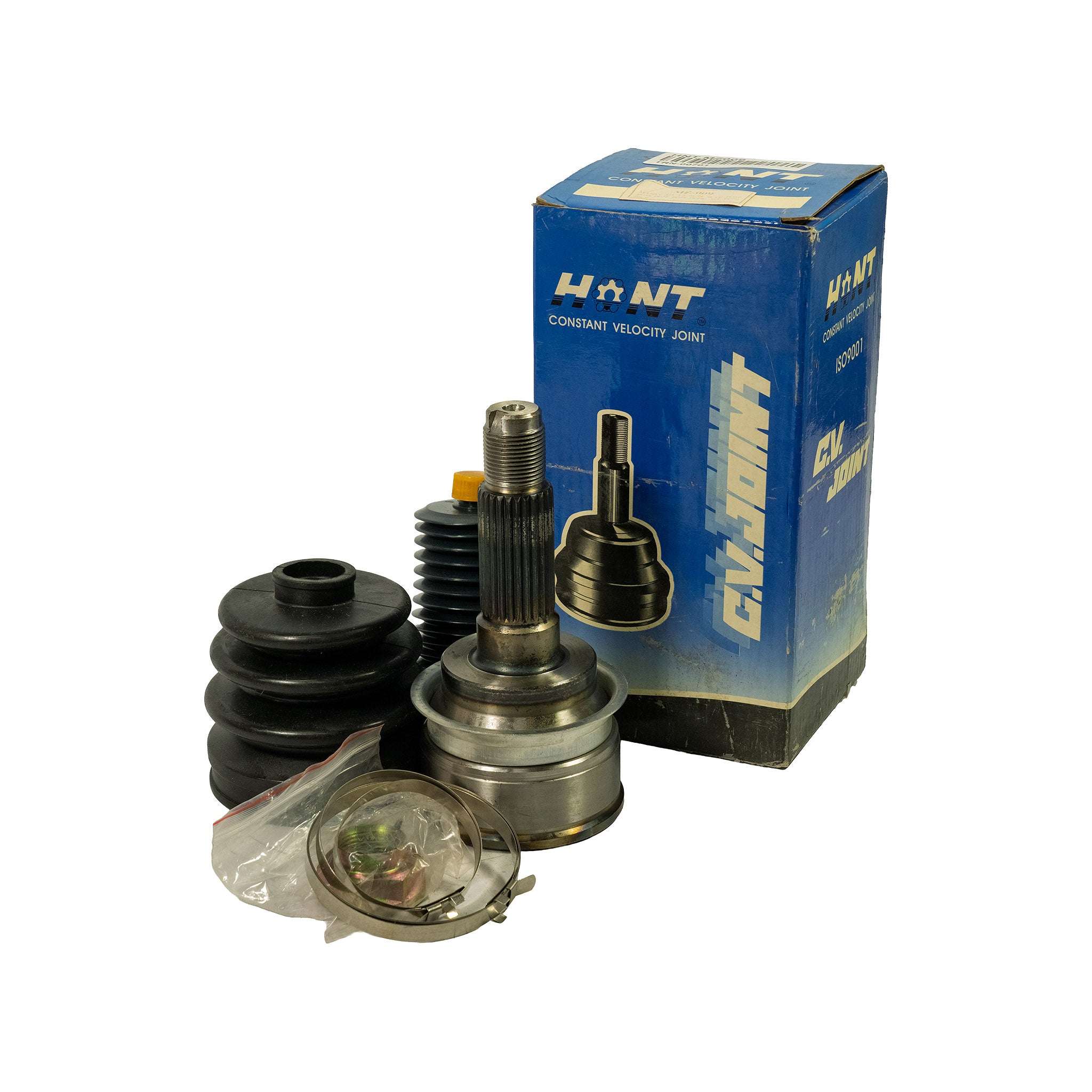

Kit components laid in front of HONT blue box, three-quarter view. Box spine shows ISO9001 marking and 'HNT CONSTANT VELOCITY JOINT'. Kit includes CV joint assembly (stub shaft with yellow thread protector cap), large rubber boot, and hardware polybag containing clamps and nut.

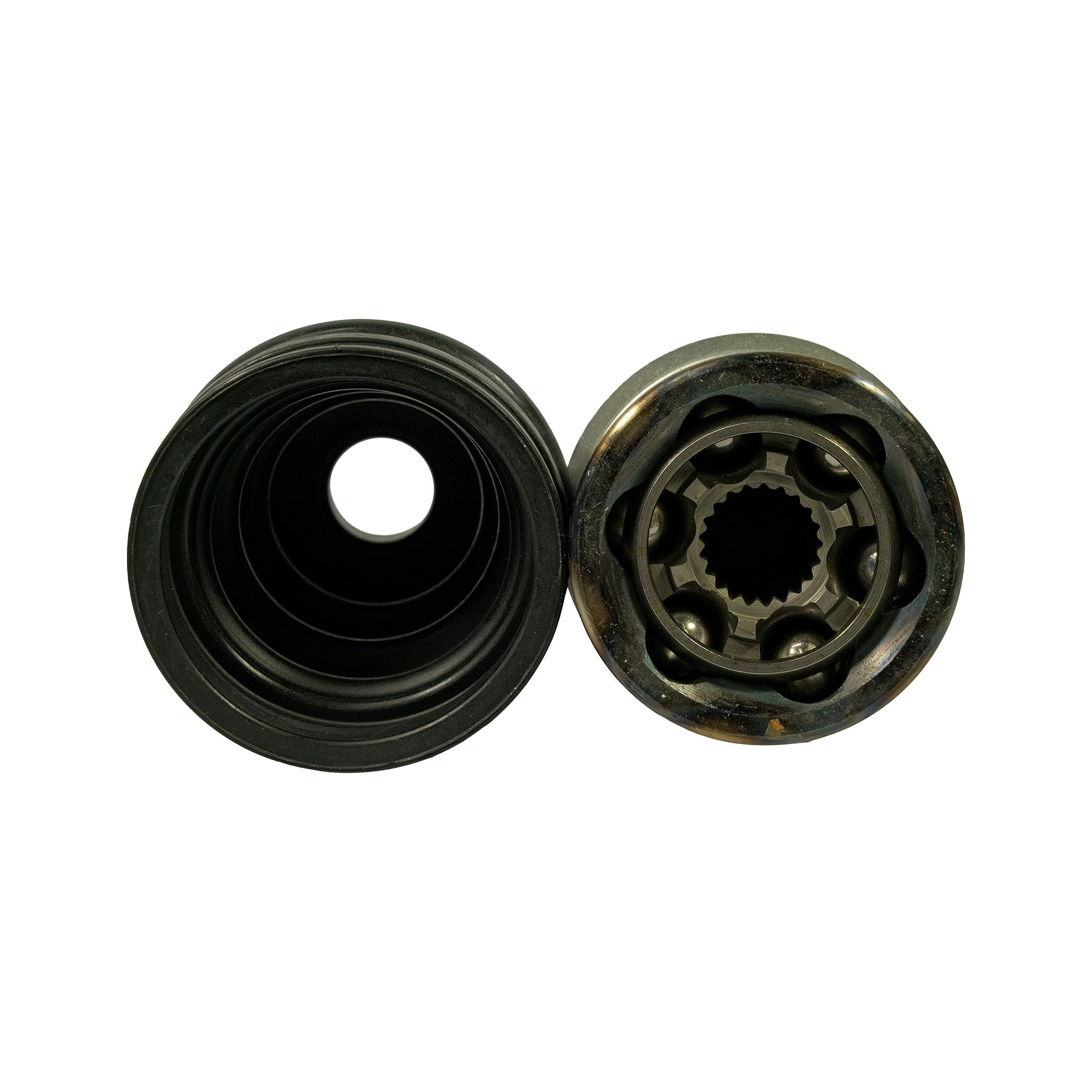

Top-down view of two items: left is the interior of the rubber boot (large circular bore); right is the open face of the CV joint housing showing Rzeppa 6-ball cage and inner race. Inner splines of inner race visible. Factory grease absent in this shot — clean cage visible.

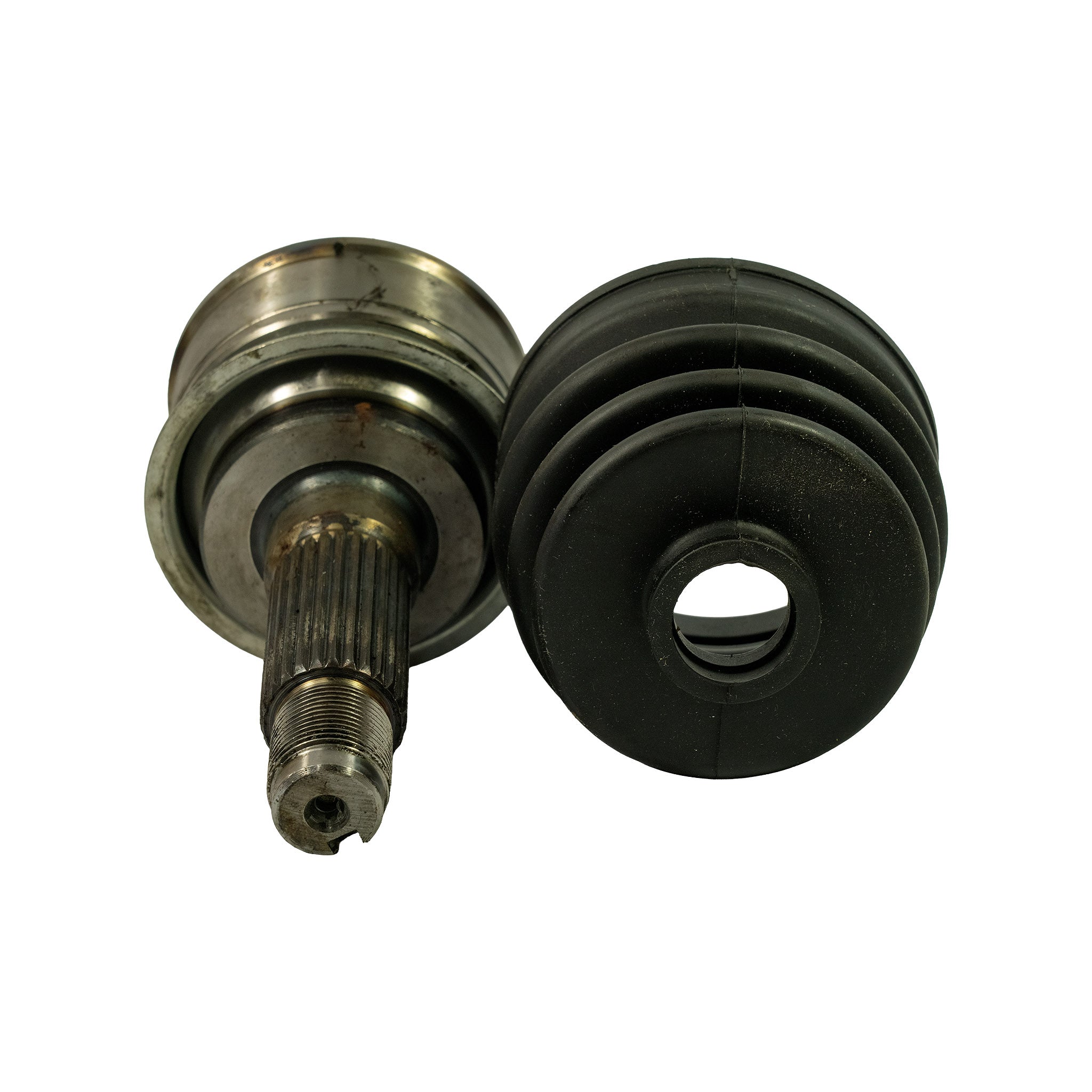

Side-by-side: rubber boot (flange face toward camera, 3-convolute accordion body) and CV joint assembly positioned with stub shaft pointing down and threaded tip visible. Shows splined stub shaft profile clearly. Housing has polished outer race with light shelf-age discolouration.

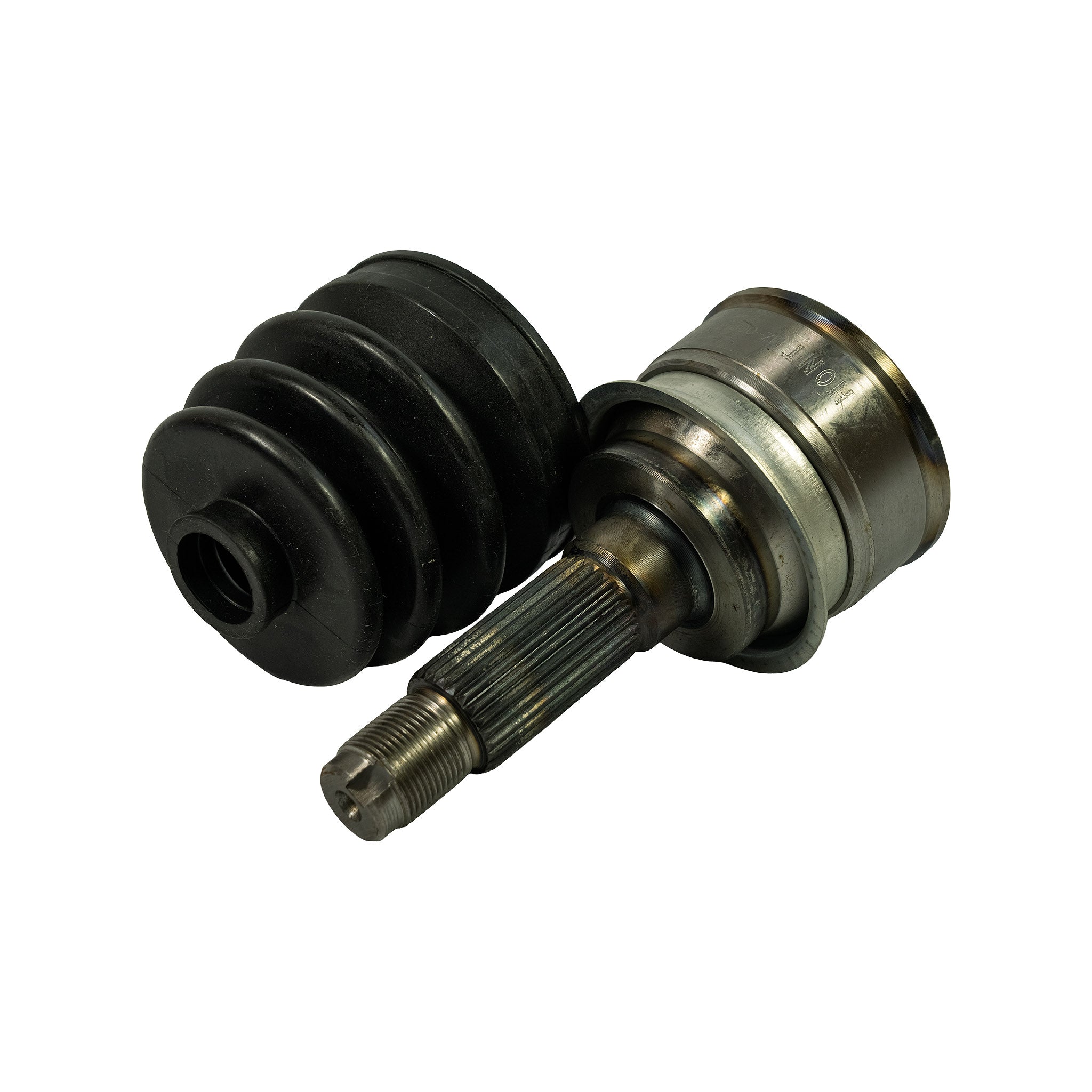

CV joint with boot slid onto stub shaft, both at oblique angle. Housing outer race engraving partially visible — faint characters on the housing flange band. Stub shaft and thread detail clear at bottom. Boot 3-convolute profile shown from side.

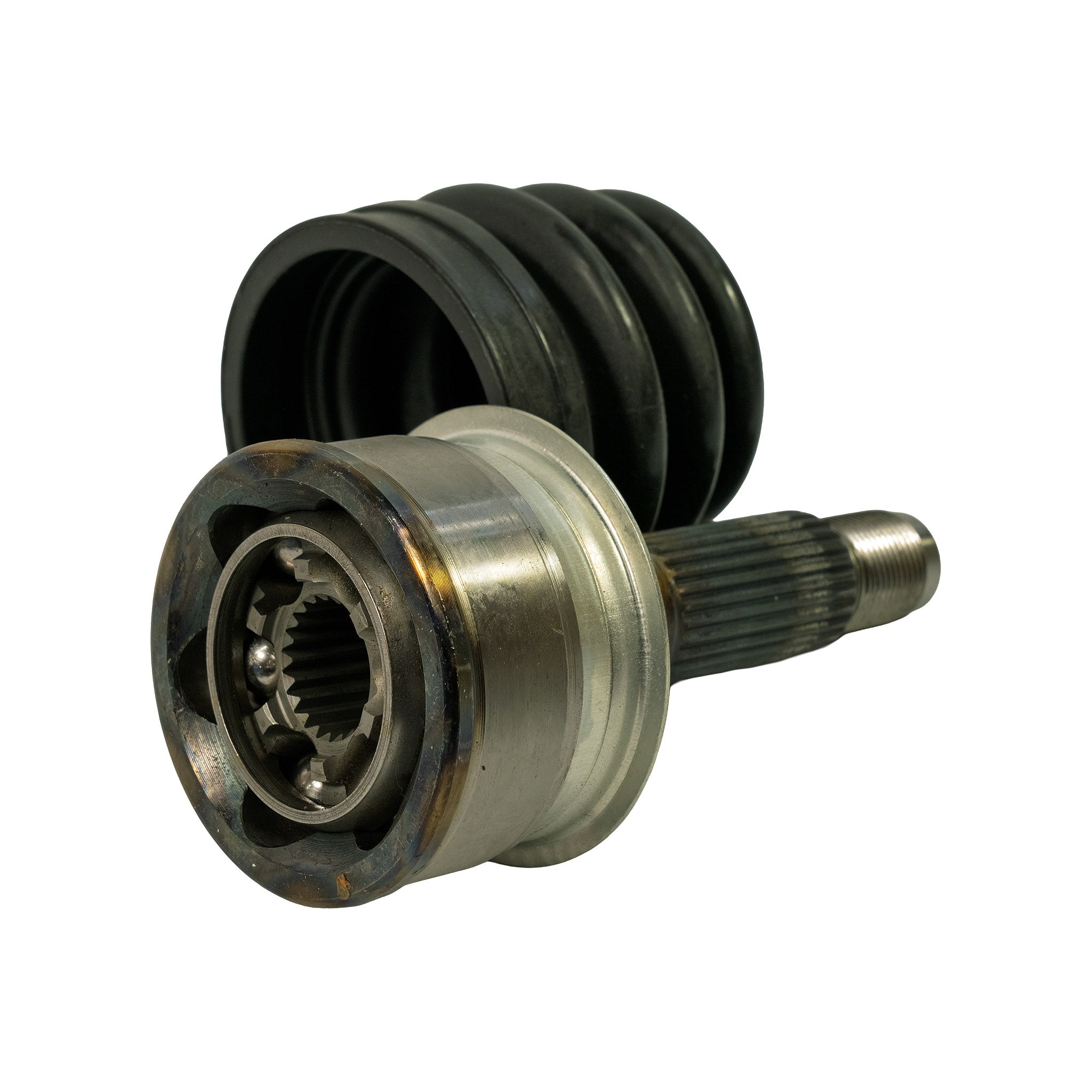

Front-face close-up of CV joint housing with boot partially on stub shaft behind. Rzeppa inner race, 6-ball cage, and outer race groove detail clearly visible. Inner race spline bore visible at centre. No brand stamp or part number visible on metal components.

Outer CV Joint - Mazda - MZ009 - HNT - NOS

Only 1 left!
Brand HNT
Part Number MZ009
Type CV Joint
Condition New Old Stock

Specifications

  • Ball count: 6 balls
  • Joint type: Rzeppa (outer)
  • Stub shaft spline count: Approximately 23–25 splines (estimated from photo)
  • Thread type: Metric threaded stub shaft tip with centre hole (cotter pin type)

Vehicle Fitment

Mazda 323 (BG) 1.3 4cyl 1991–1994 — models BG3P, BG3S
Mazda 323 (BG) BG5P DOHC 1989 onwards (BG70)
New Old Stock (NOS) — Unused part in original condition. Packaging may show age-related shelf wear. New old stock. Housing shows light shelf-age surface oxidation and discolouration on outer diameter, consistent with decades of storage. Factory grease intact and wet inside joint. Rubber boot supple with no cracks. Box has significant external wear — edge dents, corner damage, surface scuffing and tape repairs — but is intact. All hardware appears unused. We recommend the item is inspected before installation. Please confirm this part number suits your vehicle before purchasing.

SKU: TRN-00701
